Microscopy > Microscopes > Inverted microscopes > ZEISS > Primovert > ZEISS Inverted microscope Primovert bino Ph1, 40x, 100x, Kond 0.3
Product no.: 61794

Inverted microscope Primovert bino Ph1, 40x, 100x, Kond 0.3

$ 3,550.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

Examine and evaluate your living cells – quickly and easily

Primovert is specially designed for the examination of cell cultures. This inverted microscope combines efficiency with high optical performance. Primovert is compact and can be used directly in your cleanroom workbench. Quickly and efficiently examine unstained cells in phase contrast and GFP-labelled cells in fluorescence contrast. The inverted microscope is perfect for cancer and gene research. With Primovert HDcam and the Labscope imaging app for the iPad, you can observe and discuss cells with your colleagues regardless of the sterile workplace.

Highlights:

  • Switch from phase contrast to fluorescence contrast when examining unstained and GFP-labelled cells.
  • The inverted microscope can be easily integrated into your clean bench, allowing you to work directly in the sterile environment.
  • Your Primovert is ready to use immediately. Reactivate the microscope in standby mode by pressing the button on the table.
  • Primovert automatically switches to walk-away mode after 15 minutes of inactivity. This saves energy and extends the service life of the light source.
  • Primovert HDcam has an integrated camera. With your iPad and the free Labscope imaging app, you can discuss the monitor image with your team. Take microscope images, create and comment on reports, and share them conveniently via Wi-Fi.

Specification:

  • Binocular tube (45°/20) for transmitted light bright field and phase contrast,
  • 4x bright field objective lens turret.
  • Fixed microscope stage 200x239mm, with metal table insert.
  • Two eyepieces 10x/20 Br. Foc.
  • Transmitted light illumination halogen lamp 6V 30E from above.
  • Diopter and Allen key for adjusting the phase contrast.
  • External power supply 100...240VAC/50...60Hz with country-specific adaptors.
  • dust cover
  • Plan achromatic objective 4x/0.10 for Primo (a=12.0 mm)
  • Plan achromatic lens 10x/0.25 Ph1 for Primo (a=4.4mm)
  • LD condenser 0.3 (a=72 mm)
  • Slider Ph, 2-fold for mounting ring apertures Ph or neutral filters, mounted d=43 mm
  • Ring aperture Ph 1/0.3

Specifications

Optics


Image scale
40-100
Condensor
0.3 w.D. 72 mm
Lens type
Plan, achromatic (infinity corrected)
Eyepiece
PL 10x/20
Power supply
100-240 V
Magnification
40-100
Lighting
Transmitted light
Objective 1
4x/0,10
Objective 2
10x/0,25 Ph1
infinity corrected
yes
Lamp type
LED (6V/30W)

Capacity


Brightness control
adjustable
Temperature of color (K)
7000
Transmitted light
yes
Dark field
no
Phase contrast
yes
brightfield
yes
Contrast methods
Phase contrast

Mechanics


Type of build
binocular
Viewing posture (°)
45° angled eyepiece
Focusing
Coarse and fine movement
Specimen stage
Specimen stage
Revolver
4
Working distance (mm)
72

Special features


Rechargeable battery operation
-
Built-in digital camera
-
Filter holder
yes
Luminous field diaphragm
yes
Dust cover bag
yes

General


Colour
white / blue
Weight (g)
11000
Width (mm)
261
Length (mm)
550
Height (mm)
494
Series
Primovert

Field of application


Medicine
yes
Education
-

Area of application


Odontotechnics
-
University
yes
Naturopathy
yes

Miscellaneous


supplier product number
491206-0001-000

Product safety

Manufacturer: Carl Zeiss Microscopy Deutschland GmbH, Carl-Zeiss-Strasse 22, 73447 Oberkochen, DE, https://www.micro-shop.zeiss.com
Responsible person: Carl Zeiss Microscopy Deutschland GmbH, Carl-Zeiss-Strasse 22, 73447 Oberkochen, DE, [email protected]

Recommended accessories

Microscopy (1)

Bresser Immersion oil, 5ml, refractive index=1.515

$ 18.90*
Baseprice: $ 3,780.00/L
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

ZEISS Inverted microscope Primovert bino Ph1, 40x, 100x, Kond 0.3

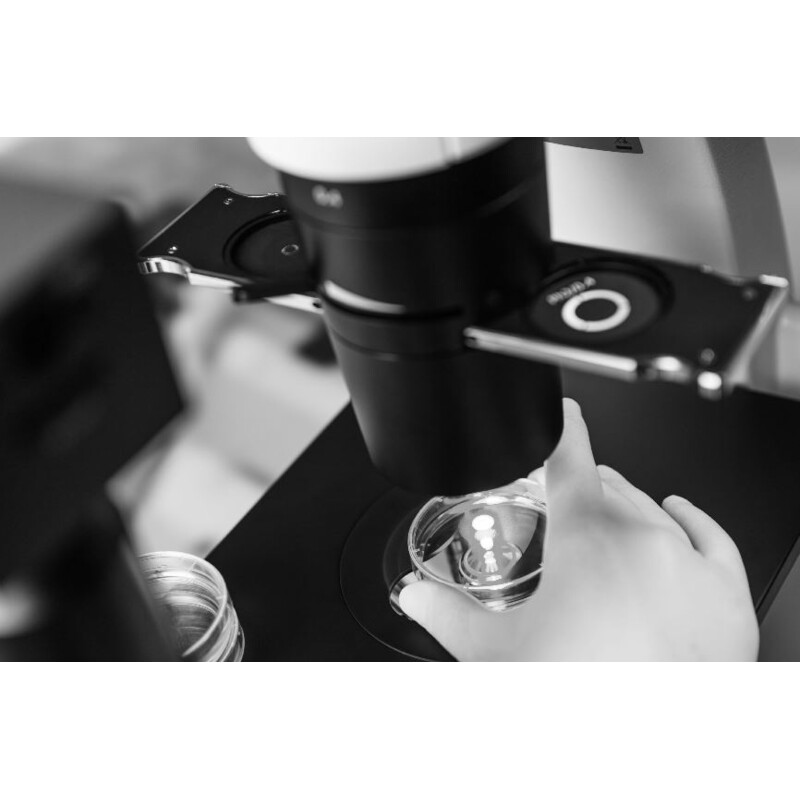

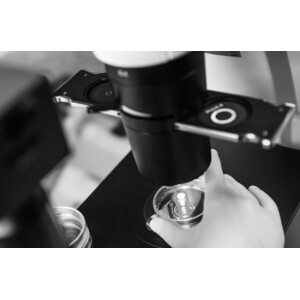

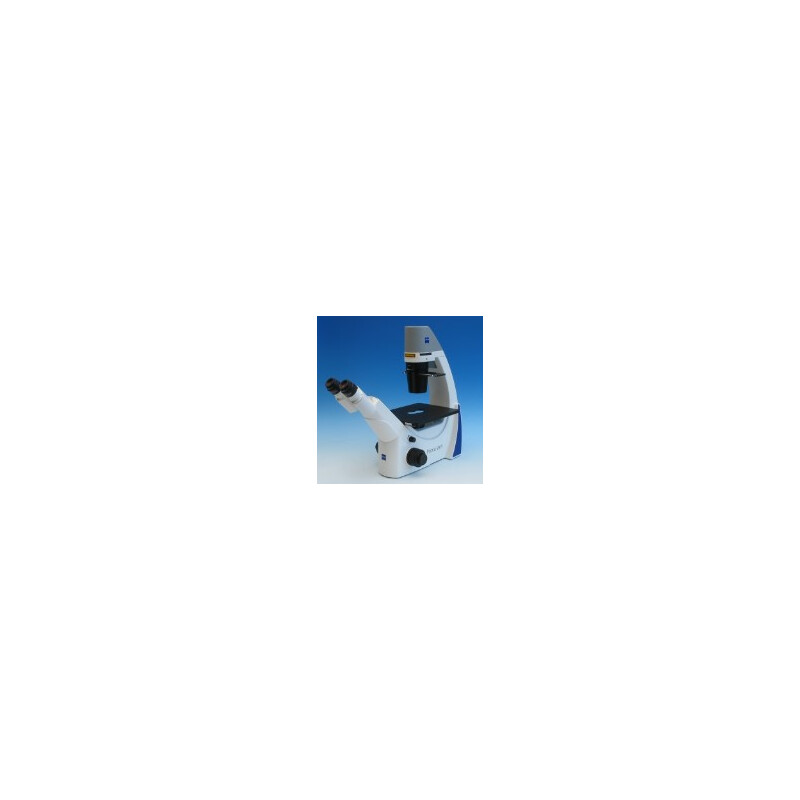

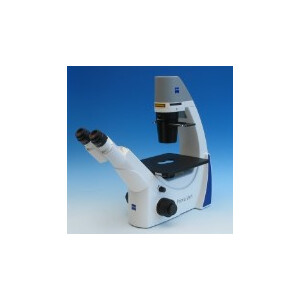

Primovert
ZEISS Inverted microscope Primovert bino Ph1, 40x, 100x, Kond 0.3
Hela, 20x
ZEISS Inverted microscope Primovert bino Ph1, 40x, 100x, Kond 0.3
U2O2, GFP, 20x
ZEISS Inverted microscope Primovert bino Ph1, 40x, 100x, Kond 0.3
Micrasterias radiata, PH, 40x
