Astronomia > Telescopi > Omegon > Pro Astrograph > Omegon Telescopio Pro Astrograph Carbon 203/800 OTA
Prodotto n.: 85247

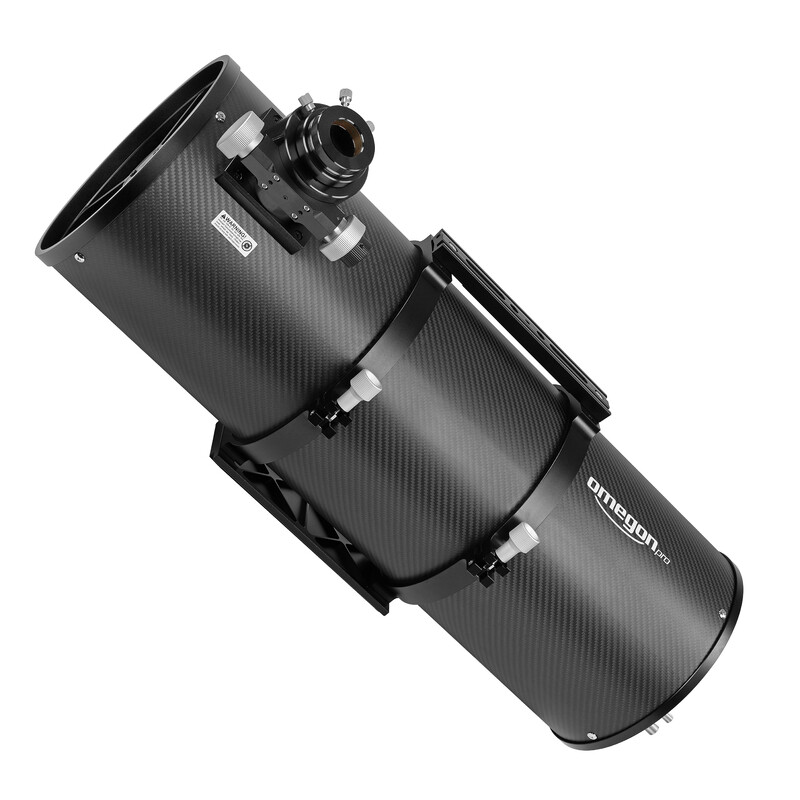

Telescopio Pro Astrograph Carbon 203/800 OTA

$ 1.299,00 IVA incl. più spese di spedizione
troppo caro?
a lungo termine
Disponibile su richiesta + Tempo di trasporto

Se sei interessato al prodotto, contatta servizio:

contatta servizio

Descrizione prodotto

Per saperne di più sulla serie Pro Astrograph...

Purtroppo, questa descrizione non è stato tradotto in italiano, in modo da trovare a questo punto una descrizione inglese.

When material and mechanics work together: The astrograph for advanced users

An astrograph for anyone who wants to work precisely. The Pro Carbon combines a 2" eyepiece extension with 50mm of adjustment, a stable carbon fiber tube, and CNC-machined tube clamps made of aluminum. This means: exact focus, constant imaging, and mechanical stability, even with long exposure times. For astrophotographers who value reliable technology.

Advantages at a glance

  • Precise 2" R&P focuser with 50 mm of adjustment: For pinpoint focusing, so you keep every detail in focus. Even with long focal lengths and heavy camera setups.
  • Carbon fiber tube with extremely low expansion: Ensures a stable focus position and temperature compensation.
  • M56 threaded connection for your camera: Offers a backlash-free and firm connection.
  • CNC-machined tube clamps and prism rail: Guarantee maximum stability with minimal flex. Your setup remains precisely aligned even during long exposure series.
  • Compact design with optimized balance: Also suitable for smaller mounts and enables quick setup. Ideal for mobile applications.
  • Three variants for different sensor formats: Choose the right focal length for your camera, whether APS-C, full frame, or planetary camera.
  • Ideal for ambitious beginners and experienced astrophotographers who value exceptional performance.

The right size for every application

Pro Carbon Astrograph 114/456: The ideal solution for mobile setups. Weighing less than 3 kg, this astrograph is particularly light and compact. Perfect for travel, use on lighter mounts, or spontaneously planned sessions under clear skies.

Pro Carbon Astrograph 154/600: Optimal for large-area deep-sky images. The medium aperture offers a good balance of resolution and image field. Ideal for nebulae, galaxy groups, and extended star fields.

Pro Carbon Astrograph 203/800: For those who want more. The large astrograph delivers high detail, even with small and faint objects. The ideal choice for ambitious astrophotographers with a focus on fine structures and image depth.

Precise focuser for exact adjustment

The 2" Rack & Pinion eyepiece extension with 50 mm of adjustment works without backlash and securely supports heavy equipment. The fine mechanics of the rack and pinion allow the focus to be set with pinpoint accuracy. The integrated M56 connection also ensures a stable, precisely centered camera mounting without adapter play.

Stable focus even with temperature fluctuations

The carbon fiber tube minimizes longitudinal expansion, even with significant temperature changes during the night. This keeps the focus constant, and you don't have to readjust. Especially with long exposures or automated shooting sequences, this is a crucial advantage for consistently sharp images.

Main mirror with highly reflective coating

Every percentage counts! With a reflectivity of 94%, the light yield is significantly higher than that of normal telescope mirrors. This means: Even a few percent more light makes a decisive difference in long exposures and can determine the imaging of faint deep-sky objects.

CNC technology for maximum rigidity (203 and 154 only)

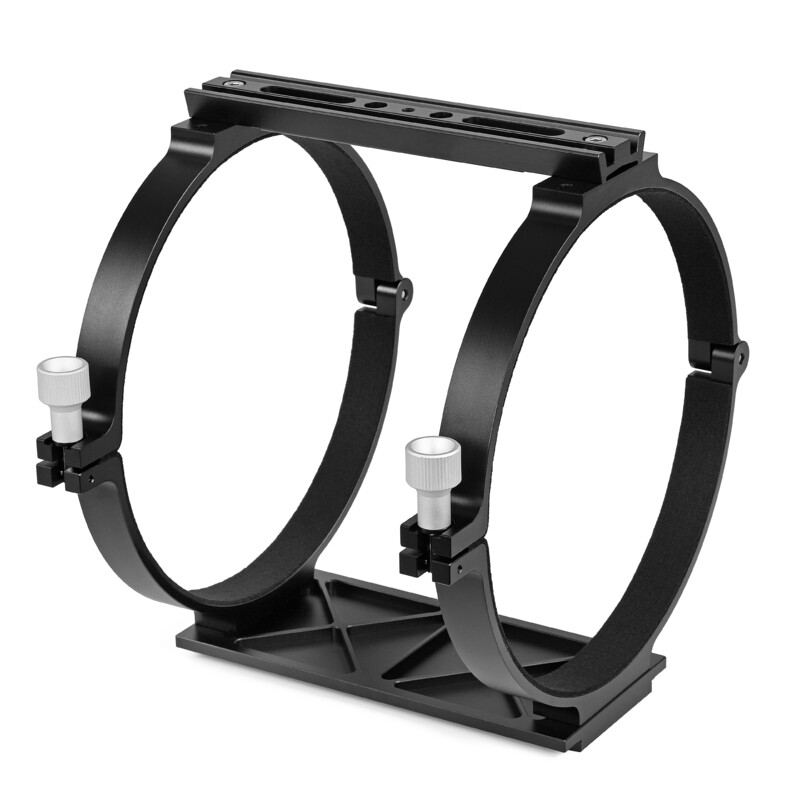

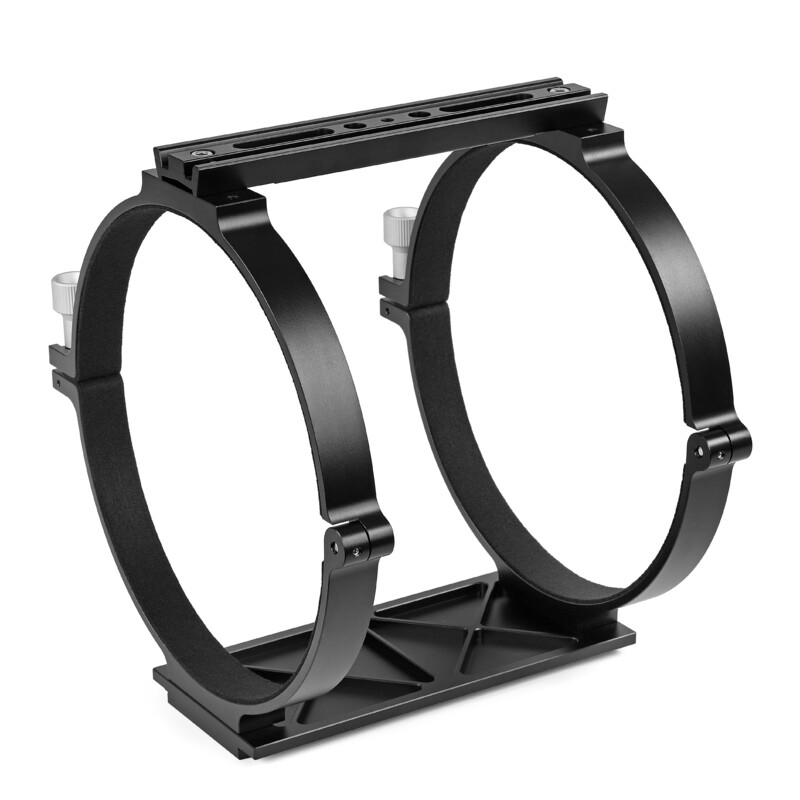

Tube clamps and prism rail are completely CNC-machined. The result: a stable hold, even with longer telescope focal lengths and heavy accessory weight. This keeps your image section exactly in place. A real plus for long exposures and mosaic images.

Compact design, big impact

Despite its robust construction, the Pro Carbon Astrograph remains compact and portable. The short design relieves the mount, improves balance, and saves space during transport. Whether in mobile use or as a permanently installed system: This telescope integrates flexibly into your equipment.

Also good to know:

  • Parabolic mirror design
  • Center marking
  • Adjustment screws
  • BK-7 glass
  • Collimation screws, even on the smallest model

Scope of delivery

  • Pro Carbon Astrograph (depending on selected size)

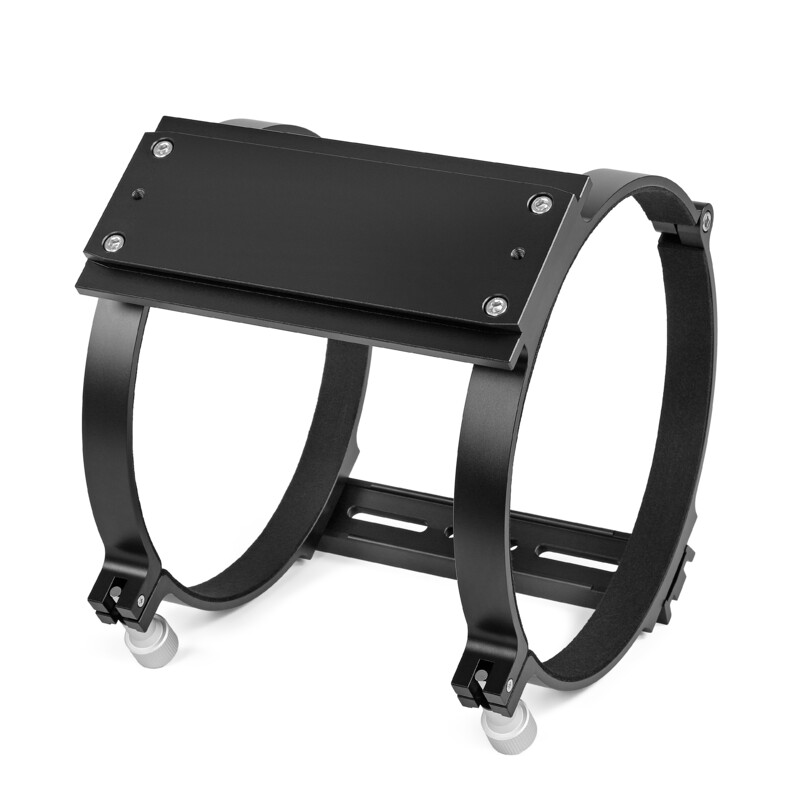

  • CNC-machined tube clamps (for 154 and 203mm models)
  • Prism rail in GP/EQ5 format (for 114mm, permanently adapted rail)
  • Prism rail in Losmandy format (for 154 and 203mm models)
  • Dust protection cover
  • Finder base (compatible with Vixen style)

Specifiche

Ottica


Tipo
Riflettore
Tecnica di fabbricazione
Newton
Apertura (mm)
203
Lunghezza focale (mm)
800
Rapporto d'apertura (f/)
4
Potere di risoluzione
0,58
Valore limite (mag)
13,3
Capacità di raccolta della luce
820
Max. ingrandimento utile
400
Peso del tubo (kg)
7.5
Materiale del tubo
Carbon
Lunghezza del tubo (mm)
697
Rivestimento
Alluminio e diossido di silicone
Diametro del tubo (mm)
235
Struttura del tubo
Tubo completo

Riflettore


Tecnica di fabbricazione dello specchio primario
parabolico
Ostruzione dello specchio secondario
35
Diametro dello specchio secondario (mm)
70
Ventilazione dello specchio principale
no
Materiale dello specchio primario
BK7
Capacità riflettente
94

Focheggiatore


Tecnica di fabbricazione
Cremagliera
Connessione (lato oculare)
2
Demoltiplicazione
movimento micrometrico 1:10
Filettatura di fissaggio (lato camera)
M56
Intervallo di regolazione (mm)
50
Girevole
Undefiniert
Morsetto ad anello
si

Montatura


Tecnica di fabbricazione
OTA
Tipo di montatura
senza montatura
Sistema di controllo GoTo
no

Accessori inclusi


Prolunghe
no
Anelli di sostegno
Adattatore per oculare
1,25" & 2"
Slitta a coda di rondine
Losmandy-Style

Generale


Serie
Pro Astrograph
Peso totale (kg)
7.5
Colore
nero
Nome della variante
203/800 Carbon
Larghezza (mm)
290
Altezza (mm)
350
Lunghezza (mm)
700

Campi di utilizzo


Luna e pianeti
si
Nebulose e Galassie
si
Osservazione della natura
no
Astrofotografia
si
Sole
non consigliato (solo con un filtro solare appropriato)

Raccomandato per ...


Principianti
no
Esperto
si
Osservatori
no

Sicurezza del prodotto

Produttore: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, www.nimax.de

Accessori raccomandati

Servizio assistenza in officina (1)

Astroshop Collimazione/regolazione Newtoniano 8"-12"

$ 85,00*
Pubblicazioni (3)
Carta Stellare

Omegon Carta Stellare Planisfero

$ 14,90*
Outdoor (2)
Lampada frontale

Omegon Pila frontale a LED

$ 13,90*
Astronomia > Accessori Telescopi (38)

Omegon Correttore di coma Pro per astrografo

$ 119,00*
Astronomia > Oculari (15)

Omegon Valigetta per oculari (non solo) per telescopi Dobson

$ 349,00*
Astronomia > Filtro (12)
Filtro

Omegon Filtro nebulare/filtro luce urbana 1,25"

$ 39,90*
Astronomia > Montature & Accessori (3)
Montatura

Skywatcher Montatura EQ6-R Pro SynScan GoTo

$ 2.260,00*
Cura & Pulizia > Liquidi e kit per pulizia (4)

Zoomion sistema di pulizia

$ 4,90*
Cura & Pulizia > Altro (2)

Omegon Panno in microfibra 20cm x 20cm

$ 5,90*

*Tutti i prezzi includono IVA e costi di spedizione.

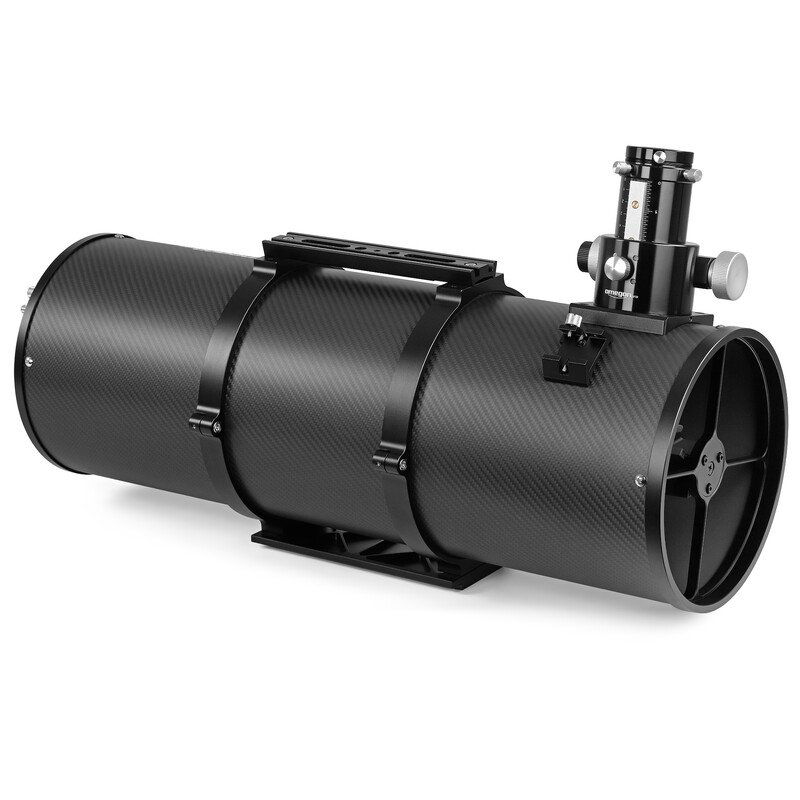

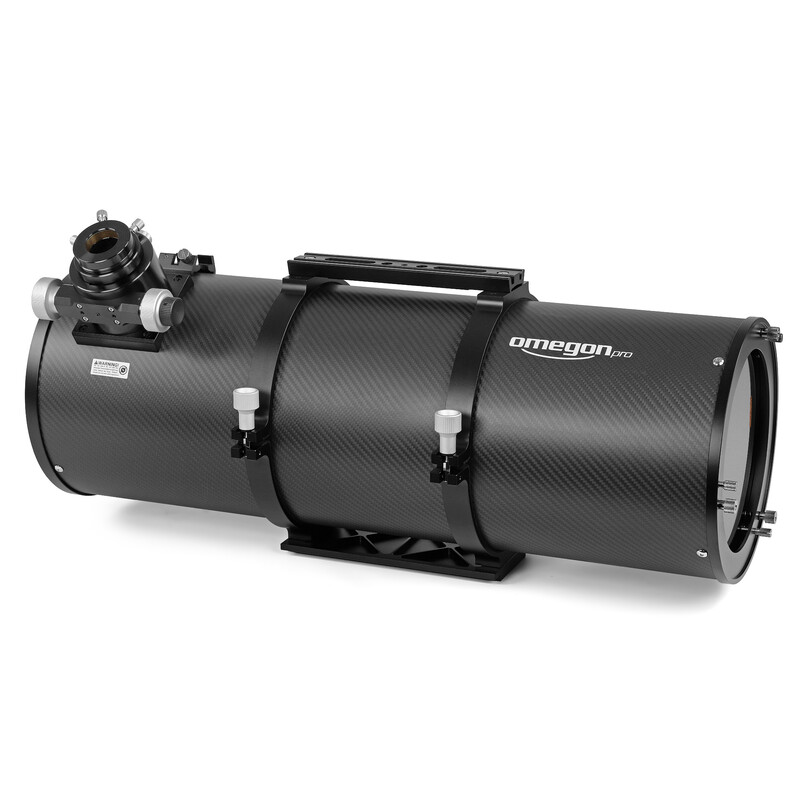

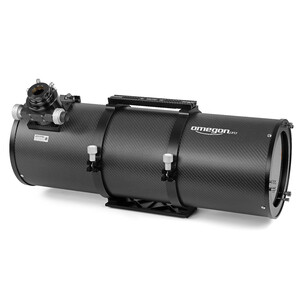

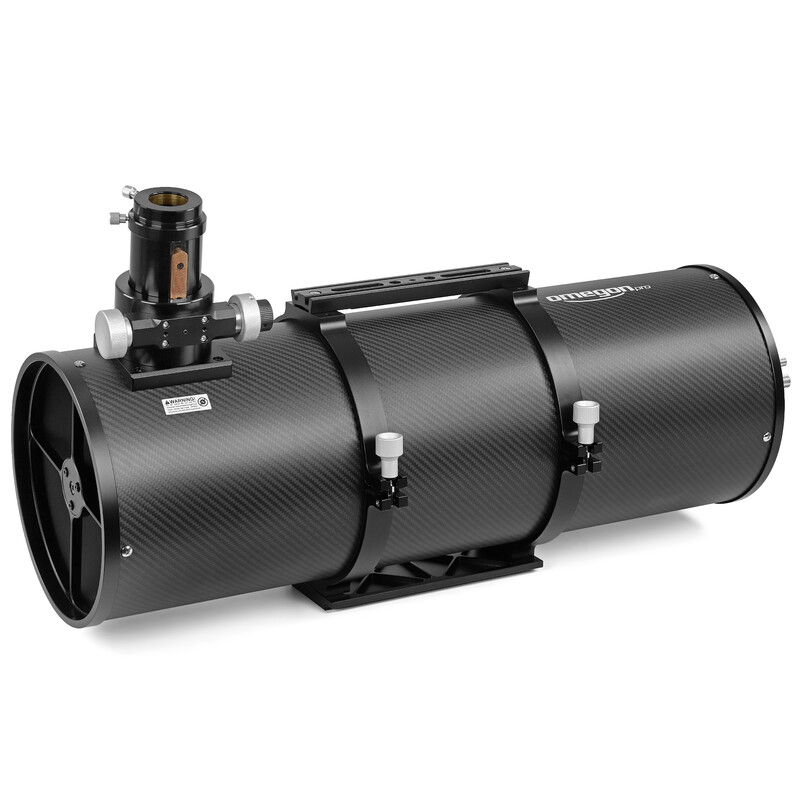

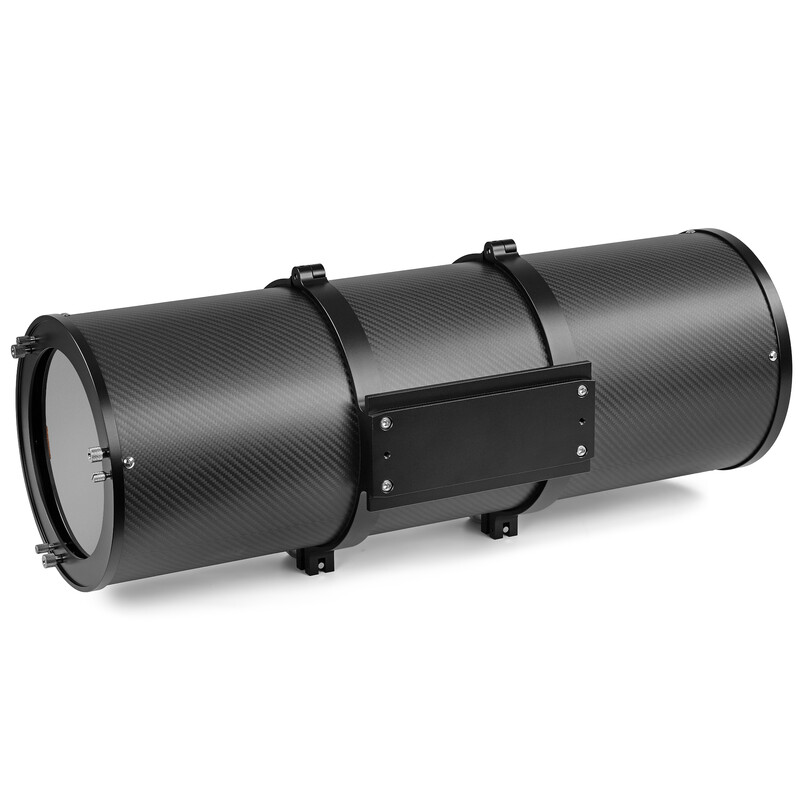

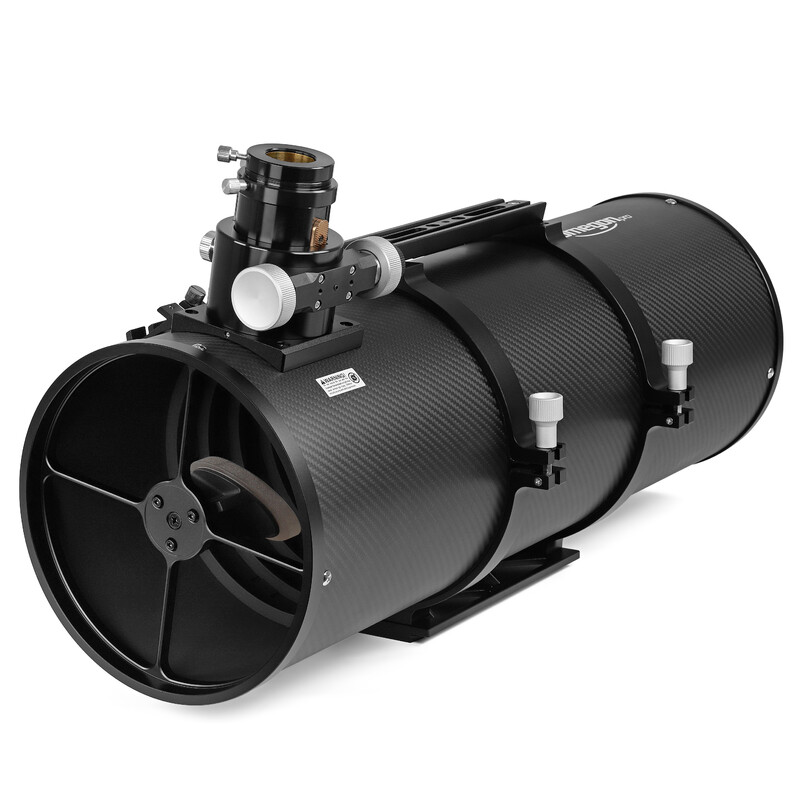

Omegon Telescopio Pro Astrograph Carbon 203/800 OTA
