Lens adapters RotoClip ZFHS 49mm

EP Arms RotoClip System
was specially developed for use with attachment devices. With a guaranteed repeat accuracy of +/- 0.1 mm, it is the only adaptor of its kind on the market. It is suitable for bolt-action rifles, self-loading rifles and combination guns.

The system, for which a worldwide patent has been filed, features clever design elements such as fine centring when inserting the thread insert, the interrupted round thread and the half-shell clamping on the riflescope lens. Due to the very small clamping width of 15 mm (ZFHS) - 25 mm (ZFHL), it is also possible to mount attachments on combination weapons, which no other manufacturer on the market has been able to achieve to date.

Advantages of the RotoClip system:

• Modular system:
  consisting of the lens adapter ZFHL with 25 mm clamping width or the ZFHS with 15 mm clamping width. And the connection adapter to the GWA attachment device with the appropriate bayonet or thread connection.
• Maximum precision:
  Guaranteed repeat accuracy of +/- 0.1 mm
• Use on multiple weapons and riflescopes:
  Another significant advantage is the multiple use on different riflescopes without re-shooting (only initial adjustment necessary). An example: You have a riflescope with an outer diameter of 62 mm and another with 56 mm. All you need is another adaptor in the size corresponding to your riflescope, and you can swap your instruments without removing the adaptor.
• Sustainability:
  When purchasing a new attachment, you only need a new GWA thread adapter
  When purchasing a new riflescope, you only need a new lens adapter ZFHL (long) or ZFHS (short)

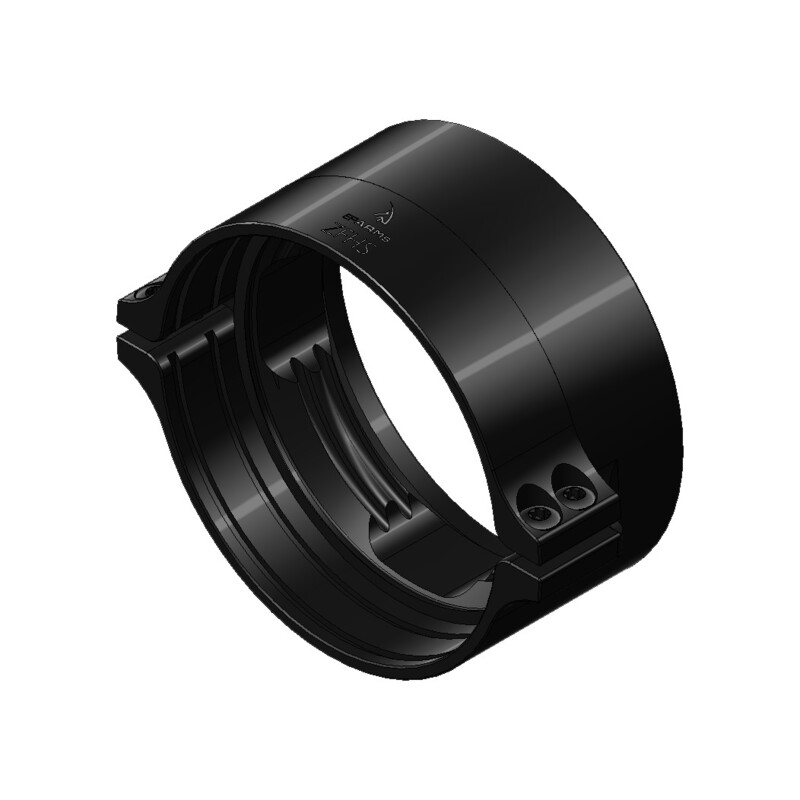

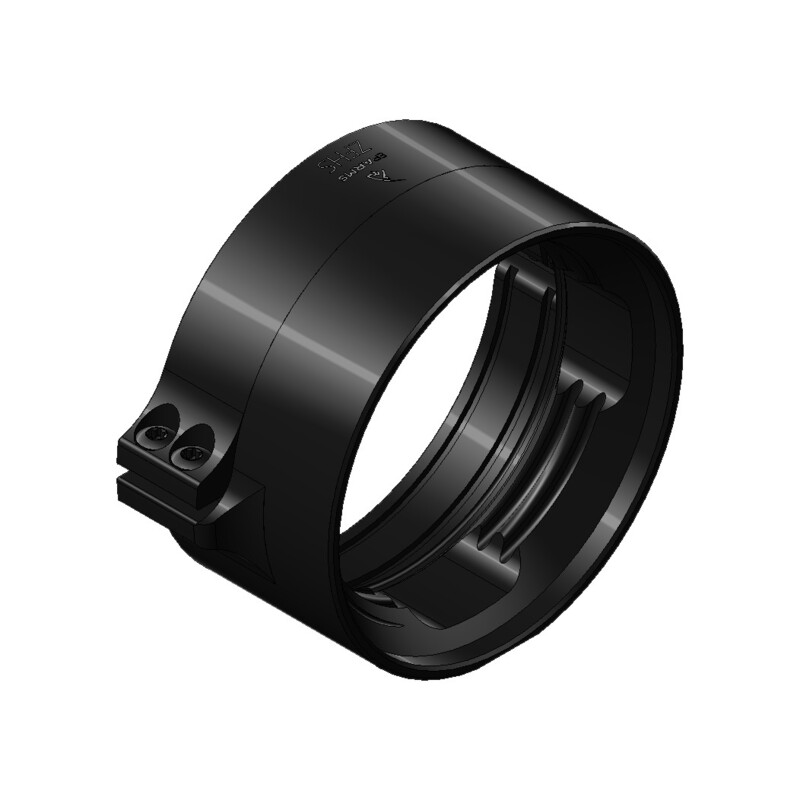

This product is the ZFHS lens adapter. Please refer to the product name or technical data for the diameter!

Technical details RotoClip ZFHS:

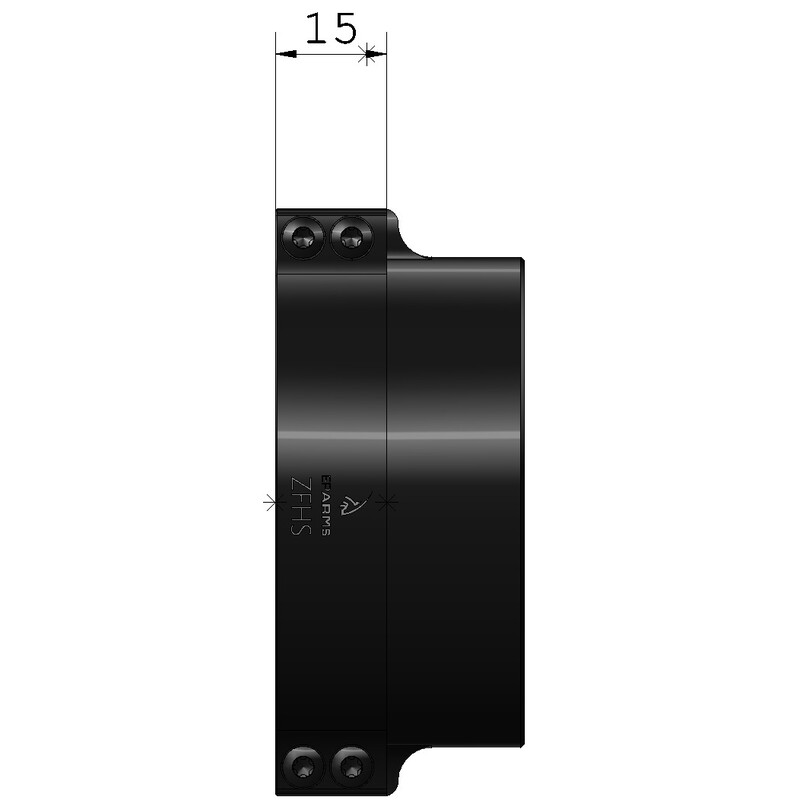

• Low clamping range required (15 mm)
• Fixed securely to the riflescope lens with 4 M3 screws (3 Nm)
• 100% reproducible point of impact
• Attachment can be used on multiple riflescopes
• Very short design for short barrels with silencers
• 100% made in Germany
• Black anodised aluminium
• The unit of measurement ZFHS XX mm always refers to the outer diameter of the riflescope.

Tips for mounting and commissioning the RotoClip system:
The adaptor is securely fastened to the lens of the riflescope with 4-6 M3 screws (depending on the model) with a tightening torque of 1.8-2 Nm. The adaptor must be aligned before use. This is done as before using the crosshairs of the attachment device (thermal image). For night vision devices, follow the manufacturer's instructions (alignment of the switch, e.g. 12 o'clock).

Once you have completed the alignment, you can begin test firing and correct the alignment of the adaptor if necessary. If you are satisfied with the result, you can now proceed in exactly the same way with your second riflescope. Important! Please do not correct your thermal imaging camera again, but align your adaptor so that the crosshairs match your reticle, as with your first riflescope.

Shoot again and you will find that there are no significant deviations.
