Microscopy > Microscopes > Digital microscopes > Macroscopes > Discovery > Artisan > Discovery Microscope Artisan 512 Digital
Product no.: 73415

Microscope Artisan 512 Digital

$ 274.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

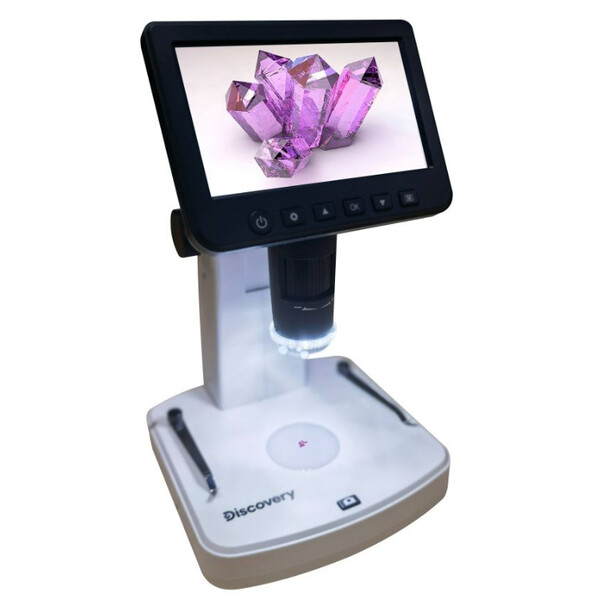

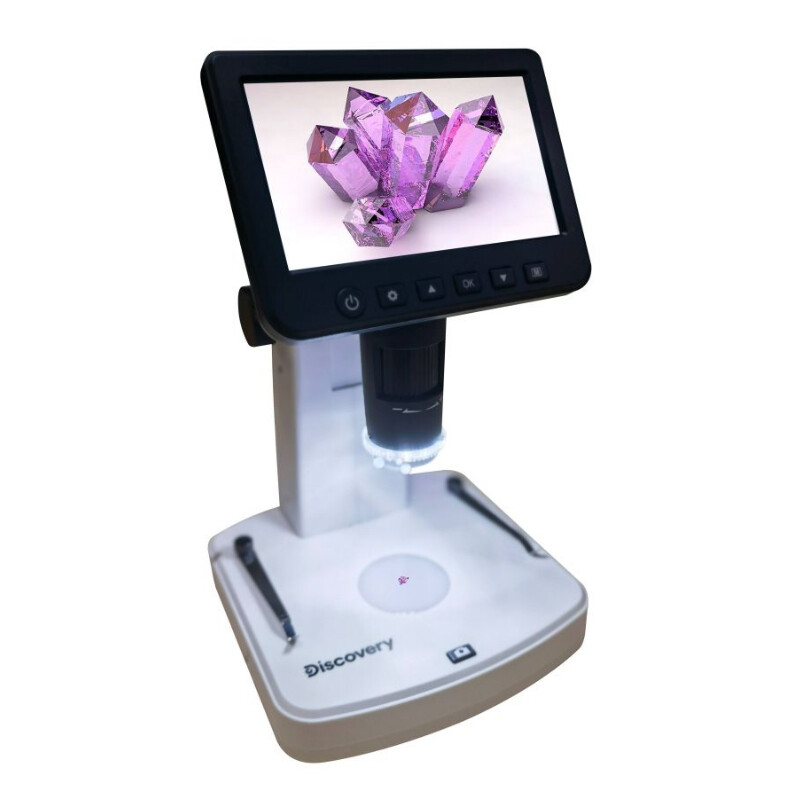

The Discovery Artisan 512 digital microscope was specially designed for studying opaque samples. Thanks to the polarisation filter, even shiny objects can be observed perfectly, as this special filter eliminates annoying reflections . The microscope is ideal for working with jewellery, circuit boards, minerals, coins, small metal objects, minerals and biological samples. With the integrated camera, you can also take pictures and videos. This can be very useful if you want to archive your observations digitally.

The camera has a resolution of 5 megapixels and is equipped with 8 LEDs for lighting. The brightness of the lighting can be adjusted to suit the situation. The camera allows magnifications of 10–300x, and with the additional digital zoom, very high magnifications of up to 1200x are possible. The colourful, detailed image is displayed on the integrated 12.7 cm LCD screen. The screen also makes longer work with the instrument much more comfortable than with the eyepiece of a conventional microscope. The colour screen has a fine resolution and is rich in detail.

The microscope can also be connected to external monitors, televisions or computers. All necessary cables are included in the set. Therefore, you do not need to purchase anything else. To take photos and videos, you need a memory card; this is not included. The instrument works with microSD cards with a capacity of up to 32 GB. The microscope comes with software that you should install on a computer. This allows you to measure objects: you can measure radius, diameter, length, angle (with three points) and much more.

The microscope is powered by a power pack or integrated rechargeable battery, which provides up to 3 hours of continuous operation.

Scope of delivery

  • microscope
  • Power supply (100–240 V, 50/60 Hz)
  • USB cable
  • AV cable
  • Calibration scale
  • Software CD
  • Operating instructions

Please note: To ensure that the software works correctly, do not start the installed application until the microscope is connected to a PC and ready for use.

Specifications

Optics


Lighting
Incident light
Lamp type
LED
Power supply
AC Adapter / Battery
Magnification
10-300

Capacity


Polarization
yes

Mechanics


Type of build
Digital
Specimen stage
Specimen stage
Focusing
Coarse movement

Special features


Rechargeable battery operation
yes
Built-in digital camera
yes

Camera


Megapixel
5
Interface
USB 2.0, TV, HDMI
Supported operating systems
Windows & Mac OS
Colour camera
yes
LCD screen
5
Image format
jpg
Video function
yes
Video format
avi
frame rate (fps)
30

General


Series
Artisan

Field of application


Hobby
yes
Industry
yes
Education
yes

Area of application


Preschool
yes
Primary School
yes

Product safety

Manufacturer: Levenhuk Optics s.r.o., V Chotejne 700/7, 102 00 Prag, CZ, www.levenhuk.com
