Microscopy > Microscopes > Digital microscopes > Macroscopes > Euromex > MacroZoom > Euromex Microscope MacroZoom MZ.4700-HDS, 8-51,4/514x, 12 LED, 60 fps, 2 MP, 4K, HDMI/USB/Wifi
Product no.: 79886

Microscope MacroZoom MZ.4700-HDS, 8-51,4/514x, 12 LED, 60 fps, 2 MP, 4K, HDMI/USB/Wifi

$ 2,710.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

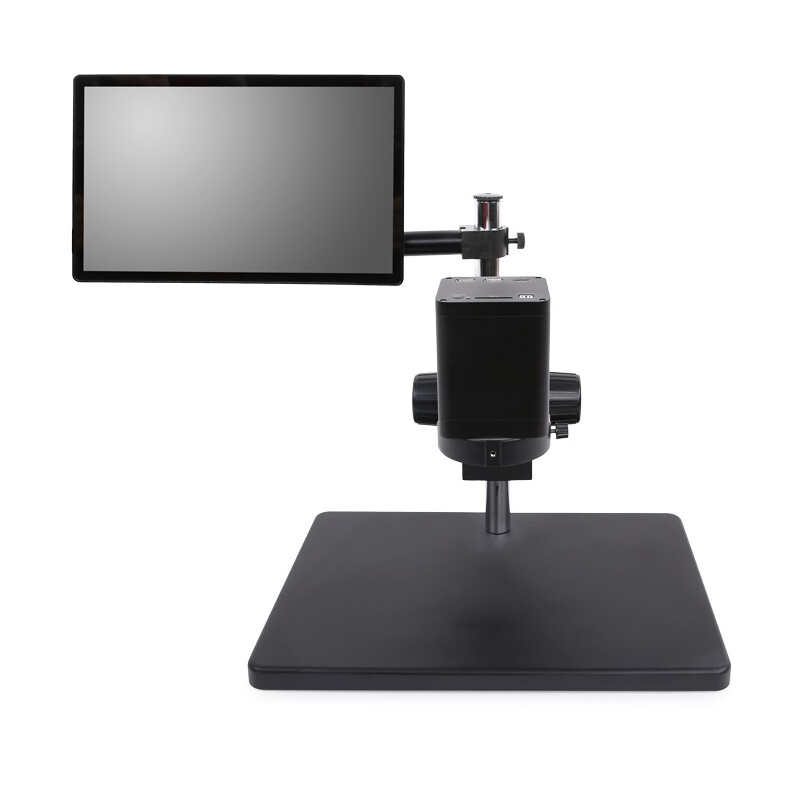

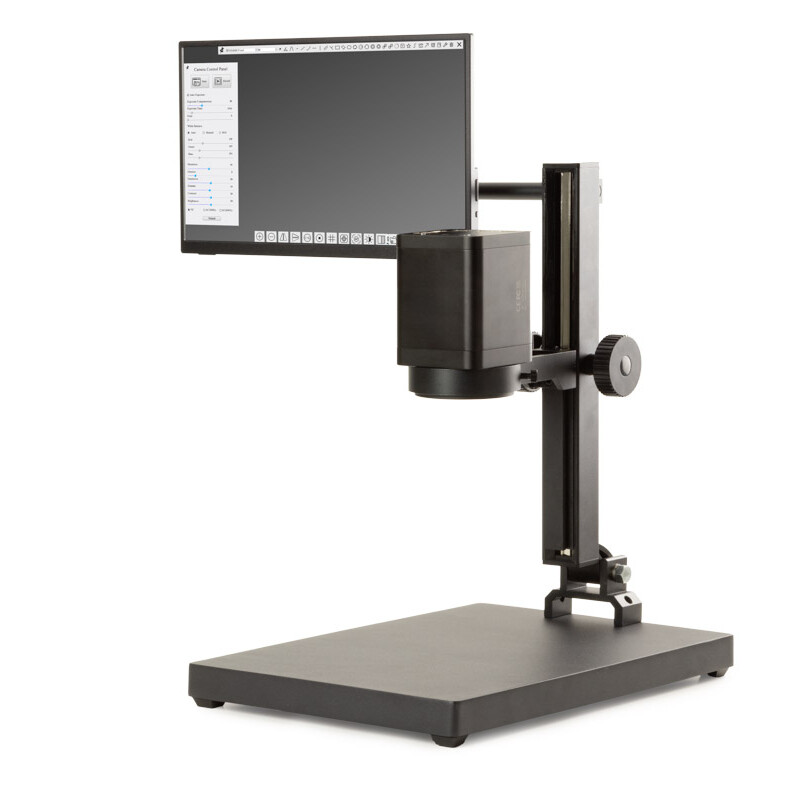

Euromex Digital Autofocus Macro Zoom 4K/1080p

The MZ.4700 integrates a 1080p HDMI camera, an electrically controlled autofocus lens with continuous zoom, a tripod and an illumination system. The MZ.4700 allows objects to be viewed directly on an HD screen. The mouse-controlled integrated software controls the camera parameters and enables measurements to be taken on the screen, captures and saves images in .jpg or .bmp format and videos in .mp4 format on a USB memory stick.

TECHNICAL DATA

ZOOM OBJECTIVE

  • The 16-element lens has an 18x zoom ratio and produces magnifications up to 0.56x with a manual or automatic focusing function.
  • Field of view from 255 x 145 mm (1x zoom) to 14 x 8 mm (18x zoom)
  • Screen magnification 2.8 to 47x @190 mm WD (24" screen)
  • The focusing range is between 205 and 225 mm

WD = working distance

CAMERA

  • The 2 MP camera is equipped with a 1/2.8-inch 4K UHD/1080P CMOS high-definition sensor from Sony with a high signal-to-noise ratio, which produces video streaming with 3840 x 8160 pixels and up to 60 frames per second
  • The 4K/UHD signal is compatible with the HDMI input of an HD screen
  • Image and video storage is via a built-in SD card
  • Standalone or PC-powered (ImageFocus Alpha)

BUILT-IN SOFTWARE

  • The integrated intuitive software is controlled via the mouse supplied and connected to the camera. It has a camera control panel, an autofocus control panel and a measurement toolbar.

LIGHTING

  • A standard LED ring light provides good standard illumination of the sample
  • A ring light with 12x 1W, 30° directed LEDs allows very flexible lighting of the sample.

TRIPOD

  • The MacroZoom can be mounted on a special pole stand with or without a special HD screen
  • With the 30° directed 12x 1W LED ring light (MZ. 4735), the MacroZoom (MZ.4705) can also be mounted on the NexiusZoom tripods.

PACKAGE CONTENTS

  • Supplied with a standard ring light, a 32 GB SD card, a mouse, an HDMI cable and an external power supply with 100-240 VAC / 12 VDC / 3 A.

Specifications

Optics


Lamp type
LED
Lighting
Incident light
Magnification
8-51,4x(optisch); 8-514x(digital)

Capacity


Resolution Photograph (Pixel)
1920x1080
Resolution video (Pixel)
3840x8160 (Streaming)
Interface
HDMI
Power supply
Power pack
Video function
yes

Mechanics


Working distance (mm)
190

Camera


Megapixel
2 mit 4K Sensor
Colour camera
yes
sensor
CMOS
frame rate (fps)
60
Software
ImageFocus Alpha
Video format
.mp4
Image format
.jpg, .bmp

General


Series
MacroZoom
Weight (g)
5100
Height (mm)
350
Length (mm)
250
Width (mm)
375

Field of application


Industry
yes
Hobby
yes

Area of application


Metallurgy
yes
Mineralogy
yes
Automotive
yes

Miscellaneous


supplier product number
MZ.4700-HDS

Downloads

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
