Photo Tripods > Tripods > made of carbon > Leofoto > Ranger > Leofoto Carbon tripod LS-324C Ranger + Ballhead LH-40
Product no.: 70157

Carbon tripod LS-324C Ranger + Ballhead LH-40

$ 456.00 incl. VAT Free shipping within European Union!
show shipping options
too expensive?
in stock
ready for shipping in 24 h + lead time

Product description

More about the series Ranger...

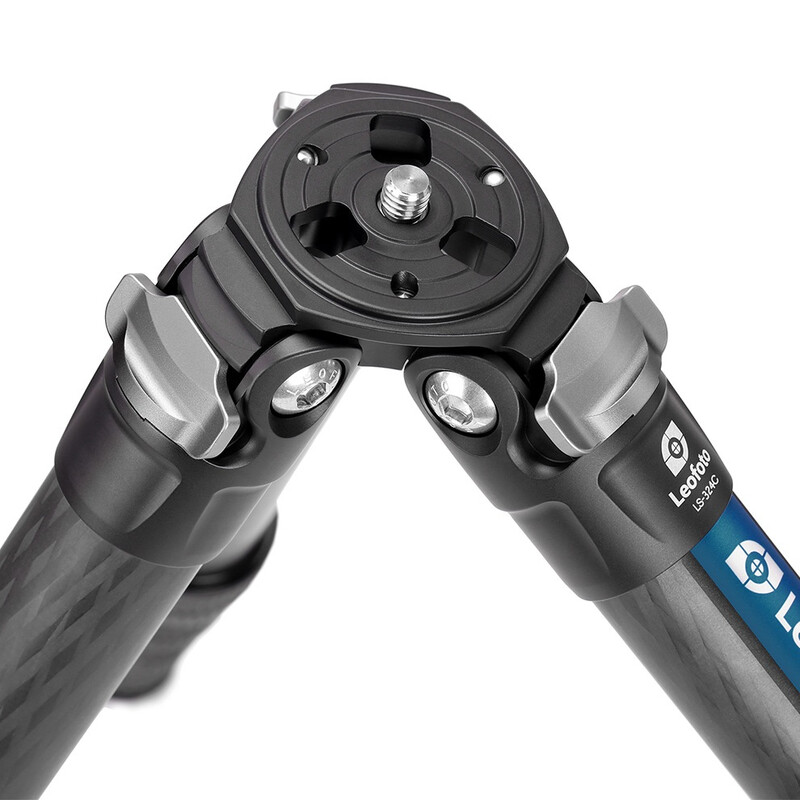

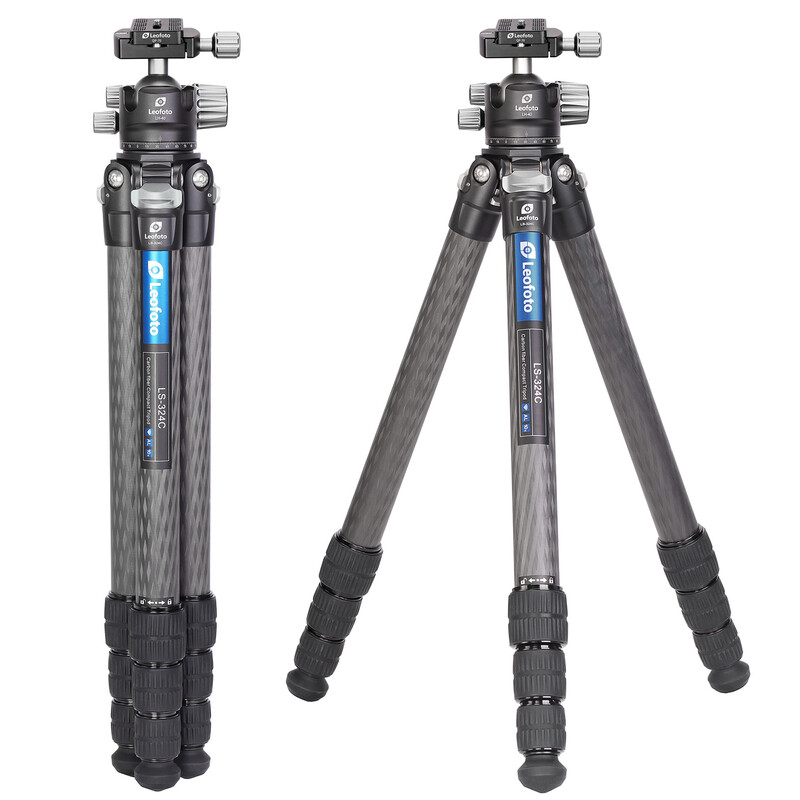

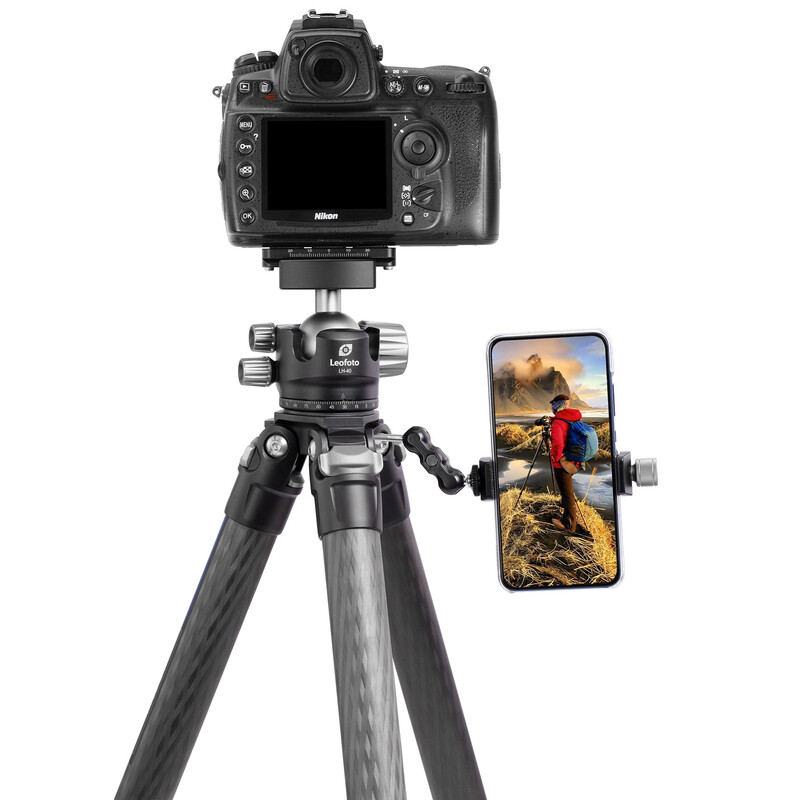

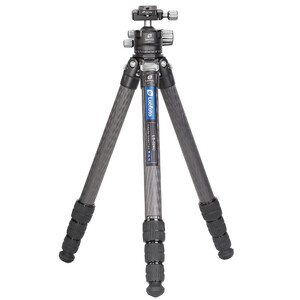

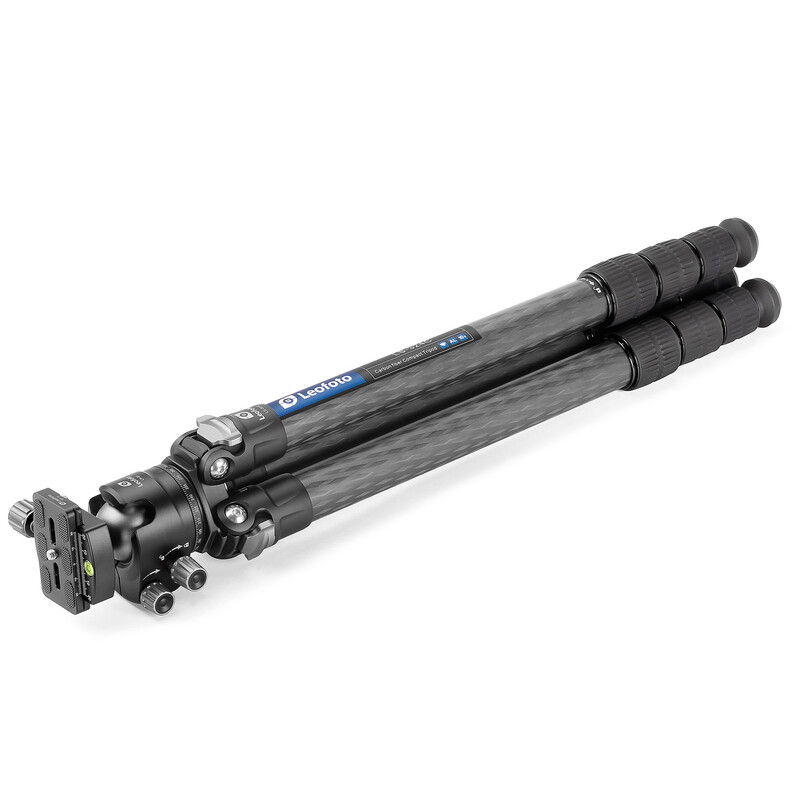

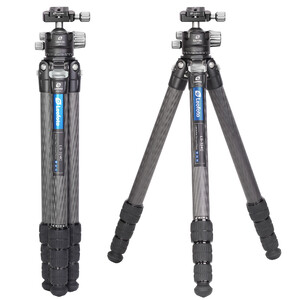

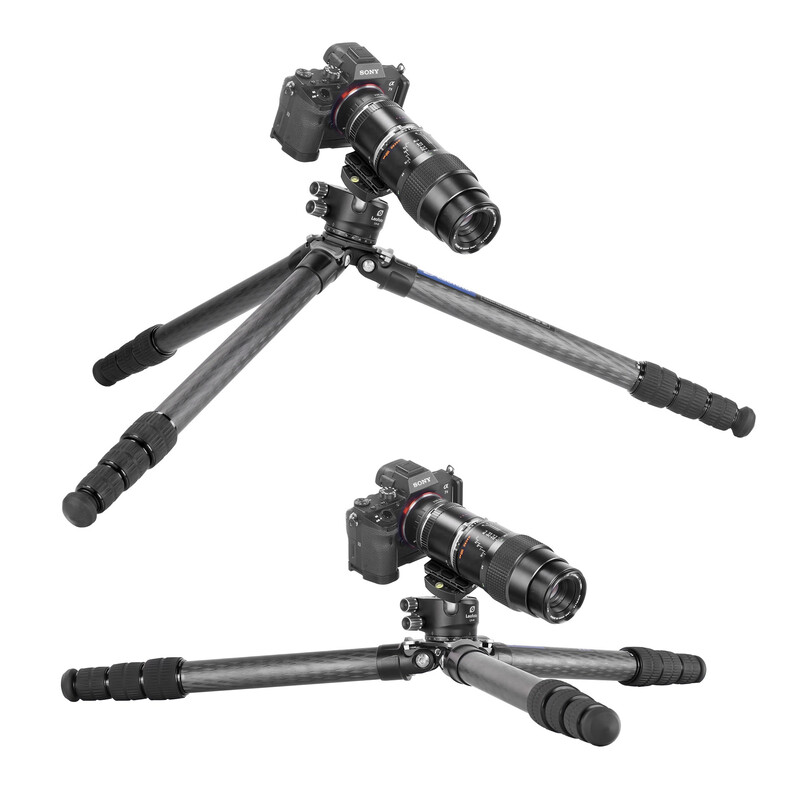

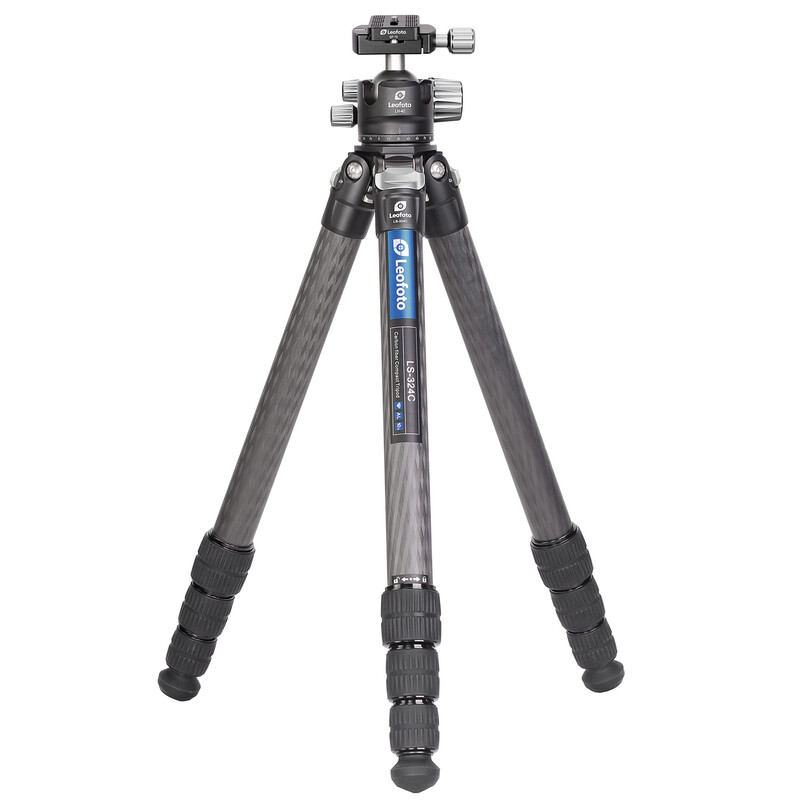

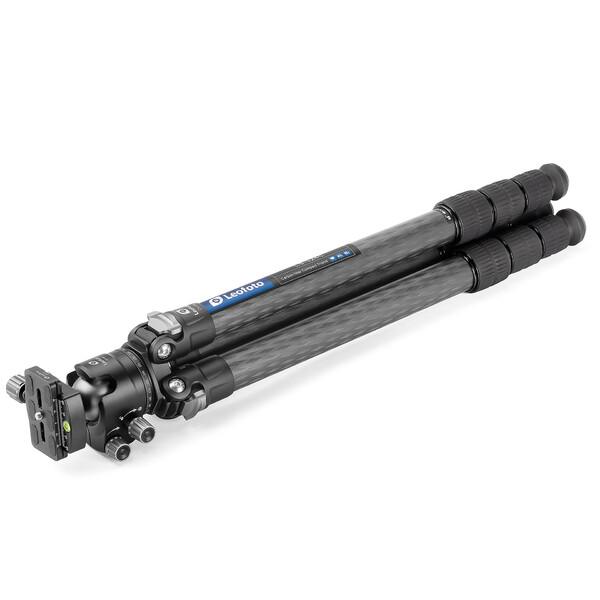

A very sturdy tripod. Robust as it is, it can still be called lightweight considering its strength (load capacity 15 kg) and weight (1,950 g). The ballhead included in the set is also designed for a load capacity of 15 kg and weighs 540 g. Carrying large cameras with long lenses is the job of this ideal combination of the Ranger LS-324C tripod and LH-40 ballhead. The Ranger LS-324C is also expandable. Thanks to its "Easylink" coupling, an optional accessory arm can be quickly and easily attached to carry a separate monitor, for example. The tripod's pack size is 580 mm, and the maximum working height without the separately included centre column, but with the head, is 1,390 mm.

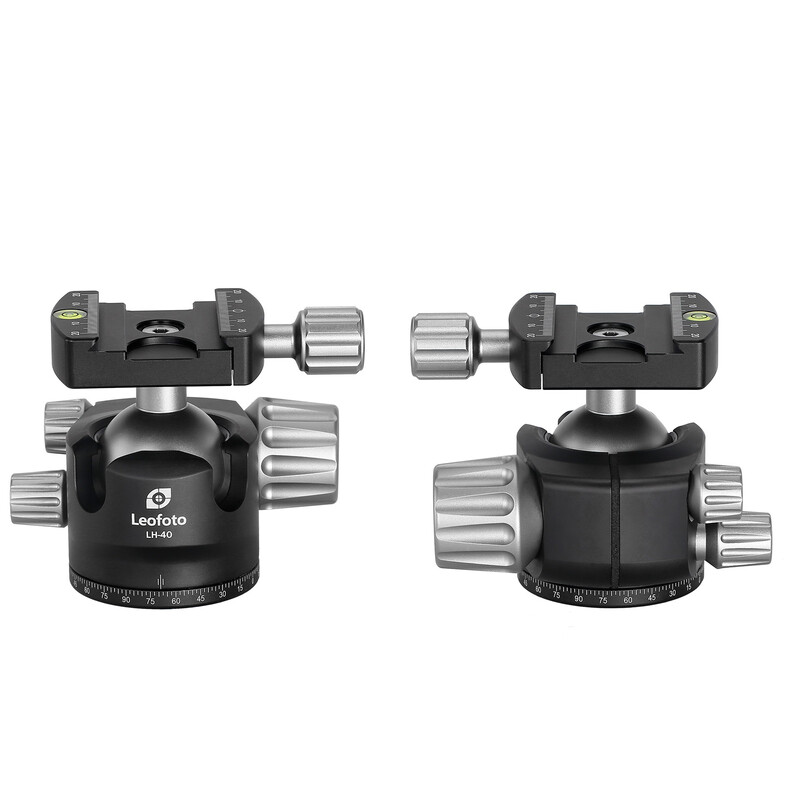

The LH-40 ballhead has a load capacity of 20 kilograms. This is achieved by the large ball diameter of 40 millimetres, which is manufactured with a tolerance of 0.01 millimetres. This allows the ballhead to move even heavy loads easily and clamp them securely. The ballhead itself weighs only 491 grams.

The base diameter of the ballhead is 57 millimetres, its height is 87 millimetres. It is connected to the tripod via a 3/8-inch photo thread.

100% carbon

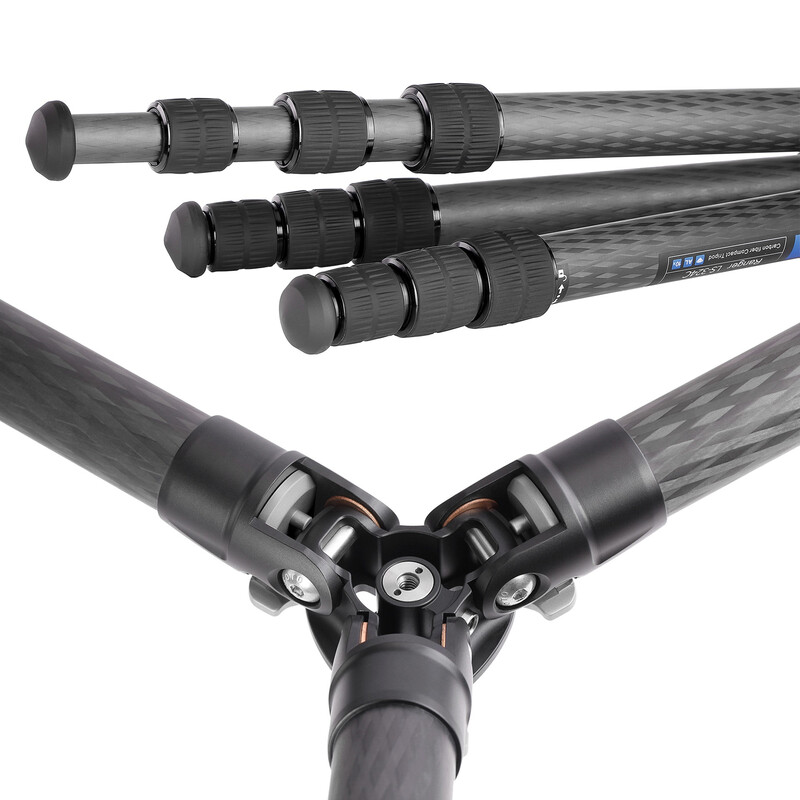

All carbon tripod legs from Leofoto are made of 10-layer carbon material. This promises high stability with low weight and, in addition, high corrosion resistance.

Leofoto uses high-quality 6061-T6 aluminium alloy with magnesium and silicon as alloy components for the metal parts. This corrosion-resistant material is characterised by high strength and good toughness. The yield strength is comparable to that of structural steel. All parts are milled from solid material on state-of-the-art CNC machines and are therefore significantly more stable than cast parts. Leofoto makes no compromises here either !

Our expert comment:

Tip: Discover our magazine article Buying guide: Leofoto tripods & mounts and let the expert tips inspire you to find the perfect tripod!

(Stefan Taube)

Specifications

Capacity


Type
Camera and video tripod
Type of build
Tripod
Material
Carbon
Load capacity (kg)
15
Friction adjustment
Ball joint
Connector thread on tripod head
3/8
Thread for camerarecording
1/4 and 3/8
Inclination range (°)
90
Bending range (°)
360
Max. tripod height (cm)
170
Carrying length (cm)
57
Tripod leg extension
3
Tripod leg extension adjustment
Twist lock
Tripod pad
Rubber foot / spike combination

Special features


Central column
yes
Tripod head included with product contents
Ball head

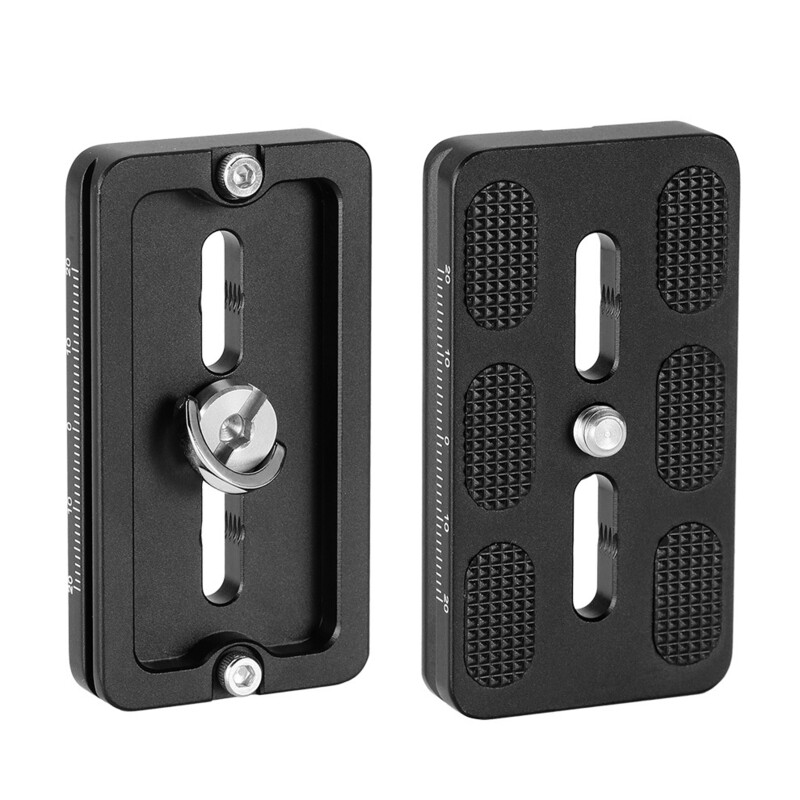

Quick-release plate
yes
Accessory plate
no
Panorama scale
yes

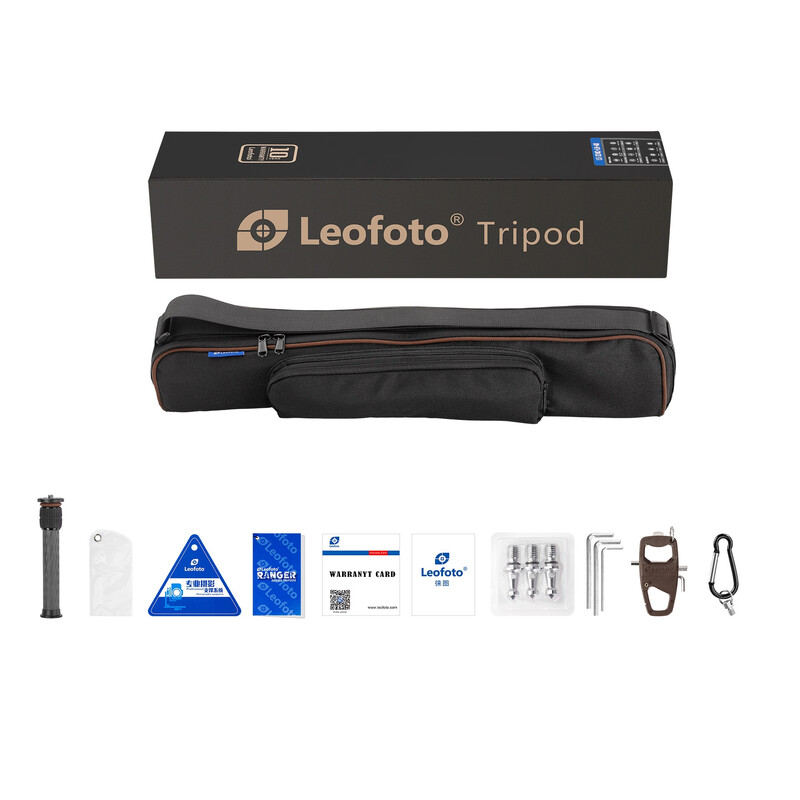

Carrying bag included with product contents
yes

General


Series
Ranger
Colour
black
Weight (kg)
1,88

Product safety

Manufacturer: Leofoto / Guangdong Laitu Imaging Technology Co.,Ltd, Floor 1-4,No.6 Weiye Rd Pingdong Industrial Zone, Sanxiang Town, Zhongshan City, Guangdong Povince, CN, www.leofoto.com
Responsible person: Europe Gateway International B.V., Kraijenhoffstraat 137 A, 1018 RG Amsterdam, NL, [email protected]
