Photo Tripods > Tripods > made of carbon > Leofoto > Mr.Y > Leofoto Carbon tripod LY-284C Mr. Y + Ballhead LH-30
Product no.: 79388

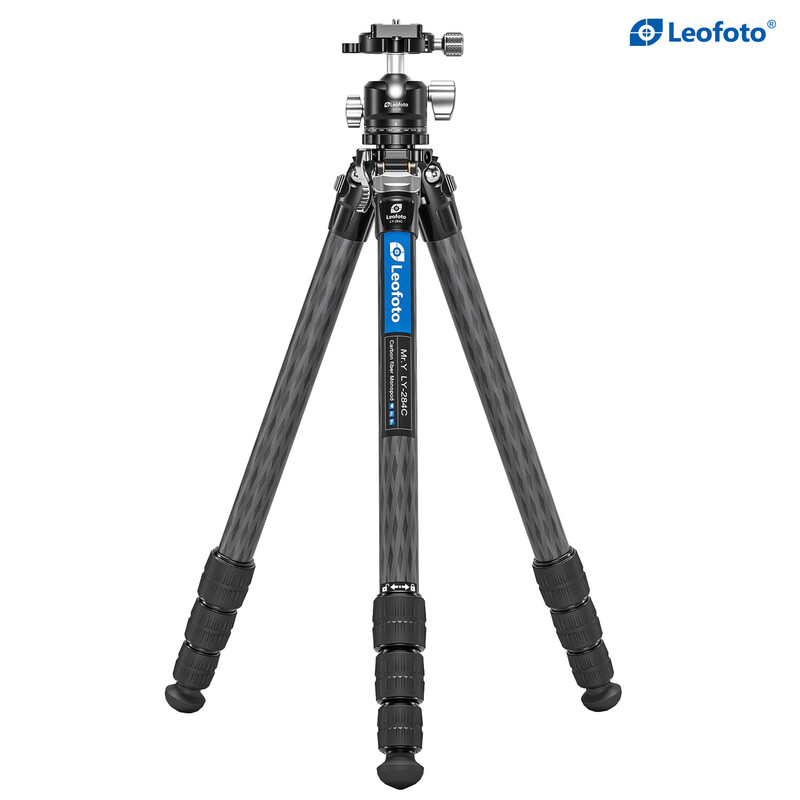

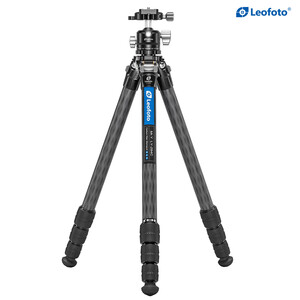

Carbon tripod LY-284C Mr. Y + Ballhead LH-30

$ 377.00 incl. VAT Free shipping within European Union!
show shipping options
too expensive?
in stock
ready for shipping in 24 h + lead time
Express shipment possible for delivery tomorrow, 12.06.2025!

Product description

More about the series Mr.Y...

In brief:

  • Particularly compact and lightweight
  • Relatively high load capacity
  • Ideal for city trips

The tripods in the Mr.Y series from Leofoto are ideal for travel and indoor photography, for example at events or in museums, as well as in urban areas in general. They are particularly lightweight and have a very short transport length.

The special feature is the Y-shaped centre column. This allows the diameter of the tripod head to be significantly smaller (see illustration). This means that the tripod even fits into a briefcase.

Operation is very simple and intuitive: the legs can be extended using rubberised twist locks. The centre column is held in place by an ergonomic clamp lever. The height of the camera can be adjusted by adjusting the centre column.

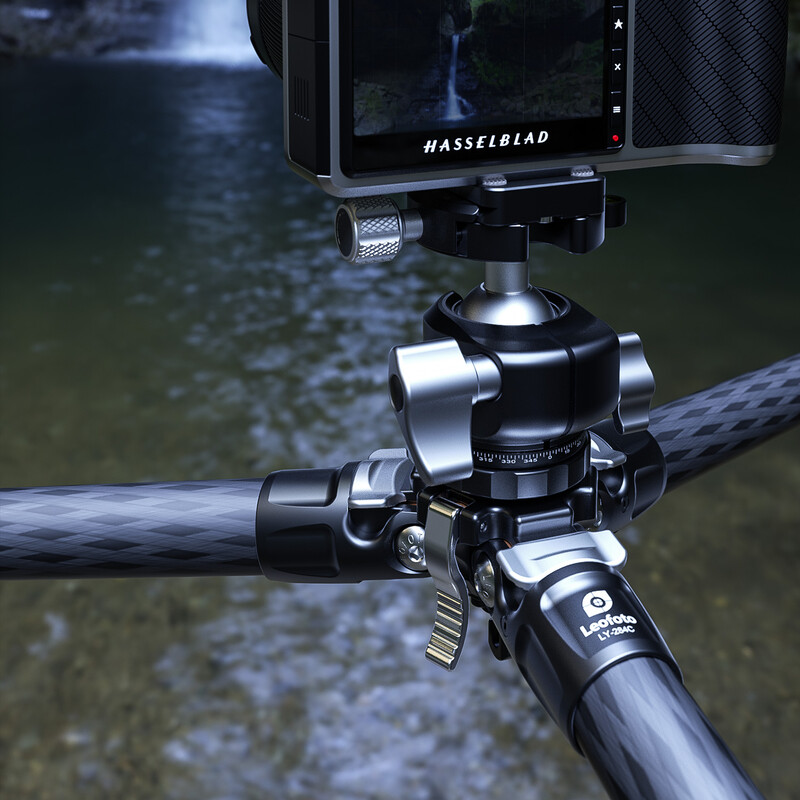

The spread angle of the tripod legs can be adjusted in four stages. Maximum stability is achieved at 42°. For special perspectives, the angle can be increased to 82 °. The short centre column then allows a true frog's-eye view.

Short centre column? Yes! You can replace the long centre column with a much shorter one, which is included in the scope of delivery. This can be done without any tools. The advantage, in addition to the aforementioned frog's-eye view, is increased stability.

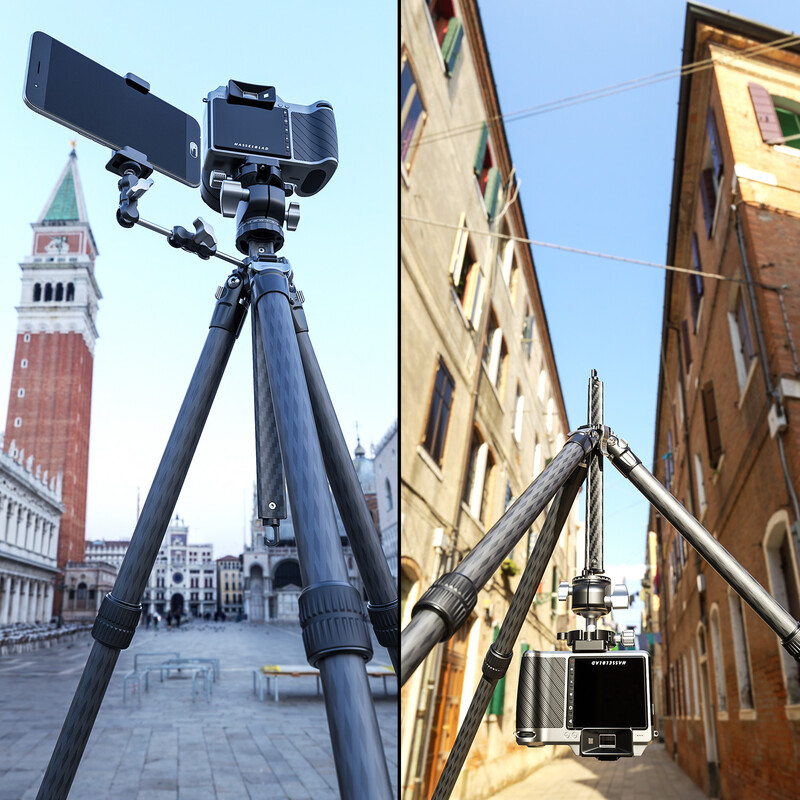

The long centre column can also be mounted upside down for unusual shooting situations.

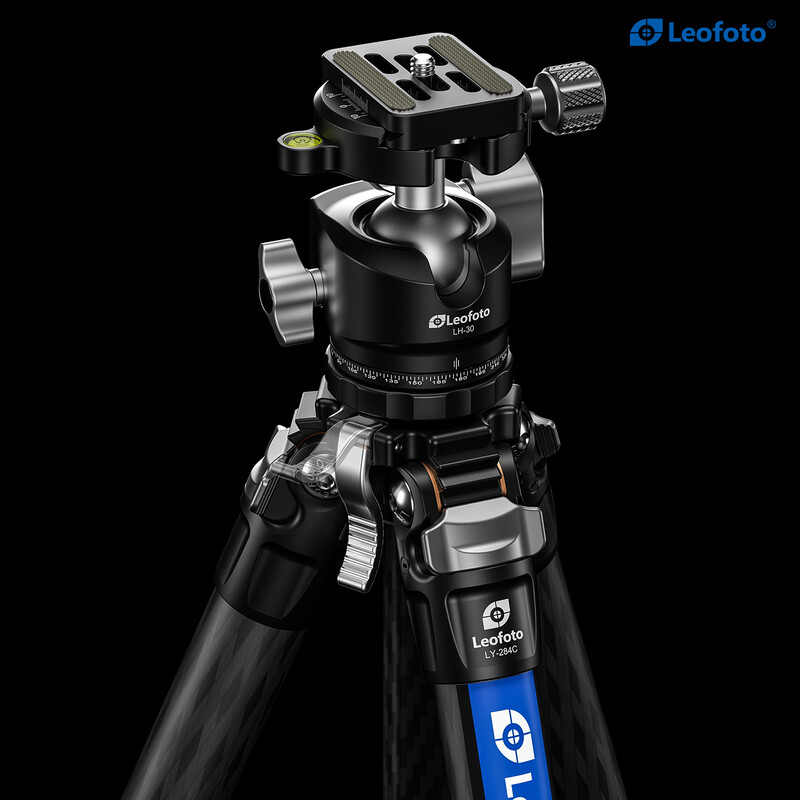

The LH-30 ballhead has a load capacity of 15 kilograms. This is achieved by the large ball diameter of 30 millimetres, which is manufactured with a tolerance of 0.01 millimetres. This allows the ballhead to easily move and securely clamp even heavy loads. The ballhead itself weighs only 310 grams.

The base diameter of the ball head is 47 millimetres and its height is 78 millimetres. It is connected to the tripod via a 3/8-inch photo thread.

The ballhead is equipped with an Arca-Swiss standard clamp and a quick release plate.

The legs of this tripod are made of 10 layers of carbon fibre. The special diamond-shaped winding of these layers provides additional stability and vibration damping with the lowest possible weight!

Leofoto uses high-quality 6061-T6 aluminium alloy with magnesium and silicon as alloy components for the metal parts. This corrosion-resistant material is characterised by high strength and good toughness. The yield strength is comparable to that of structural steel. All parts are milled from solid material on state-of-the-art CNC machines and are therefore significantly more stable than cast parts. Leofoto makes no compromises here either !

The tripod pads have a stainless steel Kern. The outer rubber is shaped to provide a flat contact surface for any spread angle.

The attractive carrying bag is water-repellent and equipped with padded handles. The handles are positioned so that the centre of gravity is below the handles.

The carry case is equipped with an adjustable shoulder strap.

Scope of delivery:

  • Tripod with column
  • Additional short column
  • carry case
  • Tools

Specifications

Capacity


Type
Camera tripod
Type of build
Tripod
Load capacity (kg)
10
Max. tripod height (cm)
155
Min. tripod height (cm)
16,0
Carrying length (cm)
54
Connector thread on tripod head
3/8
Friction adjustment
Ball joint
Clamp
Arca-Swiss
Thread for camerarecording
1/4
Material
Carbon
Tripod head material
Aluminium
Inclination range (°)
0-90
Bending range (°)
360
Tripod leg extension
3
Tripod leg extension adjustment
Twist lock
Tripod pad
Rubber foot
Number of levels
1
Maximum spread angle (°)
82
Ball diameter (mm)
30

Special features


Accessory plate
no
Central column
yes
Panorama scale
yes
Quick-release plate
yes
Shoulder belt
no
Tripod head included with product contents
Ball head
Video tilt head
no
Hollow Ball
no
Carrying bag included with product contents
yes

General


Weight (kg)
1,68
Series
Mr.Y
Colour
carbon

Product safety

Manufacturer: Leofoto / Guangdong Laitu Imaging Technology Co.,Ltd, Floor 1-4,No.6 Weiye Rd Pingdong Industrial Zone, Sanxiang Town, Zhongshan City, Guangdong Povince, CN, www.leofoto.com
Responsible person: Europe Gateway International B.V., Kraijenhoffstraat 137 A, 1018 RG Amsterdam, NL, [email protected]

Recommended accessories

Photo Tripods > Tripod accessories (18)
Tripod pad

Leofoto Tripod pad LF-16

$ 28.90*

*All prices include VAT plus shipping costs.

Leofoto Carbon tripod LY-284C Mr. Y + Ballhead LH-30

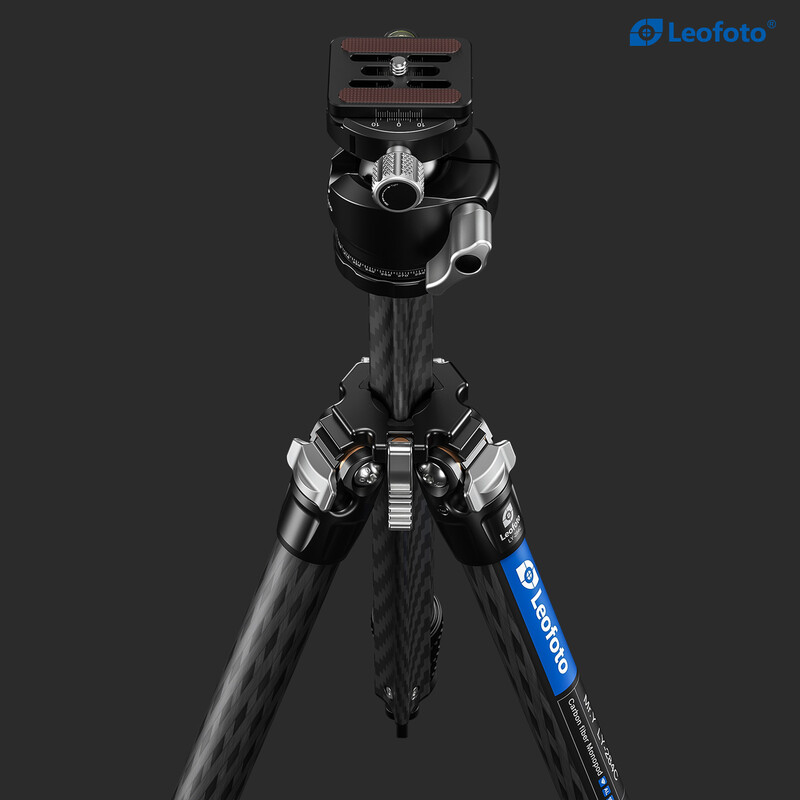

Y-shaped centre column
Leofoto Carbon tripod LY-284C Mr. Y + Ballhead LH-30

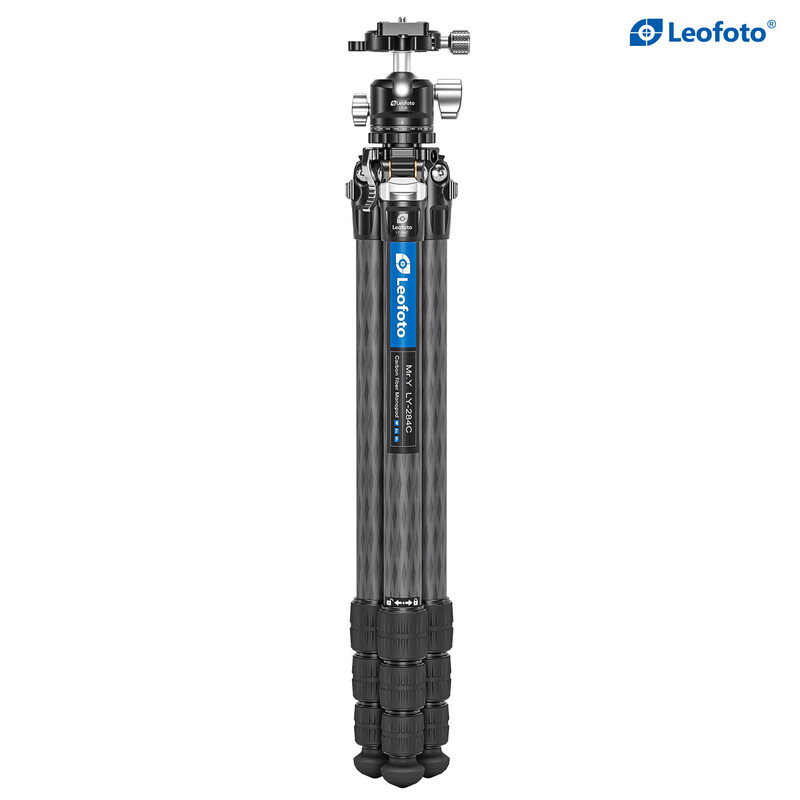

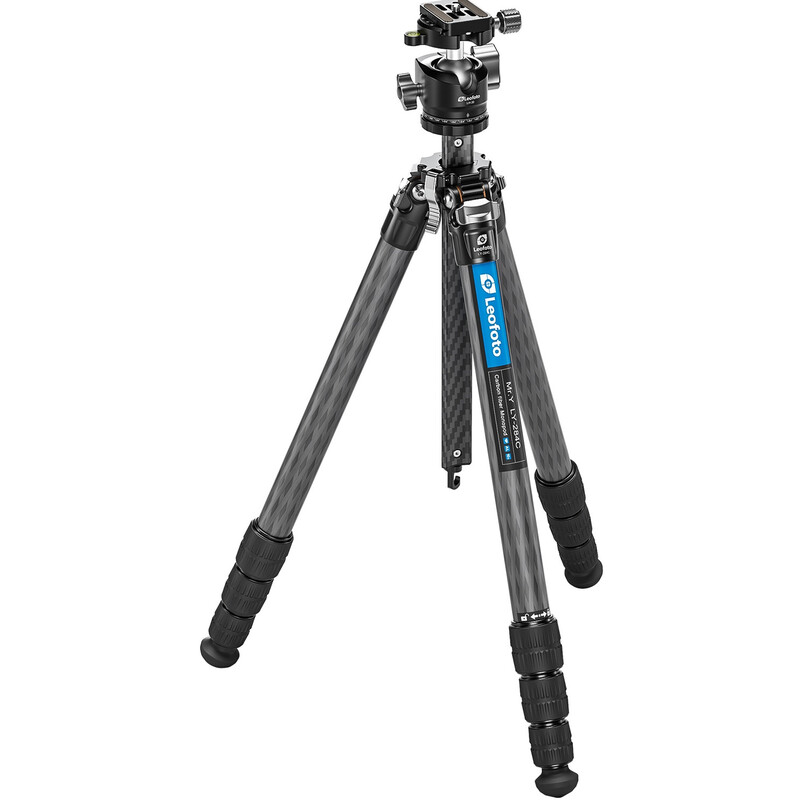

Very portable
