Leofoto
rifle scope mounts meet the highest quality standards according to MIL-STD-1913 and are suitable for mounting on Picatinny or Weaver rails. They are made of lightweight yet sturdy 6061-T6 aluminium alloys.

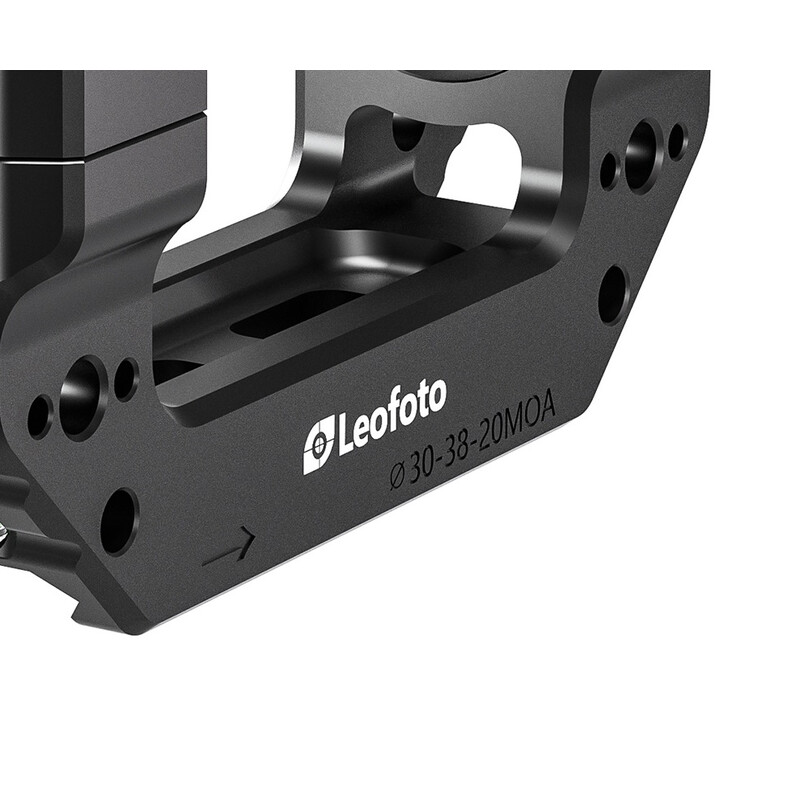

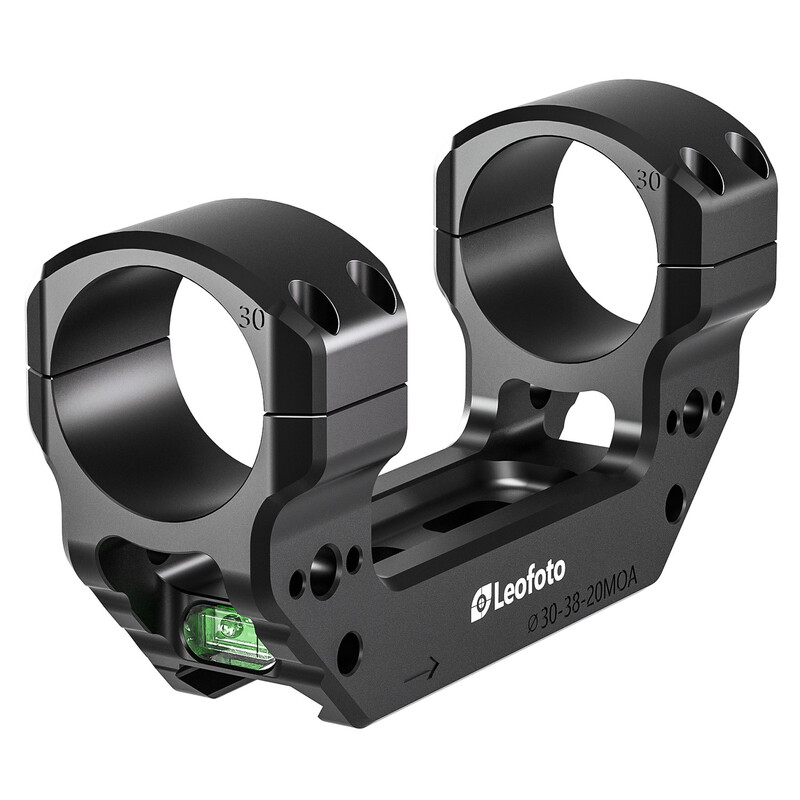

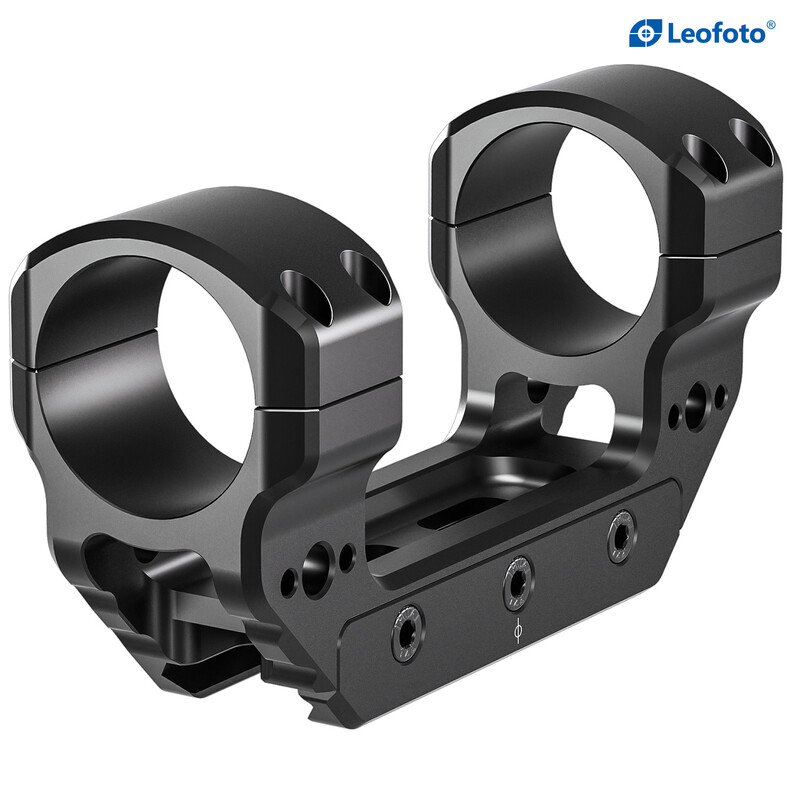

The RO-3038-20 is a one-piece mount for riflescopes with a 30 mm centre tube. The sight height is 38 mm. This mount is therefore suitable for riflescopes with an objective lens diameter of up to approx. 56 mm, provided there are no high attachments on the barrel.
The 20 MOA forward tilt makes this mount particularly interesting for long-range shooters.

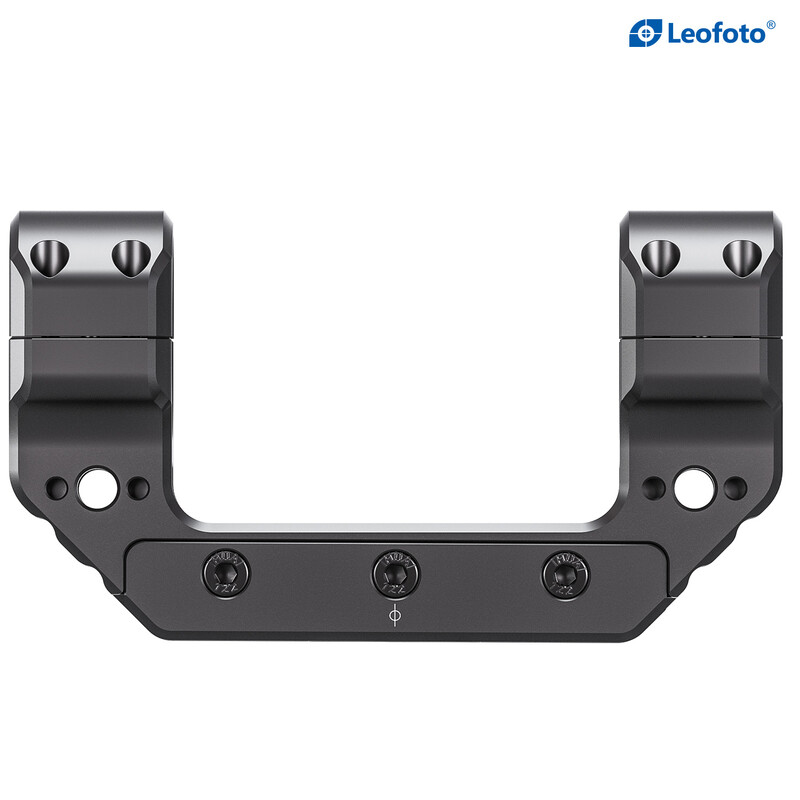

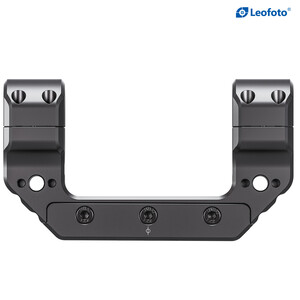

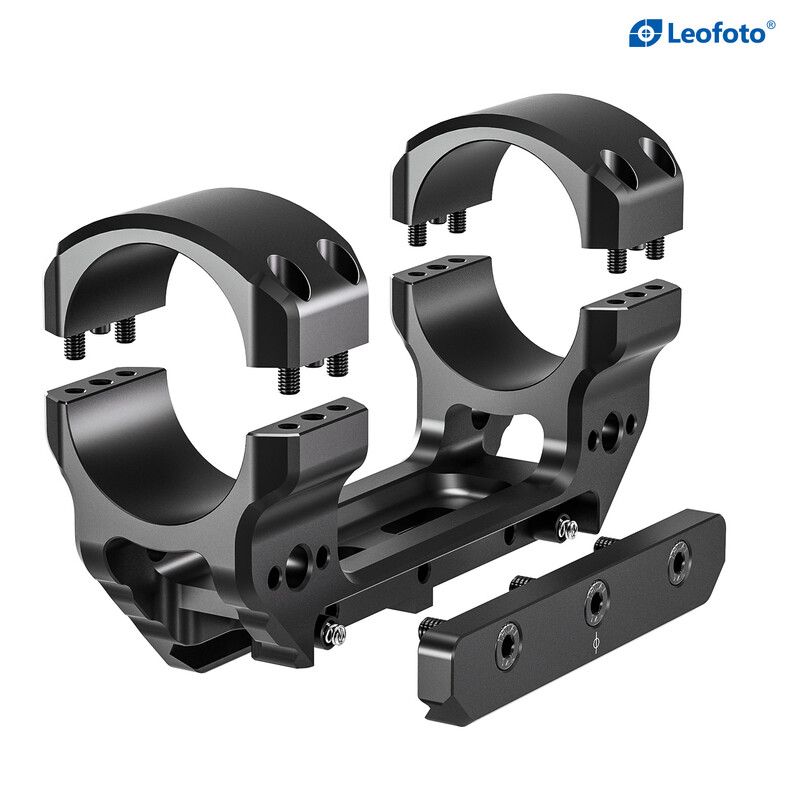

The integrated spirit level helps the shooter to align the weapon horizontally and the reticle during mounting. The distance between the mounting rings is 66 mm, which also allows the mounting of long riflescopes. The mount is clamped with 3 hexagon socket screws, secured by a safety groove, and the riflescope with a total of 8 screws.
Leofoto uses high-quality 6061-T6 aluminium alloy with magnesium and silicon as alloy components for the metal parts. This corrosion-resistant material is characterised by high strength and good toughness. The yield strength is comparable to that of structural steel. All parts are milled from solid material on state-of-the-art CNC machines and are therefore significantly more stable than cast parts. Leofoto makes no compromises here either !

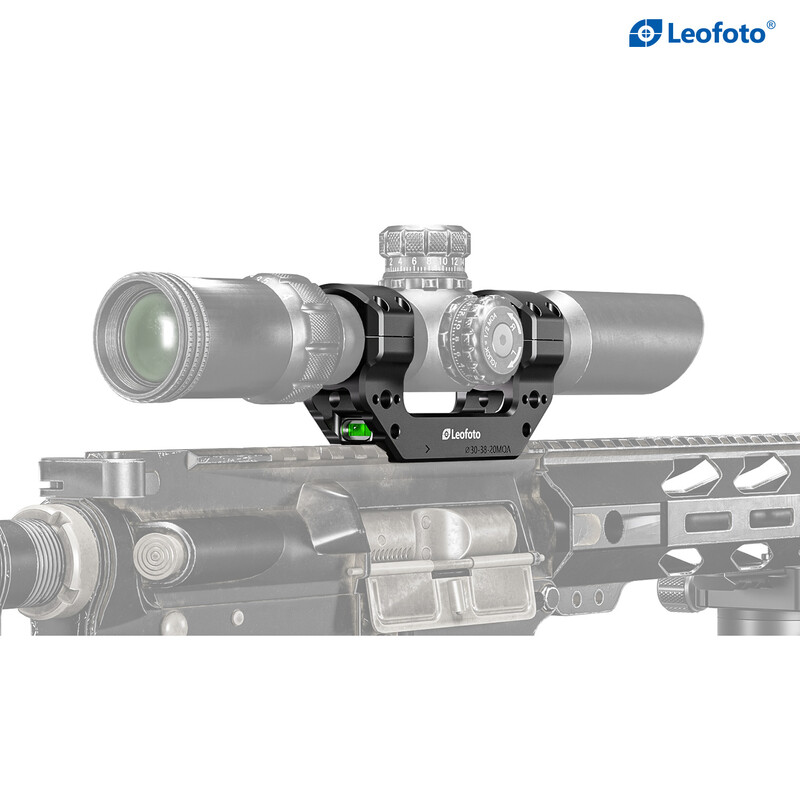

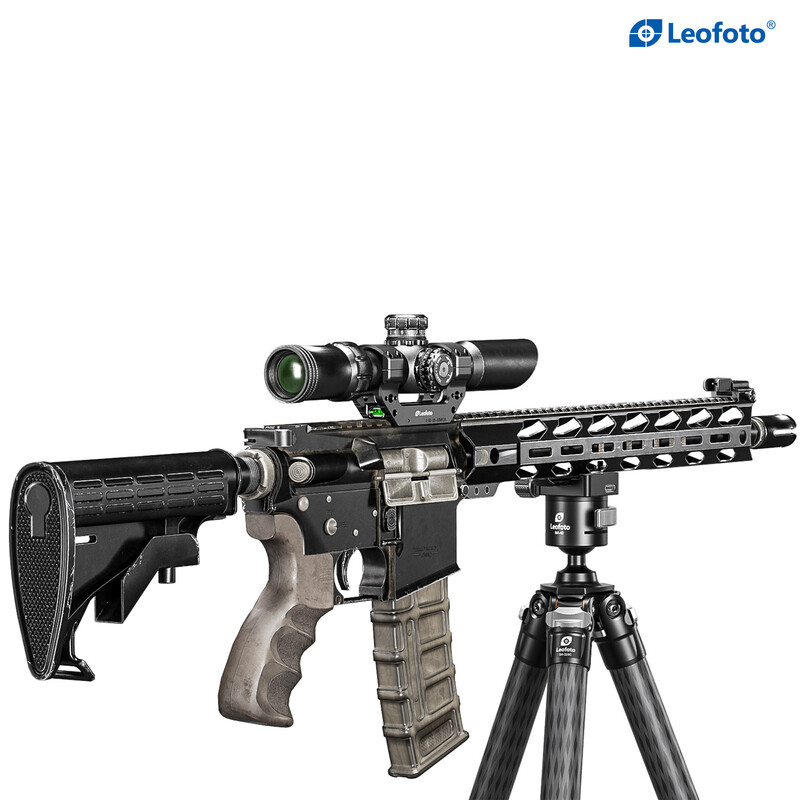

Example(s) of use show optional accessories and/or the product together with other items.
