More about the series H-600...
H 600 Wilo-Brau
The H 600 microscope is extremely versatile thanks to its modular design. All common microscopic examination methods such as bright field, phase contrast, dark field and polarization can be carried out by simply exchanging components. Modules for reflected light and fluorescence microscopy as well as two different trinocular photo/video tubes are also available.
Specification:
- Binocular microscope with extremely stable cast iron stand
- Equipped with coarse and fine adjustment
- Built-in halogen lamp 12 V/30 W with stepless brightness control
- Cross table 160 x 130 mm.
- Condenser with height adjustment for precise Köhler
- with aperture diaphragm and filter holder for excellent illumination of the image field at all magnification levels
- Illumination connector with adjustable light field diaphragm
- 4 or 5-position objective turret.
Scope of delivery:
- 2 eyepiece cups
- Filter slide II
- Conversion filter and VG 9 filter
- 2 centring keys
- Replacement lamp
- 2 replacement fuses
- Power cable
- Operating instructions
- dust cover

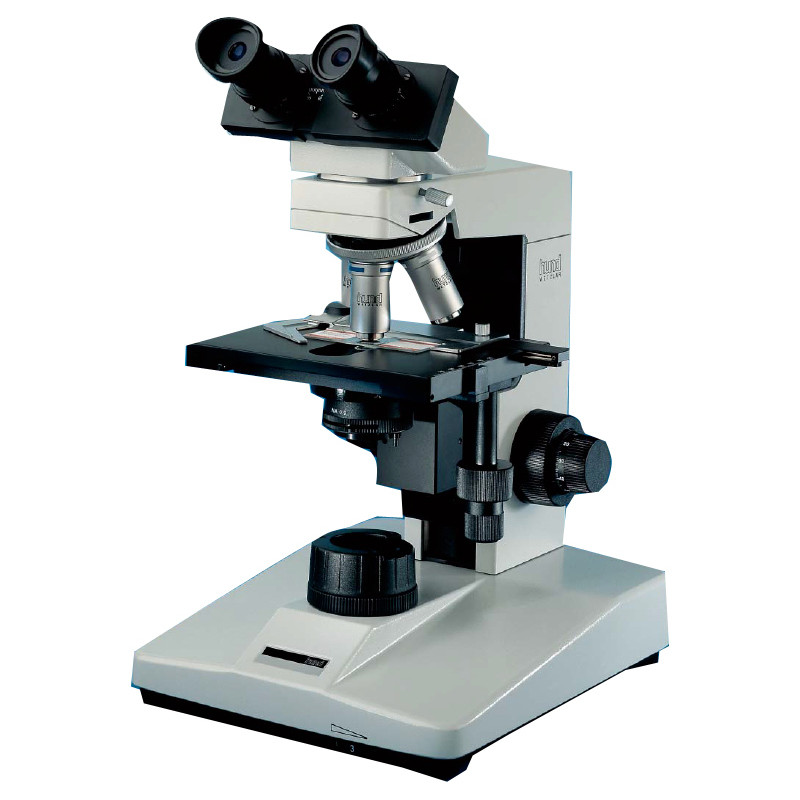

The H 600 PH Plan is particularly suitable for bright field and phase contrast with planachromatic phase contrast lenses and enlarged field of view (field number 20).
Equipment as H 600 Wilozyt, but with 3 phase contrast lenses for examining unstained material in phase contrast.
Specification:
- Tripod: with 5-position objective turret, tilted forward
- Contrast methods: Bright field and phase contrast
- Tube: binocular, 30°
- Eyepieces: wide field 10x/20
- Objectives: Plan PH2 20/0.25, Plan PH3 40/0.65, PH4 100/1.25 (oil)
- Magnification: 200 - 1000x
- Microscope stage: Cross table 160x130mm
- Condenser: Combination condenser NA 1.25
- Lighting: 12V / 30W halogen, continuously adjustable
Scope of delivery:
- 2 eyepiece cups
- Filter slide II
- Conversion filter
- Filter VG 9
- 2 centring keys
- Replacement lamp
- 2 replacement fuses
- Power cord
- Operating instructions
- dust cover
