Hund Wiloskop, the Stereo-Zoom-Microscope for Industry and Biology
Features
The new trinocular stereo-zoom-microscopy head is the core of the Wiloskop system. A number of application-specifi c stands, illumination systems and documentation devices provide the proper system combination for a large variety of applications.
Main Features
- Magnification up to 180x
- Large field of view of 22 mm (with standard eyepieces)
- Homogenous illumination by large-area incident and transmitted light LED’s
- Large application spectrum in industry and biology
Application Areas
- Industrial production and quality control
- Mineralogical investigations
- Preparation of biological samples

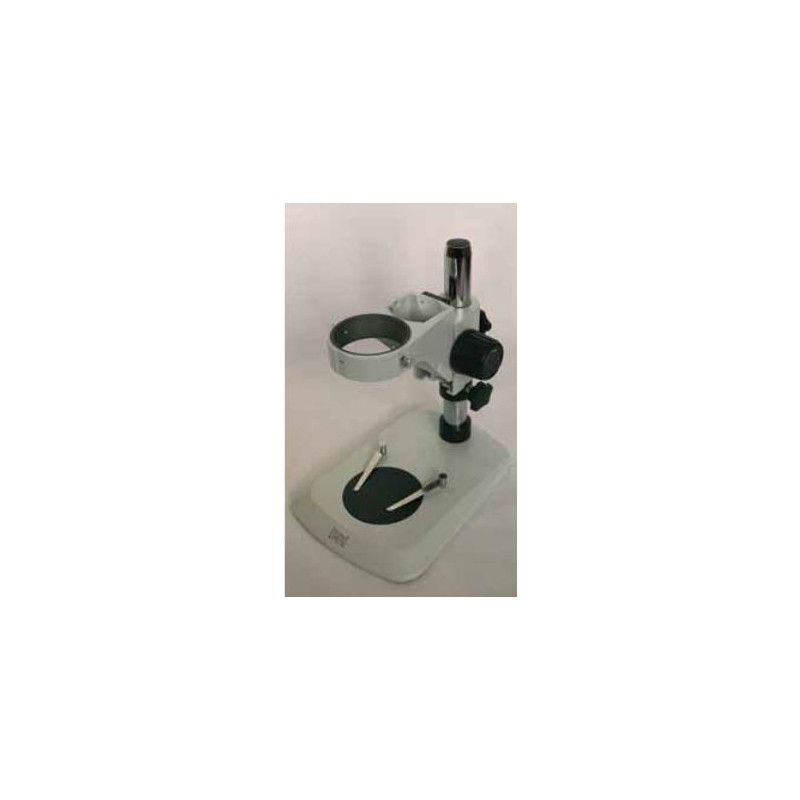

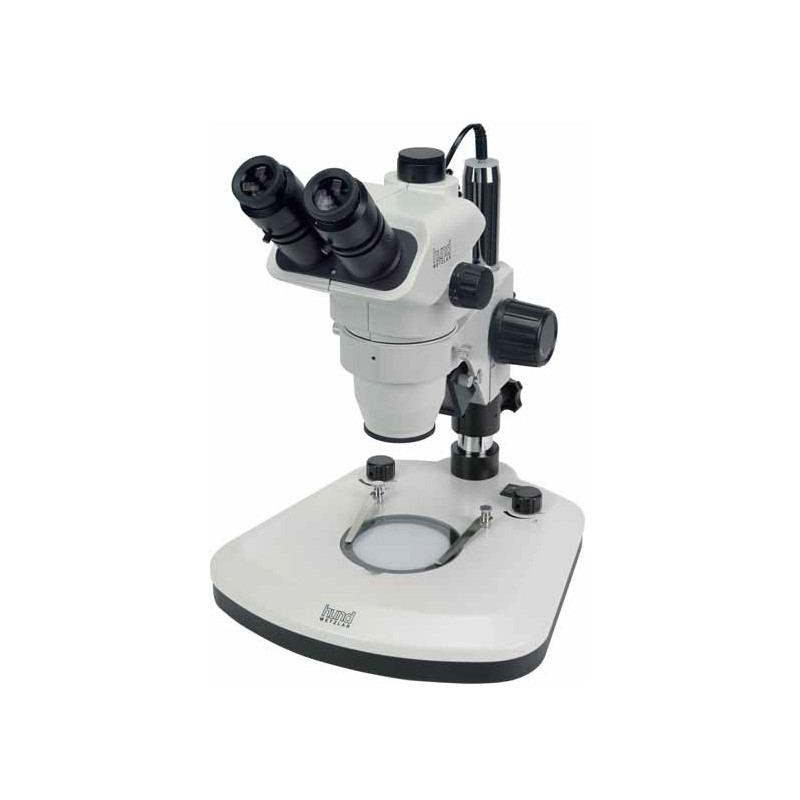

Stereo microscope Wiloskop - F zoom with tripod ST - AD LED
- LED reflected and transmitted light illumination
- Trinocular zoom body
- Greenough system

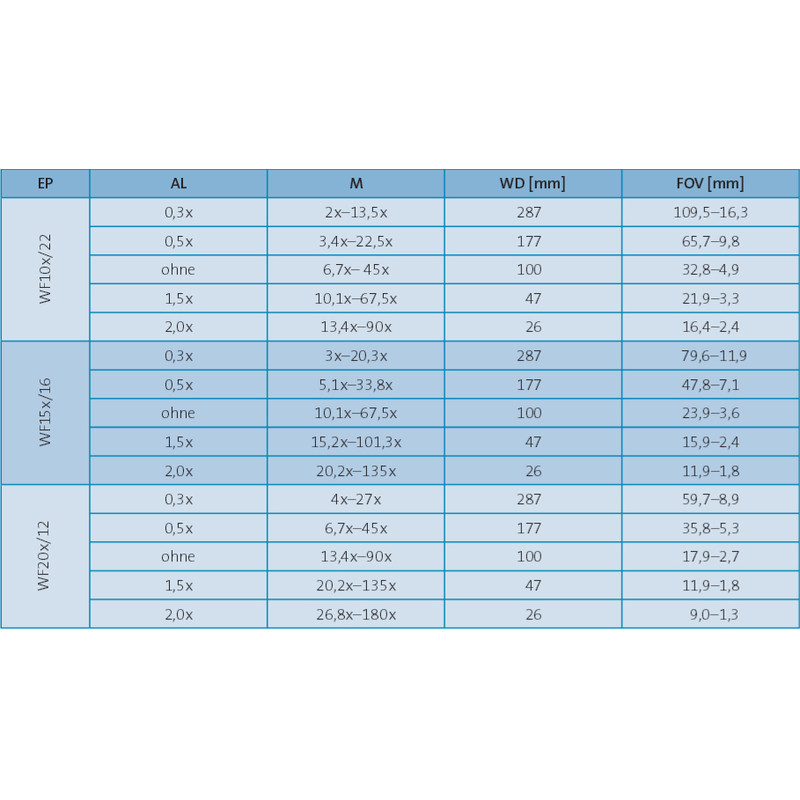

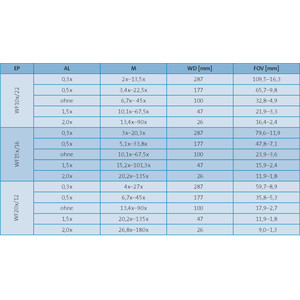

- Magnification range: 6.7x - 45x, with WF 10 x / 22 eyepieces
- Diopter adjustment: individually on both eyepiece sockets
- Focusing drive: Double-sided focusing drive with lock, height adjustment ring for focusing drive
- Object support: Glass plate inserted in tripod pad. Diameter 93 mm
- Incident light - bright field - lighting: LED field approx. 2 W
- The lamp can be swivelled and the brightness is continuously adjustable
- Transmitted light - bright field - lighting: LED field approx. 2 W
- Brightness continuously adjustable
- Low-voltage plug-in power supply
