Astronomy > Telescope accessories > Astrophotography > Camera adaptor > Projection adapter > Baader > Baader M68/2 " /M68 eyepiece projection mounting plate and 2 " Steckfassung
Product no.: 10621

M68/2 " /M68 eyepiece projection mounting plate and 2 " Steckfassung

$ 103.00 incl. VAT plus shipping costs
short-term
ready for shipping in 1-2 weeks + lead time

Product description

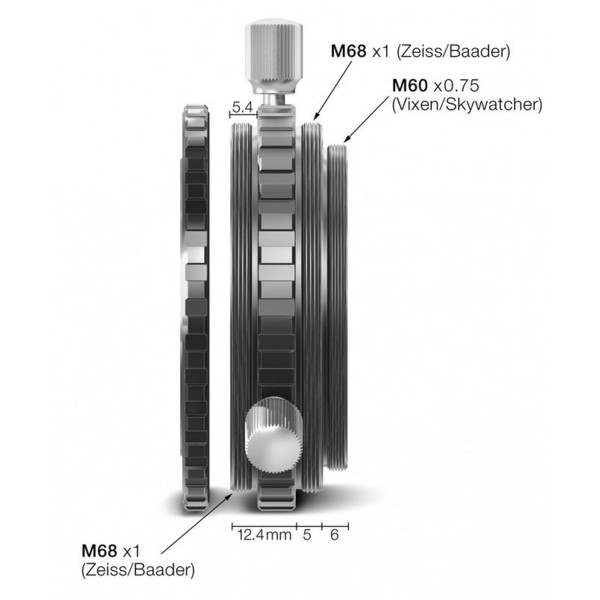

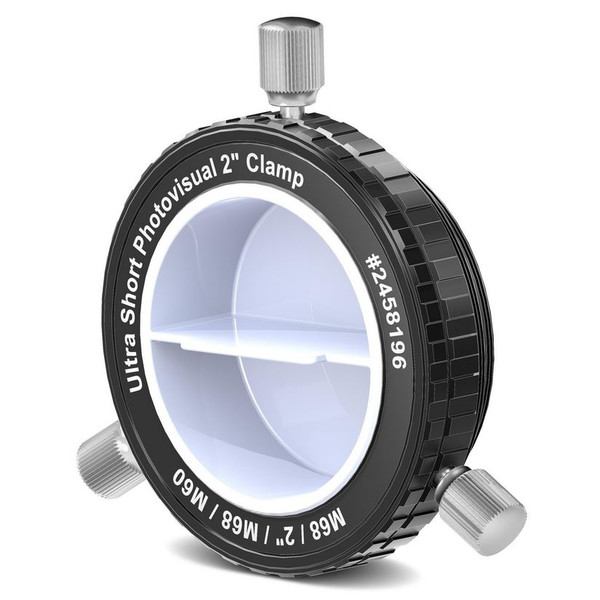

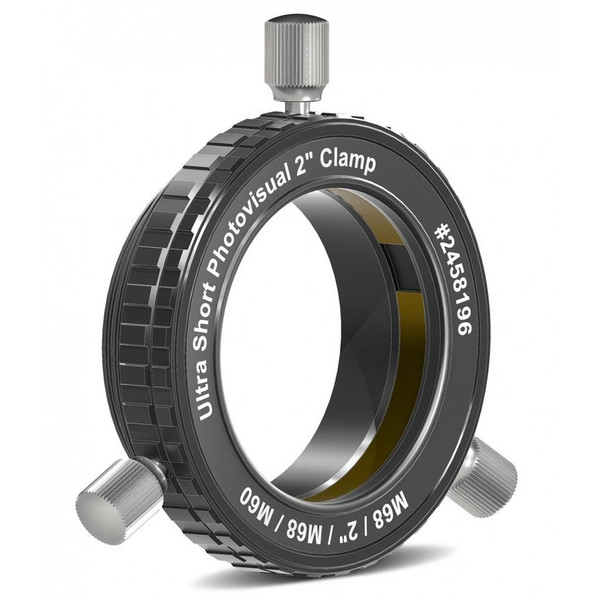

The Ultrashort eyepiece clamp with M68 male thread and M68 and M60 adaptor threads is the shortest 2" eyepiece clamp in the M68 (ZEISS) adaptor system.

The ZEISS thread on both sides allows, for example, all 2" eyepieces up to 63 mm eyepiece diameter to be used for photographic eyepiece projection, or an FFC to be fixed in the beam path, or a TZ-2 or TZ-4 telecentric system to be mounted behind a TEC or Astro Physics refractor.

The M68 extension system can be screwed tightly in place, ensuring maximum rigidity at long projection distances and with heavy photographic equipment or a Solar Spectrum solar filter.

Specifications

Capacity


Connection (to the telescope)
M68
Optical length (mm)
12,4 & 17,4
Connection ( to eyepiece)
2"
Connector (at camera end)
M68
Free transmission (mm)
50,8

General


Weight (g)
0,168
Diametre on the outside (mm)
75
Internal diameter max. (mm)
50,8

Product safety

Manufacturer: Baader Planetarium GmbH, Zur Sternwarte, 82291 Mammendorf, DE, www.baader-planetarium.de
