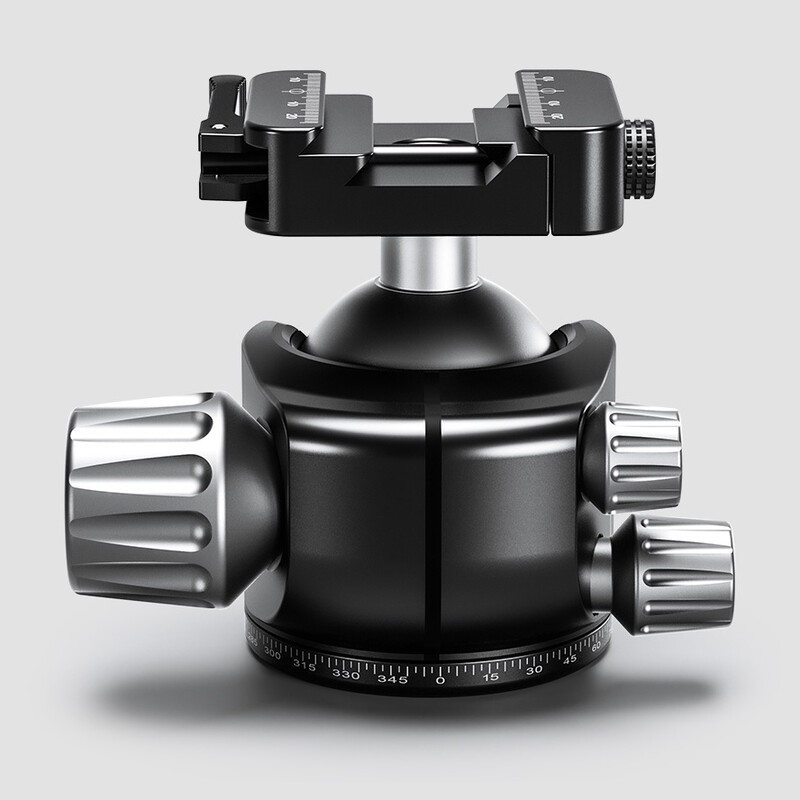

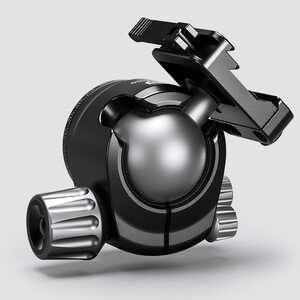

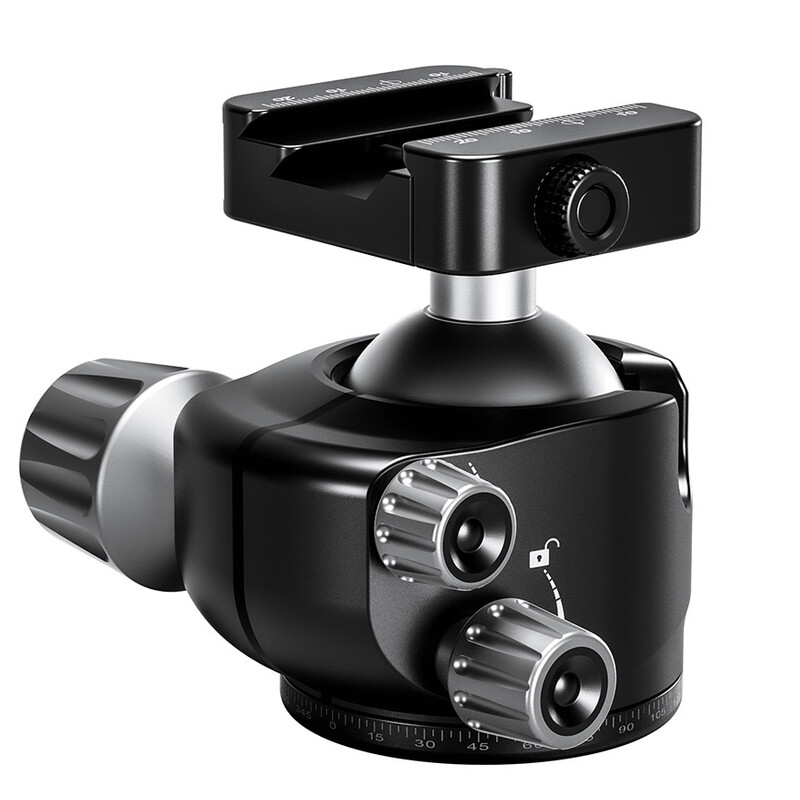

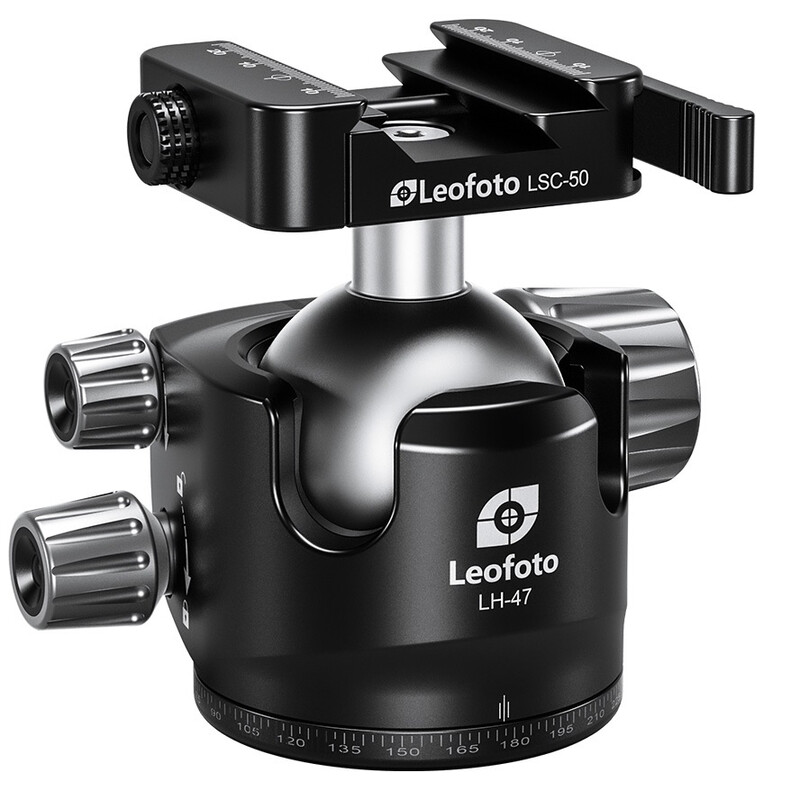

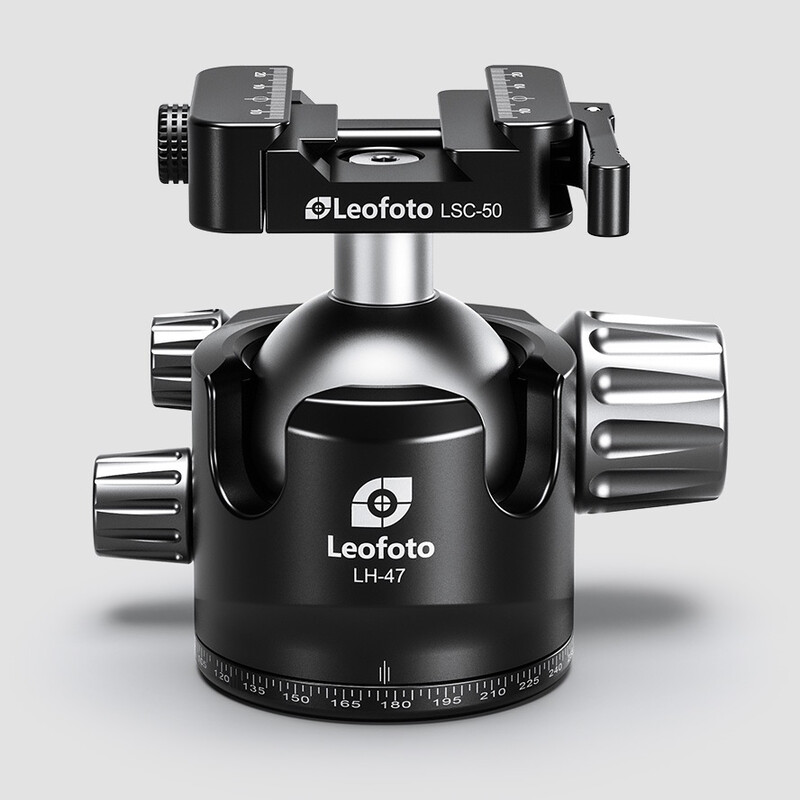

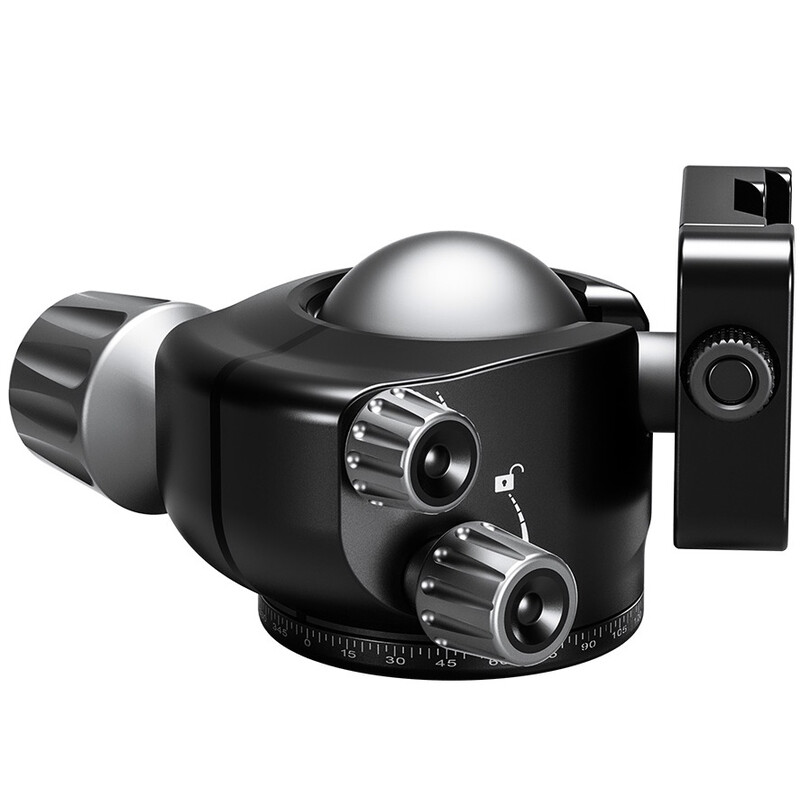

The LH-47 ballhead has a load capacity of 22 kilograms. This is achieved by the large ball diameter of 47 millimetres, which is manufactured with a tolerance of 0.01 millimetres. This allows the ballhead to move even heavy loads easily and clamp them securely. The ballhead itself weighs only 625 grams.
The base diameter of the ballhead is 62 millimetres, and it connects to the tripod via a 3/8-inch photo thread.
The ballhead is equipped with an Arca-Swiss standard clamp and a quick release plate.

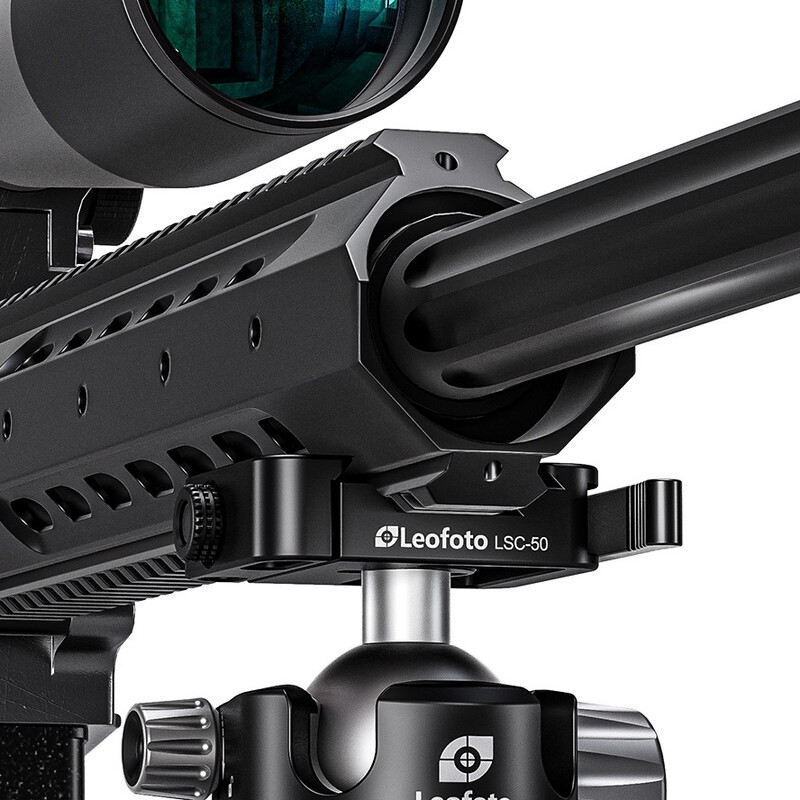

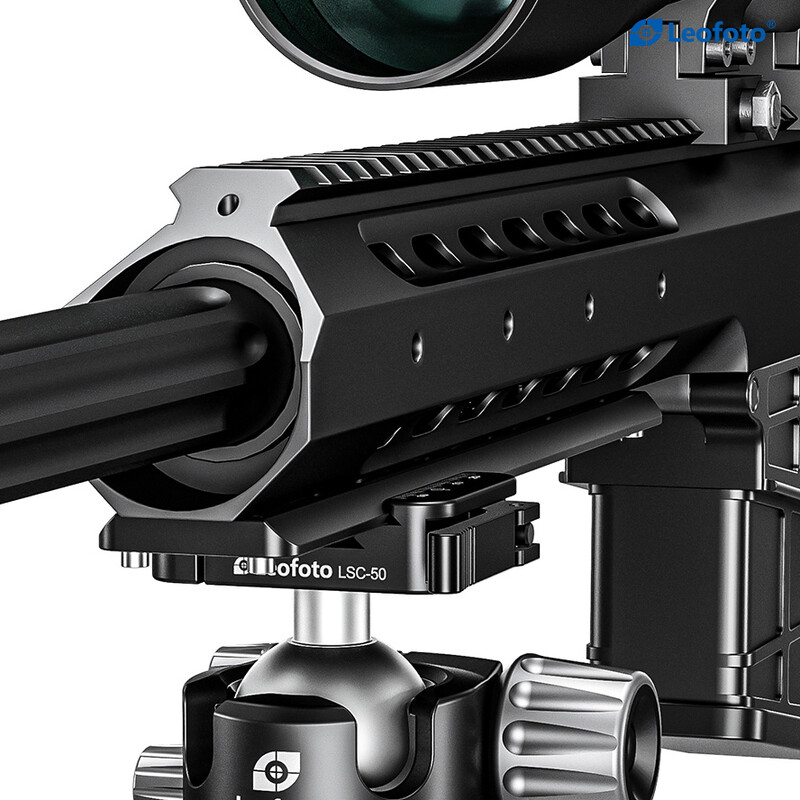

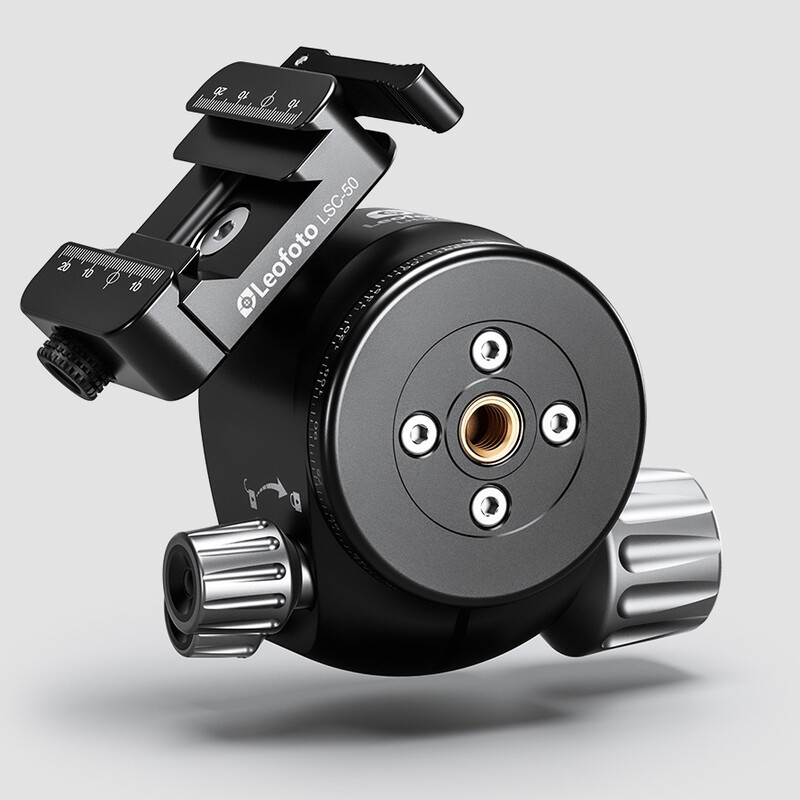

The SC models are equipped with a quick-release coupling that is suitable for mounting Arca-Swiss couplings as well as Weaver or Picatinny rails. This allows you to use your tripod for classic photography as well as a rifle stick.
A quick release plate is not included in the scope of delivery!
Leofoto uses high-quality 6061-T6 aluminium alloy with magnesium and silicon as alloy components for the metal parts. This corrosion-resistant material is characterised by high strength and good toughness. The yield strength is comparable to that of structural steel. All parts are milled from solid material on state-of-the-art CNC machines and are therefore significantly more stable than cast parts. Leofoto makes no compromises here either !
Example(s) of use show optional accessories and/or the product together with other items.
