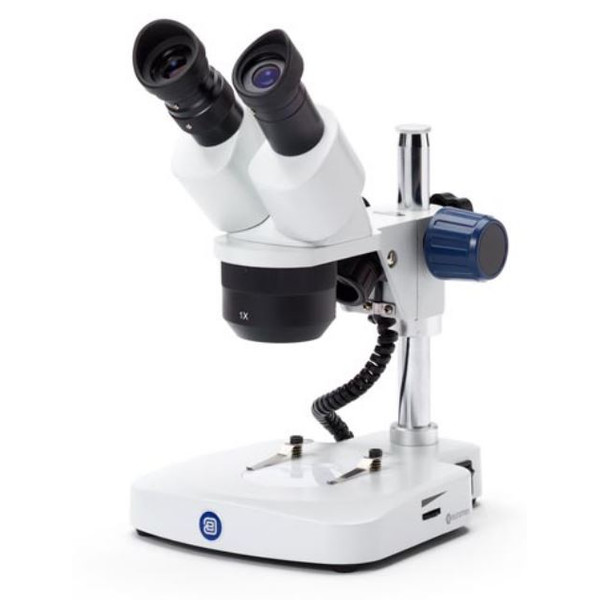

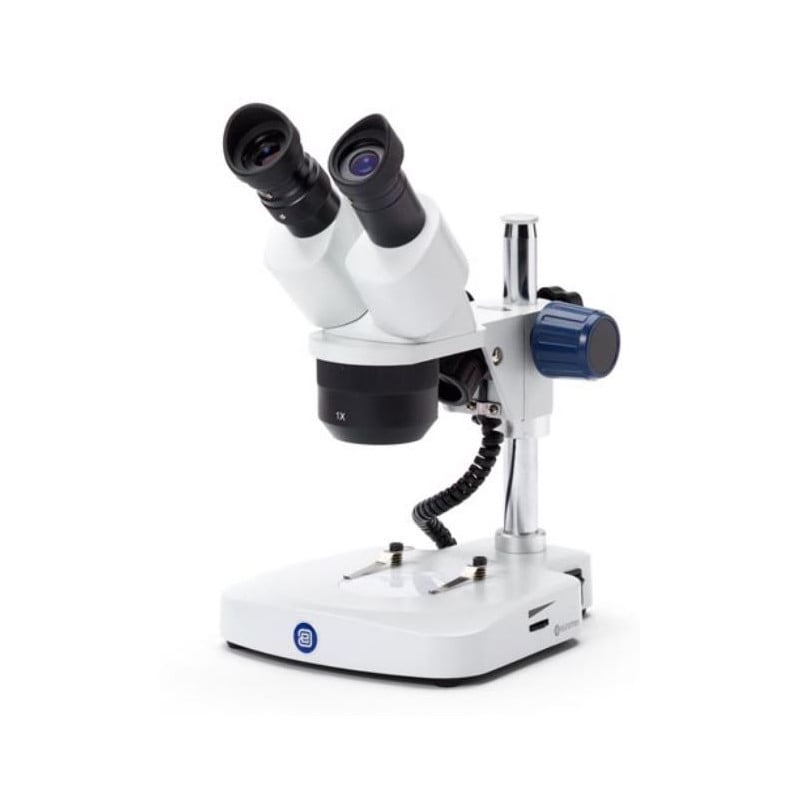

The EduBlue is ideal for educational purposes. It is available with double or triple lenses and achieves a magnification range of 5x to 80x. Transmitted light and reflected light LED lighting enable 3-dimensional observation of small objects such as insects and stones.
HIGHLIGHTS OF THE SERIES
• The ideal stereo microscopes for beginners
• Binocular and trinocular models available
• Robust and stable metal stands with secured eyepieces
• With 1x/3x, 2x/4x, 1x/2x/3x or 1x/2x/4x magnification
• Rack and pinion stand or pillar stand
• 1 W LED incident and transmitted light
• Wireless operation with batteries possible
• Digital models with 5 MP camera available
• Ergonomic carrying handle
TECHNICAL DATA OF THE SERIES
eyepieces:
• One pair of secured WF10x/20mm eyepieces with eyepiece cups
• Diopter adjustment ± on left eyepiece
Head:
• Binocular 45° inclined
• Eye relief from 55 to 75 mm
lenses:

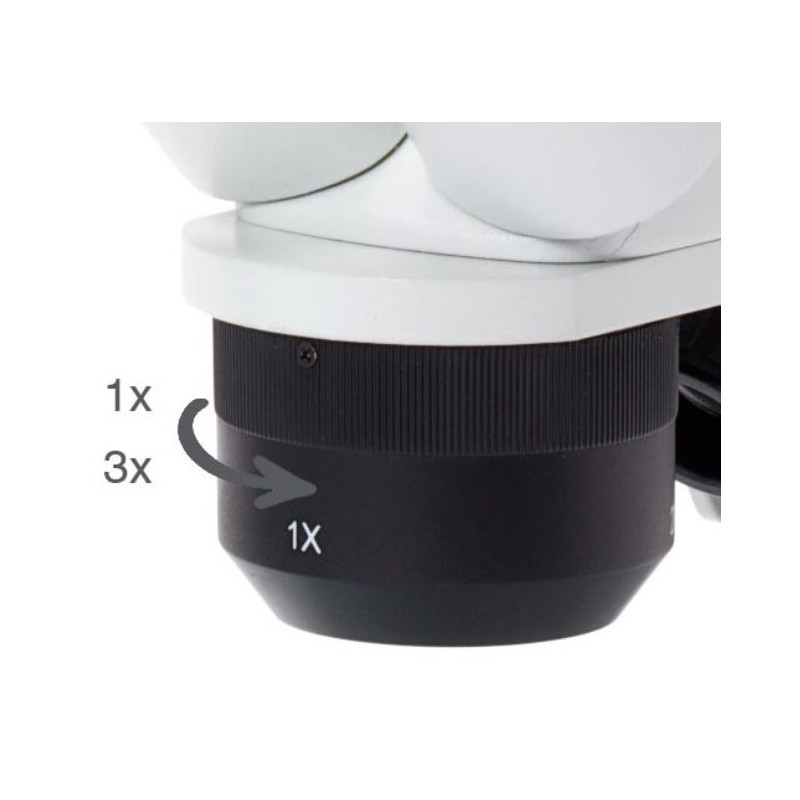

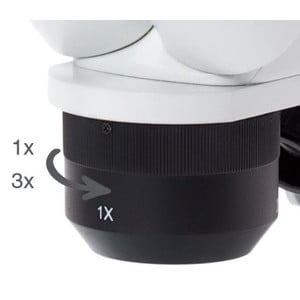

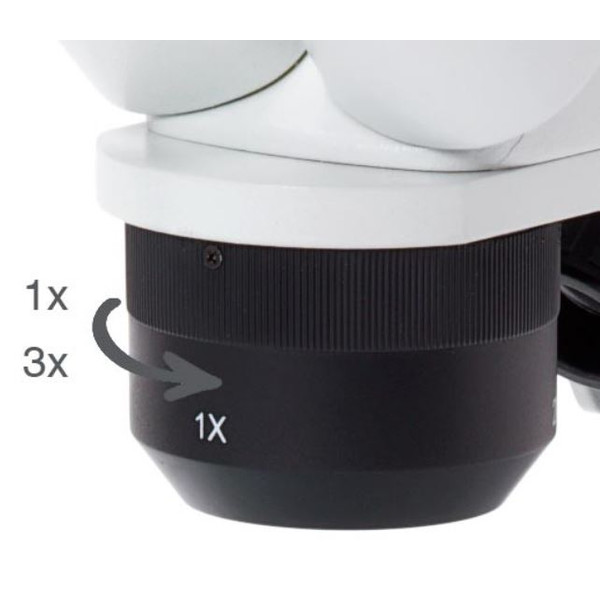

• Revolver with two magnifications: 1x/3x or 2x/4x
• Turret with triple magnification: 1x/2x/3x or 1x/2x/4x
• Working distance 60 mm
• Field of view 20/10/6.7 mm or 20/10/5 mm
• Magnification can be changed with optional eyepieces
• All optics are anti-fungal treated
tripod:
• Rack and pinion stand or pillar stand equipped with 2 object clamps and Ø 60 mm transparent and black/white plate
• Two coarse adjustment knobs
lighting:
• Transmitted and reflected light with 1 W LED lighting, can also be used simultaneously
• Adjustable illumination intensity
• With rechargeable batteries for cordless use
Camera (digital models)
• Digital versions equipped with 5 MP USB2.0 camera. Resolution 2560 x 1920 pixels, 24-bit colour depth, up to 30 frames per second
• Supplied as standard with ImageFocus Plus software, USB2.0 cable and micrometer 1mm/100
software:
• Supplied with ImageFocus Plus for capturing images and videos
• This software allows a wide range of analyses and measurements to be performed on images and films.
• Save images in .jpg, .tif, .bmp formats and videos in AVI format
• Compatible with Windows 7, 8 and 10, all 32 and 64 bit configurations
• Mac OS software is available as a light version
• Updates can be downloaded from the Euromex website
The EduBlue is ideal for educational purposes. It is available with double or triple objectives and achieves a magnification range of 5x to 80x. Transmitted light and incident LED illumination allow 3-dimensional observation of small objects such as insects and stones.
HIGHLIGHTS OF THE SERIES
- The ideal stereo microscopes for the beginner
- Binocular and trinocular models available
- Robust and stable metal stands with secured eyepieces
- With 1x/3x, 2x/4x, 1x/2x/3x, or 1x/2x/4x magnification
- Rack and pinion or column stand
- Incident and transmitted light 1 W LED
- Wireless operation with batteries possible
- Digital models with 5 MP camera available
- Ergonomic carrying handle
TECHNICAL DATA OF THE SERIES
Eyepieces:
- One pair of secured WF10x/20mm eyepieces with eyecups
- Diopter adjustment ± on left eyepiece
Head:
- Binocular 45°inclined
- Interpupillary distance from 55 to 75mm
Objectives:
- Revolver with double magnification: 1x/3x, or 2x/4x
- Revolver with triple magnification: 1x/2x/3x, or 1x/2x/4x
- Working distance 60 mm
- Field of view 20/10/6.7 mm or 20/10/5 mm
- Magnification can be changed with optional eyepieces
- All optics are antifungal treated
Stand:
- Rack and pinion or column stand equipped with 2 object clamps and Ø 60 mm transparent and black/white plate
- Two coarse adjustment knobs
Illumination:
- Transmitted and incident light with 1 W LED illumination, can also be used simultaneously
- Illuminance adjustable
- With rechargeable batteries for cordless use
Camera (only with digital models)
- Digital versions equipped with 5 MP USB2.0 camera. Resolution 2560 x 1920 pixels, 24-bit colour depth, up to 30 frames per second
- Supplied as standard with ImageFocus Plus software, USB2.0 cable and micrometer 1mm/100
Software: (only with digital models)
- Supplied with ImageFocus Plus for image and video capture.
- This software allows a wide range of analyses as well as measurements on images and films.
- Saves images in .jpg, .tif, .bmp formats and videos in AVI format
- Compatible with Windows 7, 8 and 10, all 32 and 64 bit configurations
- Mac OS software is available as a light version
- Updates can be downloaded from the Euromex website
