More about the series Mantis...
Mantis - IOTA
Compact, eyepiece-free, optical stereo microscope with dynamic 3D optics.
Highlights
- Best optical 3D stereo image
- Ergonomic working posture
- Large working distance
- Magnification 3x - 8x
- Quick-change lenses
- Synchronised LED lighting

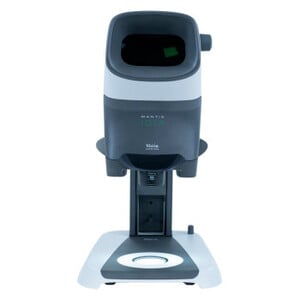

Mantis IOTA with "Stabila tabletop tripod" SMI211
The compact, stable design offers a large focusing range and an optional transmitted light unit.

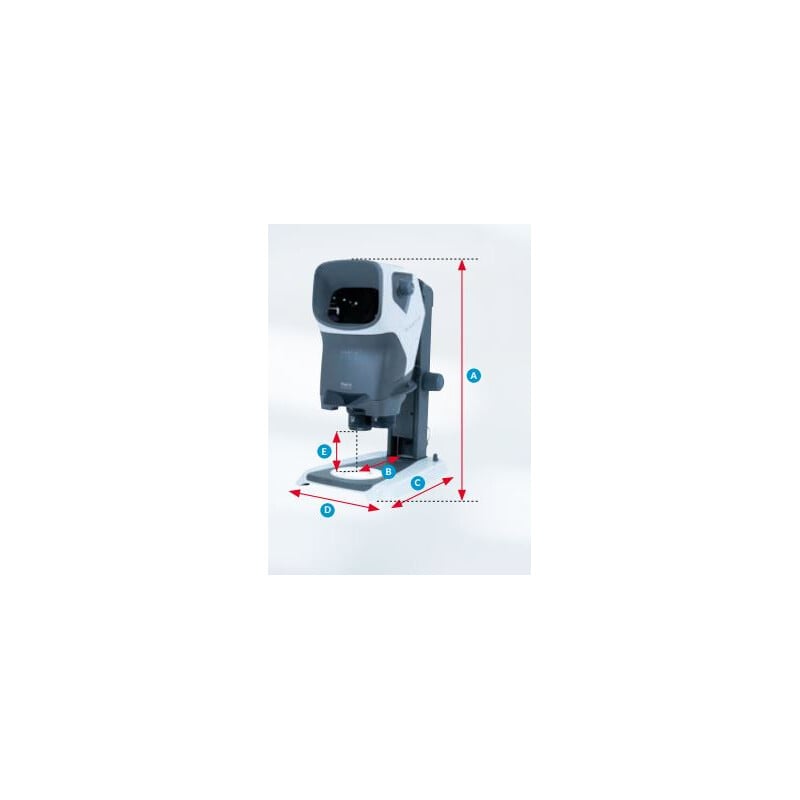

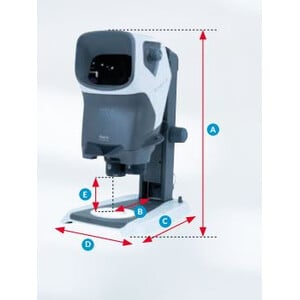

Dimensions:
Height of working area – 150 mm
Projection – 218 mm
Max. object height – 146 mm
Components included:

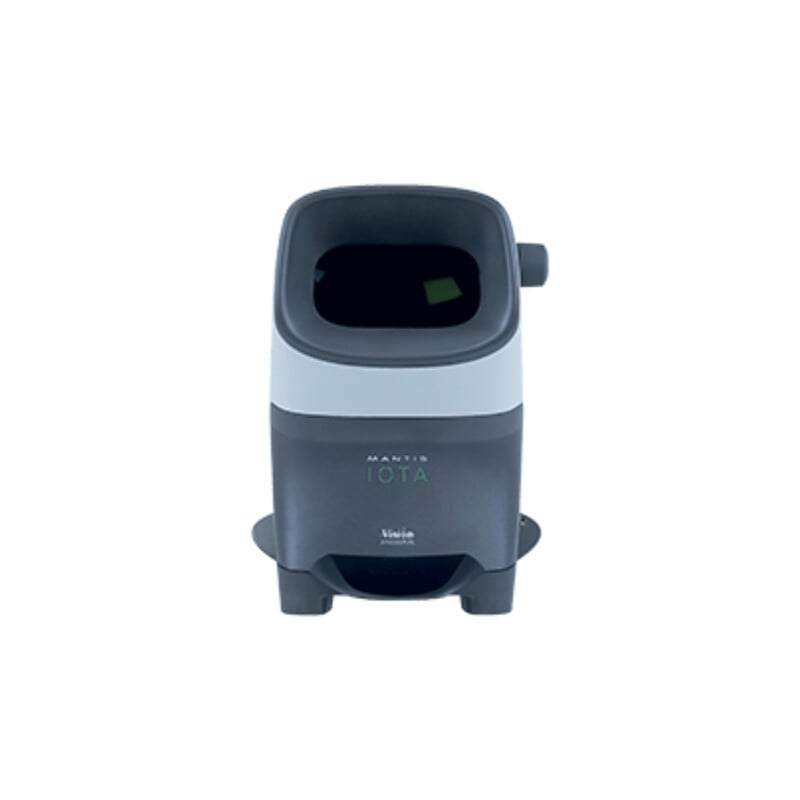

- Stereo head MIH001 (without magnifying lenses/objectives) and LED lighting
- MTB210 tripod
- Base plate MTB211
- Dust cover MTA360
- Power supplies MTA330
Mantis IOTA - compatible lenses
Magnification Working distance Max. field of view Exit pupil diameter
3x 104 mm 37.0 mm 22.8 mm
4x 108 mm 29.0 mm 23.6 mm
6x 74 mm 20.1 mm 18.0 mm
8x 61 mm 15.0 mm 18.0 mm
