More about the series Mantis...
Mantis - IOTA
Compact, eyepiece-free, optical stereo microscope with dynamic 3D optics.
Highlights
- Best optical 3D stereo image
- Ergonomic working posture
- Large working distance
- Magnification 3x - 8x
- Quick-change lenses
- Synchronised LED lighting

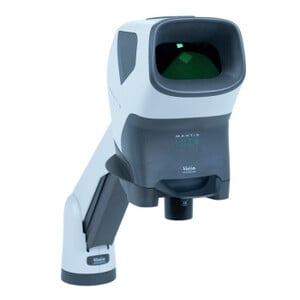

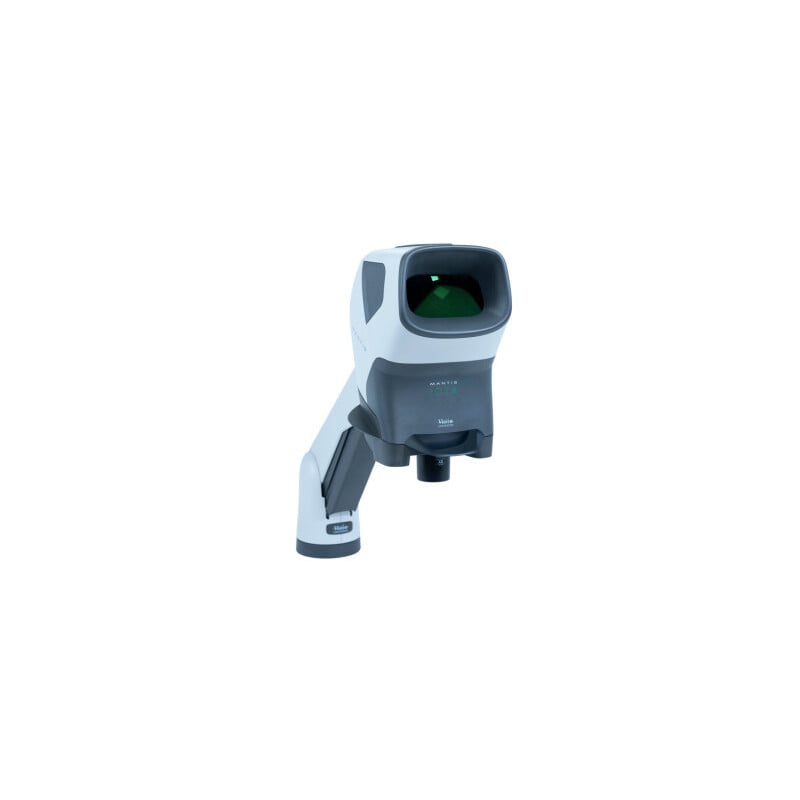

Mantis IOTA with "Verso Universal Stand" SMI200
With the versatile Verso stand, the system can be raised and lowered to the correct position as required

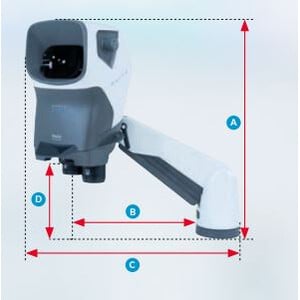

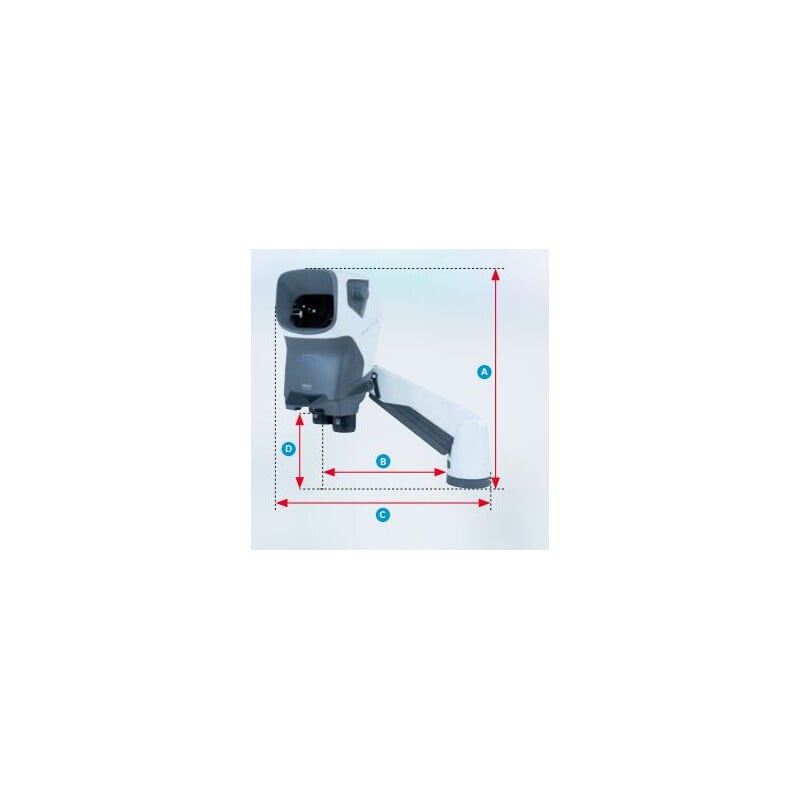

Dimensions
- Working height – 230 mm
- Projection – 380 – 505 mm
- Max. object height – 166 mm
Components included:

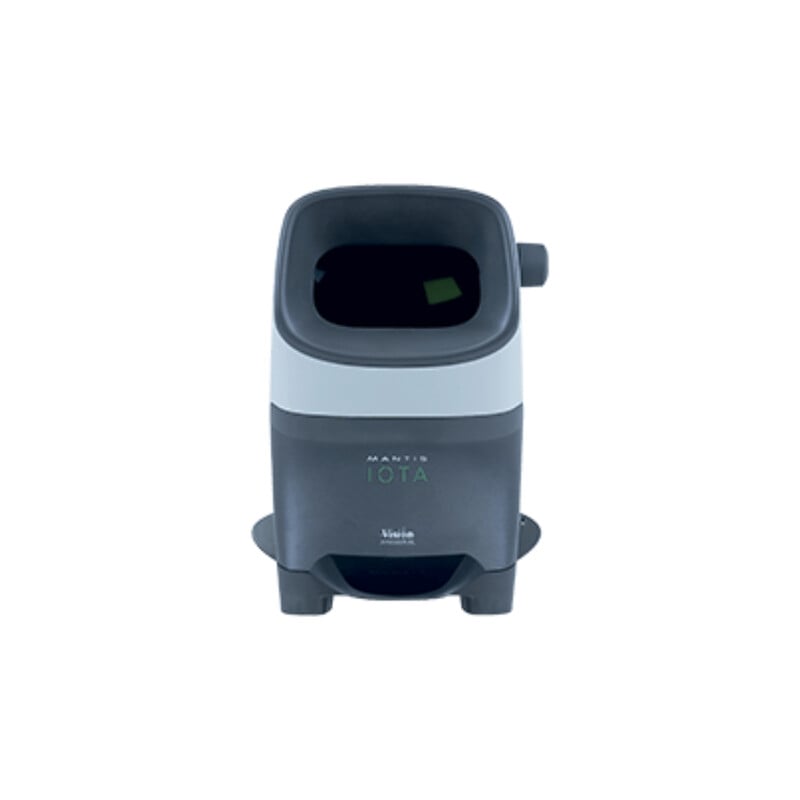

- Stereo head MIH001 (without magnifying lenses/objectives) and LED lighting
- Verso arm MTB200A
- Dust cover MTA360
- Power pack MTA330
Mantis IOTA - compatible lenses
Magnification Working distance Max. field of view Exit pupil diameter
3x 104 mm 37.0 mm 22.8 mm
4x 108 mm 29.0 mm 23.6 mm
6x 74 mm 20.1 mm 18.0 mm
8x 61 mm 15.0 mm 18.0 mm
