Microscopy > Microscopes > Stereo microscope > Stereo zoom sets > Euromex > Nexius > Euromex Stereo zoom microscope NZ.1903-P, 6.7-45x, Column, Reflected and transmitted light, trino

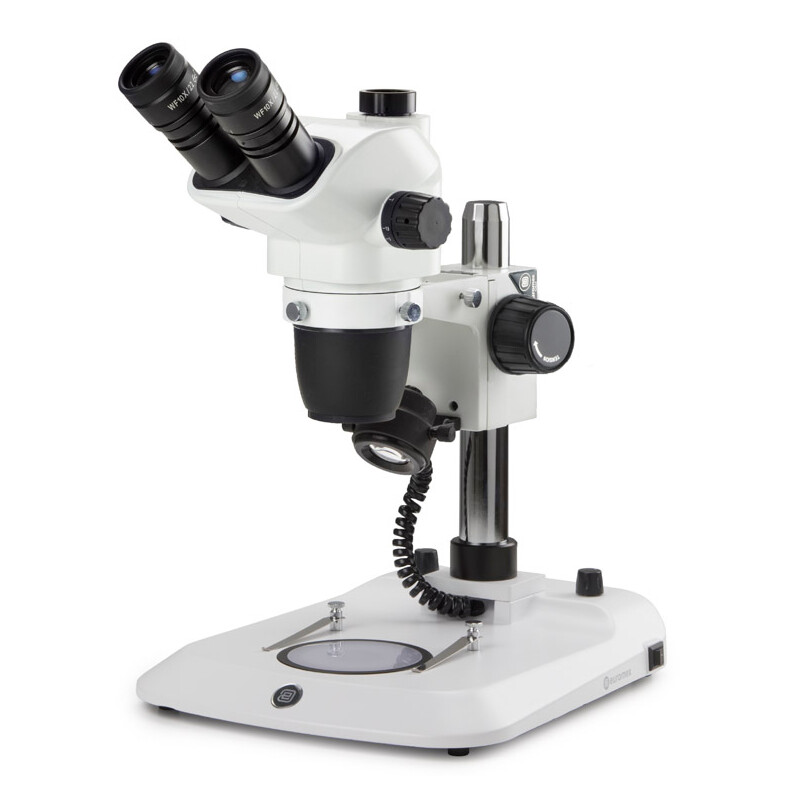

Euromex Stereo zoom microscope NZ.1903-P, 6.7-45x, Column, Reflected and transmitted light, trino

Product no.: 63364

Stereo zoom microscope NZ.1903-P, 6.7-45x, Column, Reflected and transmitted light, trino

Name: Euromex Stereo zoom microscope NZ.1903-P, 6.7-45x, Column, Reflected and transmitted light, trino
Brand: Euromex
Price: 1130 USD

$ 1,130.00 incl. VAT plus shipping costs

too expensive?

short-term
ready for shipping in 1-2 weeks + lead time

add to cart

Product questions?

advice for Microscopy

Product description

More about the series Nexius...

Euromex NexiusZoom

The NexiusZoom stereomicroscopes are often used for professional industrial purposes, scientific research and education because of the excellent optical and mechanical properties while very attractively priced

Standard wide field secured WF10x eyepices with 22 mm field of view
45° inclined, 360° rotatable bino- and trinocular stereo heads
0.67 to 45x Zoom objectif, parafocal over the entire zoom range with a working distance of 110 mm
With optionale additional lenses, magnifications from 3.3x to 90 times can be achieved
2 read-to-use stereomicroscope models with ergonomic flat stand with 3 W LED diascopic and incident illumination
4 configuratieons with universal one arm or double arm stands

NZ.1903-P, 6.7-45x, column, reflected and transmitted light, trino

WF10x/22 eyepieces in 45° inclined tube with diopter adjustment
Standard total magnification from 6.67 to 45x
Field of view 33 to 4.9 mm
Working distance 110 mm, maximum object height 213 mm
Universal pillar stands
With reflected and transmitted light
Supplied with object plate with 2 mounting clamps

EYEPIECES
The standard NexiusZoom is supplied with a pair of HWF 10x/ 22 mm eyepieces.

OBJECTIVES
The standard NexiusZoom is equipped with a plan achromatic 1:6.7 objective with 0.67x to 4.5x magnification. Field of view from 33 mm to 4.9 mm. Large working distance of 110 mm.

Ancillary lenses 0.3x / 0.4x / 0.5x / 0.75x / 1.5x and
2.0x are available. All lenses are treated against fungi.

Specifications

Optics

Eyepiece

10 (WF 10/22)

Magnification

0,67-45 (zoom lens)

Lamp type

LED

Lighting

Incident light and transmitted light

Optical system

Greenough

Mechanics

Type of build

Trinocular

Working distance (mm)

110

Viewing posture (°)

45° oblique viewing

Special features

Dust cover bag

yes

General

Width (mm)

219

Length (mm)

266

Series

Nexius

Field of application

Industry

yes

Medicine

yes

Area of application

Materials technology

yes

Mineralogy

yes

Metallurgy

yes

University

yes

Veterinary medicine

yes

show less...

Downloads

Booklet (EN)

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
