Stereo zoom microscope SZ51, binocular, incident and transmitted light

Comfort for Your Eyes – Precision for Your Work

The SZ51 new ComfortView eyepieces ensure fast, comfortable observation with the advantage of pupil aberration control, while the universal LED illumination stand brings together all the advantages of LED technology. The small angle convergence of the image-forming path in the Greenough optical system ensures excellent image flatness and depth of focus. Superior optical coatings provide high color fidelity. Antistatic materials and coatings protect specimens from electrostatic discharge. The SZ61 zoom stereo microscope is ideal for routine and advanced stereo microscopic observation, especially when documentation with digital imaging is required. The cost-efficient SZ51 zoom stereo microscope offers a broad range of functions for life sciences.

Wide Zoom Ratio

The SZ51 provides the magnification rage of 8x to 40x (using 10x eyepieces), with a wide zoom ratio of 5:1.

3 Dimensional Viewing

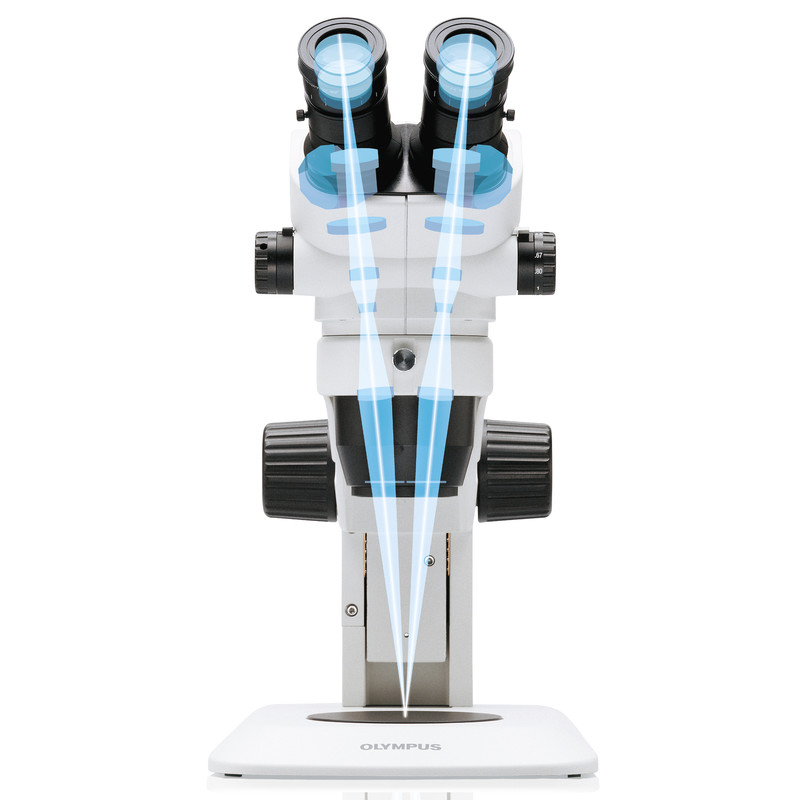

The optimum inward angle allows just the right combination of high level flatness and depth of focus for 3D viewing. Even a specimen with significant depth can be brought into focus from top to bottom for faster inspection.

ComfortView Eyepieces for Reduced Eyestrain

Quick, comfortable observation is ensured by this exclusive eyepiece design featuring pupil aberration control and appropriate positioning of the eyepoint. Also, superior optical coatings render true color images with fine detail.

LED Illumination

The universal reflected/transmitted light LED illumination stand brings together all the advantages of LED technology. The flat, high-brightness LEDs allow successful integration of transmitted illumination into a very slim base, which in turn facilitates easy specimen access and manipulation.

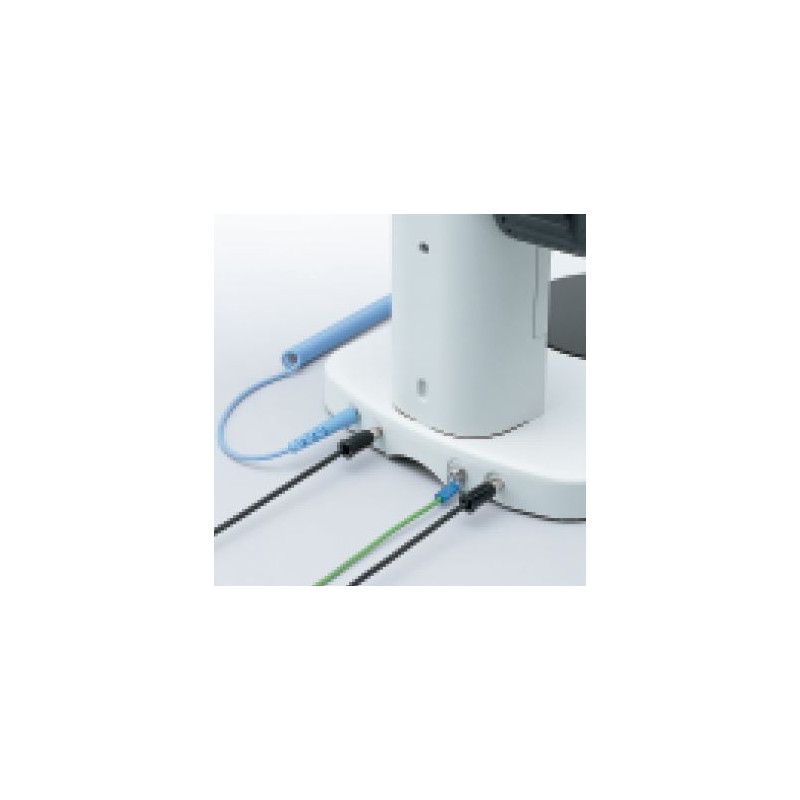

Electrostatic Discharge Protection

The main body and major accessories can quickly eliminate static electricity with the use of antistatic materials and coatings. This prevents a specimen under observation from electrostatic damage.

4 SETS are provided

• SZ51 without illumination to use with gooseneck
• SZ51 without illumination to use with ringlight
• SZ51 with transmitted light
• SZ51 wit incident and transmitted light

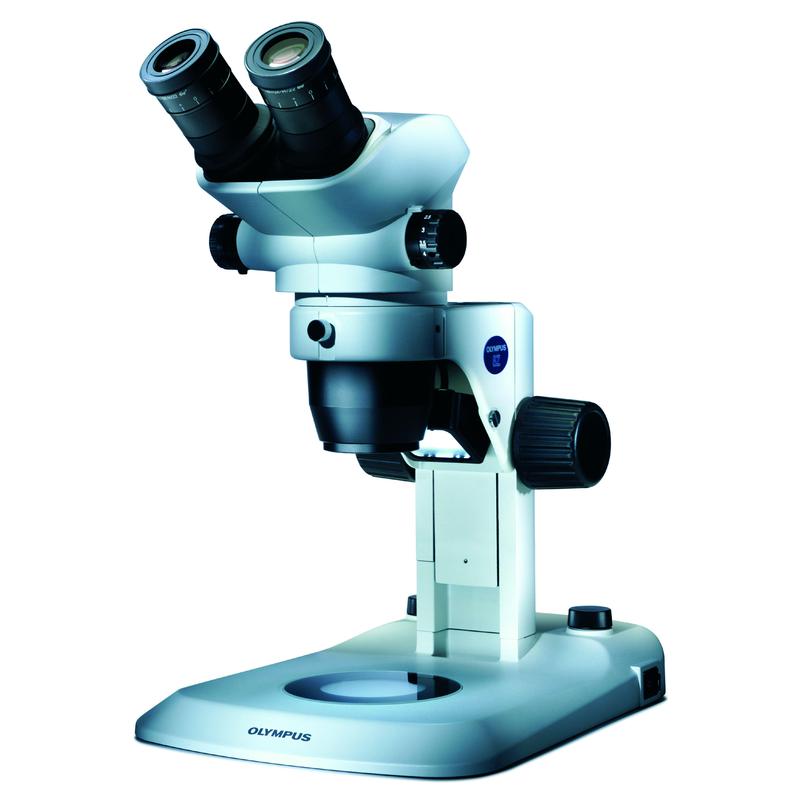

The SZ-51 variant with transmitted light

• The SZ-51 has a binocular view with a 45° viewing angle.
• Eyepieces Field number 22
• Interpupillary distance adjustable between 52 and 76 mm
• The image scale is adjustable between 0.8x and 4x, allowing the magnification to be adjusted continuously between 8x and 40x.
• It also has one of the best zoom ratios in its class at 5:1.
• Focusing range 120 mm
• Working distance 110 mm
• Stereo zoom body with ESD properties
• Tripods & mounts with ESD properties and grounding sockets
• Integrated filter holder (45 mm)
• Clear glass plate
• Transmitted light base with double-sided sliding swivel mirror for low and high magnifications
• LED light source
• Scope of delivery Power cables and dust cover

Similar to illustration. (Without lighting, supplied with standard stand)

Included components:

1. Stereo microscope tripod Z2-ILST-8 (N5215100)
2. SZ51 stereo zoom head (N1197800)
3. 2x eyepieces WHSZ10X-H (N1198000)
4. UYCP cable (035425)
5. Dust cover (038159)
