Highlights of the SMZ-160 series
- Greenough system
- Field of view: 20
- Magnification range from 7.5X to 45X
- Zoom 6:1
- Click stops enable precise reproduction of magnification during measurements

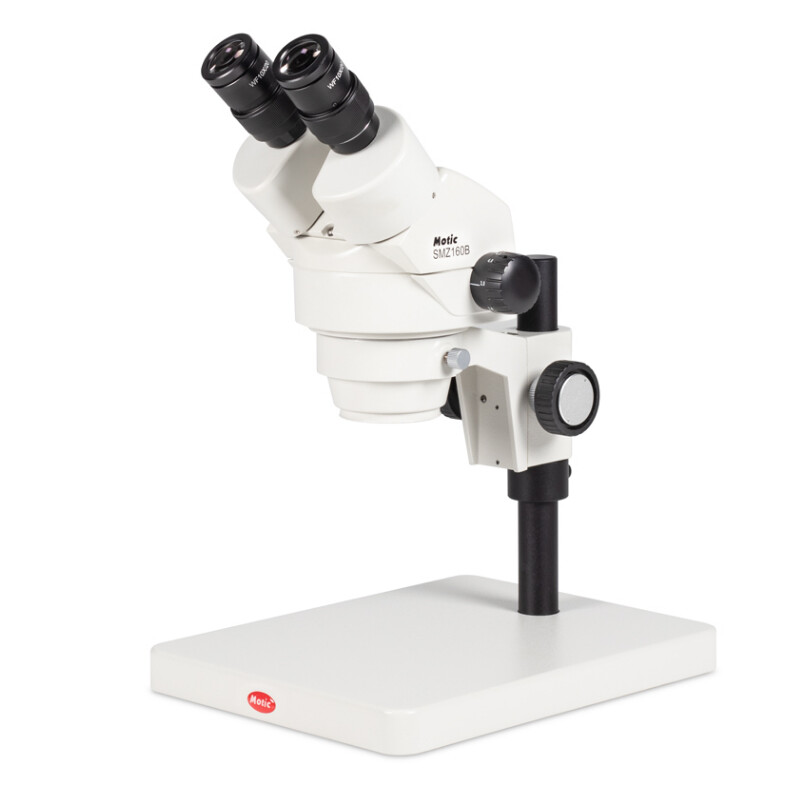

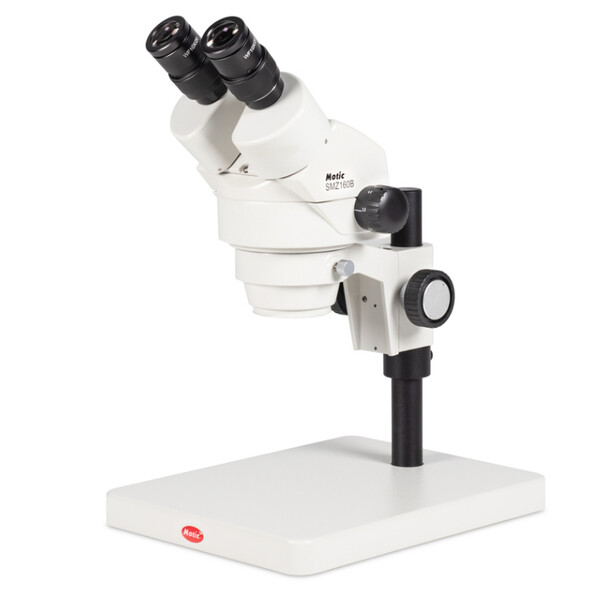

Specification SMZ-160-BP (1100201300151)
Optical system: Greenough
Observation tube: Binocular head
Viewing angle: 45º inclined
Interpupillary distance: 50-75 mm
Diopter adjustment: On both eyepiece sockets, +/- 5 diopters

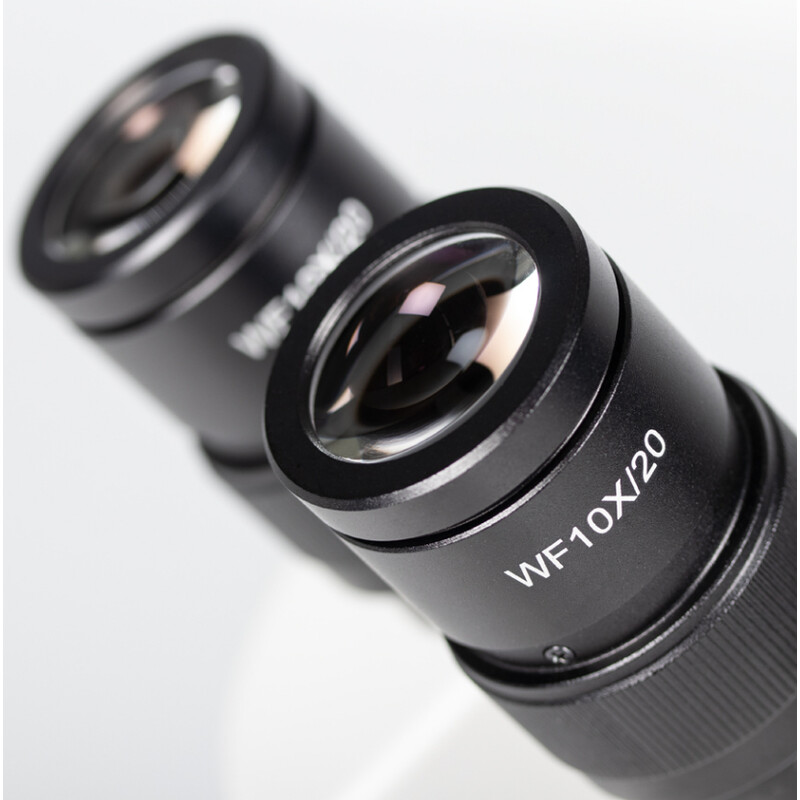

Eyepieces: Wide field WF10X/20mm
Objective system: Zoom ratio 6:1
Lenses: 0.75X - 4.5X
Working distance: 100 mm
Tripod type: Column tripod without lighting
Headmount: For Ø25mm column and Ø76mm head
Focus: coarse focus with smoothness adjustment
Focusing travel: 43 mm
Dimensions LxWxH: 280x220x367 mm
Base plate: 280 x 220 mm
Tripod column / arm: Height 221 mm / Ø25 mm
Net weight: 3.2 kg
Scope of delivery: Dust cover
Contrast methods:
Bright field: Yes
