Astronomy > Telescopes > Vixen > Porta > Vixen Telescope AP 80/600 ED80Sf Porta-II
Product no.: 14816

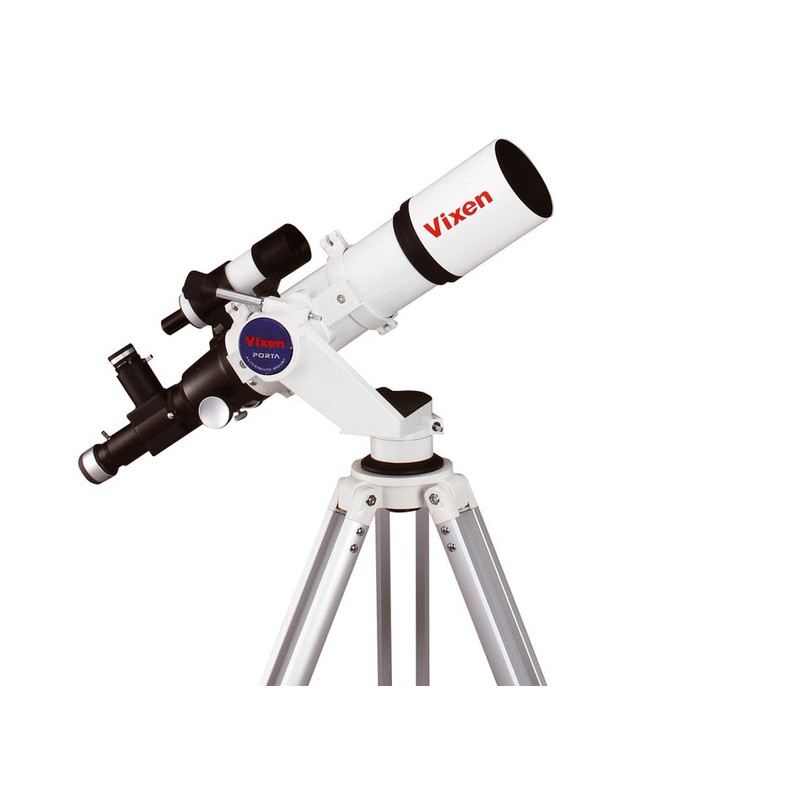

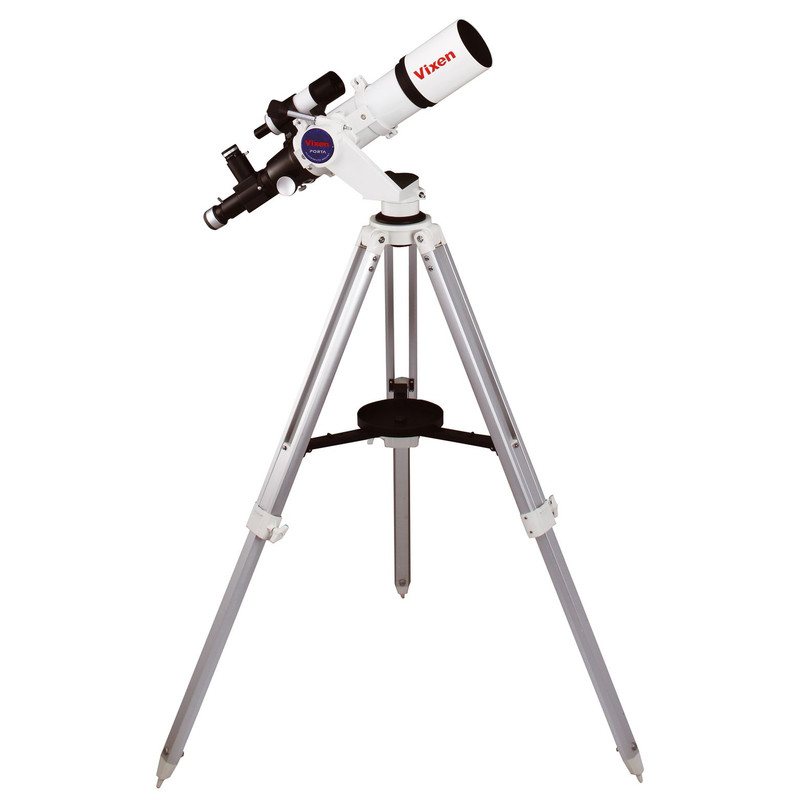

Telescope AP 80/600 ED80Sf Porta-II

$ 1,490.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

More about the series Porta...

Vixen Ap 80/600

The ED80Sf refractor with Vixen's new Dual Speed Focuser, features high-grade glass (FPL-53) and quality components. Coupled with a medium f/7.5 focal ratio, the ED "S" series provides a sharp, color-free image of high contrast. At only 22.4", this is our ultimate grab-n-go APO travel scope.

The Porta II is the Mercedes of azimuth mounts: beautifully designed, very solidly constructed and proven thousands of times over!

If you are looking for a simple mount that can be quickly packed, easily transported and set up, the Porta II is the right choice. It can safely support smaller optics up to 5 kg and 16 cm outer diameter. You can easily move your telescope in azimuth and elevation by hand, and thanks to the friction brake, the mount holds the set elevation angle firmly in place.

The Porta II has two handles for fine adjustment and tracking. The position of the handles is variable, so you can ergonomically adapt your Porta II to different optical tubes.

The tool included in the scope delivery is required to adjust the fine adjustment position or the friction brake. The Porta II has a small storage compartment for this purpose.

The Porta II mount can be detached from the tripod with a simple screw. This can be done easily by hand with a handy screw, so that you can transport the tripod and mount separately and still be ready for use quickly.

The PORTA II is equipped with the prism rail system introduced by Vixen. Most telescope manufacturers have adopted this system, so you can use virtually any optical tube.

Azimuth mounts are ideal for quick, mobile use of small optics. They owe their popularity to their intuitive operation, light weight and the fact that they take up little space. The Porta II is the best choice for this type of mount!

It not only matters which telescope you buy but also where you buy it. Our additional services:

  • We are a leading telescope dealer and know the devices we sell. Our customer service team will gladly help you after your purchase if you have problems with assembly or operation.
  • We provide a copy of the 80-page Telescope ABC beginners handbook with every telescope.

Specifications

Optics


Type
Refractor
Type of build
Apochromat
Aperture (mm)
80
Focal length (mm)
600
Aperture ratio (f/)
7,5
Resolving capacity
1,44
Limit value (mag)
11,3
Light gathering capacity
131
Max. useful magnification
160
Tube weight (kg)
3,4
Tube length (mm)
570
Tube construction
Full tube

Focuser


Type of build
Gear rack
Connection ( to eyepiece)
2

Mount


Mounting type
Azimuthal
Type of build
Single tine
GoTo control
no

Tripod


Material
Aluminium
Height (cm)
90-130

Included accessories


1.25'' eyepieces
NPL 20mm, NPL 6mm
Finder scope
9x50
Deviating optics
1.25'' tilting mirror for 2 eyepieces
Miscellaneous
Aluminium case

General


Series
Porta
Total weight (kg)
10,5

Area of application


Moon & Planets
yes
Nebulae & galaxies
no
Nature Observation
yes
Sun
no (Only with appropriate Sun filter)
Astrophotography
no

Recommended for


Beginners
yes
Advanced
yes
Observatories
no

Product safety

Manufacturer: Vixen Co. Ltd., 5-17-3 Higashi-Tokorozawa Tokorozawa-shi, 359-0021 Saitama, JP, www.vixen.co.jp
Responsible person: Bresser GmbH, Gutenbergstraße 2, 46414 Rhede, DE, [email protected]
