Night vision devices & thermal cameras > Instruments > Thermal imaging cameras > AGM > AGM Thermal imaging camera Taipan TM25-384
Product no.: 74391

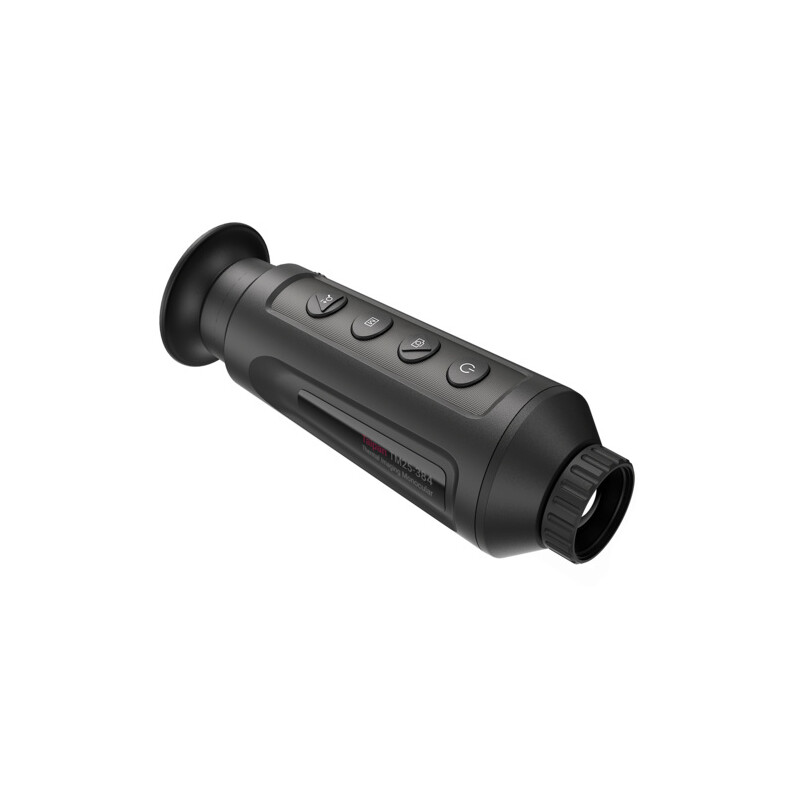

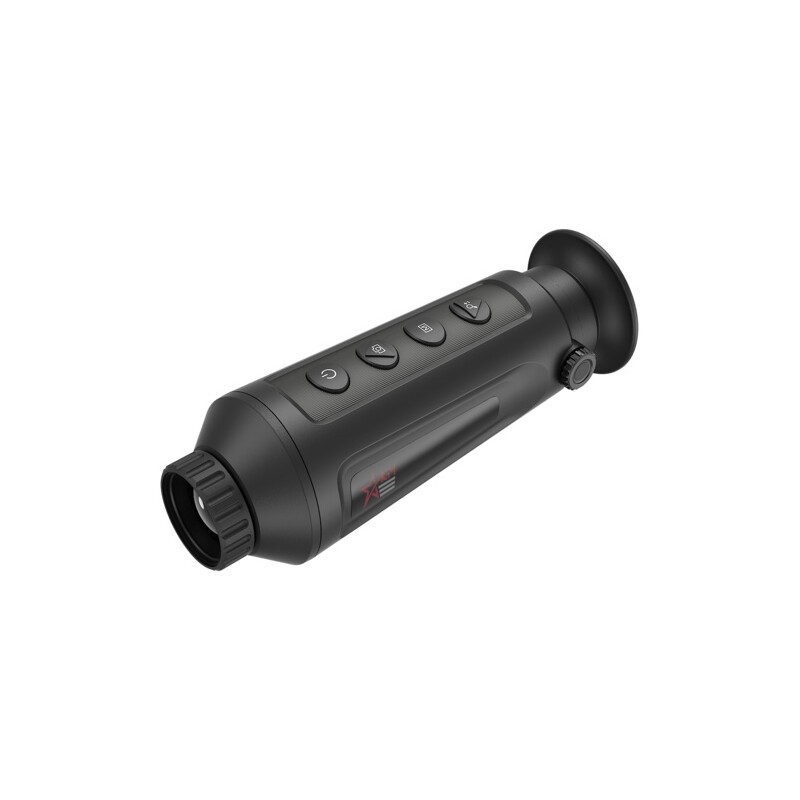

Thermal imaging camera Taipan TM25-384

$ 2,000.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time
  • Thermal imaging observation monocular with infrared detector
  • Integrated stadiametric rangefinders
  • Highest temperature target tracking

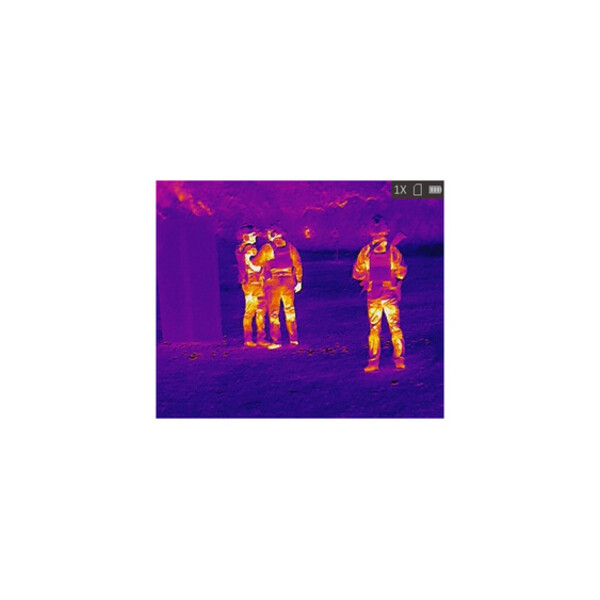

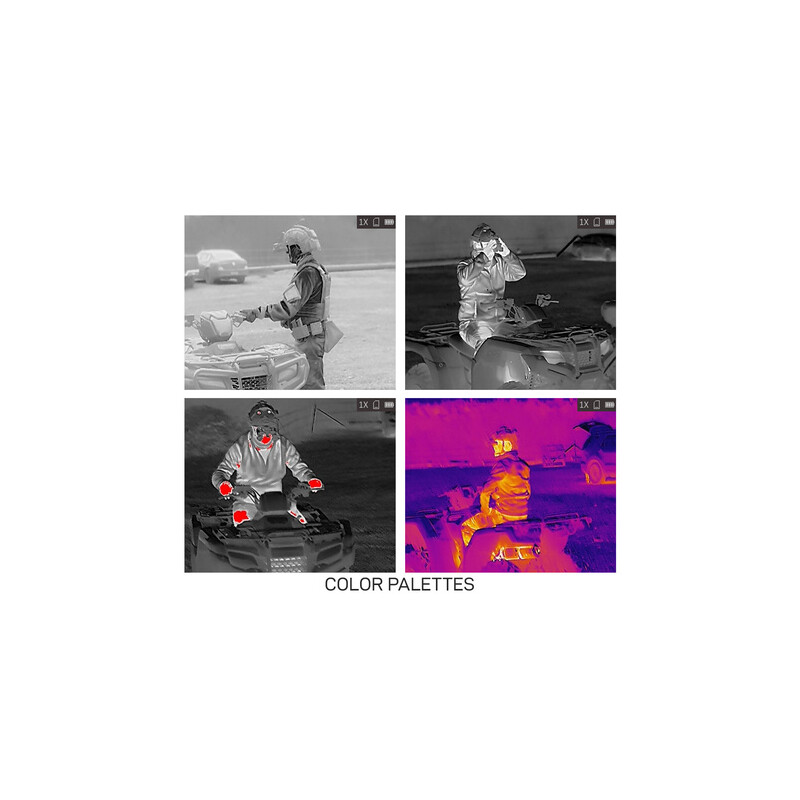

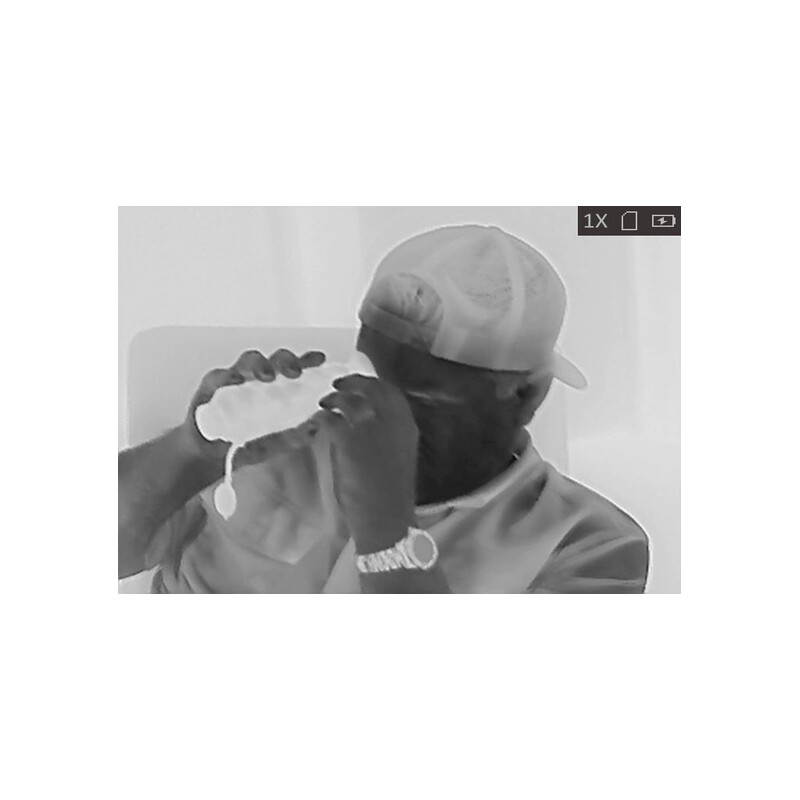

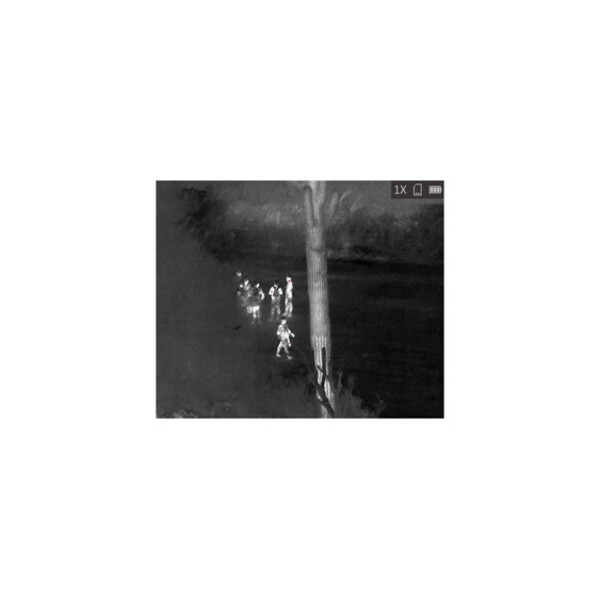

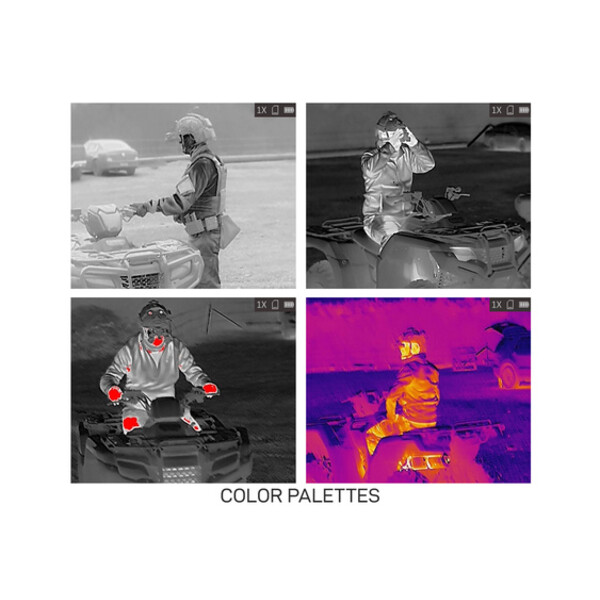

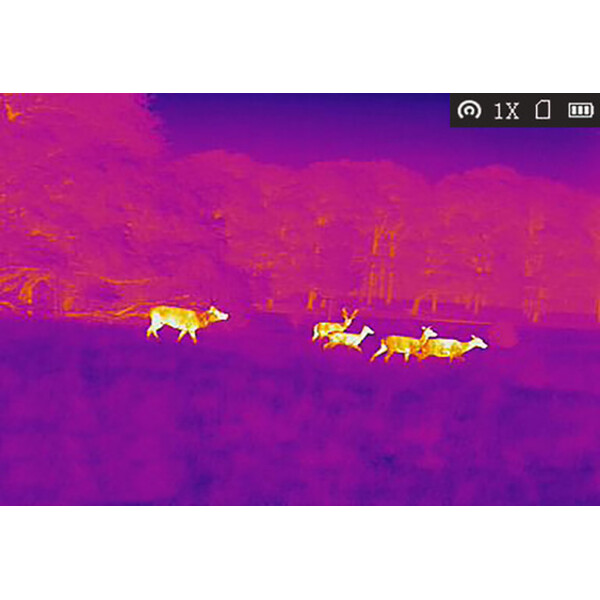

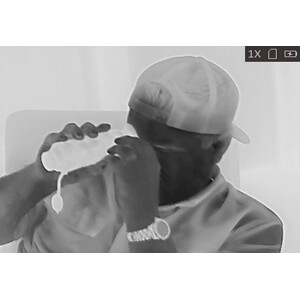

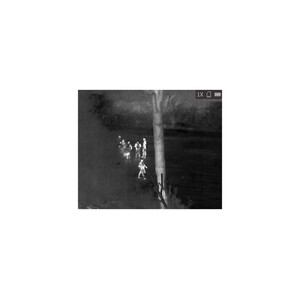

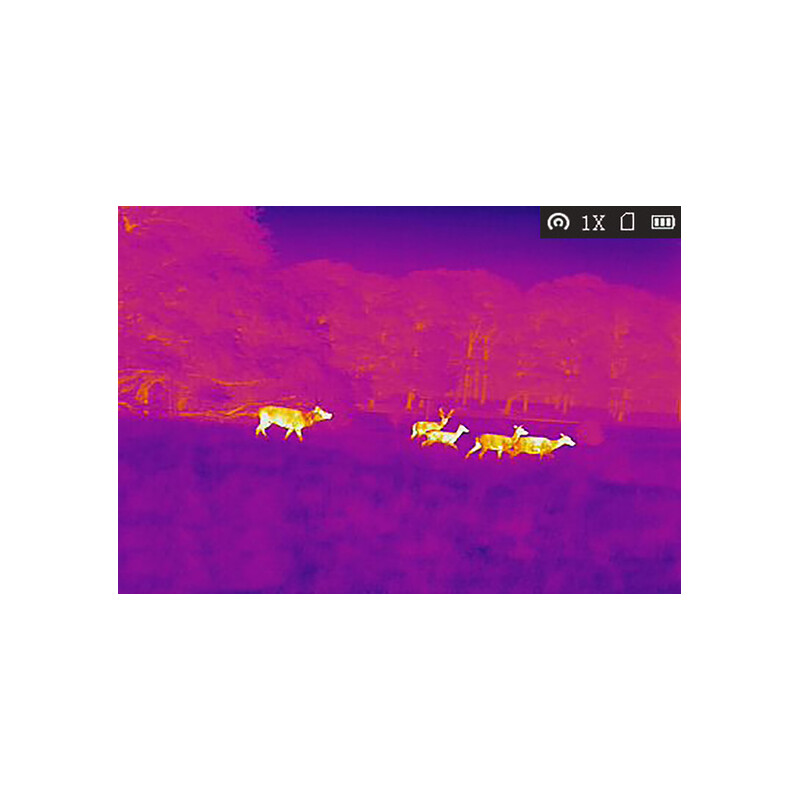

  • Multiple colour palettes (Black Hot, White Hot, Red Hot, Fusion)
  • WiFi module, built-in memory (video recording), Type-C interface

Product description

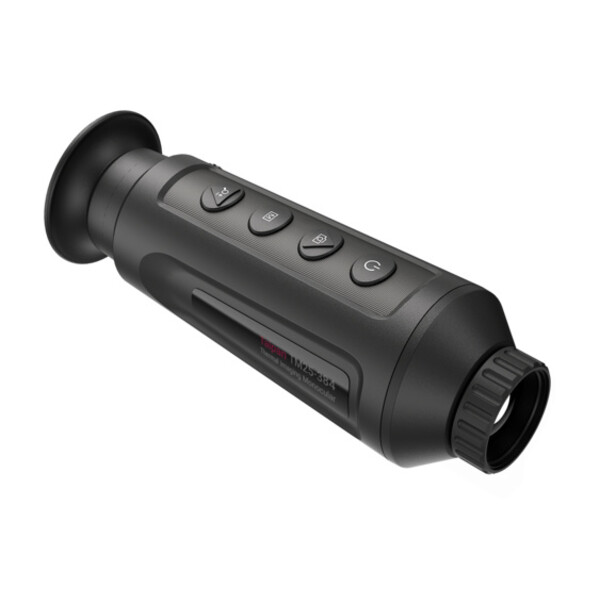

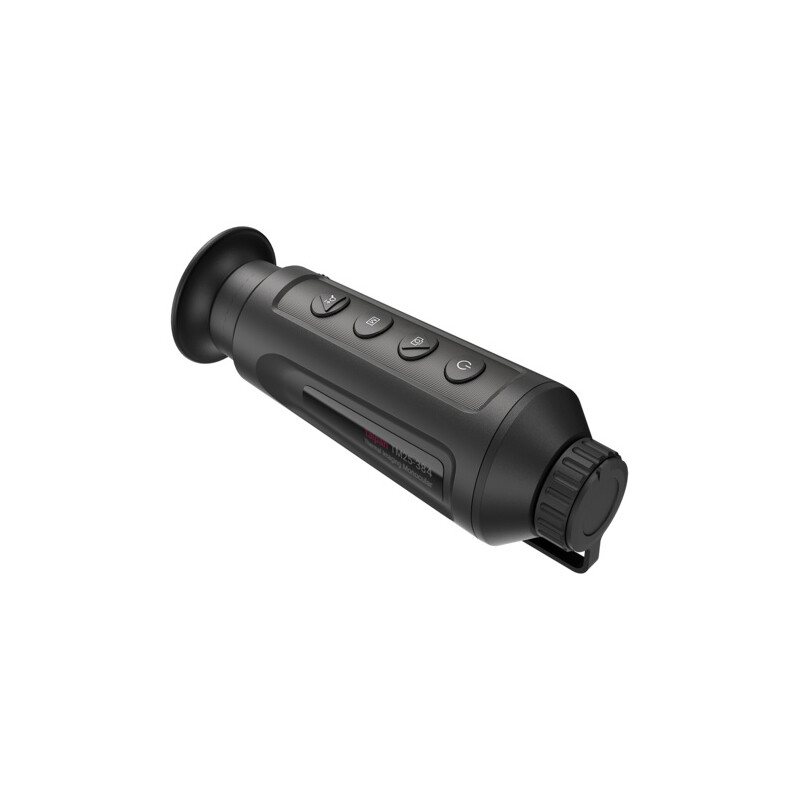

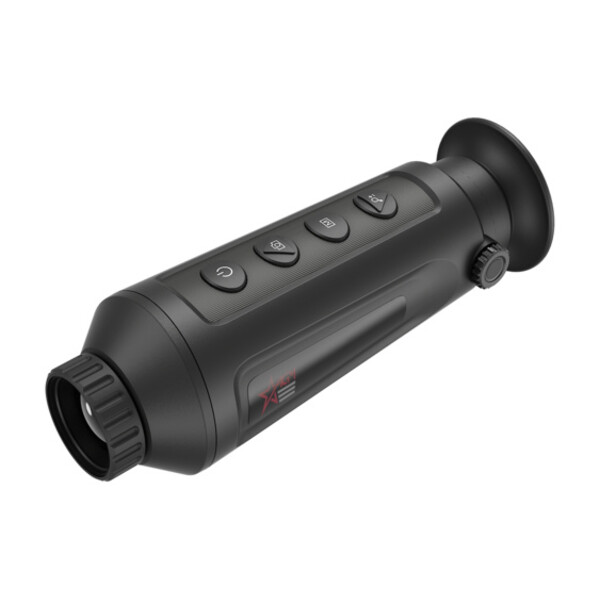

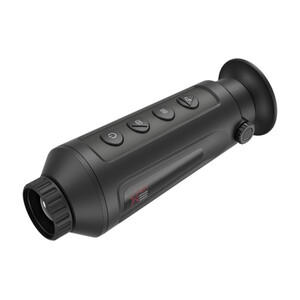

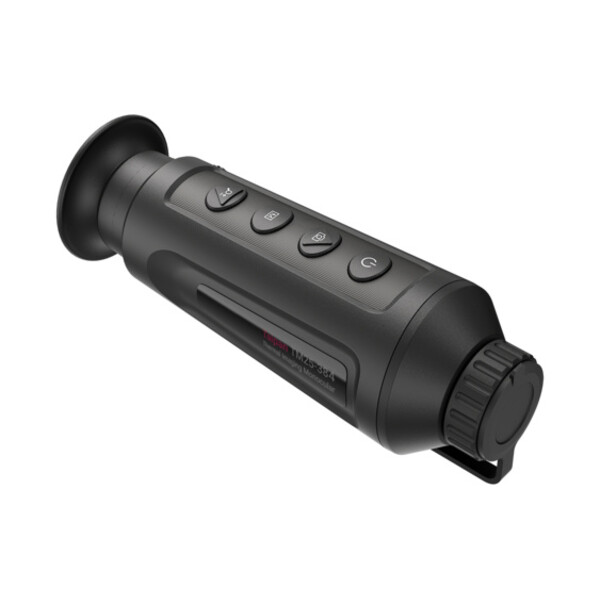

The Taipan portable thermal imaging observation monocular is equipped with a 384 × 288 infrared detector and a 1280 × 960 LCOS display. It supports functions such as observation, highest temperature target tracking, rangefinders, WLAN hotspot, etc. The monocular is mainly used for patrolling, law enforcement, search and rescue, drug and smuggling control, seizure of criminal offences, hiking, travelling and hunting, etc.

FEATURES


Range measurement: The instrument performs the range measurement function after marking the top and bottom of the target and entering the target height.

Hot Spot Marking: The instrument detects and marks the hot spot with the highest temperature.

Mode switch: The instrument supports palette switching and rangefinding.

Storage: Built-in memory module supports video recording & snapshot capture.

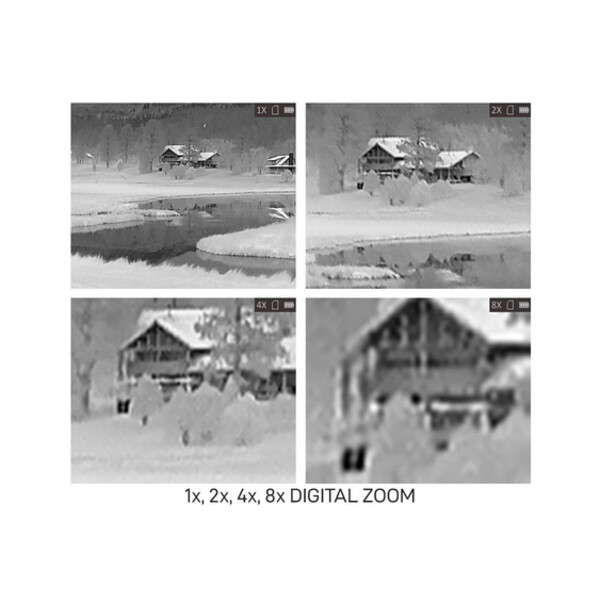

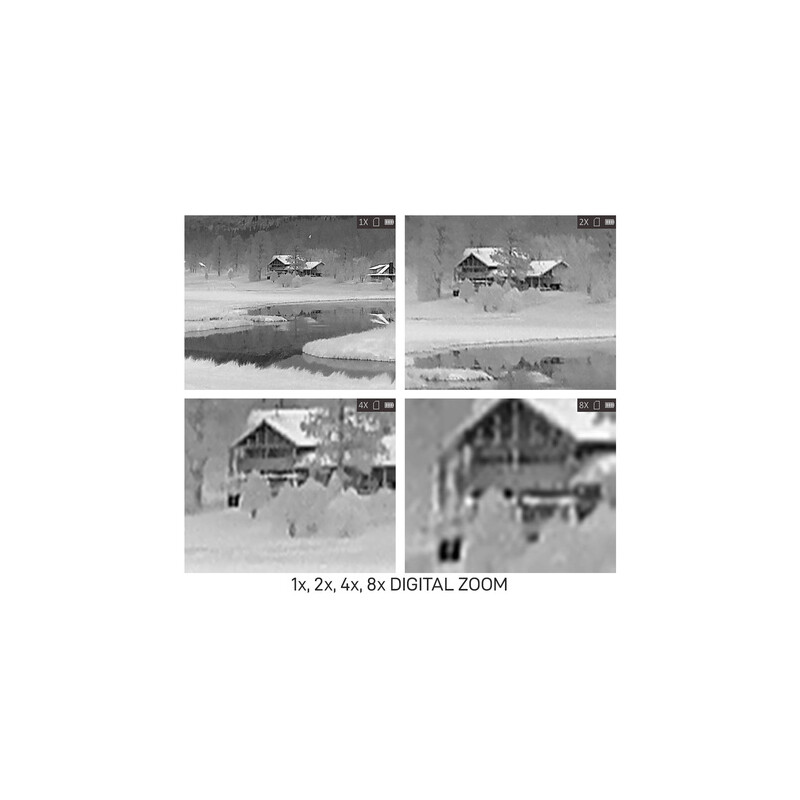

Digital zoom: The instrument supports 1x, 2x, 4x and 8x digital zoom.

WLAN hotspot: The instrument can take snapshots and videos and set parameters via the app after it has been connected to your phone.

Flat Field Correction: Auto, Manual, External Correction

Specifications

Capacity


Zoom (digital)
1/2/4/8
Screen size (″)
0.4
Type of build
Monocular
Technology
Thermal imaging camera
Sensor type
VOx
Pixel size
12
Image display
Different versions (Black Hot, White Hot, Red Hot, Fusion)
Image cycle rate (Hz)
50
Battery durability (h)
>7,5 (bei ausgeschaltetem WiFi)
Display resolution (Pixel)
1280x960
Front lens diameter (mm)
25
Detection distance (m)
1180
Magnification
2,5

Special features


WiFi
yes
Watertight
yes
Rangefinder
yes
Infrared illuminator
yes
Digital imaging
yes
Video connection
yes
Splash-proof
yes (IP67)

Field of view


True field of view (°)
10,5 x 7,9

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes

General


Length (mm)
171
Width (mm)
61
Height (mm)
57
Weight (g)
300

Product safety

Manufacturer: AGM Global Vision ltd, #6 Andrey Lyapchev blvd & Zheko Voyvoda st., 1756 Sofia, BG, de.agmglobalvision.eu/
Responsible person: AGM Global Vision ltd, #6 Andrey Lyapchev blvd & Zheko Voyvoda st., 1756 Sofia, BG, [email protected]
