Product description

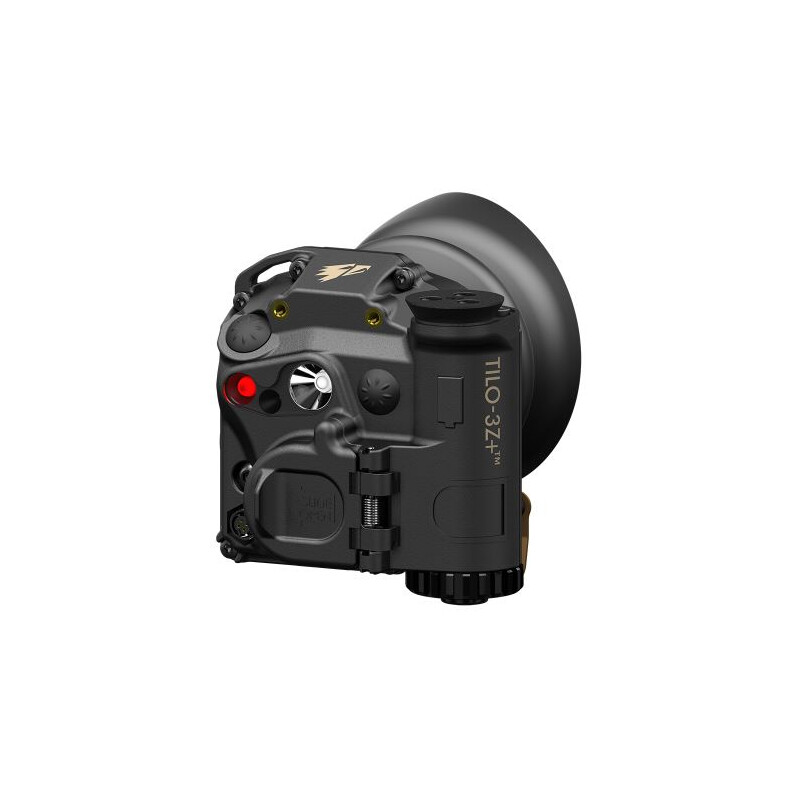

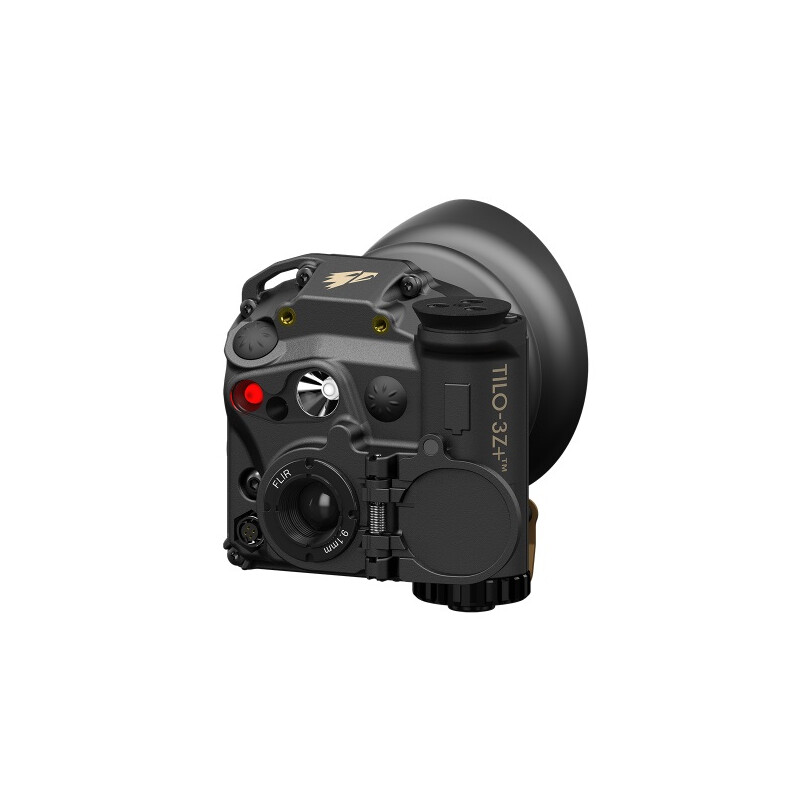

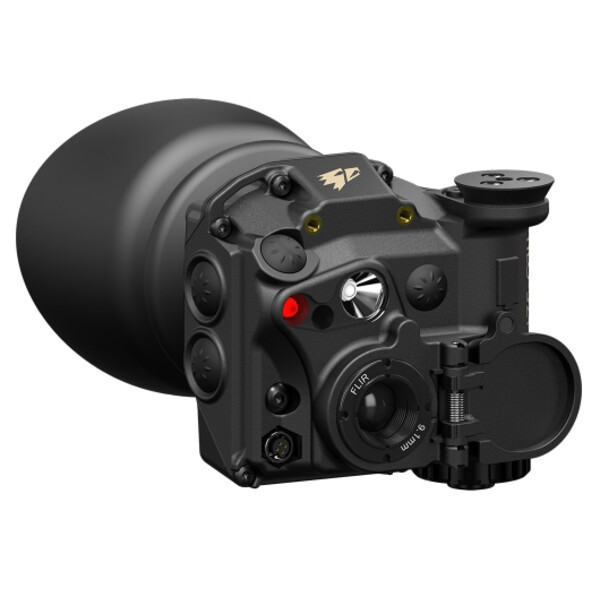

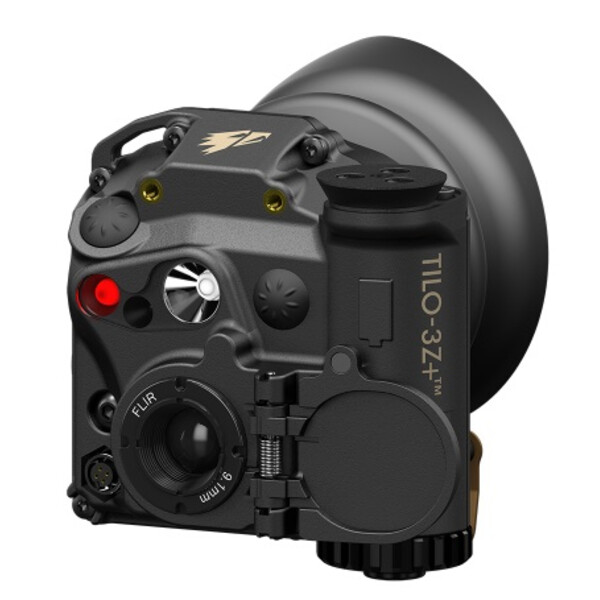

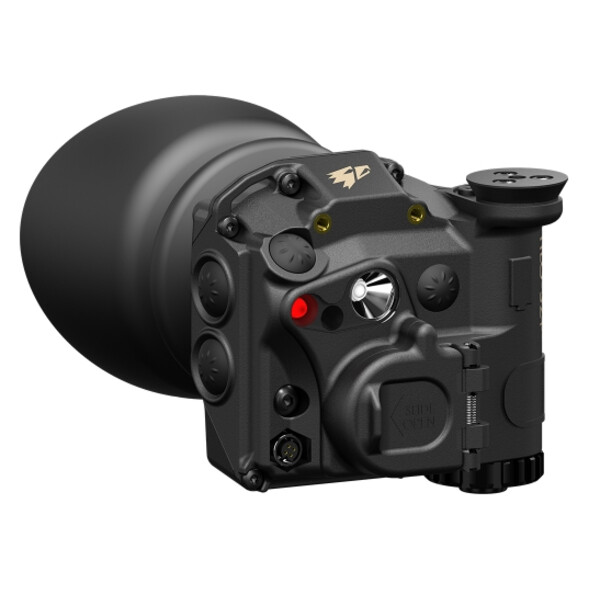

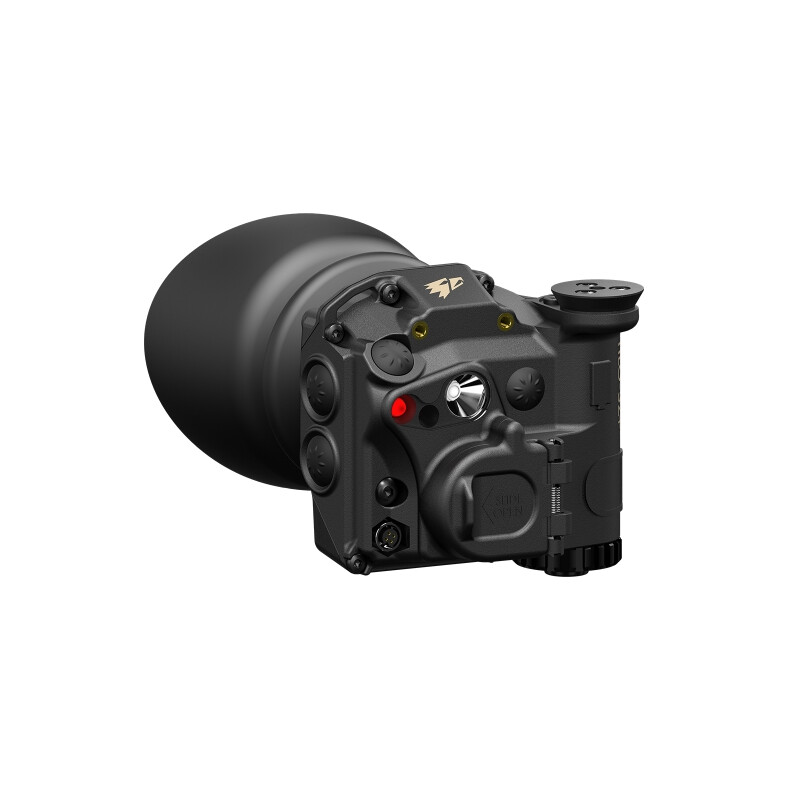

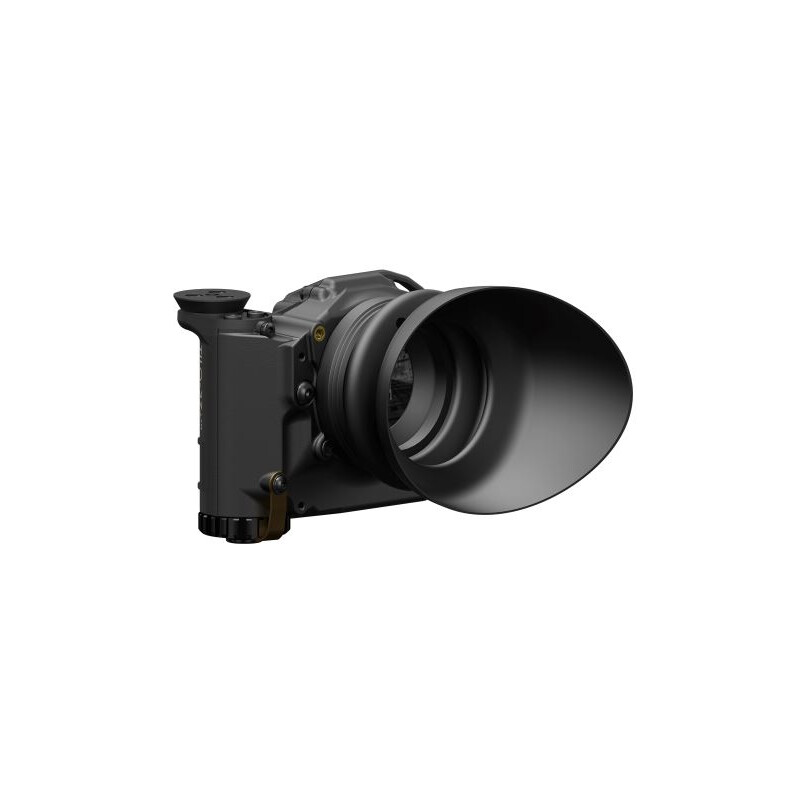

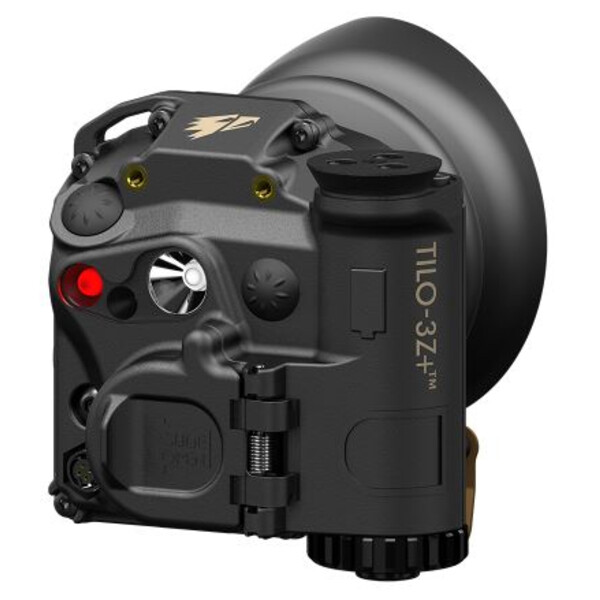

The TILO-3™ is the smallest thermal imaging glasses in the world, making it ideal for use as a headlamp. The TILO-3Z+™ is the improved version of the TILO-3Z™. It has a particularly high thermal resolution of <40 mK, delivering even higher-contrast images even in poor environmental conditions. Such high quality is often only found in much larger cooled thermal imaging devices.

The professional version of the TILO-3Z™ also has a much higher frame rate of 60Hz. This means that the image is very stable and there is almost no delay between the sensor and the image displayed on the screen.

Technical data:

  • 320×256 pixels 60Hz Sensor resolution Microbolometer
  • <40mK temperature resolution
  • Use: –30° to +60°C / Storage –40° to +80°C
  • Water protection: IP68
  • Impact protection: MIL 810F 516 IV (26 drops from 1.22 m)
  • Video output: PAL/NTSC
  • Length: 40 mm
  • Width: 64 mm
  • Height: 67 mm
  • Weight: approx. 100g without accessories
  • Screen resolution: 873×500 pixels
  • Housing: polyamide, reinforced with nanotubes to prevent cold breakage
  • Eyepiece cover made of sapphire glass
  • Colour: black

Scope of delivery:

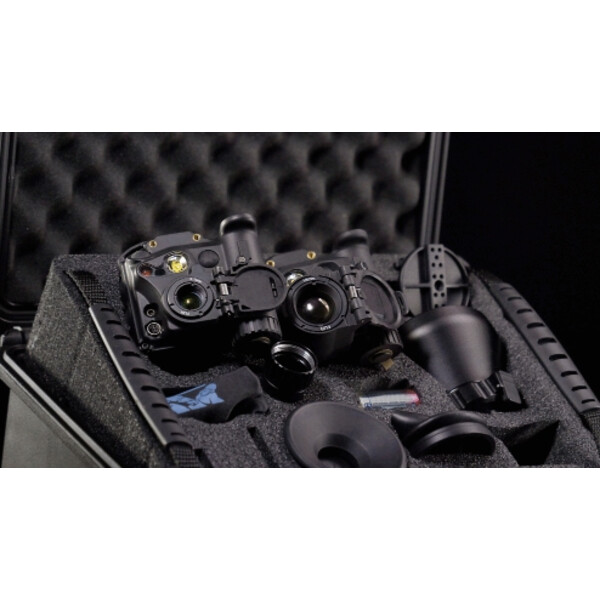

TILO-3Z+™, eyecup, CR123 battery, cleaning cloth, small hand strap, waterproof transport case, quick start guide, manual

The purchase, possession and operation of this device is permitted in Germany! The fitting to riflescopes or weapons is only permitted with the approval of the local weapons authorities in Germany!

Pay attention to the legal regulations in your country!

Legal notice

Check the local legal regulations to see if the fitting to weapons is permitted in the location of use. The fitting to a weapon is always the sole responsibility of the user.

Legal notice

Before attaching to weapons, check whether this is permitted in the area in the local legal regulations. The user is always solely responsible for the attachment of a weapon.

Note the legal regulations in your country!

Specifications

Capacity


Type of build
Monocular
Technology
Thermal imaging camera
Magnification
1

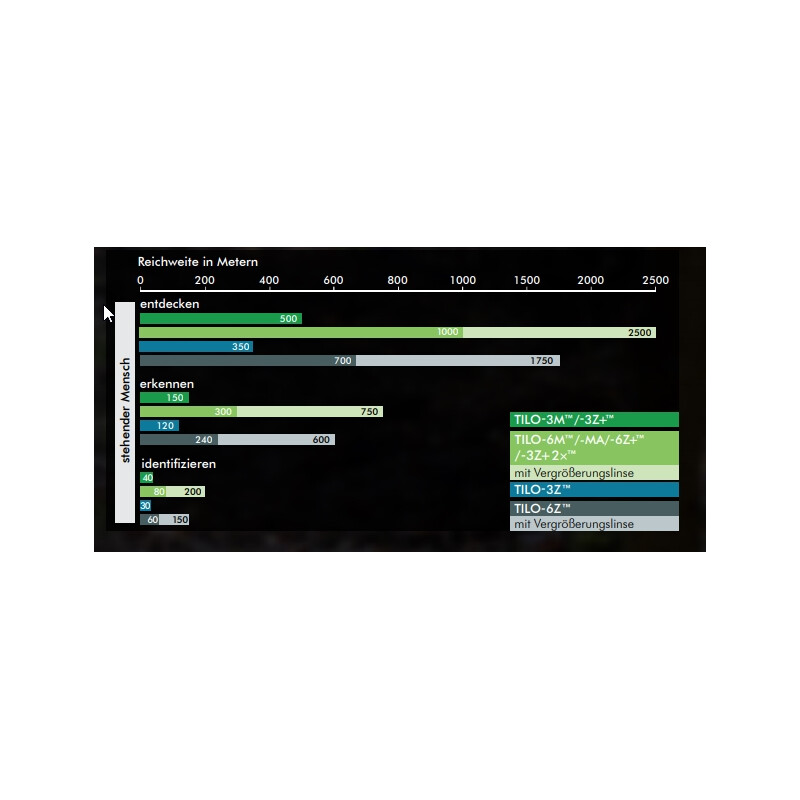

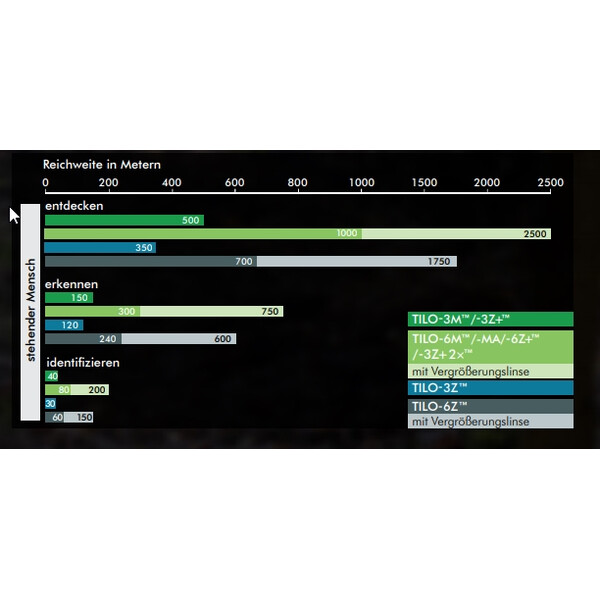

Maximum operating distance (m)
500
Detection distance (m)
150
Image cycle rate (Hz)
60
Battery durability (h)
3,25
temperature resolution (mK)
< 40
Zoom (digital)
0,8; 1; 2; 4; 8
Display resolution (Pixel)
873x500

Special features


Digital imaging
yes
Video connection
yes
Headmount
yes
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
yes
ancillary lenses available
yes
attachment
yes

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General


Length (mm)
40
Width (mm)
64
Height (mm)
67
Weight (g)
100

Miscellaneous


Battery type
CR123

Product safety

Manufacturer:

Recommended accessories

Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*
Miscellaneous (1)

Varta CR123 lithium battery

$ 11.90*

*All prices include VAT plus shipping costs.

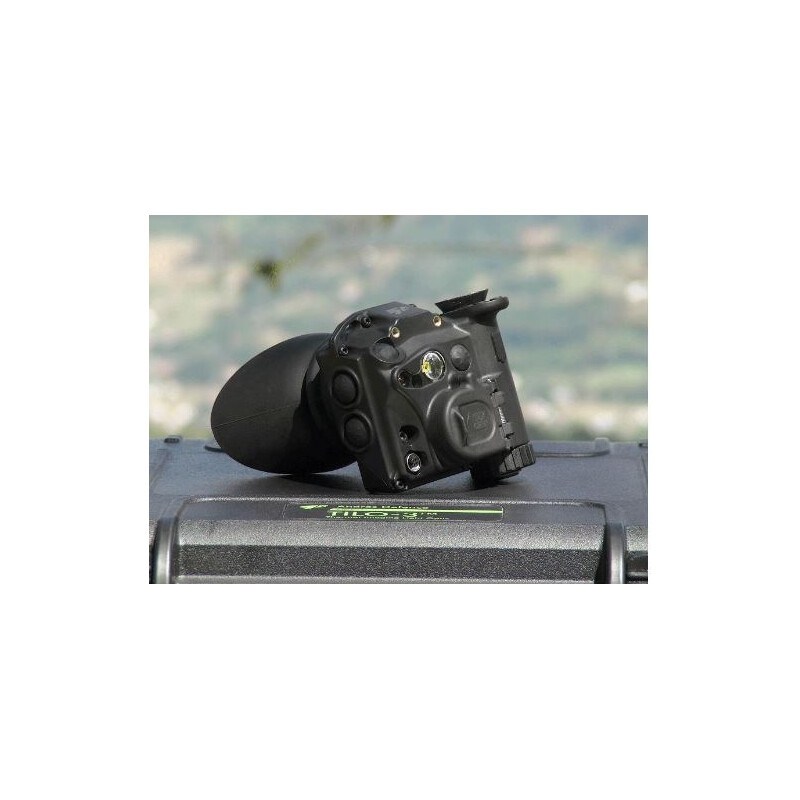

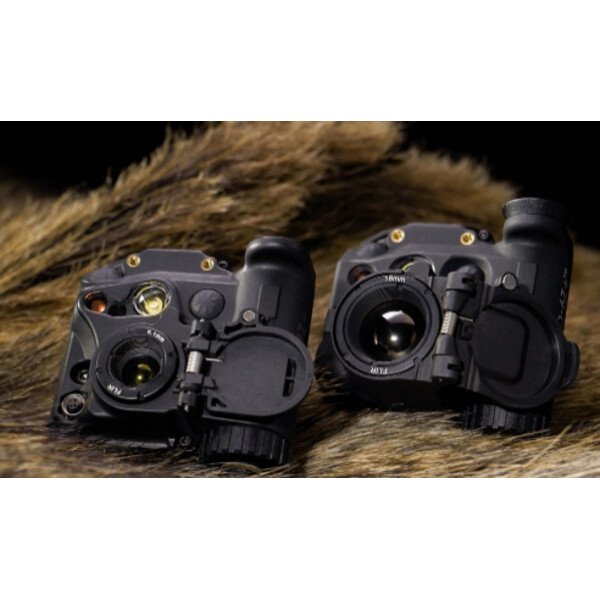

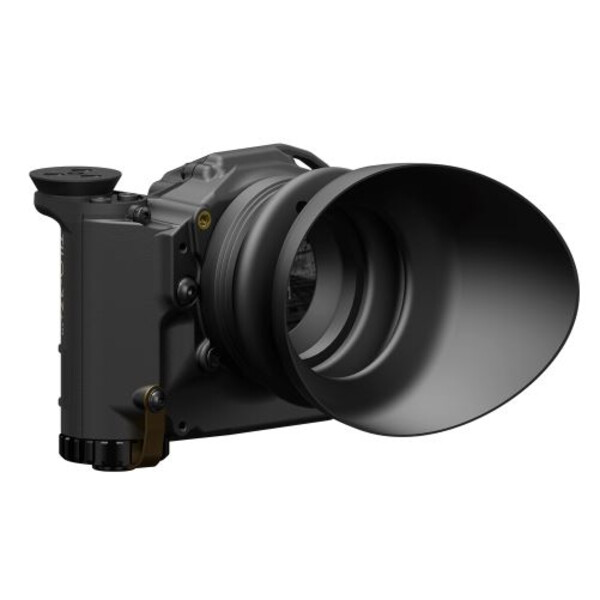

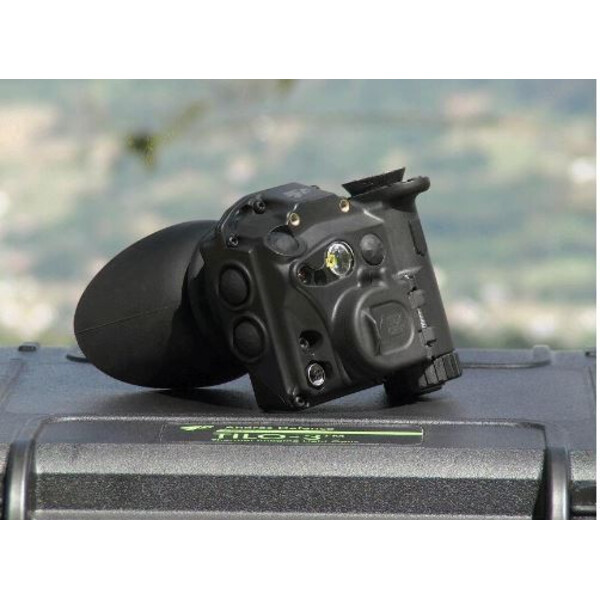

Andres Industries AG Thermal imaging camera Tilo-3Z+
