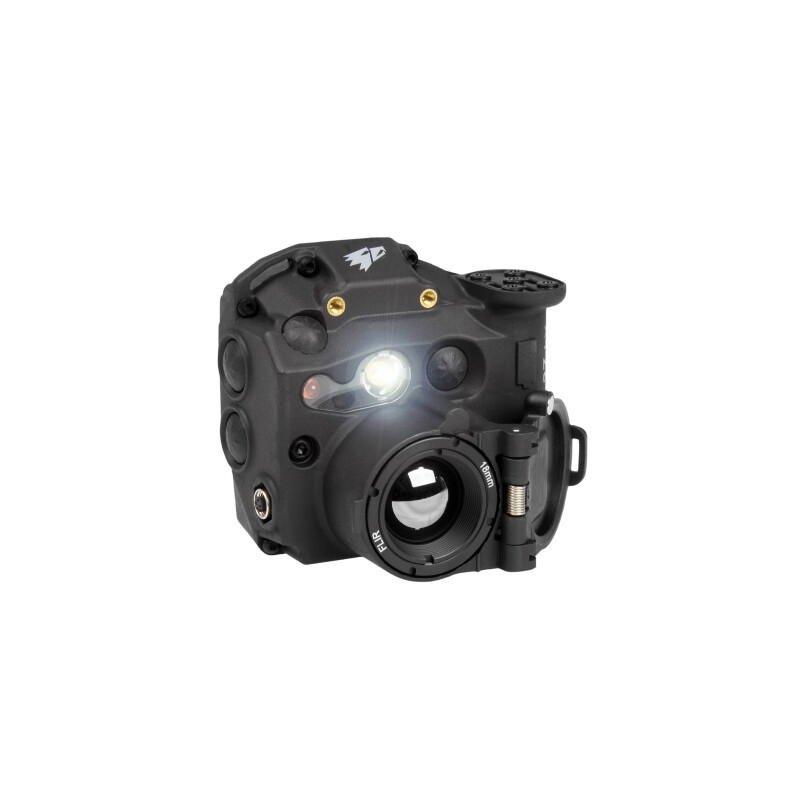

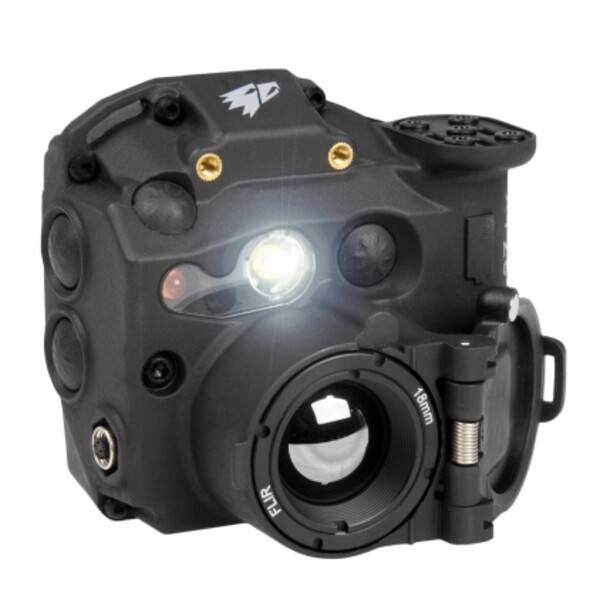

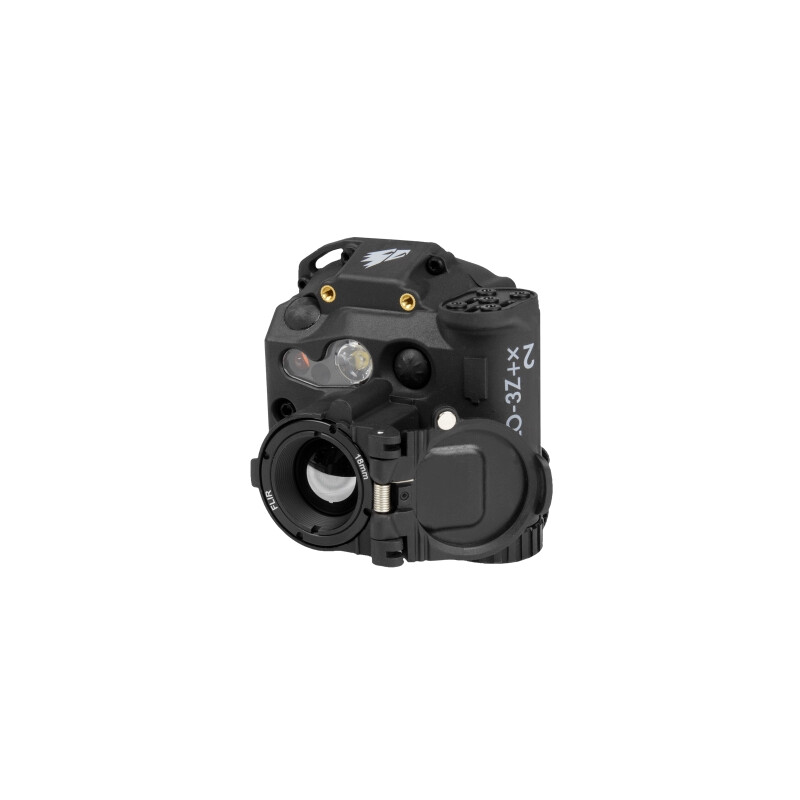

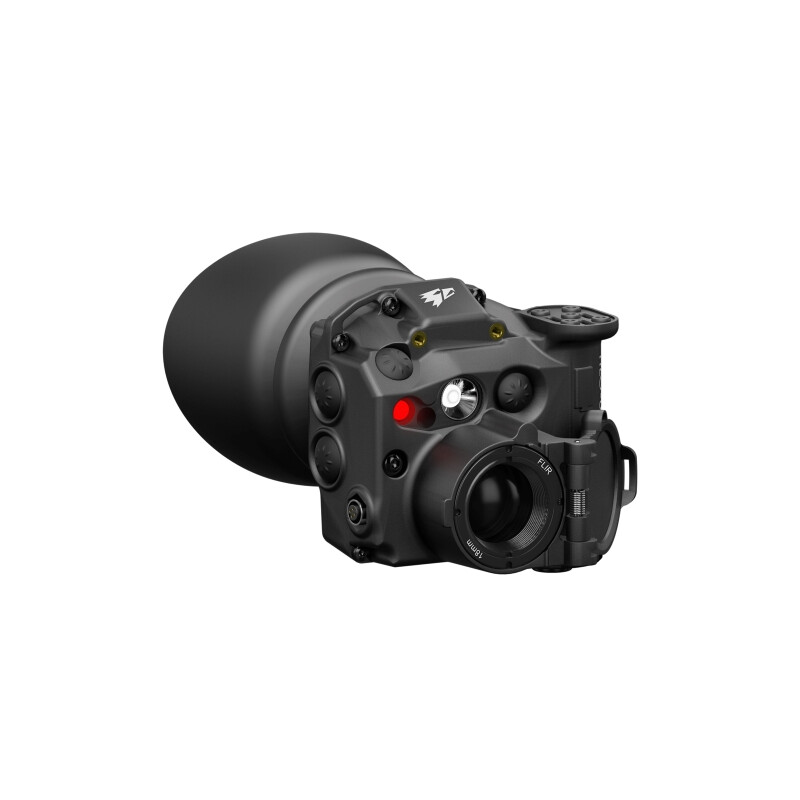

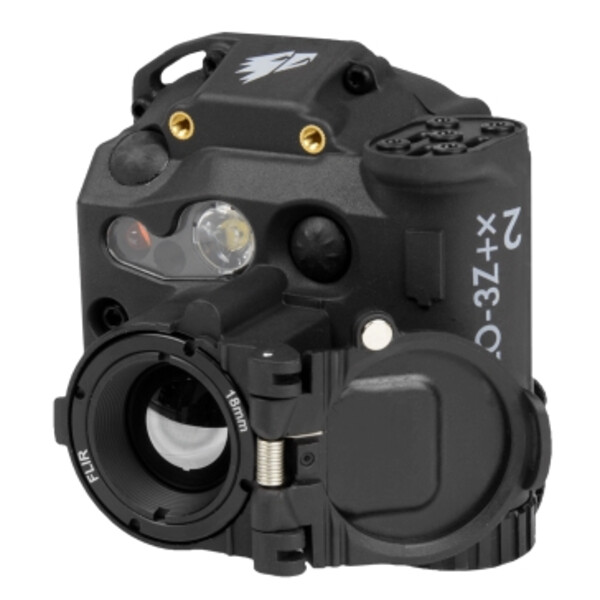

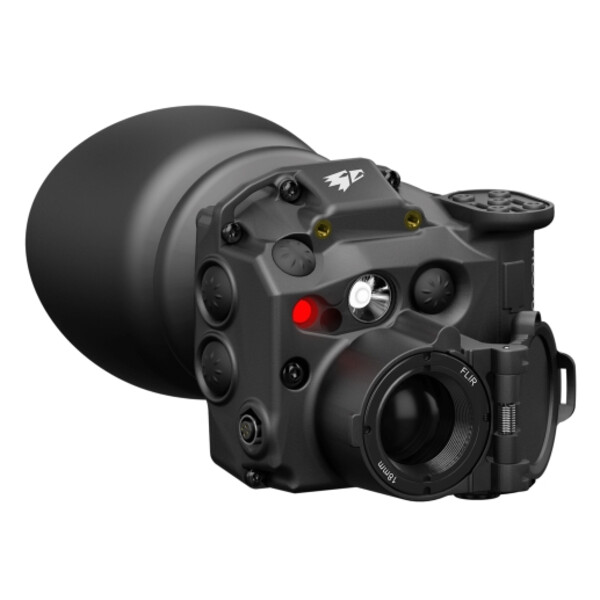

TILO-3Z+2×™
This is a TILO-3™ with a more powerful lens. It is therefore better suited for long-range reconnaissance.

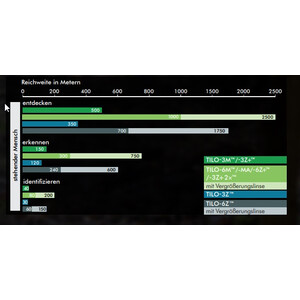

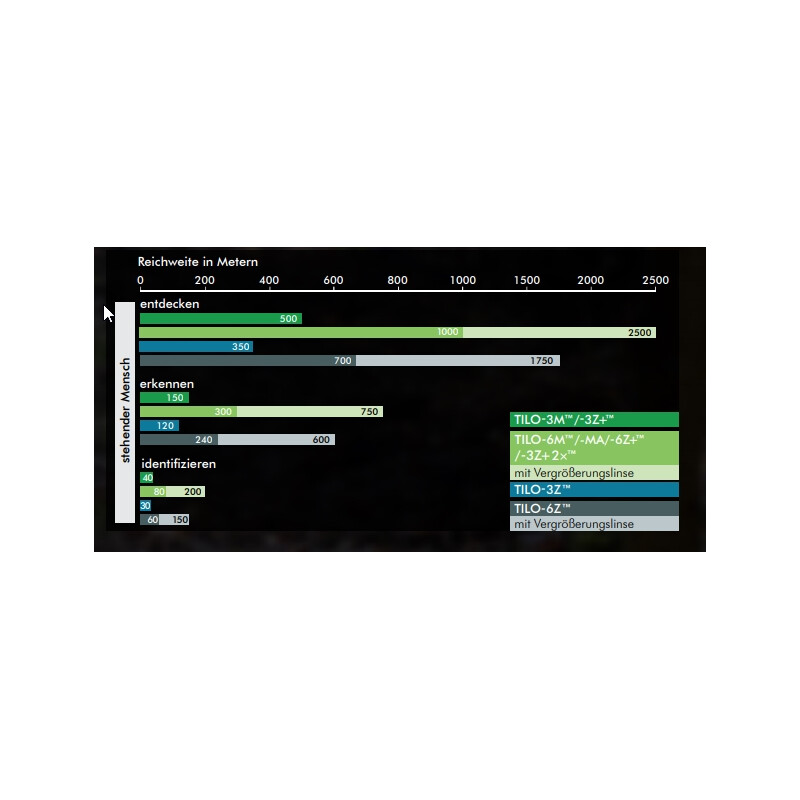

Thanks to its 2x optical magnification, the TILO-3Z+2×™ offers the same high detection range of 1000 metres as the significantly more expensive TILO-6™, but at a lower price. With the TILO-3Z+2×™, the viewing angle is reduced from 24° to 12° due to the higher magnification.
Technical data:
- 320×256 pixels 60Hz Sensor resolution Microbolometer
- <40 mK temperature resolution
- Use: –30° to +60°C / Storage –40° to +80°C
- Water protection: IP68
- Impact protection: MIL 810F 516 IV (26 drops from 1.22 m)
- Video output: PAL/NTSC
- FOV: horizontal 12° / vertical 9.5°
- Length: 58 mm
- Width: 64 mm
- Height: 67 mm
- Weight: approx. 128g without accessories
- Screen resolution: 873×500 pixels
- Housing: polyamide, reinforced with nanotubes to prevent cold breakage
- Eyepiece cover made of sapphire glass
- Colour: black
Scope of delivery:
TILO-3Z+2×™, eyecup, CR123 battery, cleaning cloth, small hand strap, waterproof transport case, quick start guide, manual
The purchase, possession and operation of this device is permitted in Germany! The fitting to riflescopes or weapons is only permitted with the approval of the local weapons authorities in Germany!
Pay attention to the legal regulations in your country!
Legal notice
Check the local legal regulations to see if the fitting to weapons is permitted in the location of use. The fitting to a weapon is always the sole responsibility of the user.
Legal notice
Before attaching to weapons, check whether this is permitted in the area in the local legal regulations. The user is always solely responsible for the attachment of a weapon.
Note the legal regulations in your country!
