Night vision devices & thermal cameras > Instruments > Thermal imaging cameras > Armasight > Prometheus > Armasight Thermal imaging camera Prometheus C 336 2-8x25 (30 Hz)
Product no.: 54554

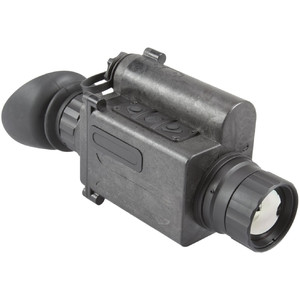

Thermal imaging camera Prometheus C 336 2-8x25 (30 Hz)

$ 2,360.00 incl. VAT, plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

Note: The authorized export countries for this product are: Argentina, Australia, Austria, Belgium, Bulgaria, Canada, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Japan, Latvia, Lithuania, Luxembourg, Netherlands, New Zealand, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, South Korea, Spain, Sweden, Switzerland, Turkey and the United Kingdom.

Armasight Prometheus-C is the latest and most technologically advanced Thermal Imaging monocular to enter the sporting, law enforcement, and military markets.

The Prometheus-C is a solid state, uncooled, long-wave infrared, magnified, dedicated handheld thermal imager intended for day and night engagements. The Prometheus-C is based on the latest FLIR Tau 2 VOx microbolometer core. The thermal imaging technology allows you to detect targets by cutting through snow, dust, smoke, fog, haze, and other atmospheric obscurants. The Prometheus-C demonstrates its operational flexibility for all mission applications. An additional Armasight proprietary hyper-image processing (HIP) code provides the Prometheus-C with a robust library of software features to tailor the image to the optimum standards required by the operator. The nine-pin connector on the Prometheus-C reveals the dynamic nature of this mite-sized powerhouse. Through the multi-pin connector, the operator can record video using the Armasight Digital Video Recorder (DVR) or augment the battery life by attaching to external battery options.

  • Special User-Adjustable Imaging Tools:
    Active Contrast Enhancement (ACE) – a digital “Contrast” correction that allows for smart scene optimization based on dynamic adjustments, where a variety of contrast levels occur depending on relative scene temperature. Second Generation Digital Detail Enhancement (DDE) – a “Sharpness” correction that digitally enhances the picture, significantly sharpens edges, and further reduces image noise.
  • Smart Scene Optimization (SSO)
    a fine-tuning computational correction that significantly improves overall visual acuity for targets that have thermal signatures similar to the surrounding background.
  • Automatic Gain Control (AGC) “Gain” correction that used to automatically adjust the gain to an appropriate range, the weaker the image signal, the stronger the gain. User-Controlled Manual Non-Uniformity Correction/ Flat-Field Correction (UCMNUC/ FFC).
    There is a mechanical shutter between the camera sensor and the lens. This shutter is used to perform a non-uniformity correction (NUC), also known as flat-field correction (FFC). During FFC, the shutter presents a uniform temperature source to each detector element in the array. While imaging the flat-field source, the camera updates the offset correction coefficients, resulting in a more uniform image after the process is complete. All Prometheus-C models allow for user to manually trigger or interrupt scheduled UCMNUC/ FFC function.
  • Silent Shutterless NUC™ (SSN)
    In addition to User-Controlled Manual NUC/ FFC, all Prometheus- C models employ a digital, supplemental, non-mechanical flat-field correction that extends periods between mechanical shutter events and further reduces image noise. SSN is an always ON enhancement.

Features Prometheus C 336 2-8x25 (30 Hz)

  • Type of Focal Plane Array FLIR Tau 2
  • Pixel Array Format 336x256
  • Pixel Size 17 μm
  • Refresh Rate 30 Hz
  • Objective Lens Type Germanium
  • Objective Focal Length 25mm
  • Objective F-number 1:1
  • Magnification 2x
  • Digital Zoom 1x, 2x, 4x
  • Field of View (ang.) 13° x 10°
  • Focusing Range 0,25 m - ∞

Specifications

Capacity


Type of build
Monocular
Technology
Thermal imaging camera
Magnification
2 (+ 4x Digital Zoom)
objective
25mm F:1.0
Sensor resolution (Pixel)
336x256
Image display
Different versions
Image cycle rate (Hz)
30
Diopter compensation
+/- 5
Battery durability (h)
4

Special features


Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
-
ancillary lenses available
no

Field of view


True field of view (°)
13
Field of view at 100 m (m)
22,8
Close focus limit (m)
0,25

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General


Colour
black
Length (mm)
150
Width (mm)
90
Height (mm)
52
Weight (g)
400
Series
Prometheus

Miscellaneous


Battery type
CR123 (2 pieces)

Recommended accessories

Maintenance & Cleaning > Lens cleaners (3)

Omegon 7-in-1 lens cleaning set

$ 19.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 4.90*
Miscellaneous (1)

Varta CR123 lithium battery

$ 8.90*

*All prices include VAT plus shipping costs.

Armasight Thermal imaging camera Prometheus C 336 2-8x25 (30 Hz)

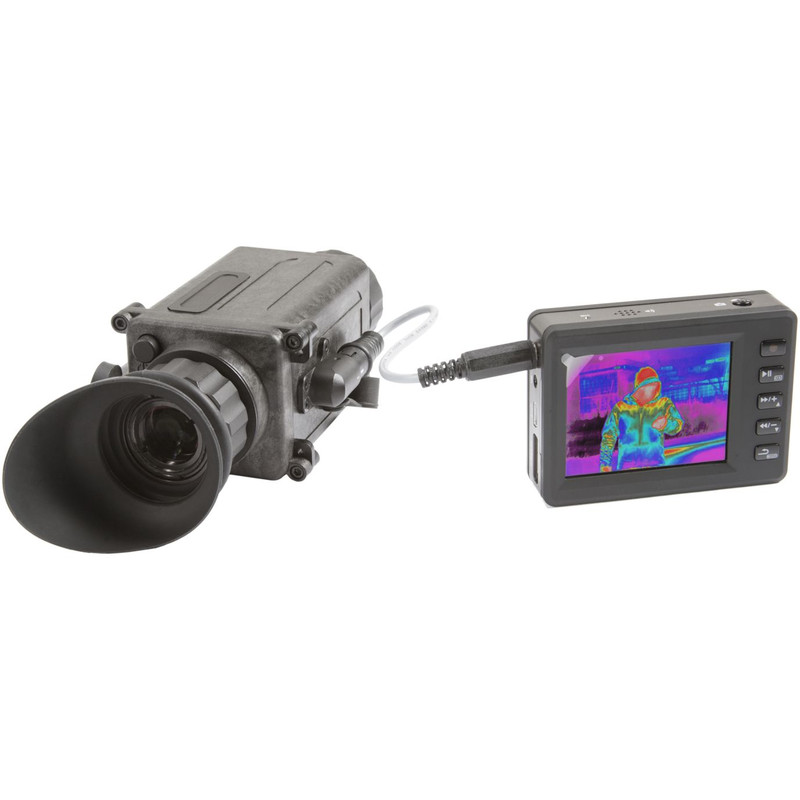

Digital recorder may be connected as an option.
Armasight Thermal imaging camera Prometheus C 336 2-8x25 (30 Hz)

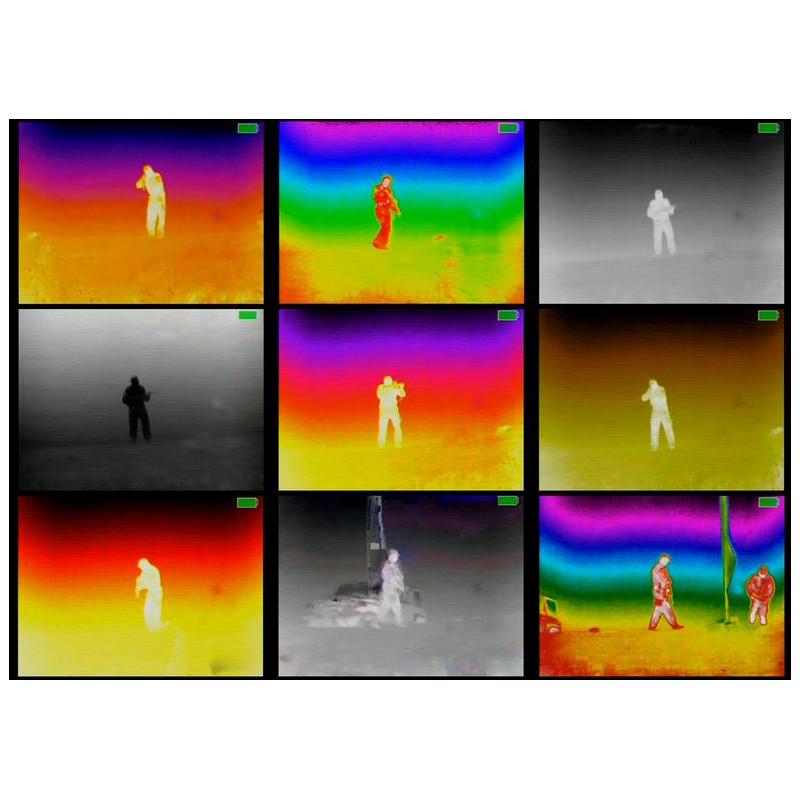

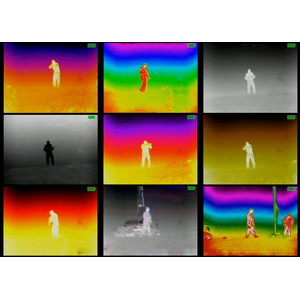

This sample image shows you various illustrations of the selectable colour modes.
