Product description

Special price for display model

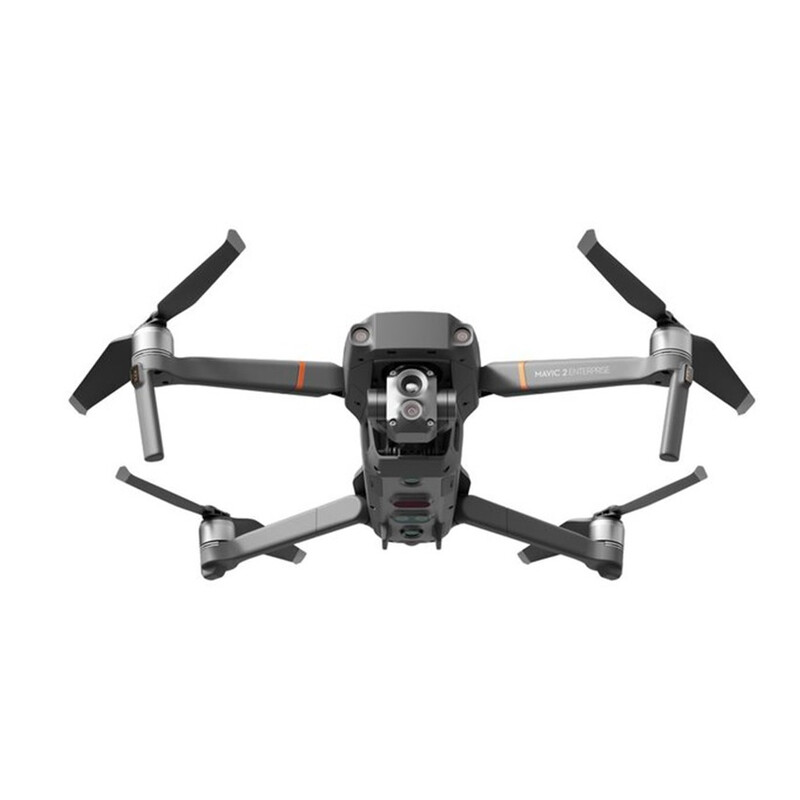

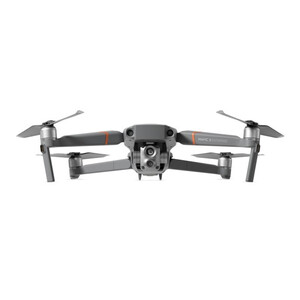

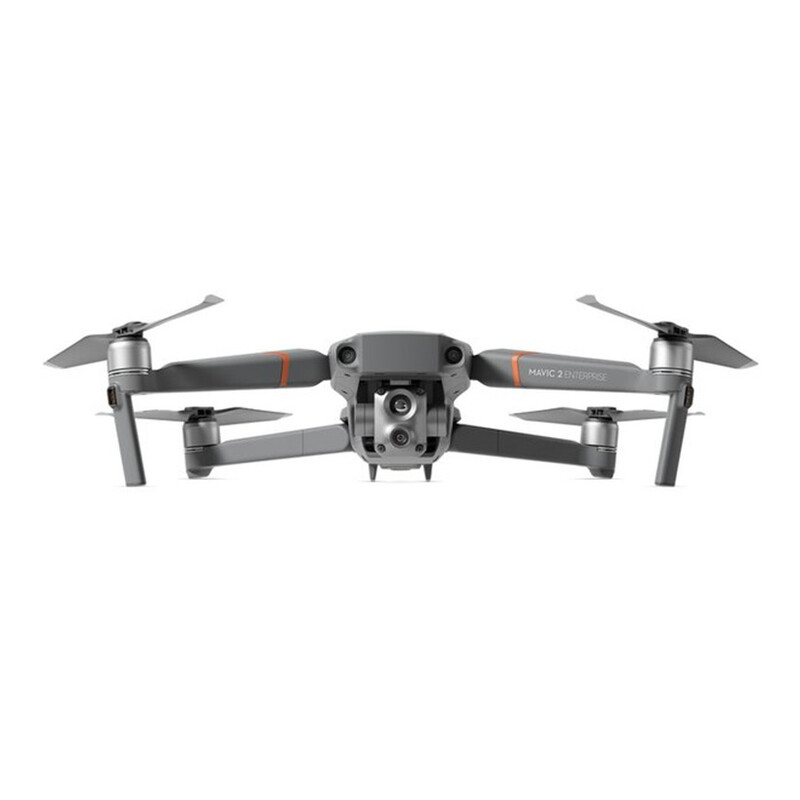

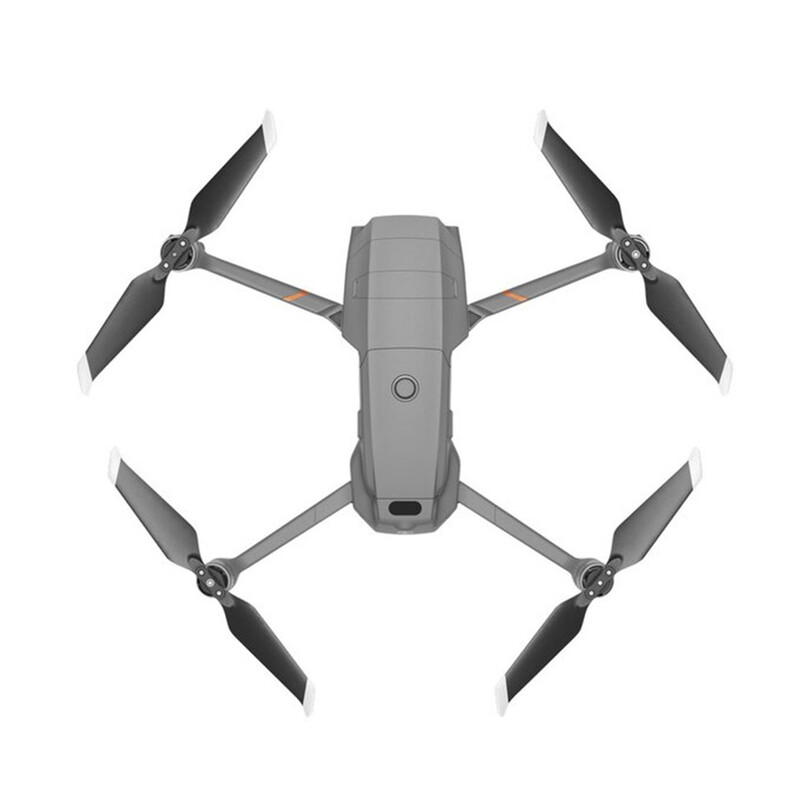

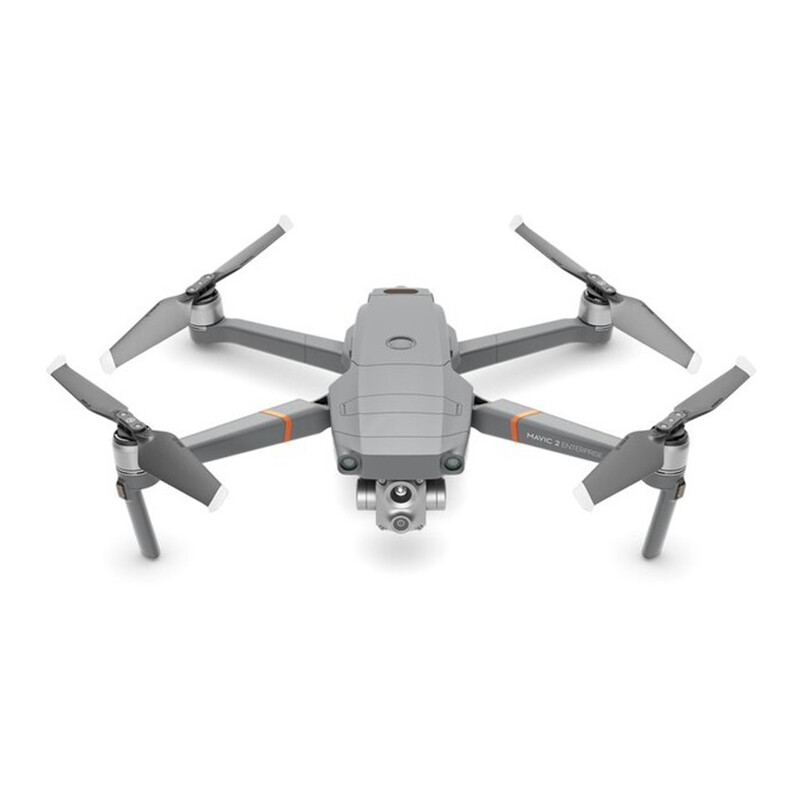

DJI Thermal Imaging Drone Mavic 2 Enterprise Advanced Thermal Imaging Drone
The DJI Mavic 2 Enterprise Advanced thermal imaging drone offers a wide range of applications thanks to its compact dimensions. With its high-resolution thermal and RGB cameras and up to 32x digital zoom, the DJI Mavic 2 Enterprise is perfect for aerial surveillance.

Ideal for fawn rescue
The DJI Mavic 2 is one of the best thermal imaging drones for fawn rescue. At the touch of a button, the pilot can switch between visual, thermal or split display playback on the remote control or transmit the image to a fixed transmission point.

Planning the harvest or driven hunt
Check the presumed locations of game during regular flyovers and plan your hunting with previously unknown information.

Ultra zoom
With the ultra-zoom option, the DJI Mavic 2 captures clear images and videos from a safe distance. The DJI Mavic 2 can be positioned precisely or flown automatically with up to 240 waypoints.

Maximum flexibility
The applications for this thermal imaging drone range from fawn rescue, tracking wild boar in cornfields or grain fields, to game counting day and night, to research purposes. But the thermal imaging drone can also be used without any problems in the security industry, by the fire brigade or in the industrial sector.

Precise flight characteristics
The drone takes off from the ground in less than a minute, with maximum flexibility and ease. Thanks to its fast ascent and descent speeds, the DJI Mavic 2 can also be flown in complex operating environments.

Extensive accessories
The thermal imaging drone comes in a practical and extremely robust case with a wide range of accessories. The case contains the spotlight, loudspeaker, position lamp and remote control unit, all perfectly positioned.

Video shows optional RTK accessories!

Technical characteristics Aircraft:

Take-off weight (without accessories): 909 g
Max. take-off weight: 1100 g
Dimensions (L×W×H): Folded: 214 × 91 × 84 mm, Unfolded: 322 × 242 × 84 mm, Unfolded + spotlight: 322 × 242 × 114 mm,
Unfolded + light: 322 × 242 × 101 mm, Unfolded + speaker: 322 × 242 × 140 mm, Unfolded + RTK module: 322 × 242 × 125 mm
Diagonal distance 354 mm
Max. ascent speed: 6 m/s (S mode), 5 m/s (P mode), 4 m/s (S mode with accessories), 4 m/s (P mode with accessories)
Max. descent speed: Vertical descent 5 m/s (S mode), 4 m/s (P mode), tilt speed 7 m/s (S mode), 4 m/s (P mode)
Max. speed: 72 km/h (S mode, without wind), 50 km/h (P mode, without wind)
Max. operating altitude above sea level: 6000 m
Max. flight time: 31 min (measured when flying at 25 km/h in calm conditions), 28 min (RTK module attached), 29 min (with beacon switched on), 30 min (with beacon switched off), 24 min (with spotlight switched on), 28 min (with spotlight switched off), 27 min (with loudspeaker switched on), 28 min (with loudspeaker switched off)
Max. wind speed resistance: 10 m/s (scale 5)
Max. tilt angle: 35° (S mode, with remote control), 25° (P mode)
Operating temperature: -10°C – 40°C
GNSS: GPS+GLONASS, hovering accuracy range
Vertical: ± 0.1 m (with RTK), ± 0.1 m (with vision positioning), ± 0.5 m (with GPS positioning)
Horizontal: ± 0.1 m (with RTK), ± 0.3 m (with vision positioning), ± 1.5 m (with GPS positioning)
Operating frequency: 2.400-2.4835 GHz; 5.725-5.850 GHz
Transmission power (EIRP): 2.400 – 2.4835 GHz, FCC: ≤26 dBm, CE: ≤20 dBm; SRRC: ≤20 dBm; MIC: ≤20 dBm 5.725 – 5.850 GHz FCC: ≤26 dBm; CE: ≤14 dBm; SRRC: ≤26 dBm
Internal memory: 24 GB

thermal imaging camera:

Uncooled VOx microbolometer thermal sensor
Thermal image resolution: 640 x 512 Pixel
Temperature detection: Point or area measurement

Visual camera

Sensor: 1/2" CMOS, effective Pixel: 48 M
Objective: FOV: 84°
35 mm format equivalent: 24 mm
Aperture: f/2.8
Focus: 1 m to ∞
ISO range Video: 100–12800 (automatic), photos: 100–1600 (automatic)
Digital zoom: 32x
Maximum image size: 8000 x 6000 Pixel
Photo modes: Single shot interval: 2/3/5/7/10/15/20/30/60 s, Panorama: Spherical image
Video resolution: 3840 × 2160 30fps, 1920 × 1080 30fps
Photo format: JPEG
Video format: MP4

Gimbal

Mechanical range: Tilt: -135°- +45°, Pan: -100°- +100°
Controllable range: Tilt: -90°- +30°, Pan: -75°- +75°
Stabilisation: 3 axes (tilt, roll, pan)
Max. control speed: 120°/s
Angular oscillation range: ±0.005°

Scanning system

Detection system Omnidirectional obstacle scanning
Forward Precision measurement range: 0.5 – 20 m, Detectable range: 20 – 40 m, Effective detection speed: ≤ 14m/s, FOV: Horizontal: 40°, Vertical: 70°
Rear Precision measurement range: 0.5 – 16 m, Detectable range: 16 – 32 m, Effective scanning speed: ≤ 12 m/s, FOV: Horizontal: 60°, Vertical: 77°
Upward precision measurement range: 0.1 – 8 m
Downward Precision measurement range: 0.5 – 11 m, Detectable range: 11–22 m
Side Precise measurement range: 0.5–10 m, effective scanning speed: ≤ 8 m/s, FOV: horizontal: 80°, vertical: 65°
Operating environment: Forward, backward and sideways: Surface with a clear pattern and sufficient lighting (lux > 15), Upwards: Detects diffusely reflective surfaces (>20%) (walls, trees, people, etc.), Downward: Surface with clear pattern and sufficient lighting (Lux > 15), Detects highly reflective surfaces (>20%) (walls, trees, people, etc.)

Remote control

Operating frequency: 2.400 – 2.483 GHz; 5.725 – 5.850 GHz
Maximum transmission range (unobstructed, free from interference): 2.400 – 2.483 GHz; 5.725 – 5.850 GHz, FCC: 10,000 m, CE: 6,000 m, SRRC: 6,000 m, MIC: 6,000 m
Transmission power: (EIRP) 2.400–2.4835 GHz: 25.5 dBm (FCC) 18.5 dBm (CE) 19 dBm (SRRC) 18.5 dBm (MIC) 5.725 – 5.850 GHz: 25.5 dBm (FCC) 12.5 dBm (CE), 18.5 dBm (SRRC)
Memory: ROM 16 GB + microSD expandable memory
Video output port: HDMI port
Built-in battery type: 18650 Li-Po (5000 mAh 7.2 V) Nominal power 15 W, charging time: 2 hours (with a USB charger at 12 V / 2 A)
Operating current/voltage: 1800 mA = 3.83V
Battery life: Built-in battery approx. 2.5 hours
Operating temperature: -20°C – 40°C
RC size: Folded without joystick: 177.5 x 121.3 x 40 mm, unfolded with joystick: 177.5 x 181 x 60 mm
Weight: approx. 630 g
Intelligent flight battery: Main connection: 17.6 V / 3.41 A or 17.0 V / 3.53 A USB: 5.0 V / 2.0 A

Additional headlight
