Product description

GUIDE TB Thermal Attachments
The TB series bridges the gap between precision and portability. The magnesium alloy housing reduces weight while increasing precision. The weights are over 20% lighter than other similar products. It is also more compact than our previous clip-on model. The Full HD AMOLED display offers a wider viewing angle and richer colours. It is the ideal partner for relaxed hunting.

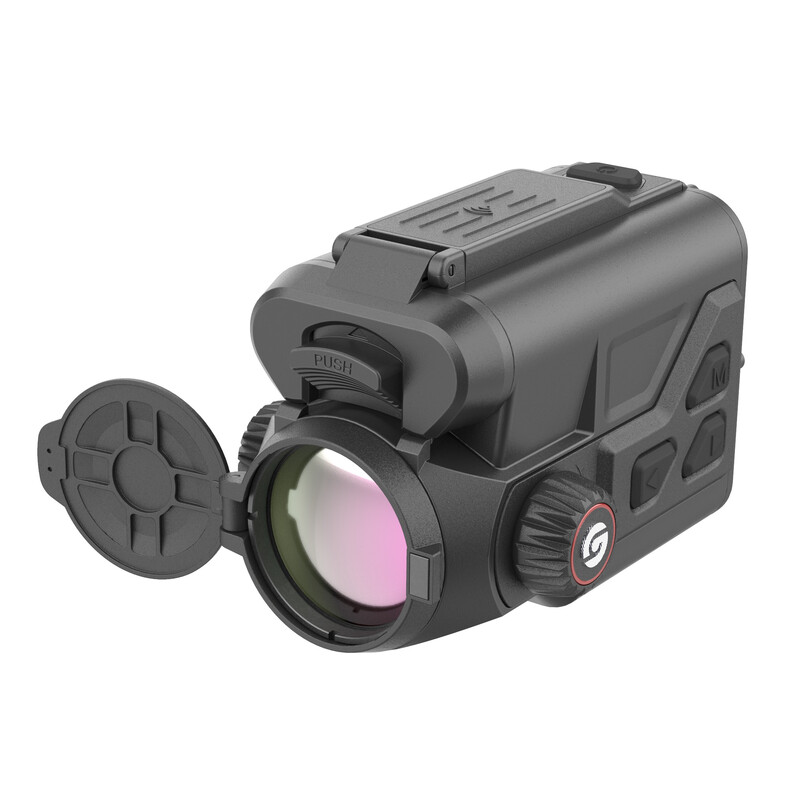

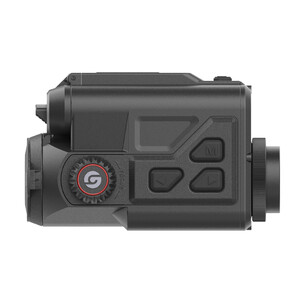

Guide TB430

  • Thermal imaging camera as an attachment
  • Sensor: 400 x 300
  • Pixel pitch: 12μm
  • Objective: 35m
  • Frame rate: 50 Hz
  • Spectral range: 8 μm to 14 μm
  • Sensitivity (NETD): 25 mK

Highly sensitive 12μm infrared detector
The use of a highly sensitive IR detector with a NETD<25mK allows even the smallest temperature differences to be distinguished, resulting in sharper and clearer images.

1920x1080 AMOLED screen
The eyepiece features a high-resolution 1920x1080 AMOLED screen that provides a visual experience with bright colours and excellent image quality. This greatly increases comfort during observation.

Compact design, lightweight and portable
The housing is made of a lighter magnesium alloy, making it more compact and easier to transport and install.

Blind-mountable universalbattery
Uses standard 18650 batteries equipped with a safety circuit. When replacing the batteries, simply ensure that the positive and negative poles of the two cells are aligned in opposite directions, which reduces the effort required for identification and storage.

Up to 12 hours of battery life
Experience wild adventures with low power consumption, lightweight design and long-lasting performance.

IP68 - Defying wind and rain
Excellent waterproofing ensures reliable operation in the harshest conditions. Shock resistance up to 1000G/ms.

Our expert comment:

Legal information:
The purchase, possession and test firing of these night vision devices and thermal attachments at a shooting range is permitted in Germany for holders of a valid hunting licence in accordance with weapons legislation!

Before mounting night vision devices on riflescopes/firearms, check the hunting laws of your federal state or ask your local hunting/firearms authority whether this is permitted in your federal state!
Stefan Rieger

Specifications

Capacity


Type of build
attachment
Technology
Thermal imaging camera
Pixel size
12
temperature resolution (mK)
< 25
Image cycle rate (Hz)
50
Maximum operating distance (m)
1800
Display resolution (Pixel)
1920x1080
Image display
Different versions (White Hot / Black Hot / Red Hot / Green Hot / Iron Red / Blue Hot / Sepia)
Battery durability (h)
10

Special features


Infrared illuminator
-
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
ancillary lenses available
no
WiFi
yes
attachment
yes
Rangefinder
no

Field of view


True field of view (°)
7,8x5,9
Field of view at 100 m (m)
14

Area of application


Object protection & observation
-
Hunting & and nature observation
yes
Navigation & Fishing
-
Cave exploration & Camping
-

General


Colour
black
Length (mm)
128
Width (mm)
79
Height (mm)
79
Weight (g)
425
Series
TB

Product safety

Manufacturer: Guide Sensmart, No. 29, Gaoxin 3rd Road, East Lake High-Tech Development Zone, 430205 Wuhan, CN, www.guideir.com/
Responsible person: JSA Night-Lux, Carl-Zeiss-Str. 31, 73230 Kirchheim/Teck, DE, [email protected]

Recommended accessories

Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

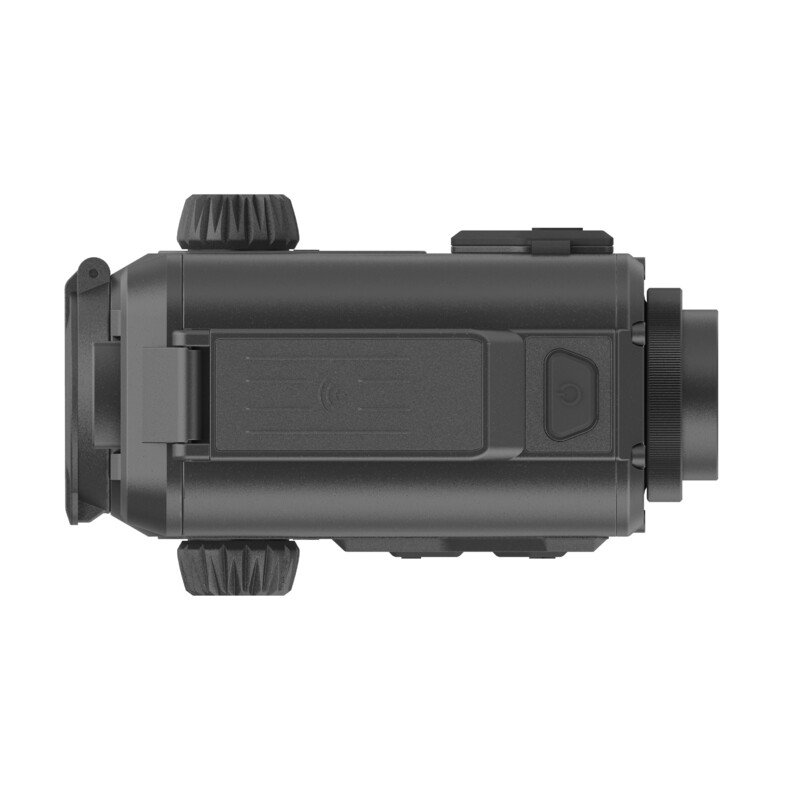

Guide Thermal imaging camera TB430

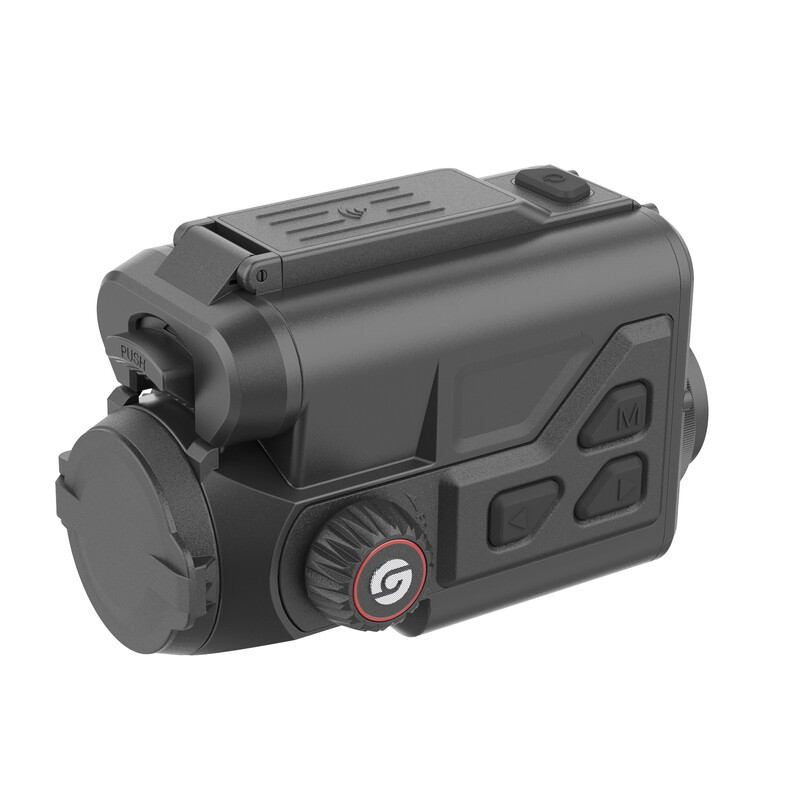

Guide Thermal imaging camera TB430

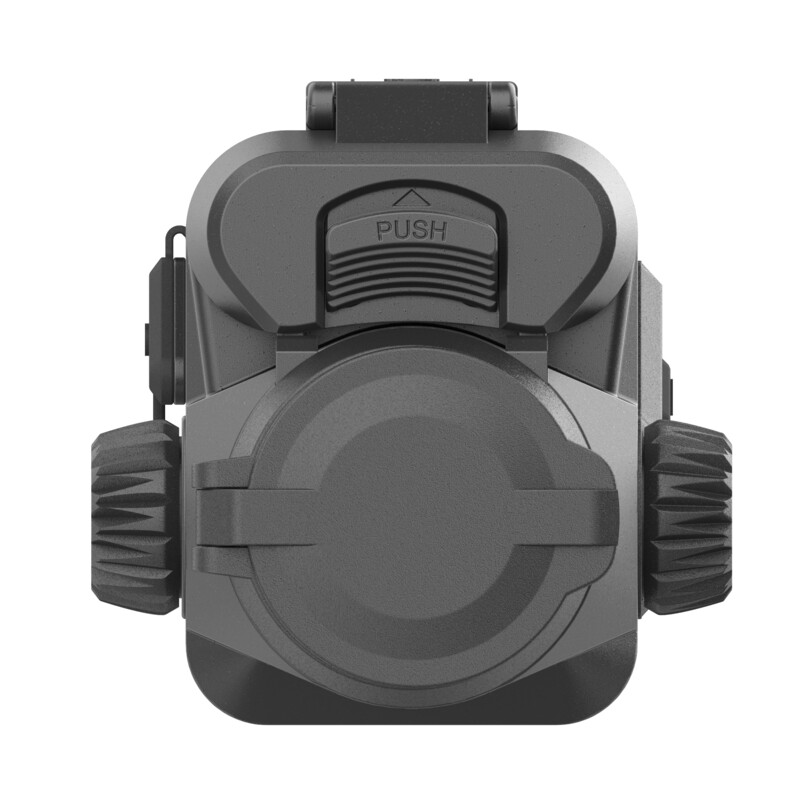

Guide Thermal imaging camera TB430

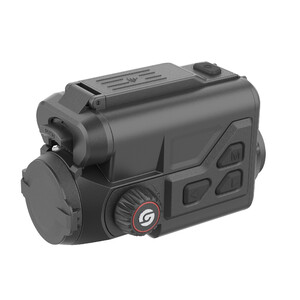

Guide Thermal imaging camera TB430

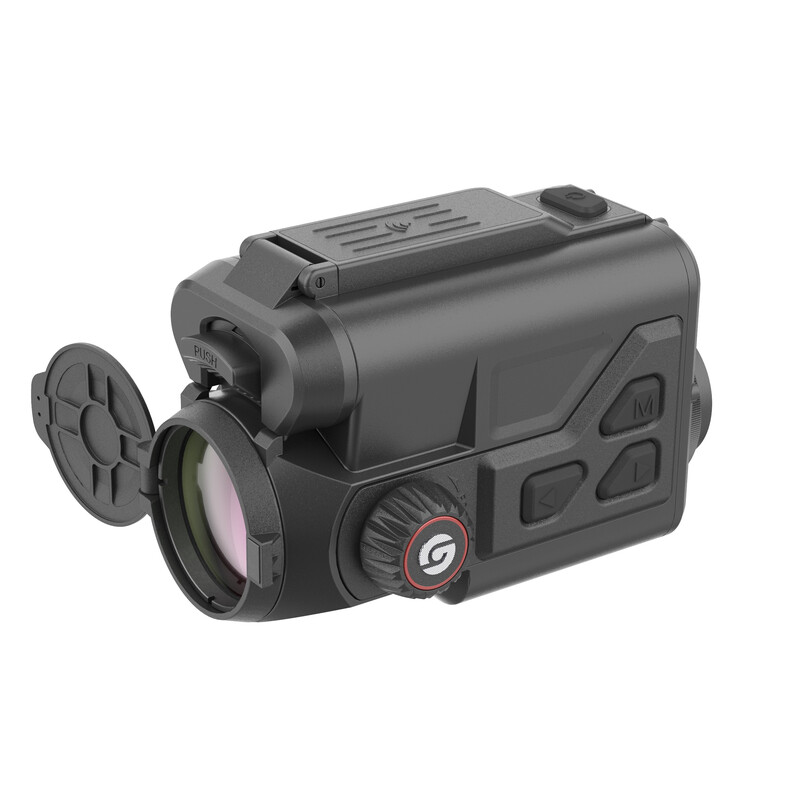

Guide Thermal imaging camera TB430

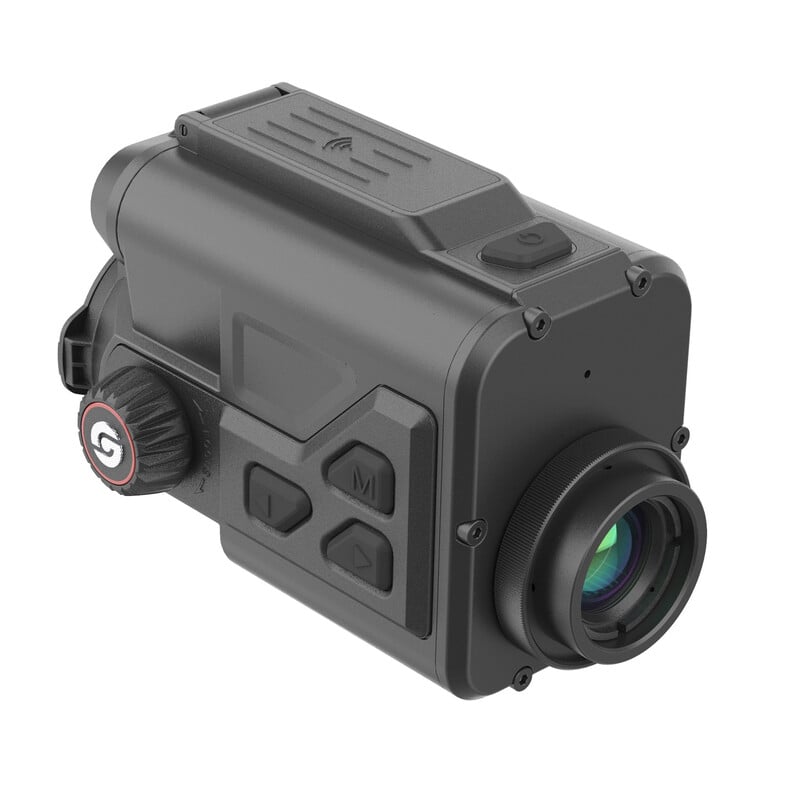

Guide Thermal imaging camera TB430

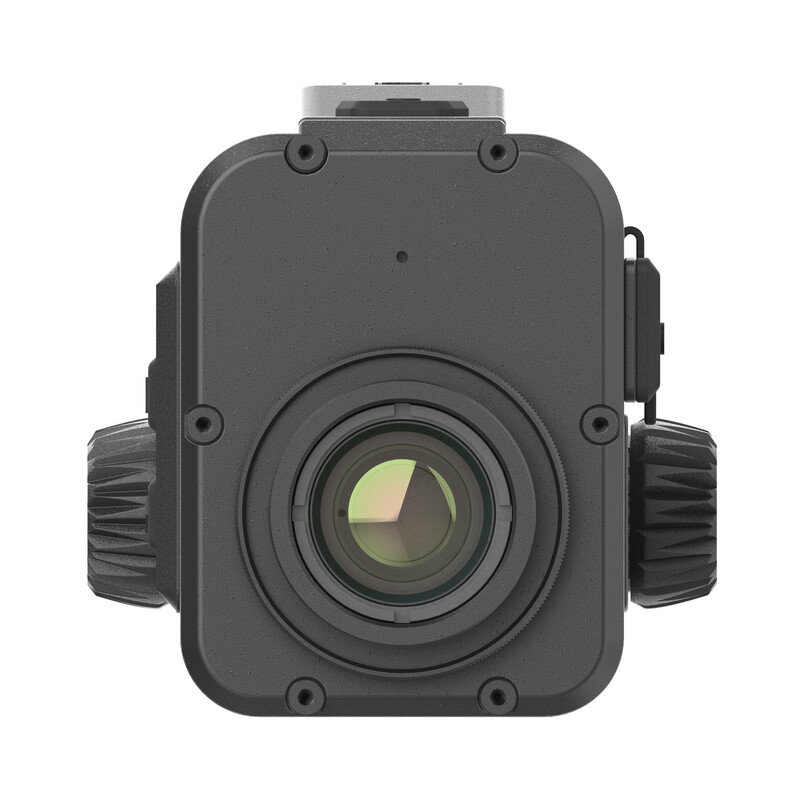

Guide Thermal imaging camera TB430

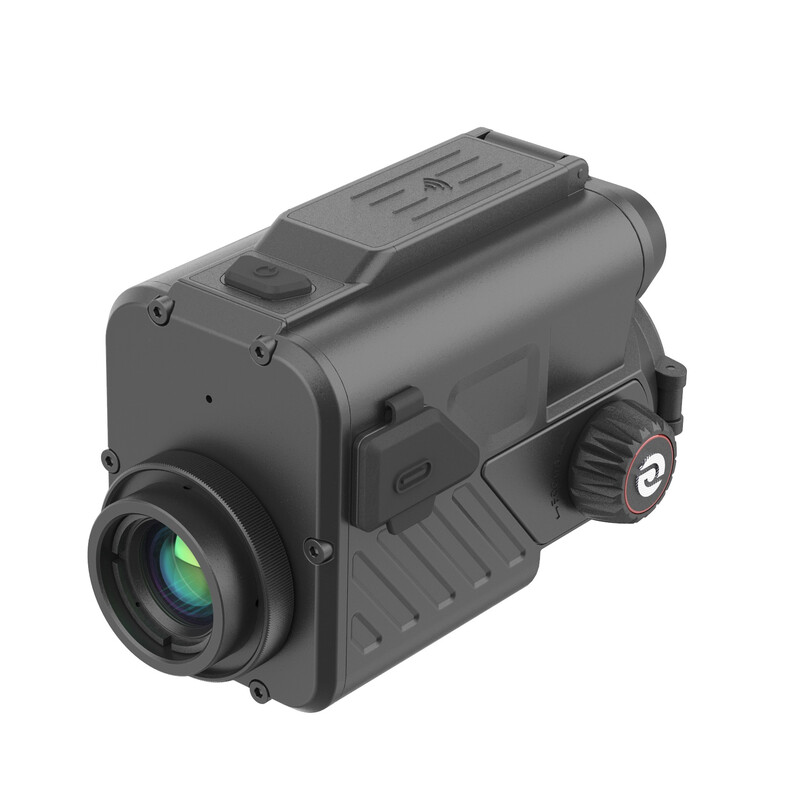

Guide Thermal imaging camera TB430
