Product description

GUIDE TB LRF
The TBLRFseries bridges the gap between precision and portability. The magnesium alloy housing reduces weight while increasing precision. It weighs over 20% less than other similar products. It is also more compact than our previous clip-on model.

The Full HD AMOLED display offers a wider viewing angle and richer colours. It is the ideal partner for relaxed hunting.

Guide TB630LRF

  • Thermal imaging camera as an attachment
  • Sensor: 640 x 512, NETD <20 mK
  • Spectral range: 8 μm to 14 μm
  • Pixel pitch: 12μm
  • Lens: 35m
  • Frame rate: 50 Hz
  • Rangefinders up to 1000m distance

Thermal imaging attachment with laser rangefinder at a great price!
The GUIDE TB630 LRF is a powerful thermal imaging attachment with integrated laser rangefinder, ideal for hunters and outdoor enthusiasts. Watch this video to learn all about the features, applications and impressive value for money of this high-tech device!

12μm infrared detector, NETD up to 20mK
The TB LRF series features a highly sensitive 12μm infrared detector with a NETD value of up to 20mK, delivering crystal-clear images both day and night.

Precise 1000m laser rangefinders
The built-in LRF module provides a laser rangefinder with a range of up to 1000m/1090yd, helping users to detect and locate targets for quick decision-making.

Full HD 1920x1080 AMOLED display
Equipped with an ultra-large 0.39'' AMOLED display with a resolution of 1920x1080 pixels, the TB LRF series is able to deliver better image quality and display more details and information about identified targets.

IP68 waterproof and dustproof
The high protection rating of the IP68 enclosure, 2-metre drop resistance and 1000G/ms shock resistance support your outdoor adventures in rain, fog and other harsh environments.


Compact design, lightweight and portable
The TB LRF series integrates user-friendly features into a compact, rugged, portable and powerful magnesium alloy housing.

Scope of delivery

  • Charger
  • USB-C cable
  • 2x batteries
  • Quick start guide

Our expert comment:

Legal information:
The purchase, possession and test firing of these night vision devices and thermal attachments at a shooting range is permitted in Germany for holders of a valid hunting licence in accordance with weapons legislation!

Before mounting night vision devices on riflescopes/firearms, check the hunting laws of your federal state or ask your local hunting/firearms authority whether this is permitted in your federal state!
Stefan Rieger

Specifications

Capacity


Type of build
attachment
Technology
Thermal imaging camera
Pixel size
12
temperature resolution (mK)
< 20
Image cycle rate (Hz)
50
Maximum operating distance (m)
1800
Display resolution (Pixel)
1920x1080
Image display
Different versions (White Hot / Black Hot / Red Hot / Green Hot / Iron Red / Blue Hot / Sepia)
Battery durability (h)
6

Special features


Infrared illuminator
yes
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
-
ancillary lenses available
no
WiFi
yes
attachment
yes
Rangefinder
1000m

Field of view


True field of view (°)
12,5x10,0
Field of view at 100 m (m)
22

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
-
Cave exploration & Camping
-

General


Colour
black
Length (mm)
0
Width (mm)
86
Height (mm)
79
Weight (g)
450
Series
TB LRF

Product safety

Manufacturer: Guide Sensmart, No. 29, Gaoxin 3rd Road, East Lake High-Tech Development Zone, 430205 Wuhan, CN, www.guideir.com/
Responsible person: JSA Night-Lux, Carl-Zeiss-Str. 31, 73230 Kirchheim/Teck, DE, [email protected]

Recommended accessories

Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

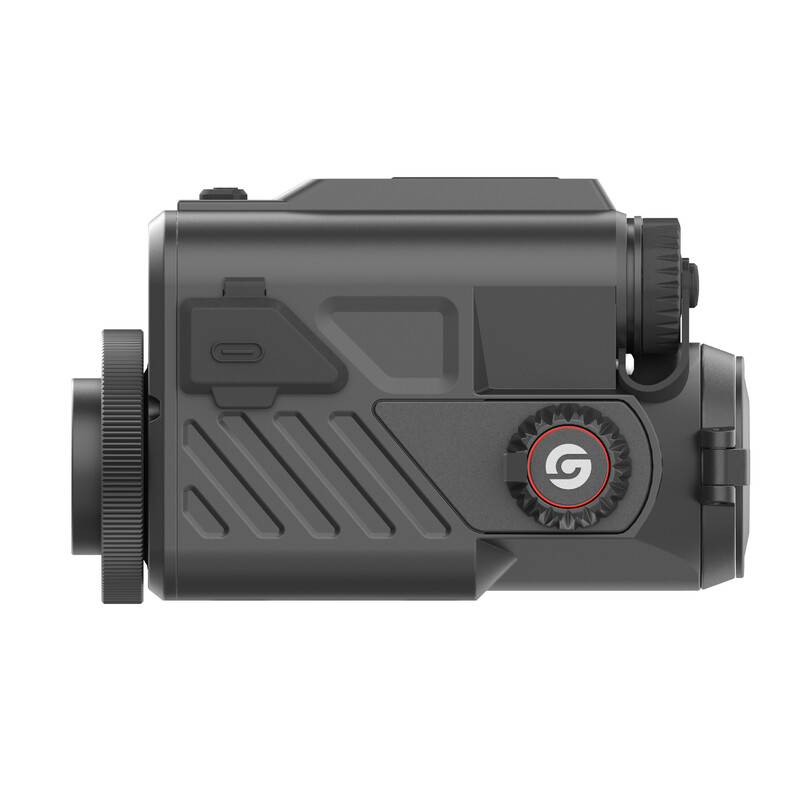

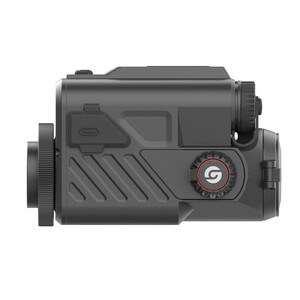

Guide Thermal imaging camera TB630LRF

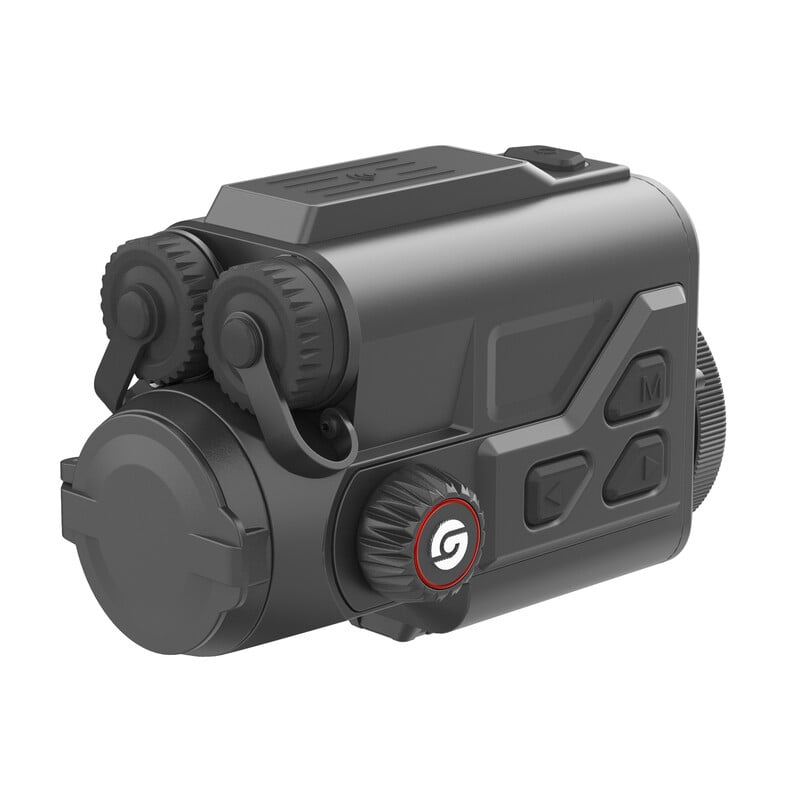

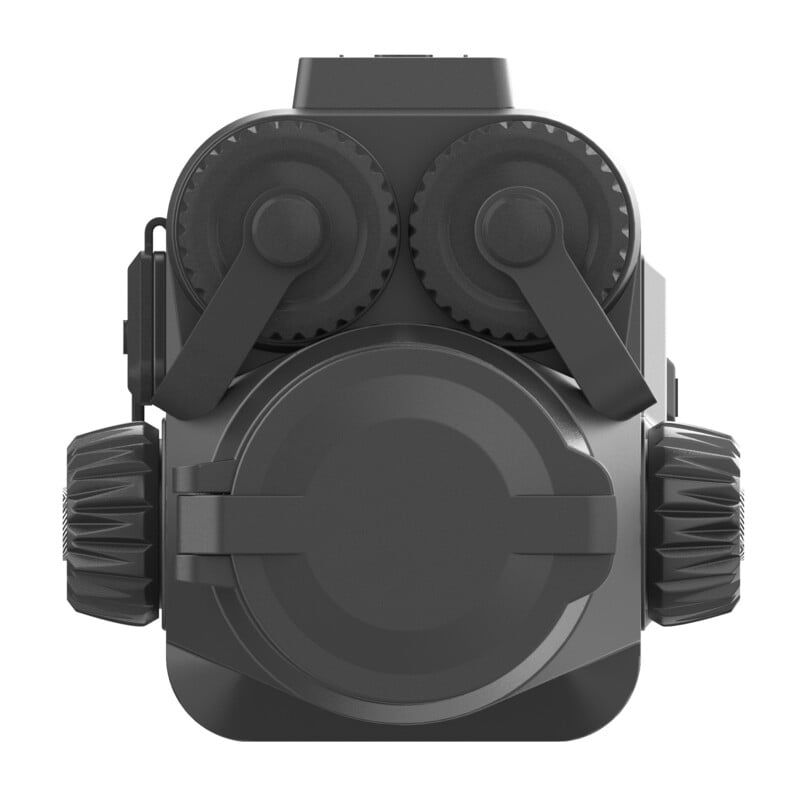

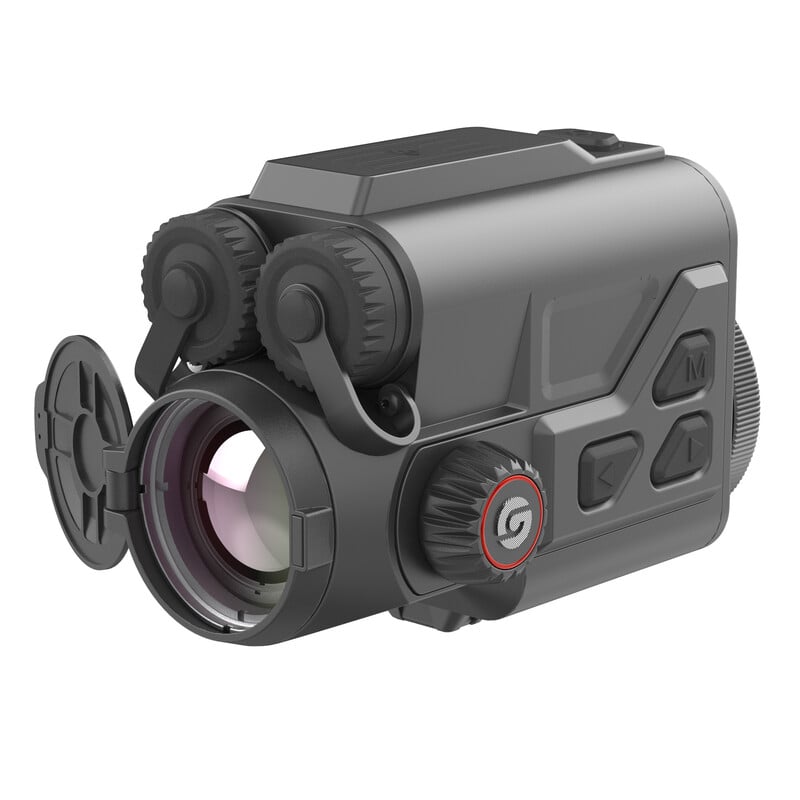

Sturdy covers for each lens

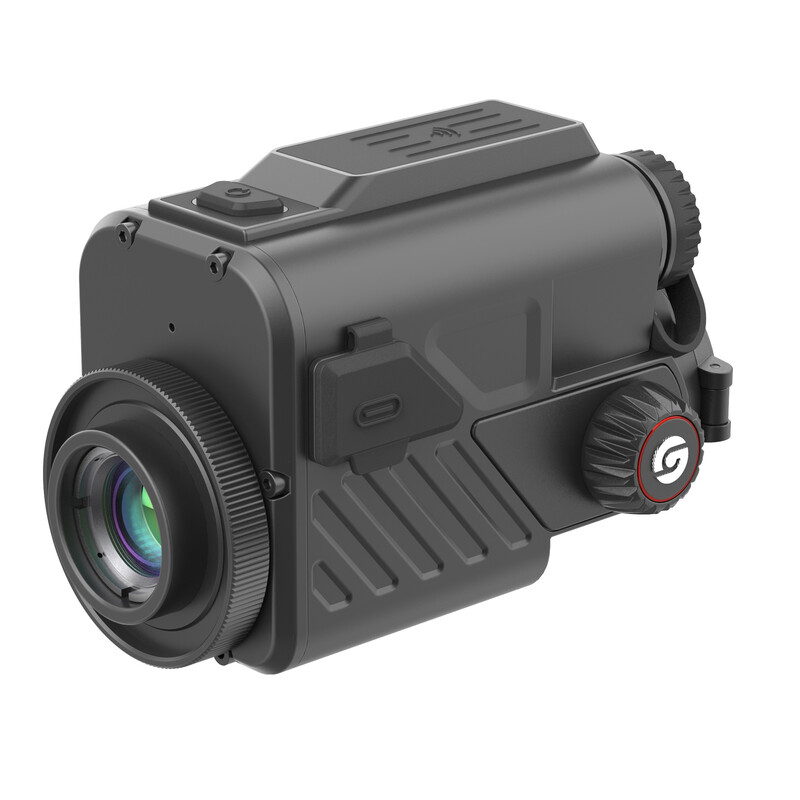

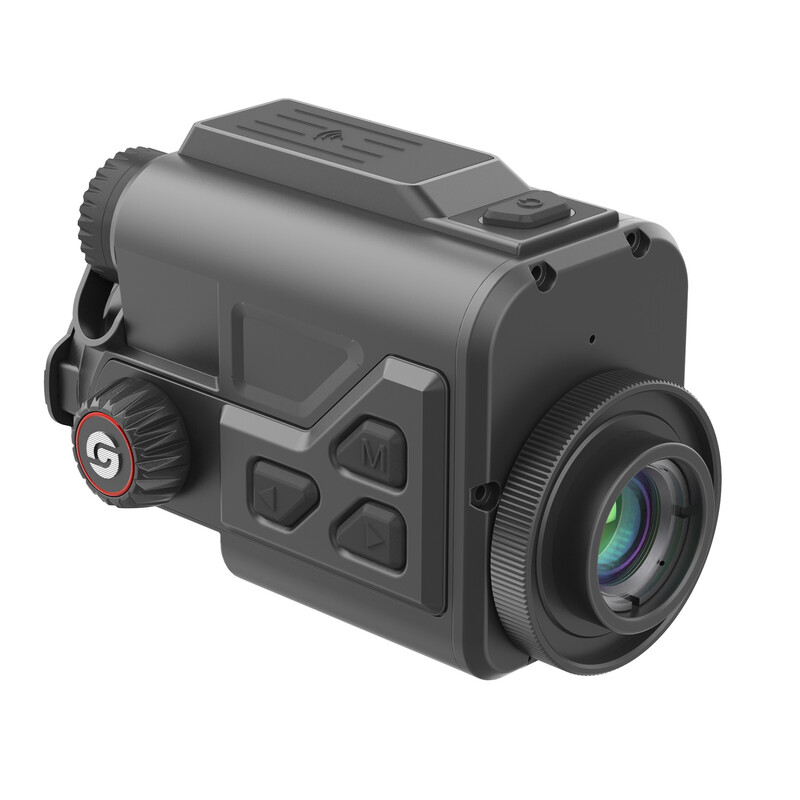

Guide Thermal imaging camera TB630LRF

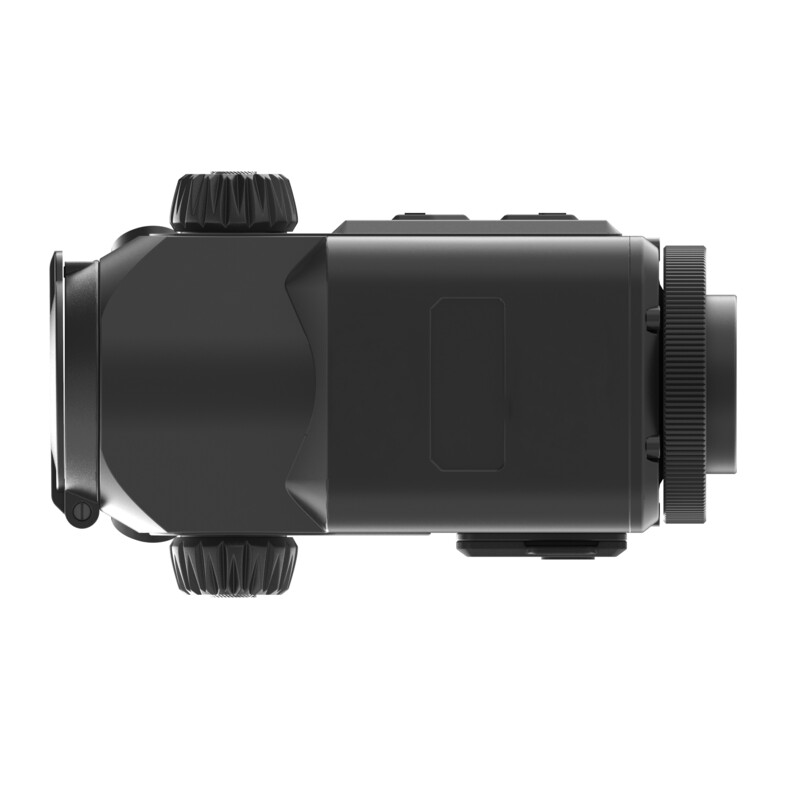

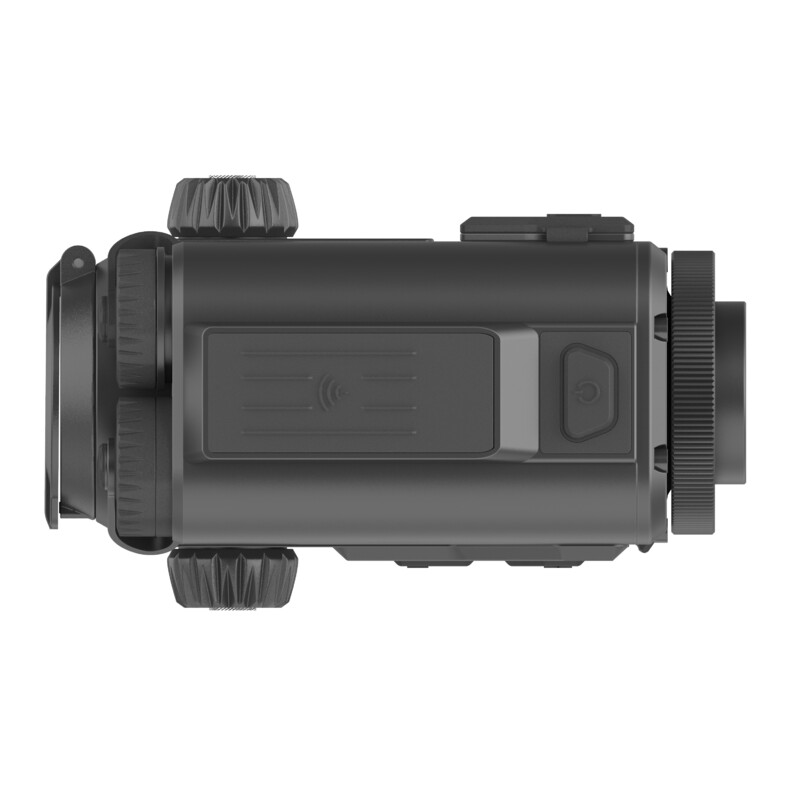

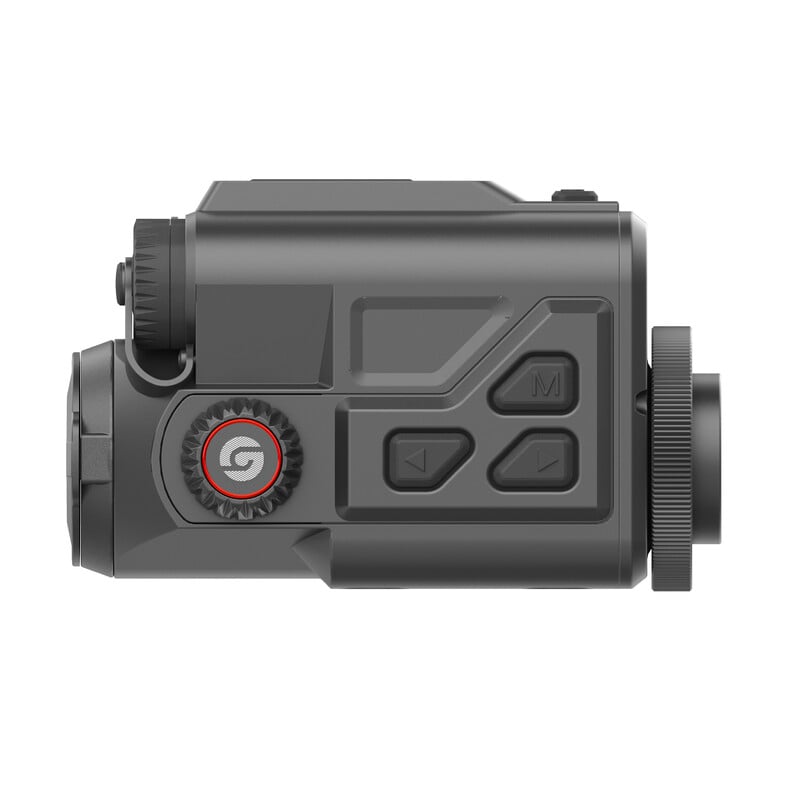

Focus can be operated from both sides

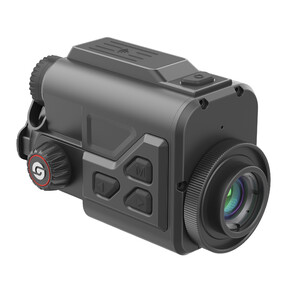

Guide Thermal imaging camera TB630LRF

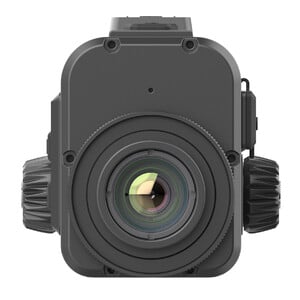

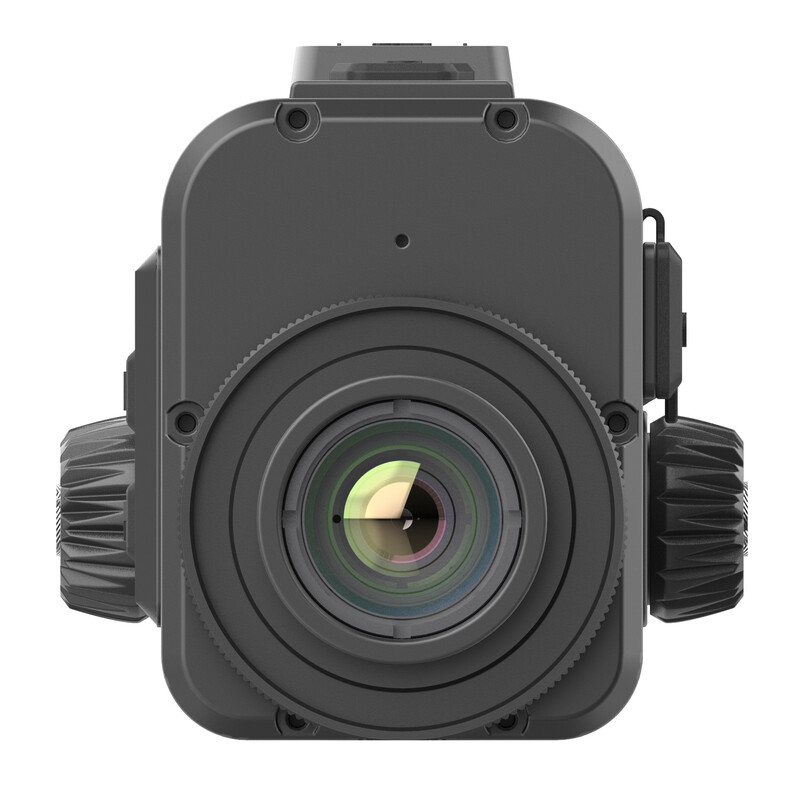

Connection thread M33.5x0.75
