Product description

GUIDE TB LP Series Attachment Devices with Laser Rangefinder
Following a thorough hardware upgrade and software optimisation, the TB LRF Pro series combines precision and portability.

The appearance remains light without compromising professionalism: the built-in laser rangefinder can reach an ultra-long distance of up to 1,000 metres; two batteries allow for longer operating time; the Full HD AMOLED display provides a rich and detailed visual experience; it also supports intelligent functions such as image tracking, automatic recording after each shot, etc.

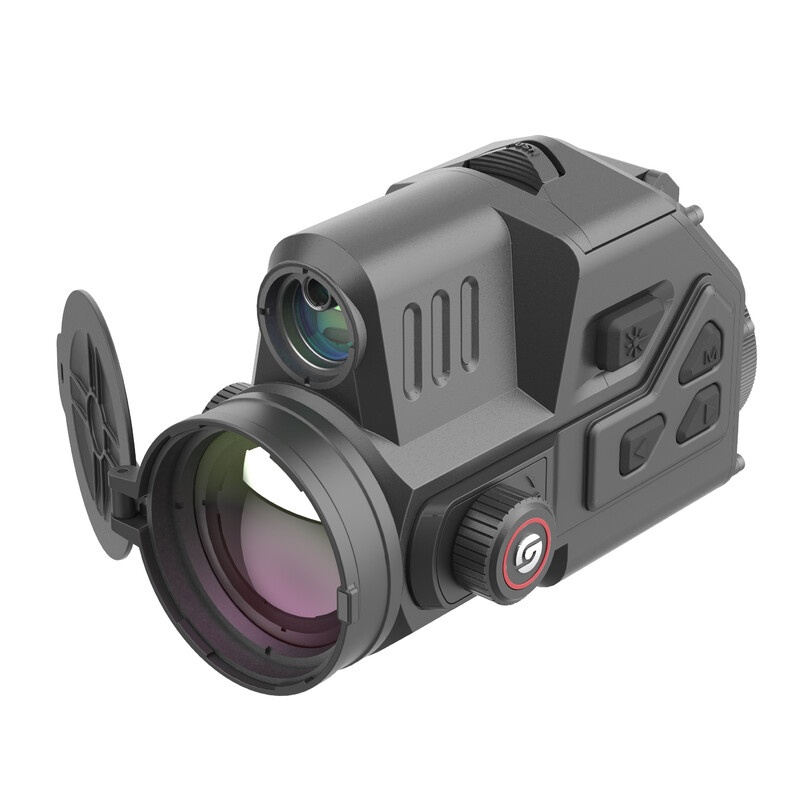

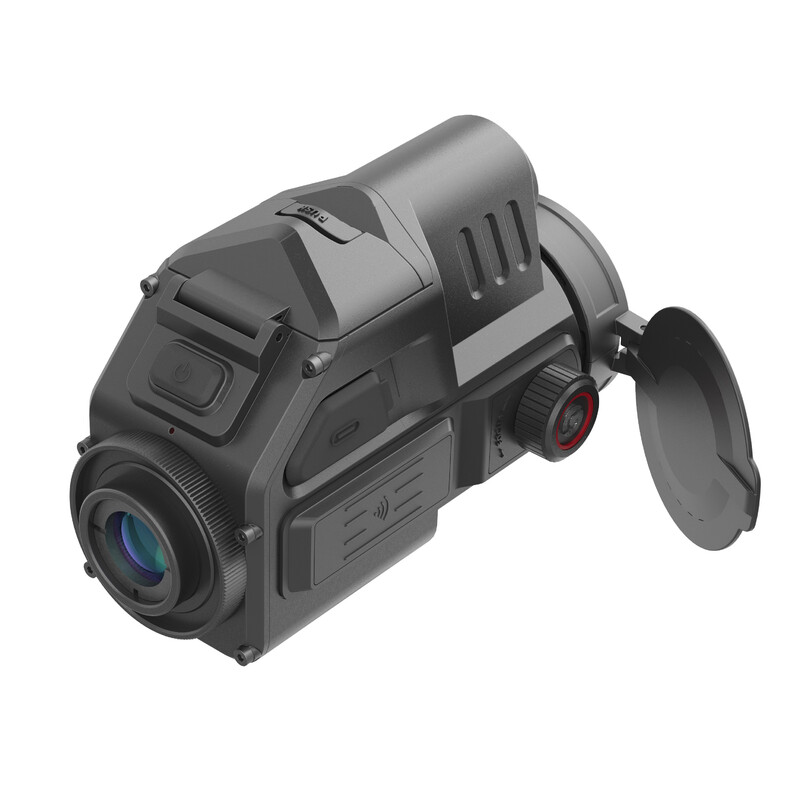

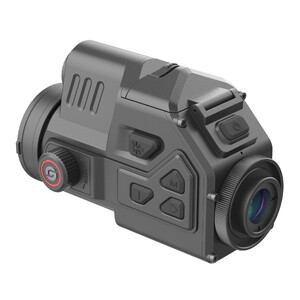

Guide TB650LP

  • Thermal imaging camera as an attachment
  • Sensor: 640 x 512
  • Pixel pitch: 12μm
  • Lens: 50 mm
  • Frame rate: 50 Hz
  • Spectral range: 8 μm to 14 μm
  • Sensitivity (NETD):<20 mK
  • Laser rangefinder up to 1000 m range

One of the best and most affordable thermal imaging attachments with laser
The GUIDE TB650LP offers first-class thermal imaging technology and an integrated laser rangefinder – all at an unbeatable price! In this video, you will learn everything about the features, advantages and possible uses of this high-end device for hunters and outdoor enthusiasts.

12um infrared detector
The TB LRF Pro series features a highly sensitive 12um infrared detector with a NETD of up to 20mK. The advanced detector can detect the slightest differences and temperature changes.

Full HD 1920x1080 AMOLED display
The TB LRF Pro series is equipped with a 0.39" AMOLED display with a resolution of 1920x1080 pixels, providing the user with a vivid image with more details.

1000m laser rangefinders
The built-in LRF module provides a laser rangefinder with a range of up to 1000 m, allowing the user to quickly and accurately detect and locate the target.

IP68 dustproof and waterproof
The TB LRF Pro series is compact and robust, portable and powerful, with a high IP68 protection rating to support you in your outdoor adventures in harsh environments.

Scope of delivery

  • Charger
  • USB-C cable
  • 2x batteries
  • Quick start guide
  • 5V2A adaptors

Our expert comment:

Legal information:
The purchase, possession and test firing of these night vision devices and thermal attachments at a shooting range is permitted in Germany for holders of a valid hunting licence in accordance with weapons legislation!

Before mounting night vision devices on riflescopes/firearms, check the hunting laws of your federal state or ask your local hunting/firearms authority whether this is permitted in your federal state!
Stefan Rieger

Specifications

Capacity


Type of build
attachment
Technology
Thermal imaging camera
Pixel size
12
temperature resolution (mK)
< 20
Image cycle rate (Hz)
50
Maximum operating distance (m)
2600
Display resolution (Pixel)
1920x1080
Image display
Different versions (White Hot / Black Hot / Red Hot / Green Hot / Iron Red / Blue Hot / Sepia)
Battery durability (h)
9

Special features


Infrared illuminator
yes
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
-
ancillary lenses available
no
WiFi
yes
attachment
yes
Rangefinder
1000m

Field of view


True field of view (°)
8,8x6,6
Field of view at 100 m (m)
15

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
-
Cave exploration & Camping
-

General


Colour
black
Length (mm)
161
Width (mm)
89
Height (mm)
97
Weight (g)
582
Series
TB LP

Product safety

Manufacturer: Guide Sensmart, No. 29, Gaoxin 3rd Road, East Lake High-Tech Development Zone, 430205 Wuhan, CN, www.guideir.com/
Responsible person: JSA Night-Lux, Carl-Zeiss-Str. 31, 73230 Kirchheim/Teck, DE, [email protected]

Recommended accessories

Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

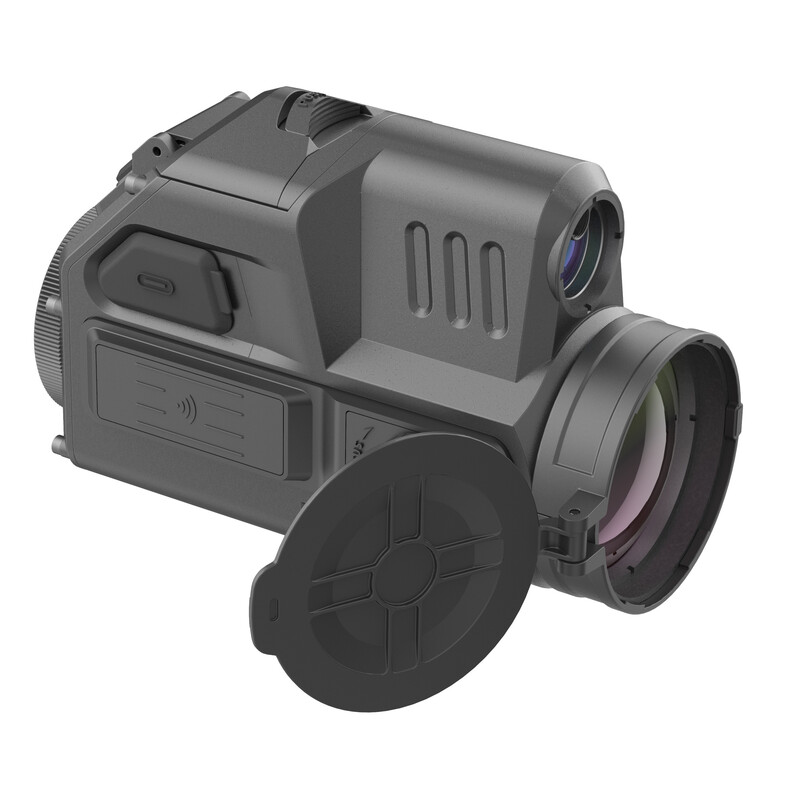

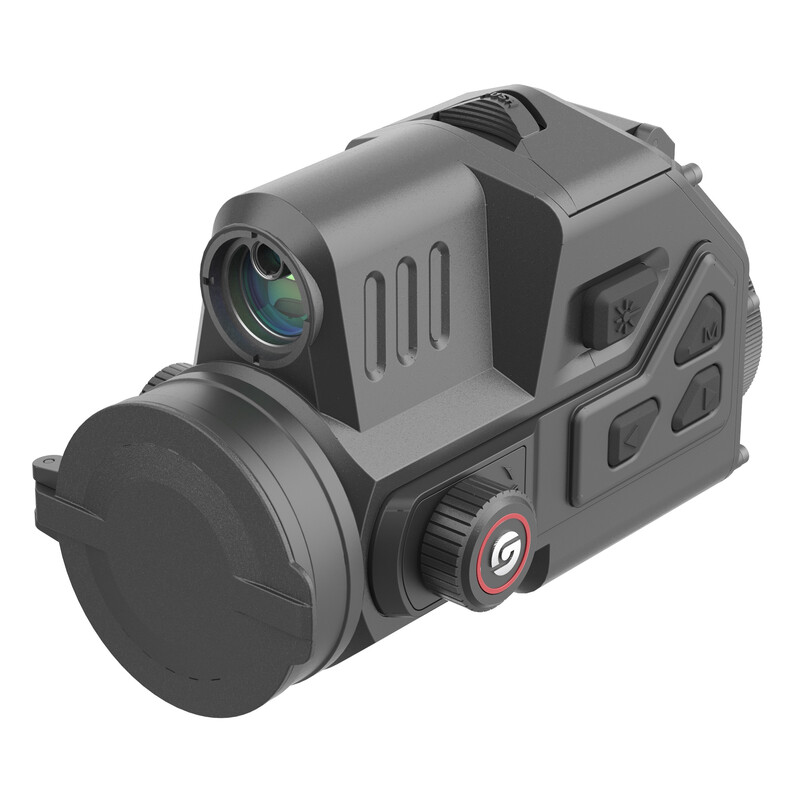

Guide Thermal imaging camera TB650LP

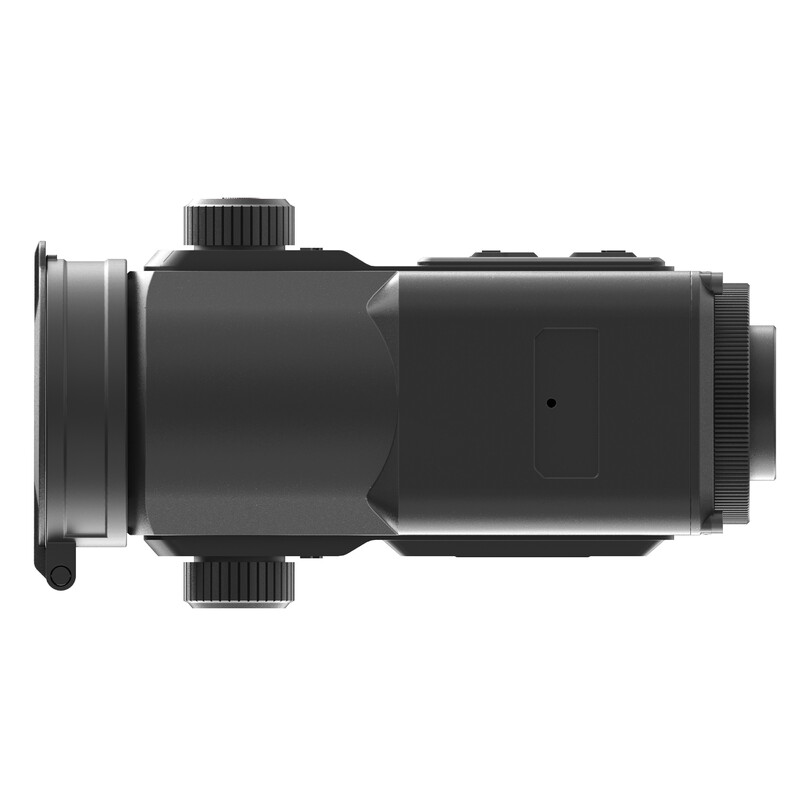

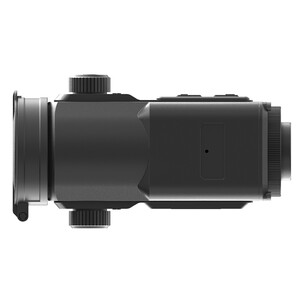

Focus can be operated from both sides

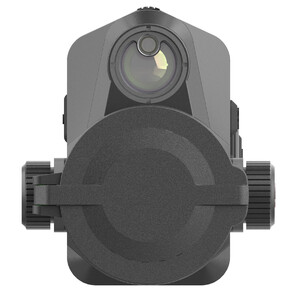

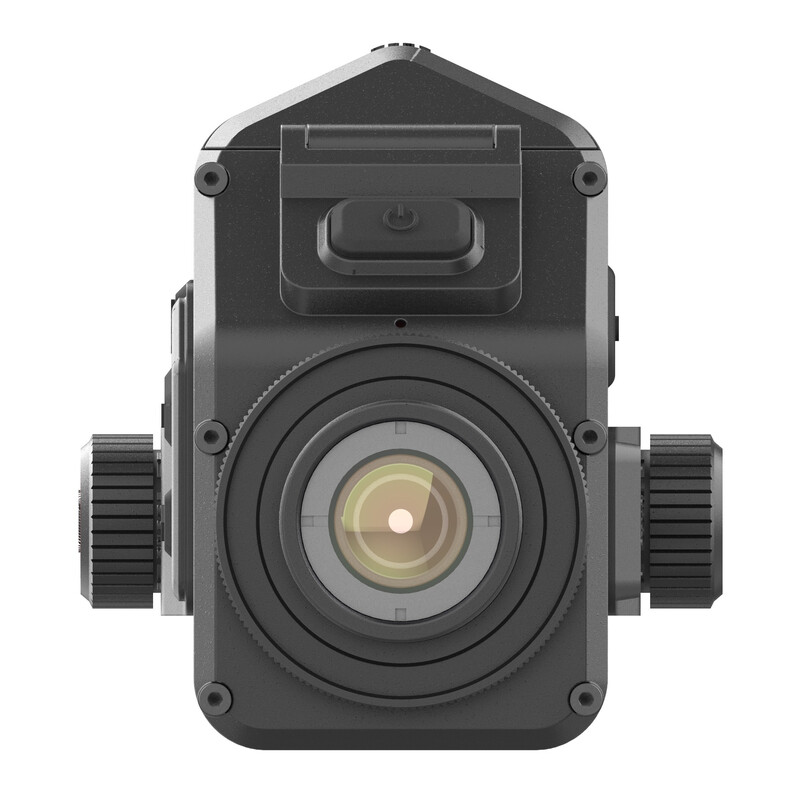

Guide Thermal imaging camera TB650LP
Connection thread M33.5x0.75

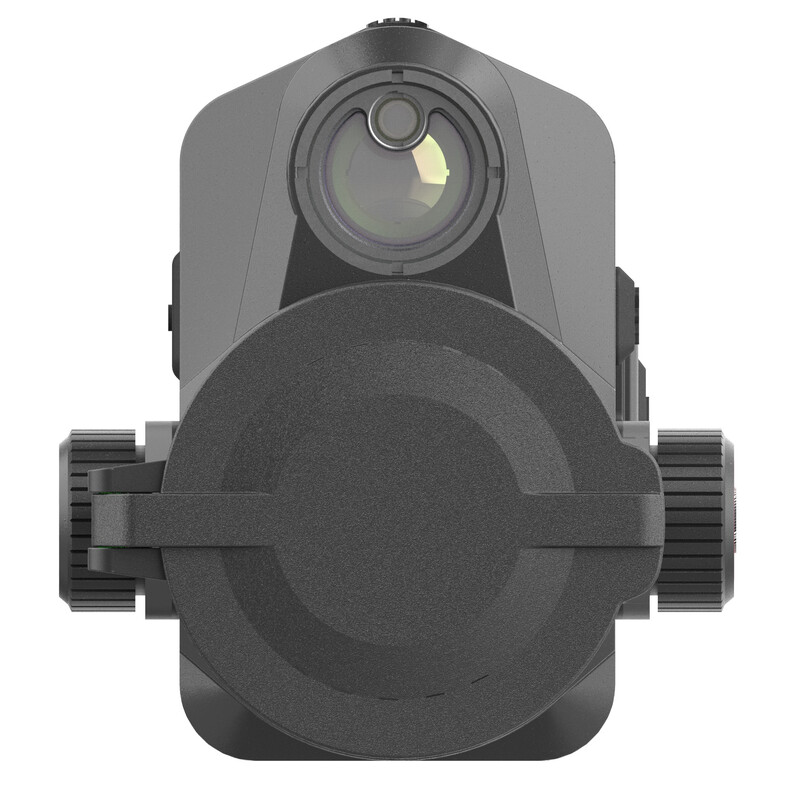

Guide Thermal imaging camera TB650LP

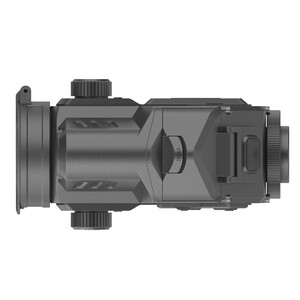

Low optical axis for low height
