Product description

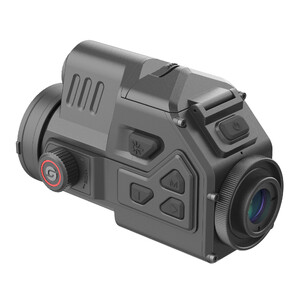

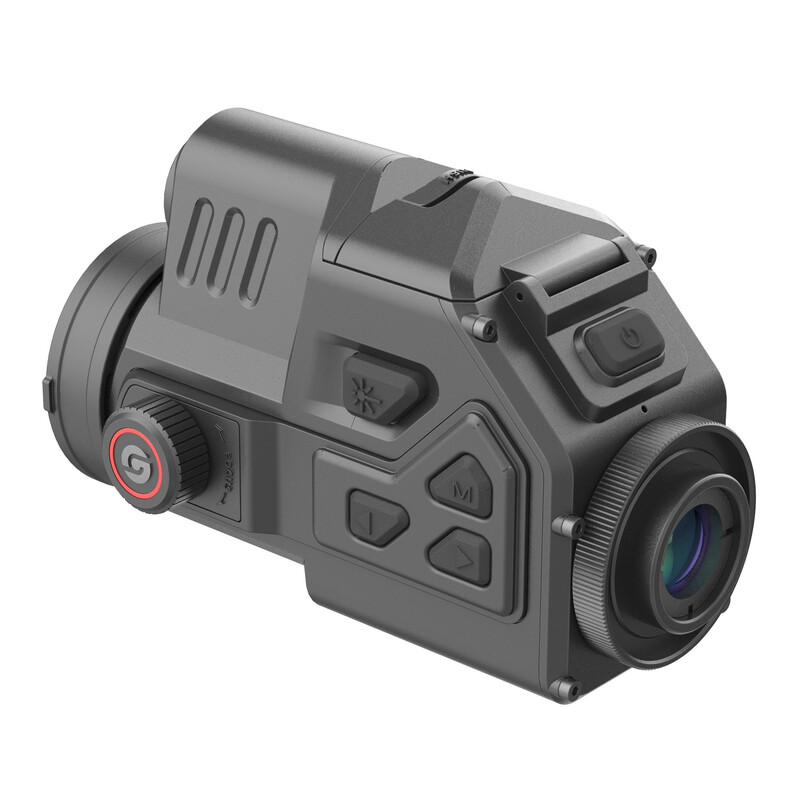

GUIDE TB Pro Thermal Imaging Attachments
The TB Pro series offers the perfect balance between precision and portability. The magnesium alloy housing reduces weight while increasing precision. The weights are over 20% lighter than other similar products. It is also more compact than our previous clip-on model. The Full HD AMOLED display offers a wider viewing angle and richer colours. It is the ideal partner for relaxed hunting.

Guide TB650P

  • Thermal imaging camera as an attachment
  • Sensor: 640x512
  • Pixel pitch: 12μm
  • Lens: 50 mm
  • Frame rate: 50 Hz
  • Spectral range: 8 μm to 14 μm
  • Sensitivity (NETD):<20 mK

Video shows model with rangefinders, which are not yet available in Deutschland.

50mm focal length
The maximum detection range of 2600 m allows you to detect targets at long distances, helping you to see further and observe more outdoors.

2600m detectionrange
The maximum detection range of 2600 m allows you to detect targets at long distances, helping you to see further and observe more outdoors.

High IP68 protectionrating
The high IP68 protection rating is dustproof and waterproof, with 1000G/ms shock resistance, supporting your outdoor observation, hunting or rescue tasks even in rain, fog or haze.


The 0.39" high-definition AMOLED screenwith 1920x1080 pixels provides a visual experience with bright colours and excellent image quality, which significantly increases viewing comfort.

Scope of delivery

  • Charger
  • USB-C cable
  • 2x batteries
  • Quick start guide
  • 5V2A adaptors

Our expert comment:

Legal information:
The purchase, possession and test firing of these night vision devices and thermal attachments at a shooting range is permitted in Germany for holders of a valid hunting licence in accordance with weapons legislation!

Before mounting night vision devices on riflescopes/firearms, check the hunting laws of your federal state or ask your local hunting/firearms authority whether this is permitted in your federal state!
Stefan Rieger

Specifications

Capacity


Type of build
attachment
Technology
Thermal imaging camera
Pixel size
12
temperature resolution (mK)
< 20
Image cycle rate (Hz)
50
Maximum operating distance (m)
2600
Display resolution (Pixel)
1920x1080
Image display
Different versions (White Hot / Black Hot / Red Hot / Green Hot / Iron Red / Blue Hot / Sepia)
Battery durability (h)
9

Special features


Infrared illuminator
yes
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
-
ancillary lenses available
no
WiFi
yes
attachment
yes
Rangefinder
no

Field of view


True field of view (°)
8,8x6,6
Field of view at 100 m (m)
15

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
-
Cave exploration & Camping
-

General


Colour
black
Length (mm)
161
Width (mm)
89
Height (mm)
97
Weight (g)
582
Series
TB P

Product safety

Manufacturer: Guide Sensmart, No. 29, Gaoxin 3rd Road, East Lake High-Tech Development Zone, 430205 Wuhan, CN, www.guideir.com/
Responsible person: JSA Night-Lux, Carl-Zeiss-Str. 31, 73230 Kirchheim/Teck, DE, [email protected]

Recommended accessories

Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

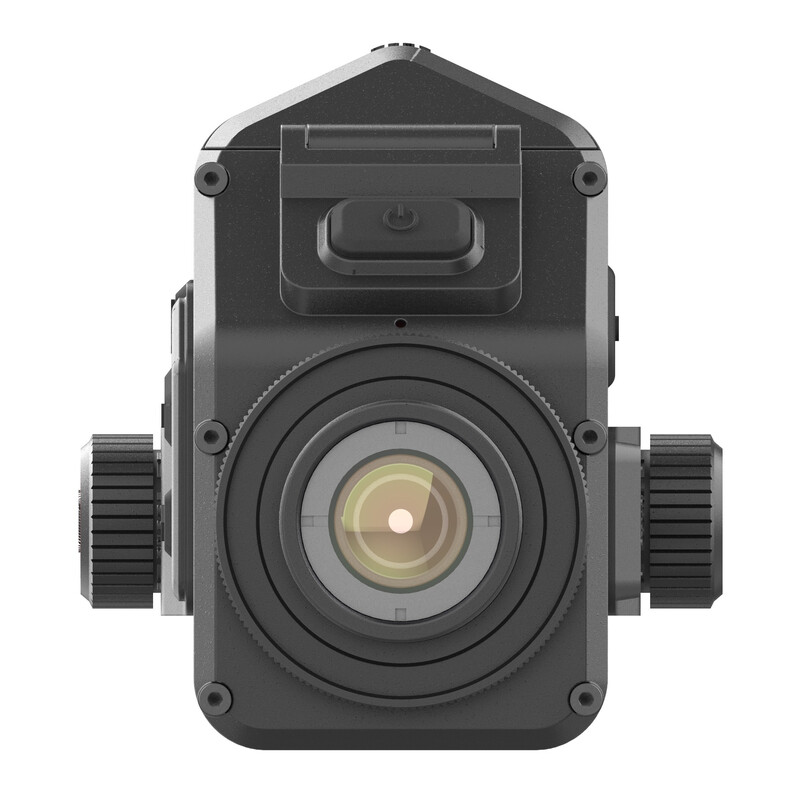

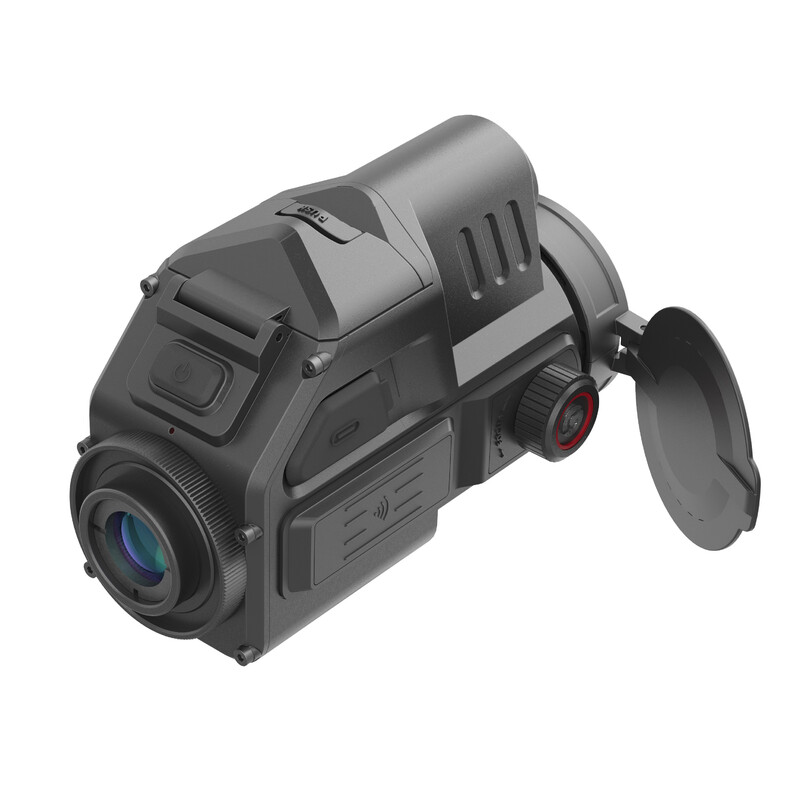

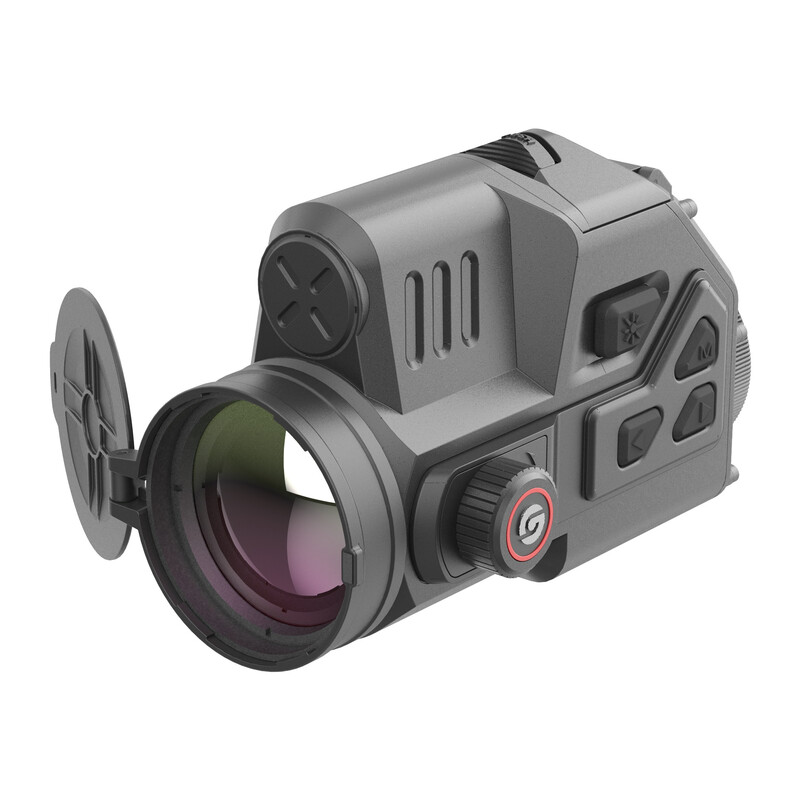

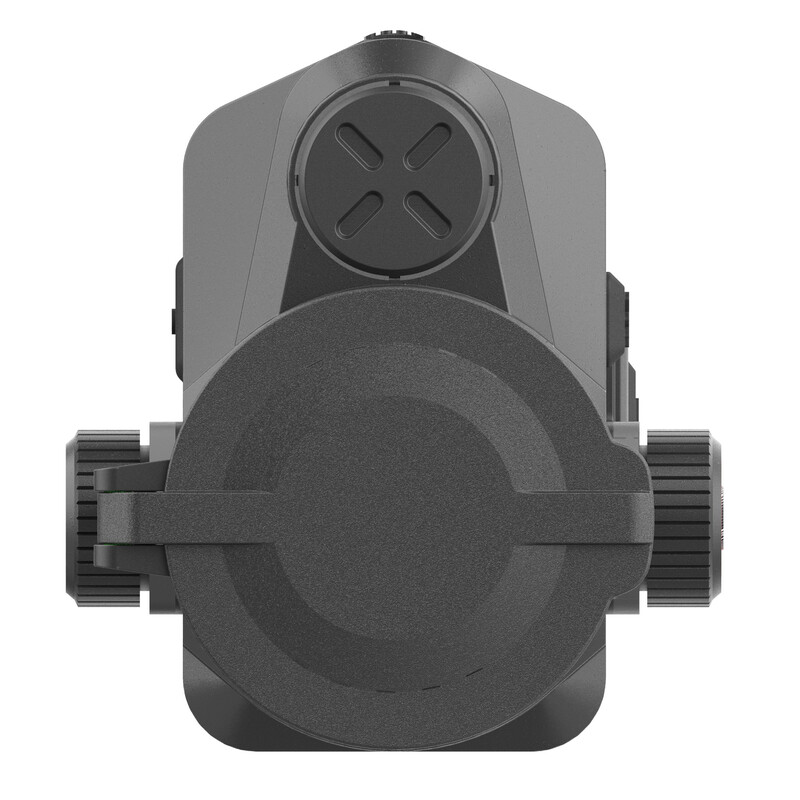

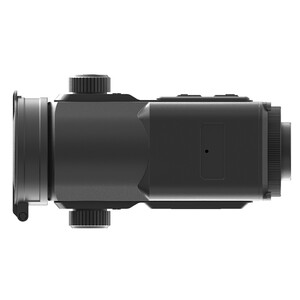

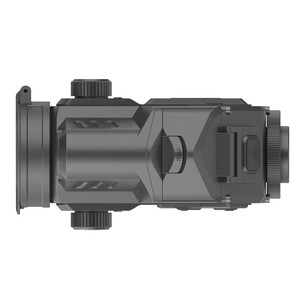

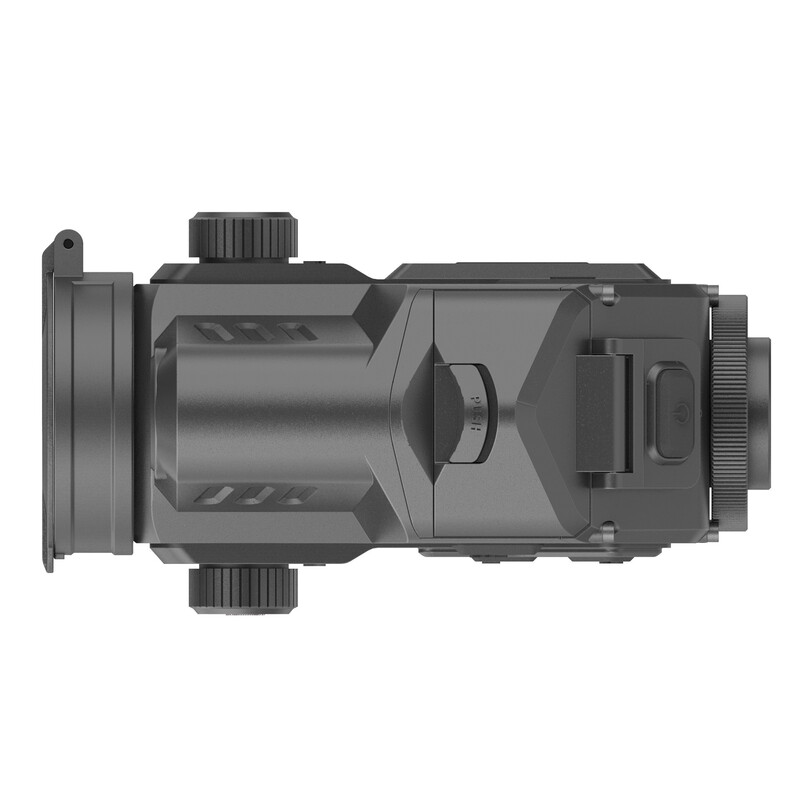

Guide Thermal imaging camera TB650P

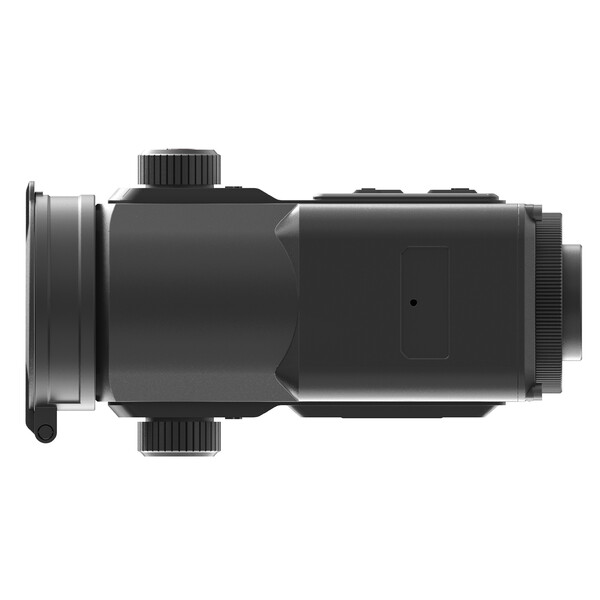

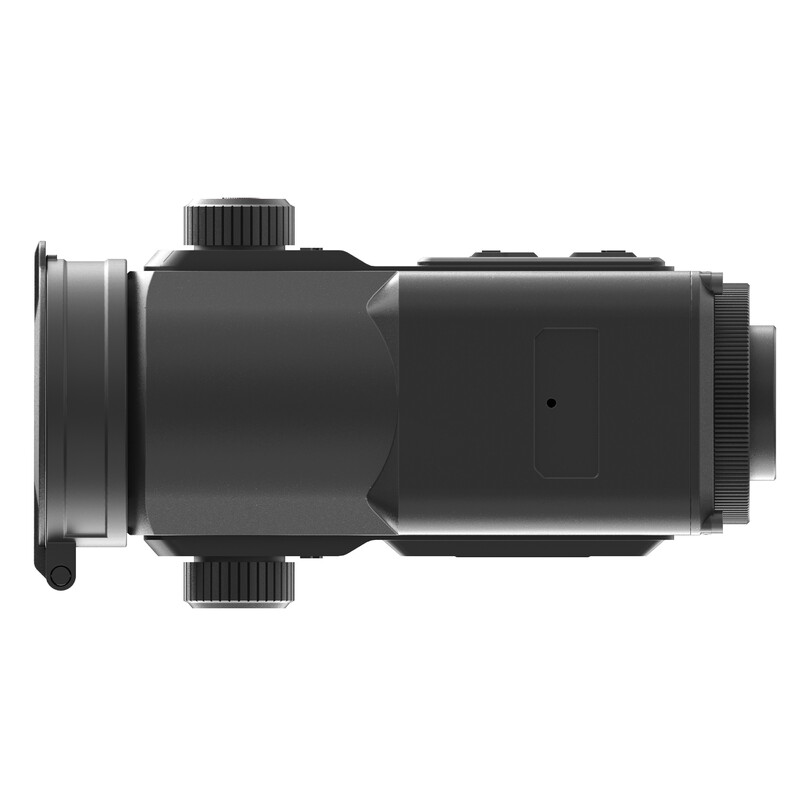

Low optical axis for low height

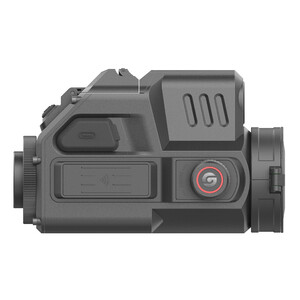

Guide Thermal imaging camera TB650P

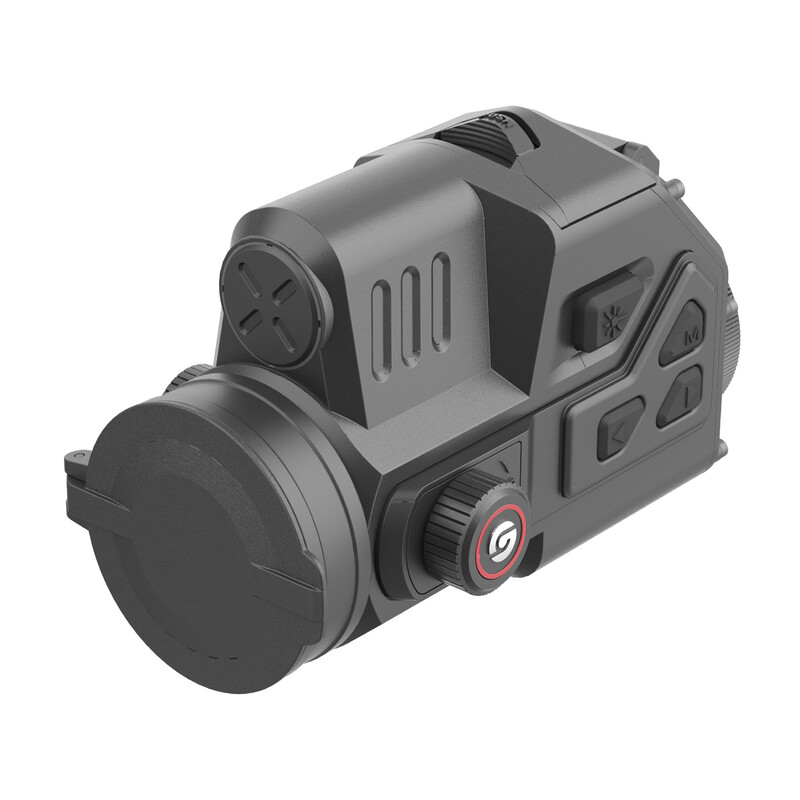

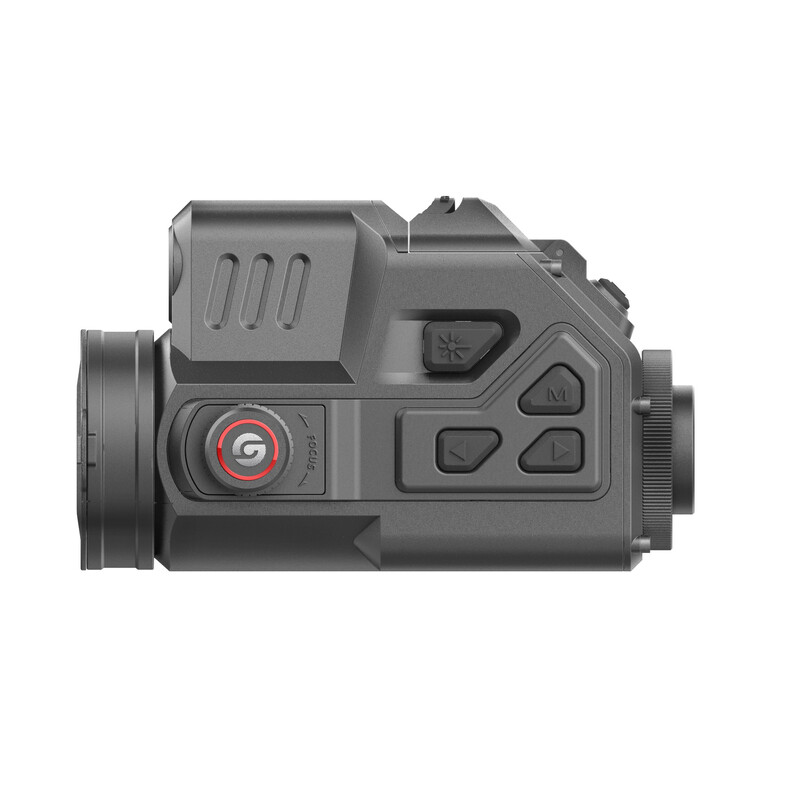

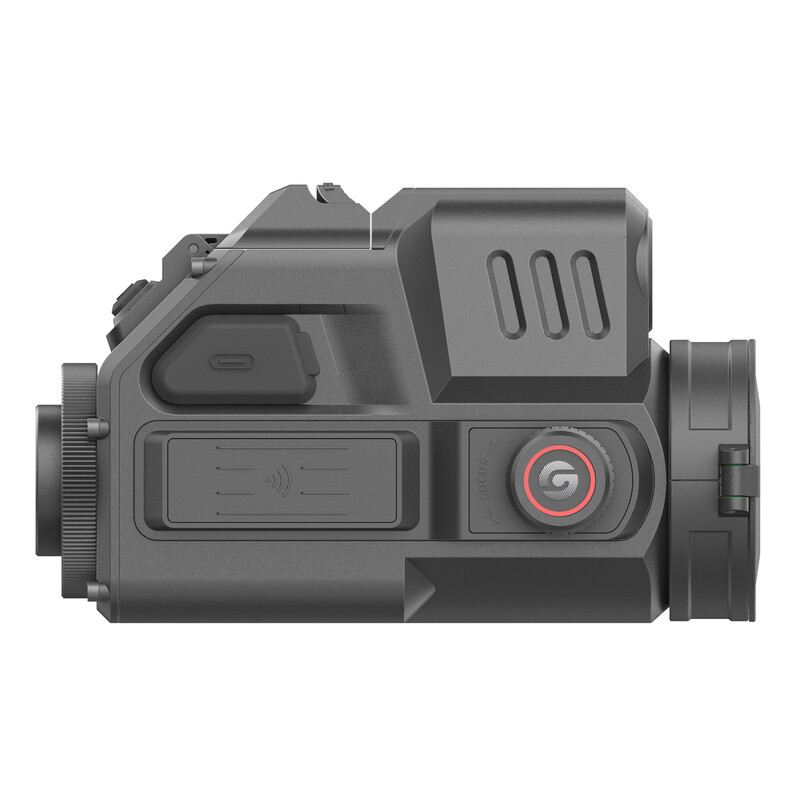

Focus can be operated from both sides
Guide Thermal imaging camera TB650P
Connection thread M33.5x0.75
