Night vision devices & thermal cameras > Instruments > Thermal imaging cameras > Guide > TD > Guide Thermal imaging camera TD431 LRF
Product no.: 80633

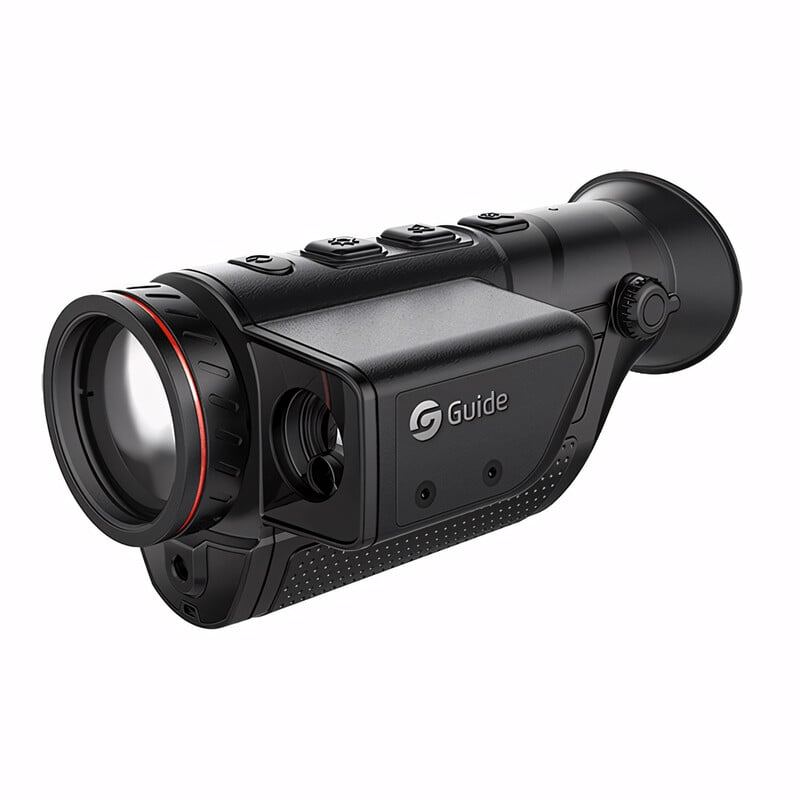

Thermal imaging camera TD431 LRF

$ 1,600.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

Guide TD-Serie 2nd generation
The TD Gen2 series follows the design of traditional optical instruments. It is a lightweight, portable and easy-to-use handheld thermal imaging monocular with a wide range of application scenarios. With its bright AMOLED display, the TD Gen2 series offers clear images and a comfortable viewing experience with a battery life of up to 10 hours, making it the ideal equipment for outdoor night vision.

The TD431LRF has an image sensor of 384 x 288 pixels 12μm <35 mK. The instrument is equipped with a 35 mm lens that can be focused with the index finger using a rotating wheel.

High brightness AMOLED display
The highly sensitive 12-μm infrared detector and the 0.23-inch AMOLED display with a resolution of 384 x 288 pixels ensure better display of image edges and details and provide a high-contrast and detailed thermal image for a pleasant viewing experience.

Improved image processingalgorithms
The TD Gen2 LRF series uses a new approach to image optimisation depending on the purpose and conditions of the observation, providing high-quality display of both the target objects and the background.

10 hours of battery life
Over 10 hours of active use, 3 hours more than the previous generation. Standard 18650 battery, easy to purchase.

New user interface design
New interface for easier operation; iconised buttons avoid language restrictions.

Real-time sharing via WIFI
Connect the app on your phone via WIFI and share the wonderful moment in real time.

OTA update
Supports firmware updates of the instrument by connecting to the TargetIR APP for high efficiency.

Specifications

Capacity


Type of build
Monocular
Technology
Thermal imaging camera
Zoom (digital)
2/4
Maximum operating distance (m)
1400
Pixel size
12
temperature resolution (mK)
< 35
Image cycle rate (Hz)
50
Display resolution (Pixel)
640x400
Image display
Different versions (Black Hot, White Hot, Red Hot, Iron Hot, Blue Hot)
Battery durability (h)
10

Special features


Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
yes
ancillary lenses available
no
WiFi
yes
attachment
no
Rangefinder
yes

Field of view


True field of view (°)
7,5x5,6
Field of view at 100 m (m)
13

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General


Colour
black
Length (mm)
150
Width (mm)
74
Height (mm)
77
Weight (g)
393
Series
TD

Product safety

Manufacturer: Guide Sensmart, No. 29, Gaoxin 3rd Road, East Lake High-Tech Development Zone, 430205 Wuhan, CN, www.guideir.com/
Responsible person: JSA Night-Lux, Carl-Zeiss-Str. 31, 73230 Kirchheim/Teck, DE, [email protected]
