Night vision devices & thermal cameras > Instruments > Thermal imaging cameras > Guide > TD > Guide Thermal imaging camera TD631 LRF
Product no.: 80634

Thermal imaging camera TD631 LRF

$ 2,060.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 1-2 weeks + lead time

Product description

Guide TD-Serie 2nd generation
The TD Gen2 series follows the design of traditional optical instruments. It is a lightweight, portable and easy-to-use handheld thermal imaging monocular with a wide range of application scenarios. With its bright AMOLED display, the TD Gen2 series offers clear images and a comfortable viewing experience with a battery life of up to 10 hours, making it the ideal equipment for outdoor night vision.

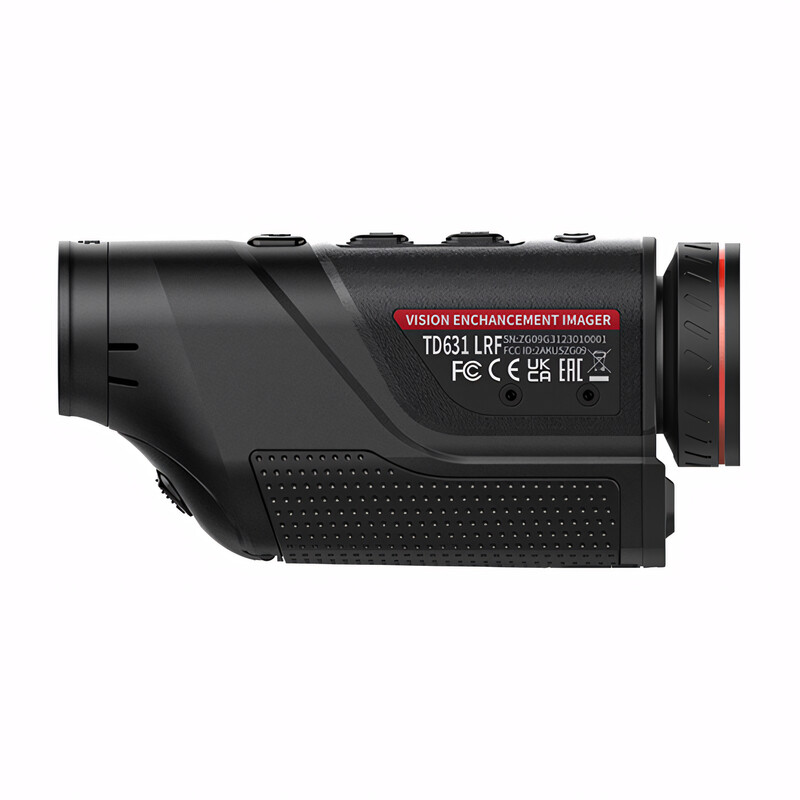

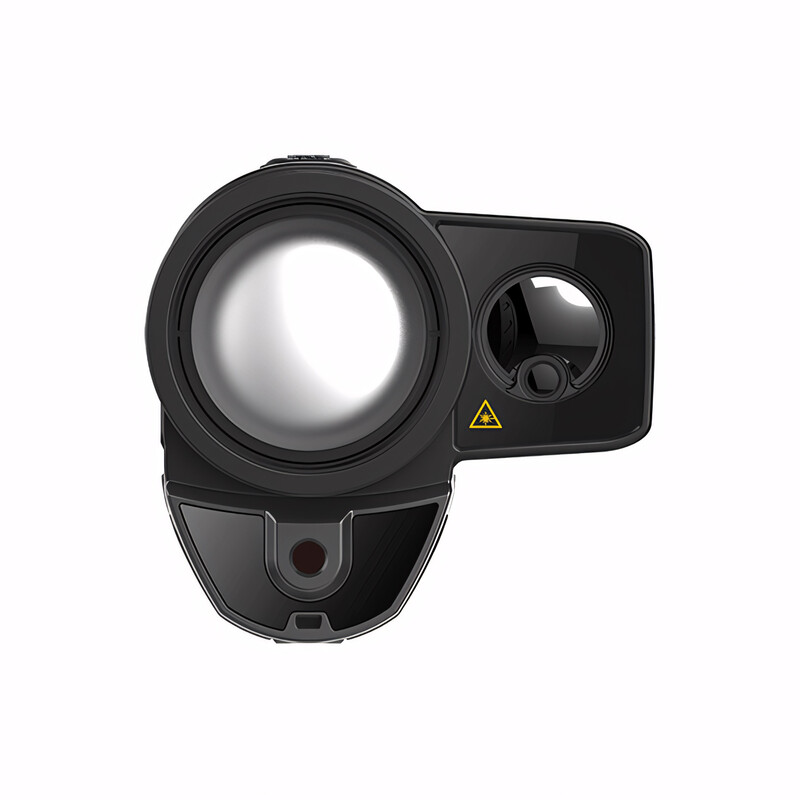

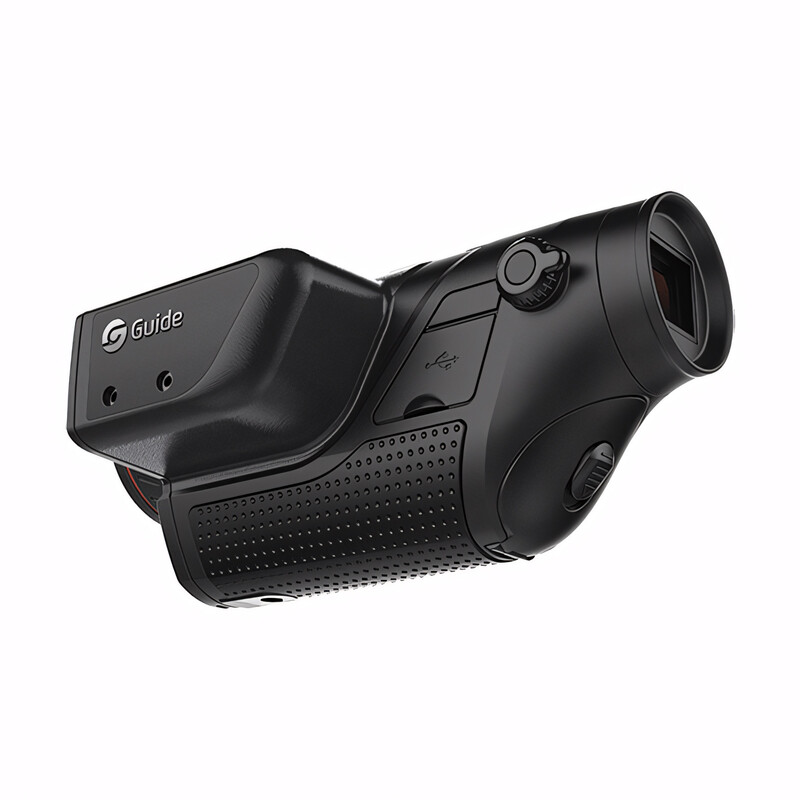

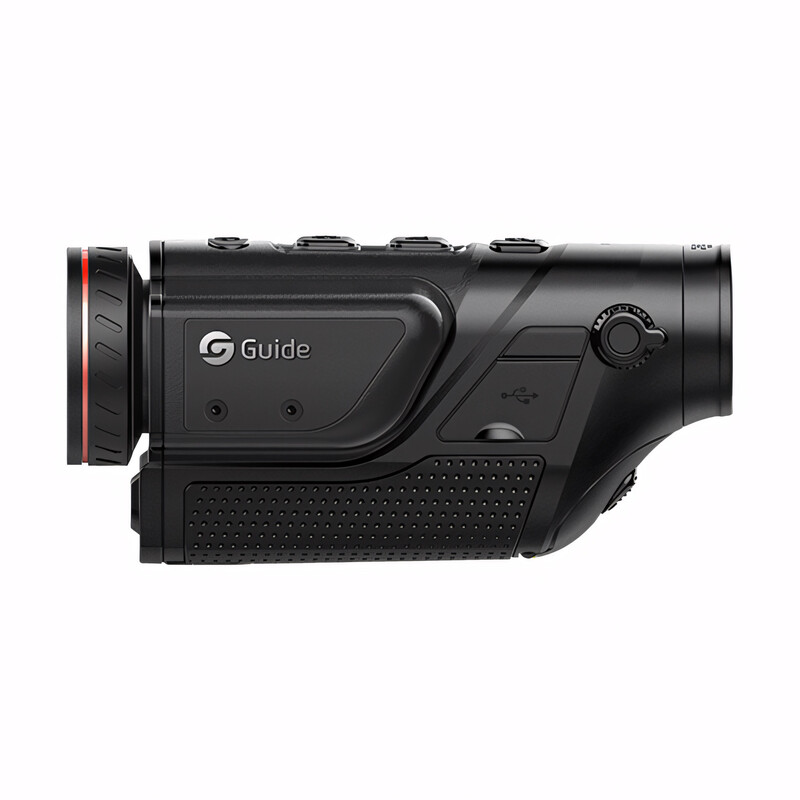

GUIDE TD631 LRF THERMAL IMAGING DEVICE WITH LASER RANGEFINDER
The TD631 LRF is the first monocular thermal imaging device with integrated laser rangefinder from Guide, featuring a high-resolution 640x480 Pixel VOx sensor. The 640x480 Pixel VOx 12 µ sensor enables extremely good image quality that previously seemed impossible in this price range. The image software has also been specially adapted to hunting conditions under real conditions.

The image quality of this thermal imaging device is very sharp without appearing unnatural. Unlike older models from Guide, not only the game but also the surroundings are displayed with high contrast. There are also two new colour modes – Green-Hot and Amber-Hot – which ensure maximum contrast at night without tiring the eye.

The rangefinder has a range of up to 600 metres, and both single measurements and continuous measurements in scan mode are possible.

The new 18650 replaceable batteries ensure up to 8 hours of continuous operation. Another new feature is that the instrument software can be updated using the "Target IR App" and the OTA function.

With its 35 mm lens, the TD631 LRF has an optical magnification of 1.7x.

Specifications

Capacity


Type of build
Monocular
Technology
Thermal imaging camera
Zoom (digital)
2/4/8
Maximum operating distance (m)
1400
Pixel size
12
temperature resolution (mK)
< 35
Image cycle rate (Hz)
50
Display resolution (Pixel)
640x400
Image display
Different versions (Black Hot, White Hot, Red Hot, Iron Hot, Blue Hot, Green Hot, Amber Hot)
Battery durability (h)
8

Special features


Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
yes
ancillary lenses available
no
WiFi
yes
attachment
no
Rangefinder
yes

Field of view


True field of view (°)
12,5x9,4
Field of view at 100 m (m)
21,8

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General


Colour
black
Length (mm)
153
Width (mm)
74
Height (mm)
77
Weight (g)
399
Series
TD

Product safety

Manufacturer: Guide Sensmart, No. 29, Gaoxin 3rd Road, East Lake High-Tech Development Zone, 430205 Wuhan, CN, www.guideir.com/
Responsible person: JSA Night-Lux, Carl-Zeiss-Str. 31, 73230 Kirchheim/Teck, DE, [email protected]
