Product description

Guide TD 3rd generation
The handheld thermal imaging monocular of the TD Gen3 LRF series innovatively integrates a laser rangefinder and is compact in design.

The focusing wheel allows for convenient one-handed operation, while the symmetrical ergonomic design enables flexible handling with both hands.

With an impressive battery life of 12 hours and IP67 protection, it is well equipped for a variety of outdoor challenges. Thanks to the Wi-Fi connection, your exploration will be even more efficient and enjoyable.

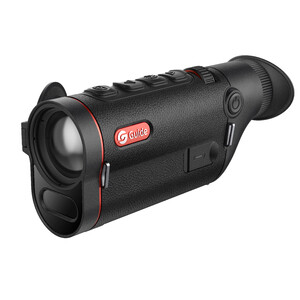

Guide TD633 L

  • Thermal imaging camera for observation
  • Sensor: 640 x 512
  • Pixel pitch: 12μm
  • Lens: 35 mm
  • Frame rate: 50 Hz
  • Spectral range: 8 μm to 14 μm
  • Sensitivity (NETD): < 20 mK
  • Rangefinders up to 1000 m range

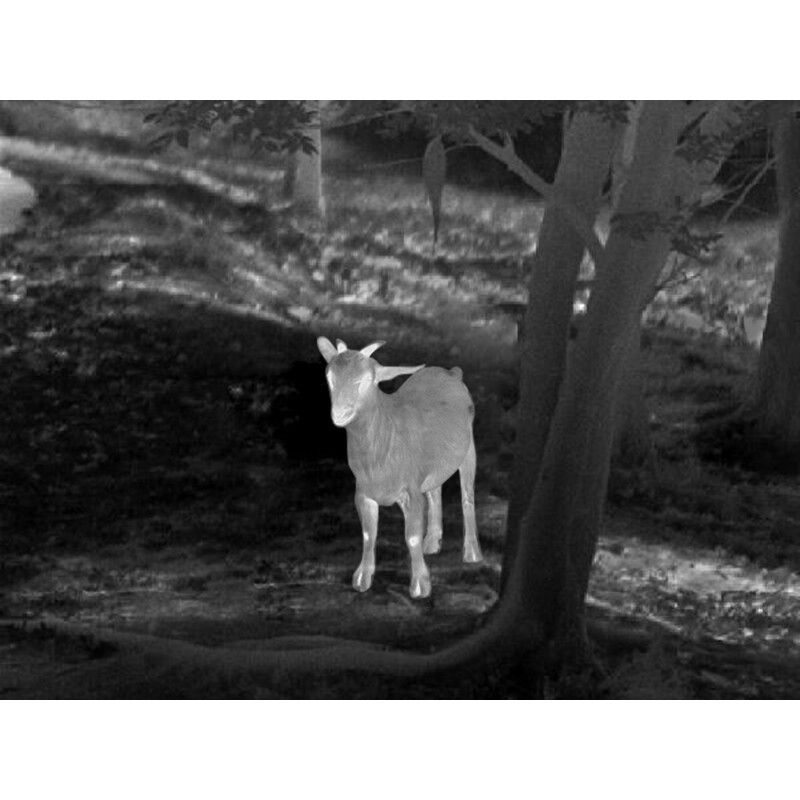

Highly sensitive detector, NETD up to 20mK
The TD Gen3 LRF series features a 12μm infrared detector with a resolution of 640×512 and 400×300 and offers optional 19mm, 25mm and 35mm lenses that deliver impressively sharp images even in complete darkness.

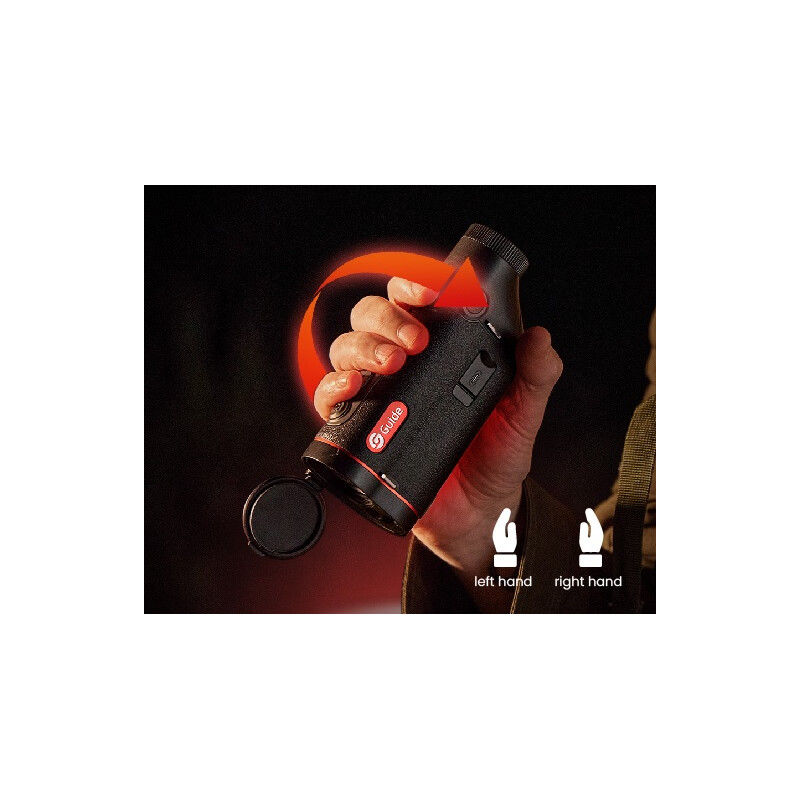

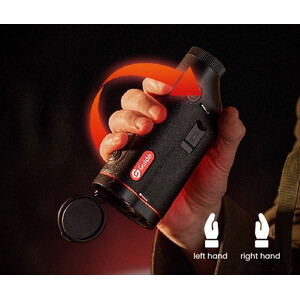

Ambidextrous design, one-handed operation
The symmetrical housing design allows for easy operation with either the left or right hand. The button layout is ergonomically adapted to the user's habits and allows for one-handed operation.

Fine focus adjustment, scrolling with your fingers
The mini focus wheel design offers a unique experience of fast and precise fine tuning, allowing the user to adjust the focus with a simple finger movement.

Improved optics, enlarged AMOLED display
The TD Gen3 LRF series builds on the previous generation and features a 0.36-inch AMOLED display with a resolution of 1280×960, providing more detail and a more comfortable viewing experience.

Built-in LRF, precise target distance
The built-in laser rangefinder module is seamlessly integrated into the device design, increasing portability and practicality, and offers a maximum range of 1000 metres for precise target location.

Extended battery life, uninterrupted performance
For observations, reconnaissance and stalking in the field, the TD Gen3 LRF series offers an impressive 12 hours of battery life. The replaceable 18650 battery can be used blindly in the dark without having to distinguish between positive and negative poles.


With the improved Smart Recording feature,videos can berecordedwith sound. Thanks to the integrated memory of up to 32 GB, users can store over 100,000 images without having to worry about running out of storage space.

Specifications

Capacity


Type of build
Monocular
Technology
Thermal imaging camera
Zoom (digital)
2/4
Maximum operating distance (m)
1800
Pixel size
12
temperature resolution (mK)
< 20
Image cycle rate (Hz)
50
Display resolution (Pixel)
1280x960
Image display
Different versions (White Hot / Black Hot / Red Hot / Green Hot / Iron Red / Blue Hot / Sepia)
Diopter compensation
-6/+6
Battery durability (h)
12

Special features


Infrared illuminator
-
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
yes
ancillary lenses available
no
WiFi
yes
attachment
no
Rangefinder
1000m

Field of view


True field of view (°)
12,5x10,0
Field of view at 100 m (m)
22

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
-

General


Colour
black
Length (mm)
159
Width (mm)
54
Height (mm)
74
Weight (g)
378
Series
TD 3. Gen

Product safety

Manufacturer: Guide Sensmart, No. 29, Gaoxin 3rd Road, East Lake High-Tech Development Zone, 430205 Wuhan, CN, www.guideir.com/
Responsible person: JSA Night-Lux, Carl-Zeiss-Str. 31, 73230 Kirchheim/Teck, DE, [email protected]

Recommended accessories

Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

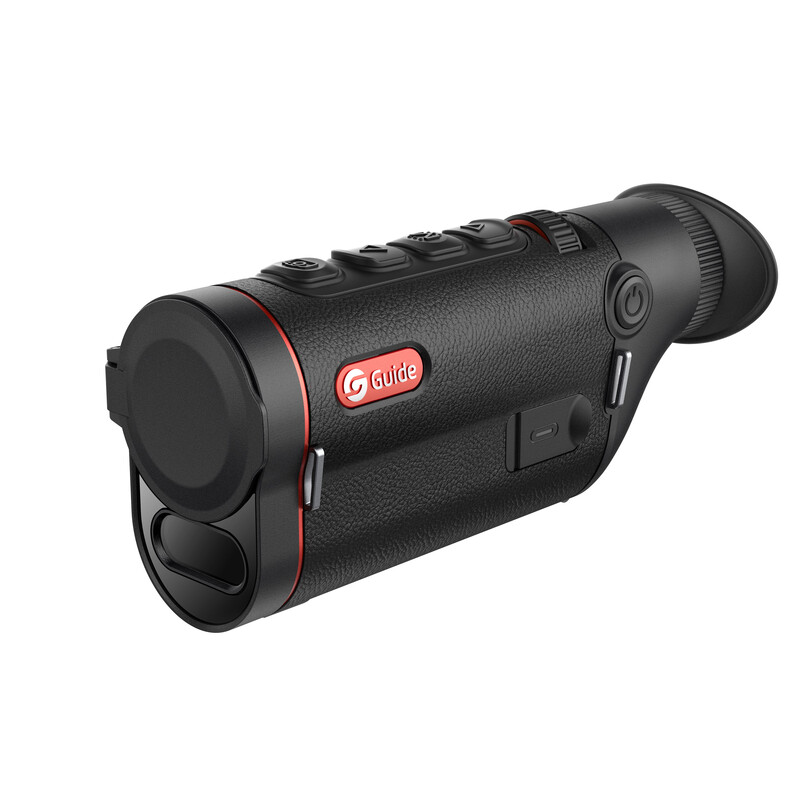

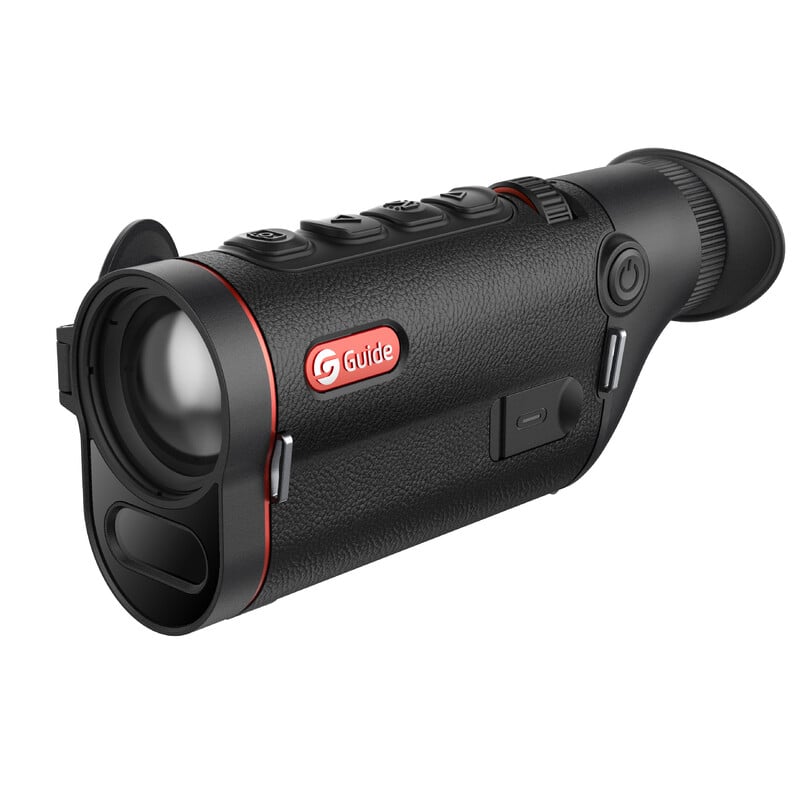

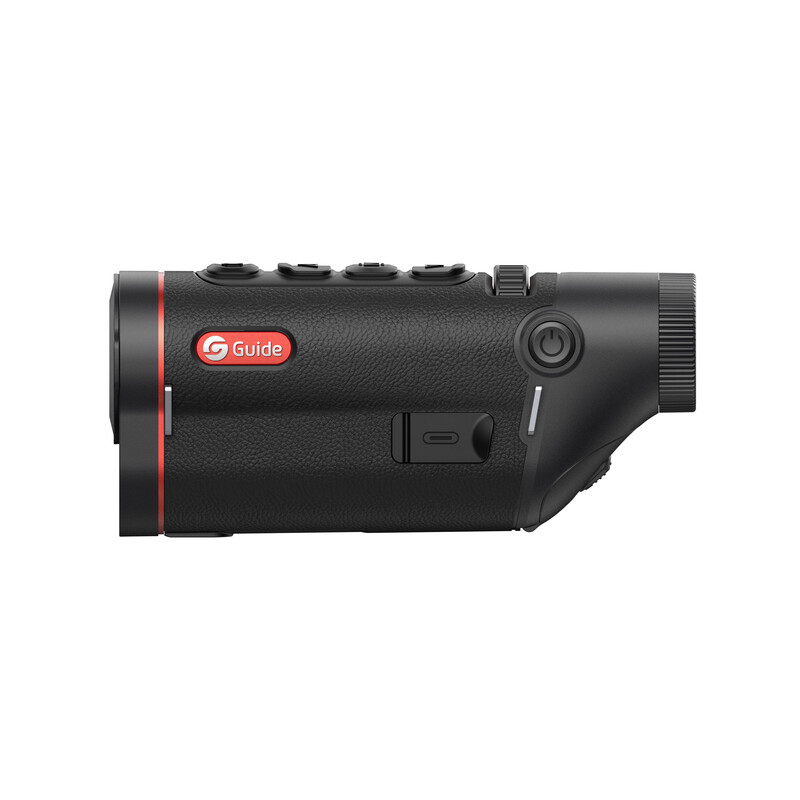

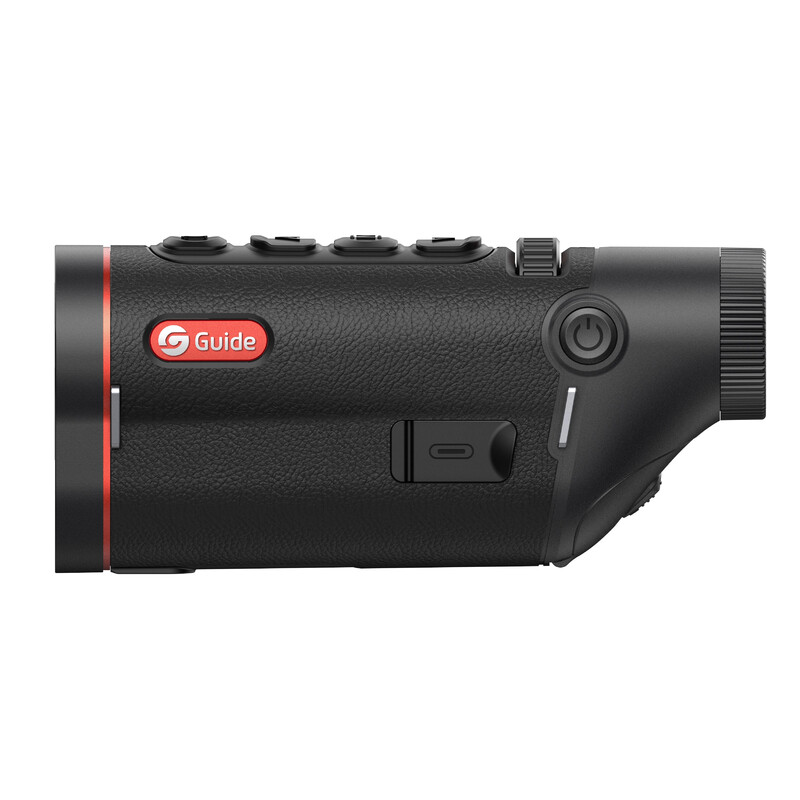

Guide Thermal imaging camera TD633L

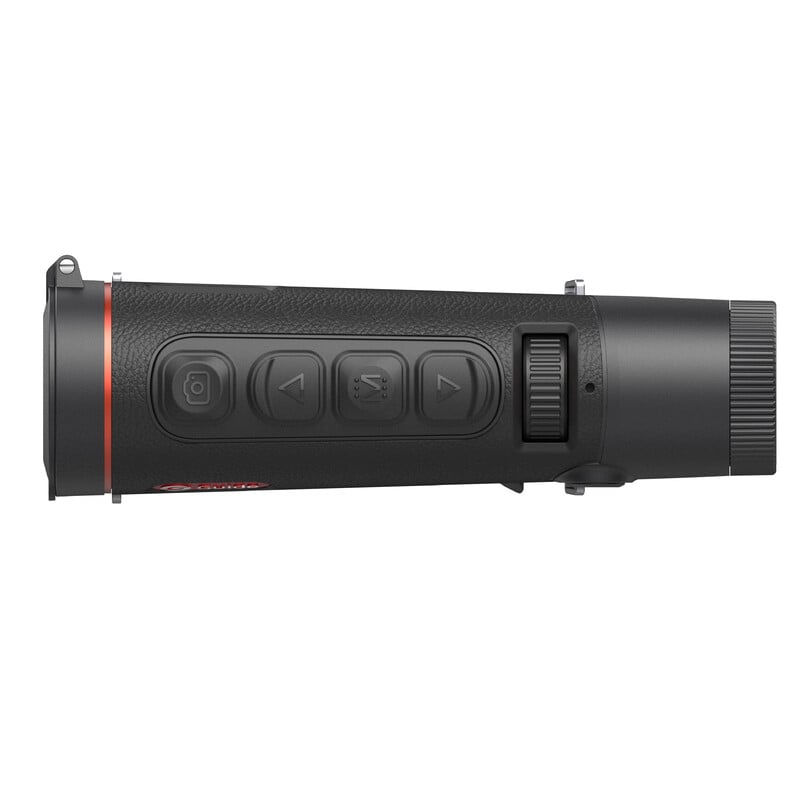

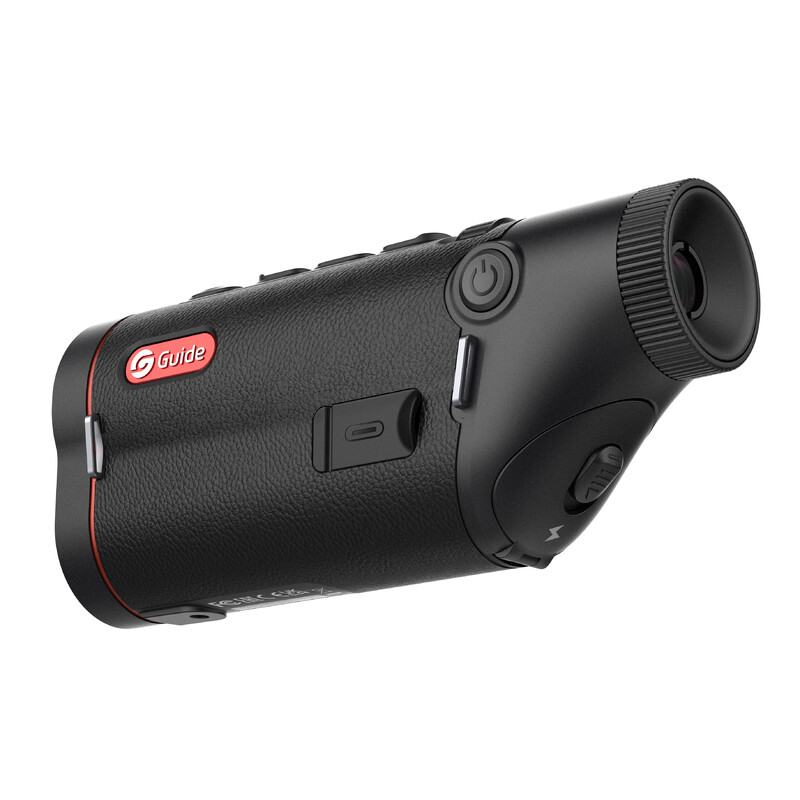

Focus wheel for one-handed operation
Guide Thermal imaging camera TD633L

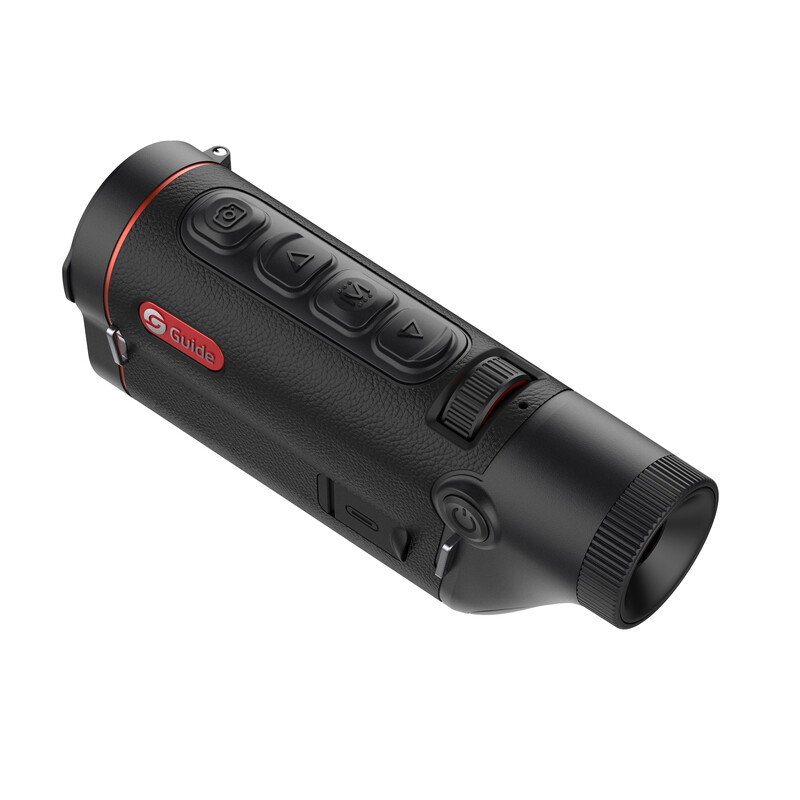

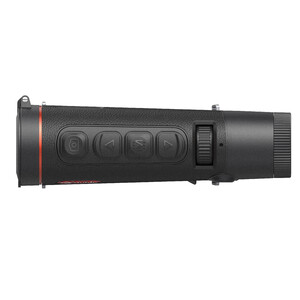

Easy-to-feel controls
Guide Thermal imaging camera TD633L

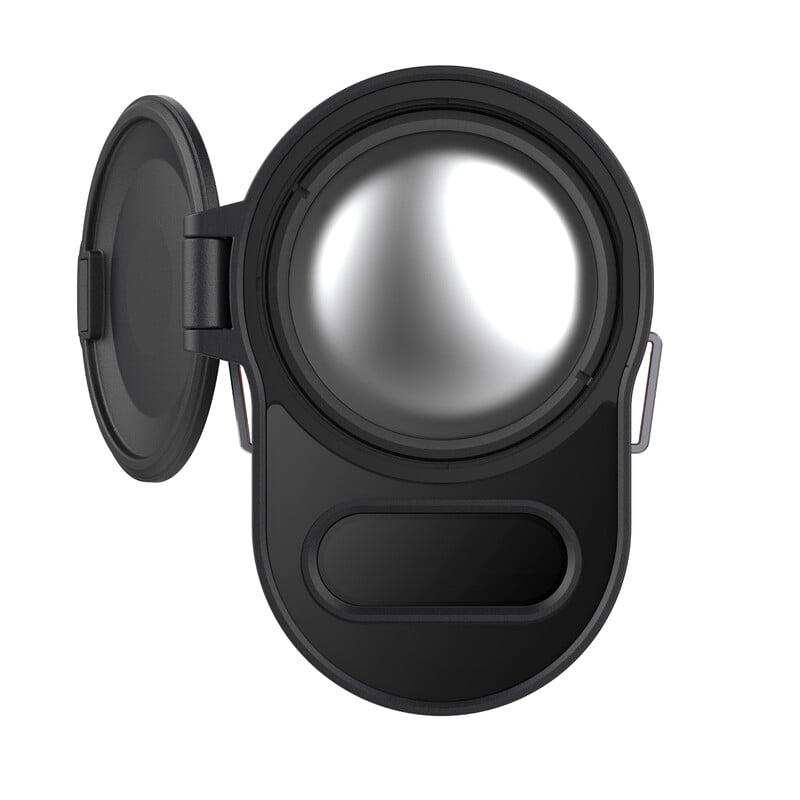

The laser rangefinder is located under the objective lens

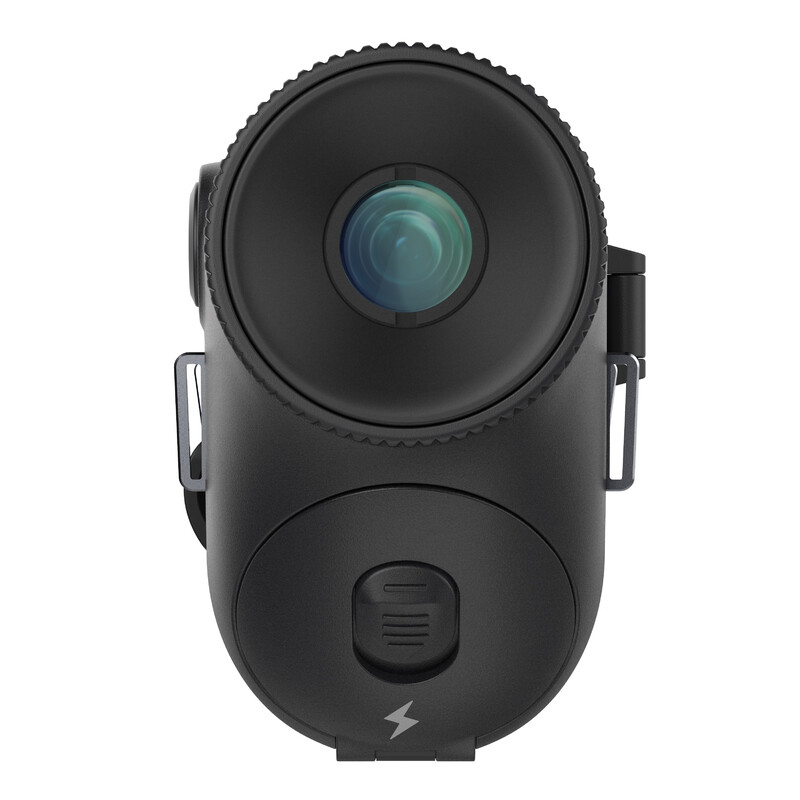

Guide Thermal imaging camera TD633L
Replaceable battery for long operating time.
