Product description

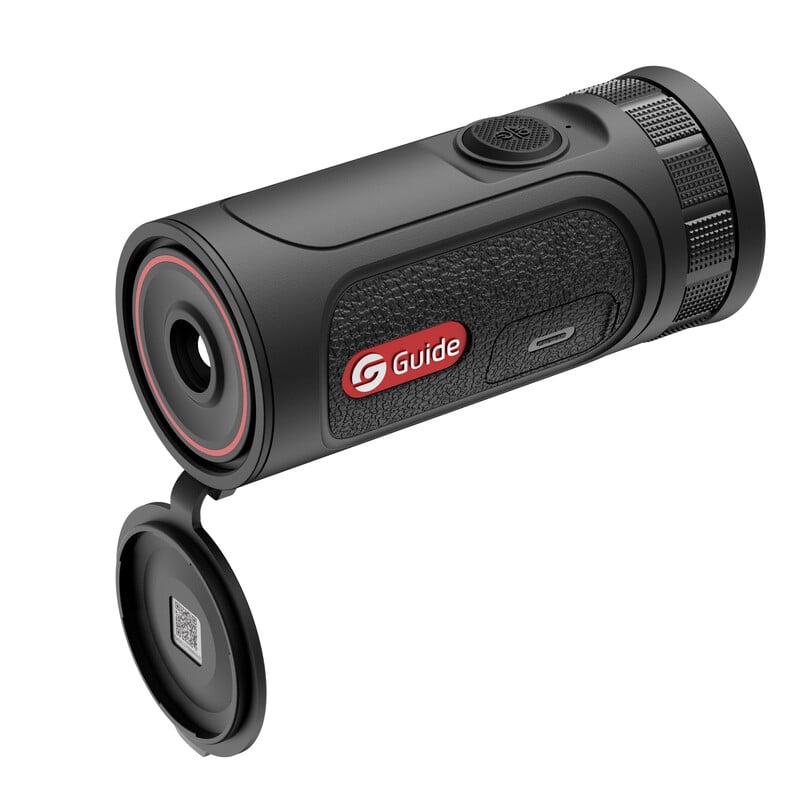

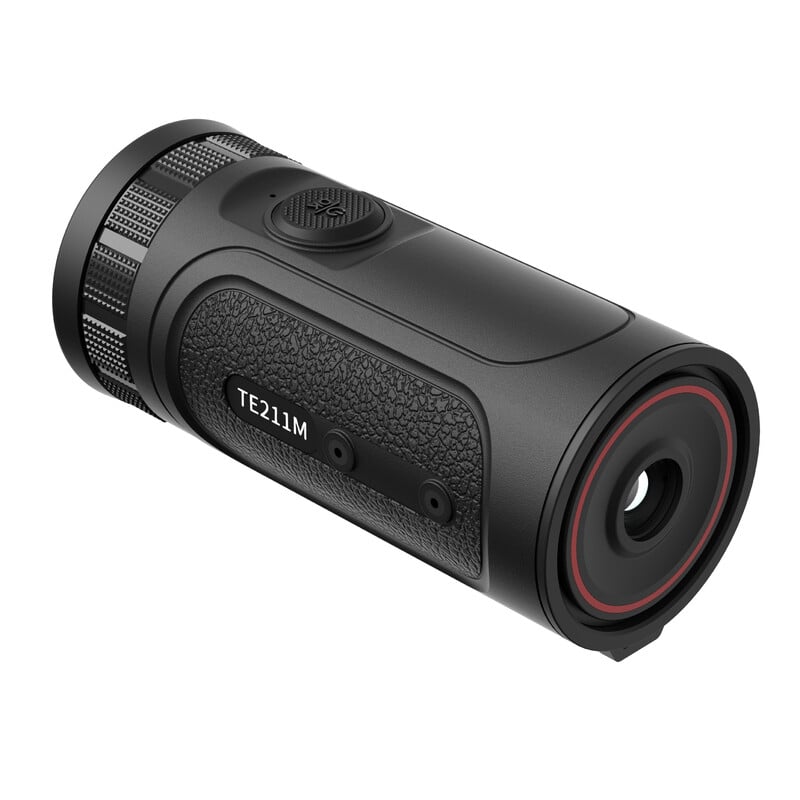

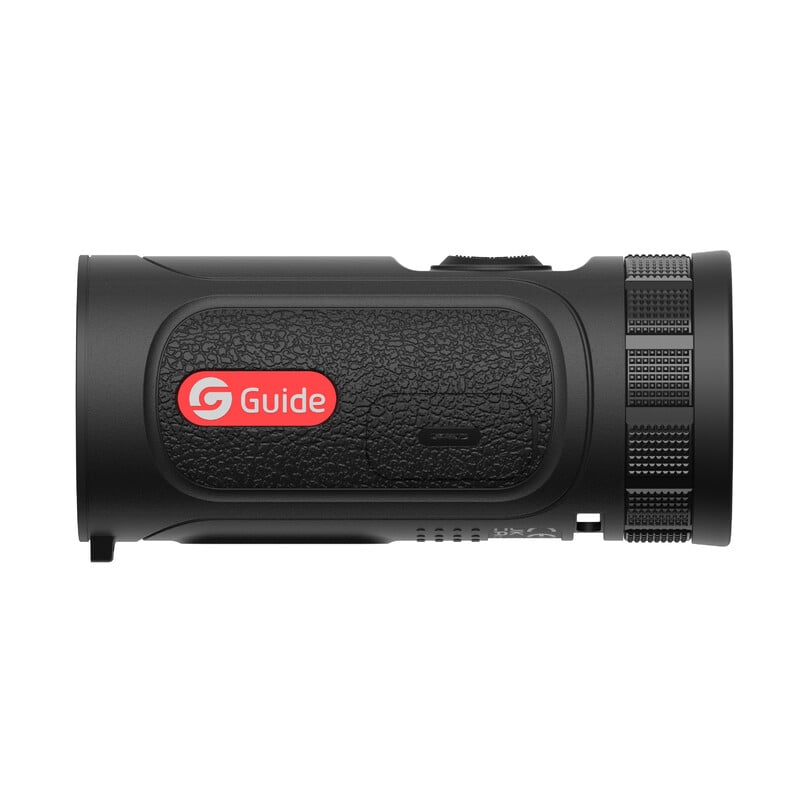

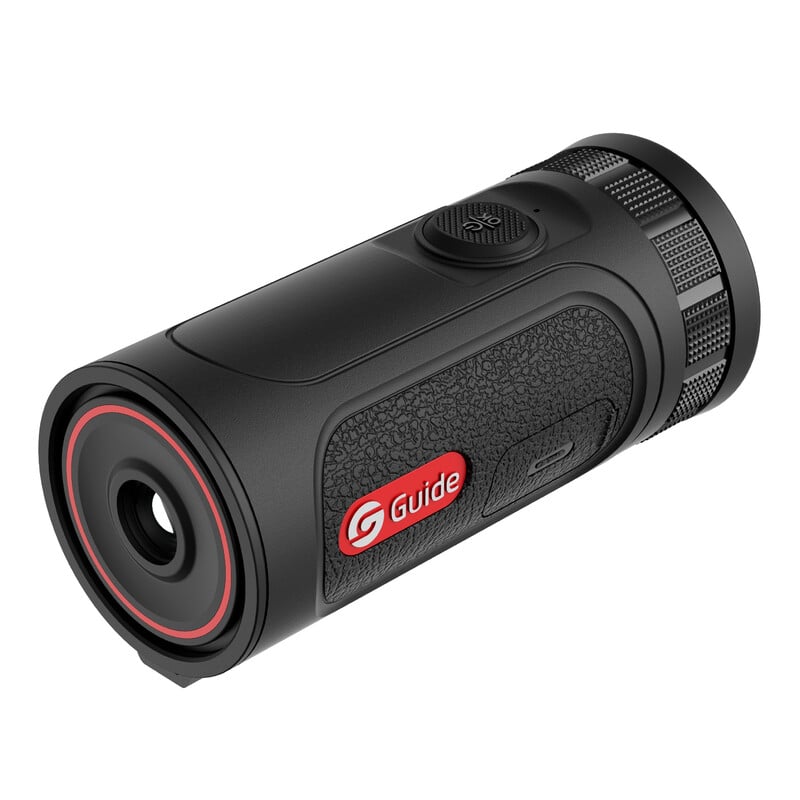

Guide TE211M
The TE Mini Series handheld thermal imaging monocular, your pocket-sized night vision companion, is equipped with a 256×192 infrared detector and a 10 mm lens, offering a detection range of up to 500 metres.

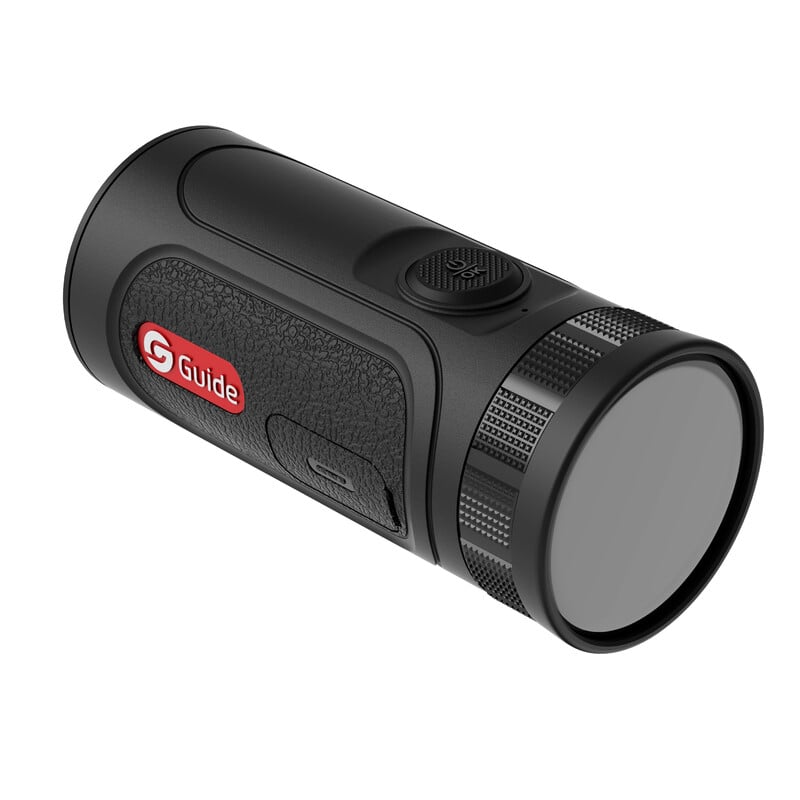

The integrated 1.43-inch AMOLED colour touchscreen allows you to see infrared images clearly without pressing your eyes against the eyepiece, reducing eye fatigue during prolonged use.

With just a 10-minute quick charge, it offers up to 1 hour of continuous operation, making it the ideal companion at your side.

Powerful 12μm detector - Sharp imagequality
Equipped with a powerful 12μm detector, the TE Mini delivers razor-sharp image quality that distinguishes targets from their surroundings even in darkness.

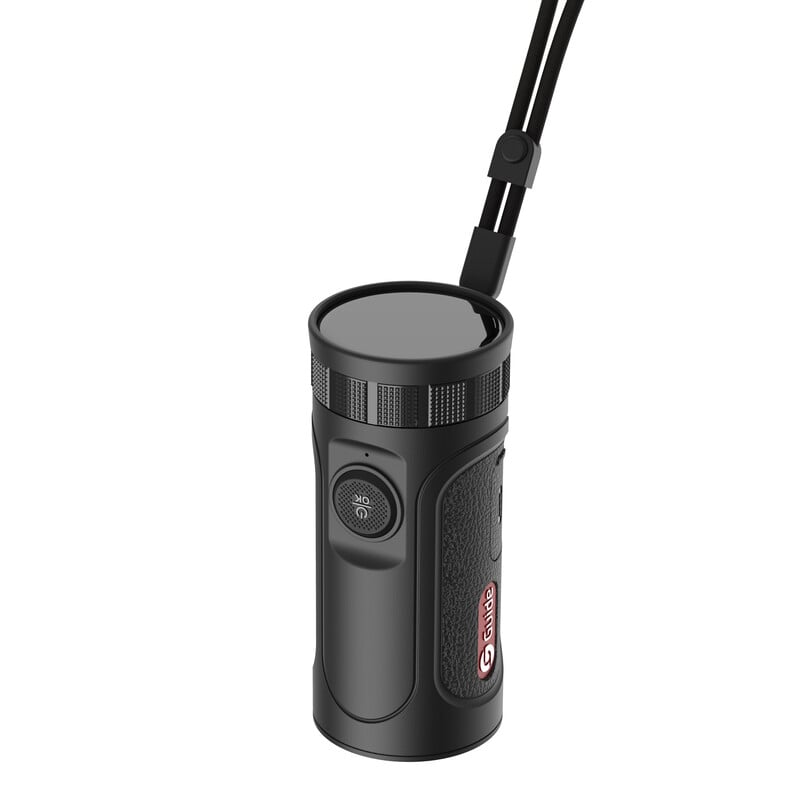

Ultimate lightweight - Effortlessly portable
The TE Mini weighs only approx. 200 grams and has a compact, pocket-sized design that is smaller than a mobile phone and thinner than a wristwatch, offering a comfortable grip and exceptional mobility.

Details determine success:
The ultimate precision of infrared thermal imaging technology

Game changer – large touchscreen
The TE Mini features an innovative large touchscreen that provides direct, ultra-clear viewing and seamless touch control. Users can select functions by simply swiping through the menu and using simple touch operations.

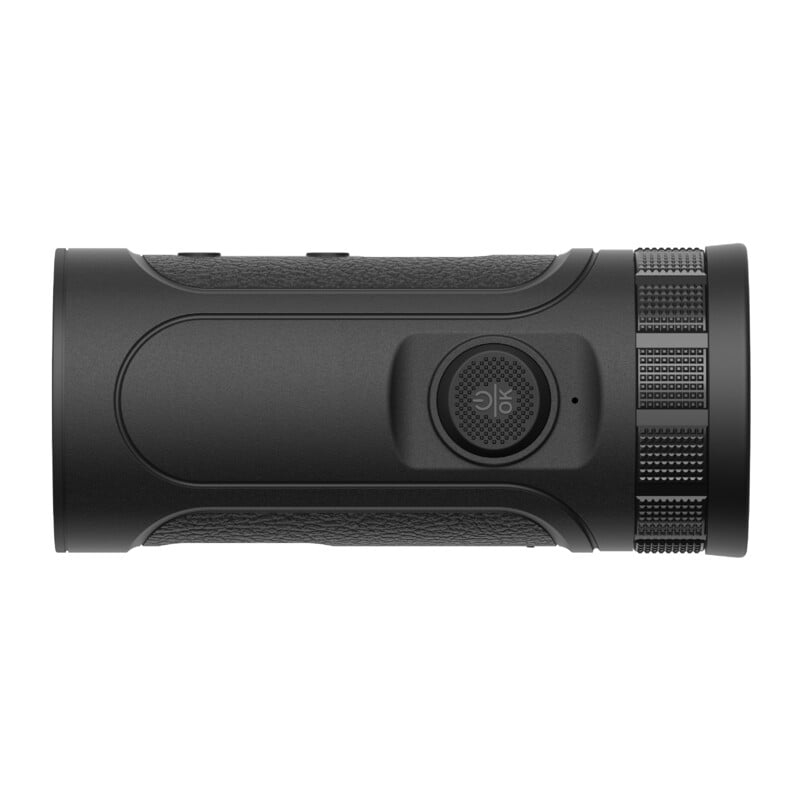

Smooth operation – Simplified interaction

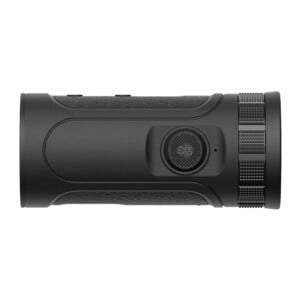

Based on years of outdoor experience, the TE Mini offers an extremely slim button design. With just one button and a ring, users can easily access the menu and perform various functions.

Advanced battery - 20W fastcharging
The TE Mini has a built-in rechargeable battery that provides up to 6 hours of runtime. It features an advanced 20W fast charging function. With just a 10-minute quick charge, you can enjoy 1 hour of uninterrupted use, ensuring worry-free power.

Specifications

Capacity


Type of build
Display screen
Technology
Thermal imaging camera
Zoom (digital)
2/4
Pixel size
12
temperature resolution (mK)
< 30
Image cycle rate (Hz)
50
Maximum operating distance (m)
500
Display resolution (Pixel)
466x466
Image display
Different versions (White Hot / Black Hot / Red Hot / Green Hot / Iron Red / Blue Hot / Sepia)
Diopter compensation
-5/+5
Battery durability (h)
6

Special features


Infrared illuminator
-
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
ancillary lenses available
no
WiFi
yes
attachment
no
Rangefinder
no

Field of view


True field of view (°)
13,1x13,1
Field of view at 100 m (m)
23

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
-

General


Colour
black
Length (mm)
111
Width (mm)
49
Height (mm)
49
Weight (g)
205
Series
TE

Miscellaneous


Battery type
Specific to manufacturer (incorporated)

Product safety

Manufacturer: Guide Sensmart, No. 29, Gaoxin 3rd Road, East Lake High-Tech Development Zone, 430205 Wuhan, CN, www.guideir.com/
Responsible person: JSA Night-Lux, Carl-Zeiss-Str. 31, 73230 Kirchheim/Teck, DE, [email protected]

Recommended accessories

Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

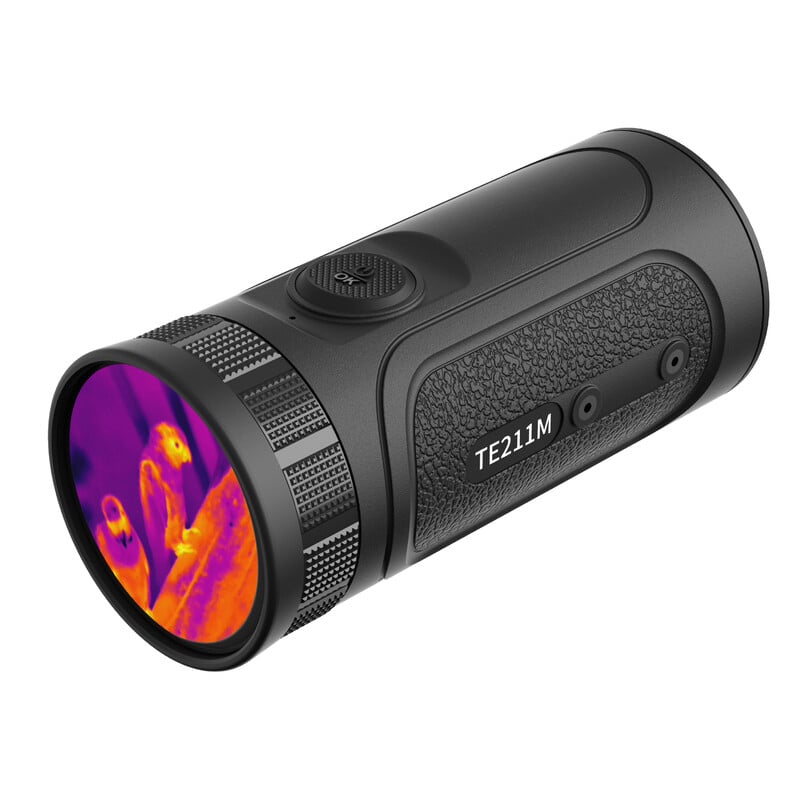

Guide Thermal imaging camera TE211M

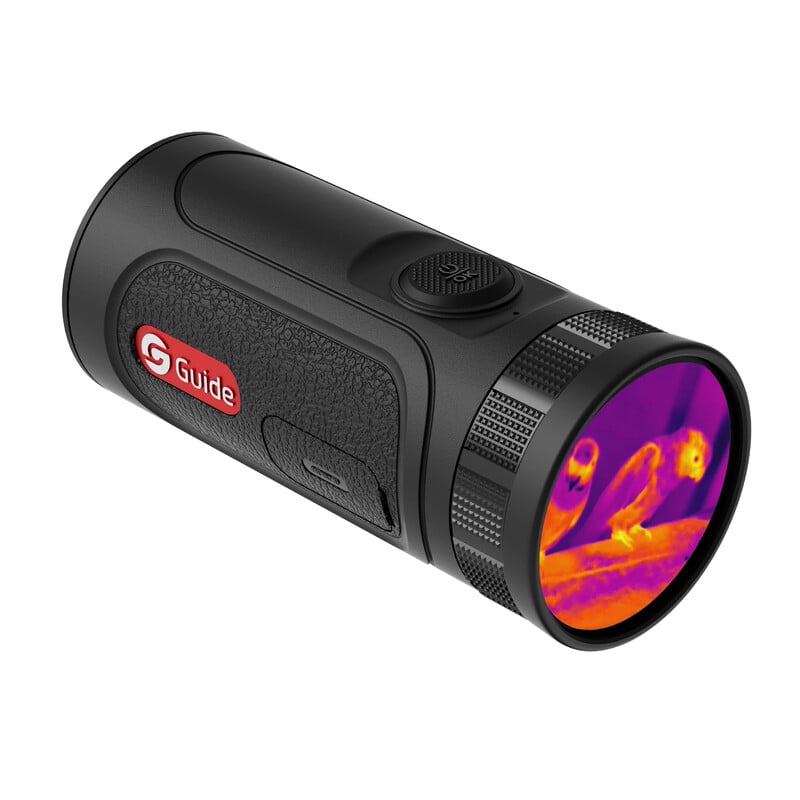

Display instead of eyepieces
