Product description

GUIDE TE Thermal ImagingCameras
The TE Series portable thermal imaging monocular is a pocket-sized night vision powerhouse, offering exceptional performance at an affordable price.

It is equipped with a highly sensitive infrared detector and offers multiple resolutions and lens options to meet your varying needs in different environments. A 10-minute quick charge provides one hour of continuous operation, making it the perfect companion for your outdoor explorations.

GUIDE TE421
The TE421 has an image sensor of 400 x 300 pixels 12μm <25 mK. The instrument has a 25mm objective.

Powerful 12μm detector Sharp imagequality
To achieve sharp image quality, the TE series is equipped with a powerful 12μm detector and offers multiple resolutions and lenses to meet your needs in different scenarios and activities.

Ultra-lightweight Effortless portability
The TE series weighs only 200+ grams and has a compact, pocket-sized design that is as small as a mobile phone and thinner than a wristwatch, offering a comfortable grip and exceptional mobility.

Smooth operation One button, one ring
Based on years of outdoor experience, the TE series has optimised the button design to simplify operation. With just one button and one ring, you can easily access the menu and perform various functions, enabling seamless control.

Advanced battery 20W fast charging
The TE series has a built-in rechargeable battery with a runtime of up to 6 hours. It features an advanced 20W fast charging function. With just 10 minutes of fast charging, you can use the device for 1 hour without interruption, ensuring worry-free power.

Comfortable viewing Clear and smooth display
The 0.32-inch AMOLED screen displays rich colours and clear, smooth images, providing first-class visual effects. The comfortable eyepiece and 25 mm eye relief reduce eye fatigue and provide a great viewing experience for your outdoor observation activities.


, photos, videos and audio recordings are all available. With the built-in 16 GB memory, you can flexibly capture and share exciting moments in the great outdoors anytime, anywhere.


dual-band WiFi connection
The WiFi function has been upgraded to dual-band for stronger connectivity. The TE series features faster transfer speeds and longer distances, with upgrade packages downloading in just 10 seconds and a maximum transfer distance of 26.5 metres.

Specifications

Capacity


Type of build
Monocular
Technology
Thermal imaging camera
Zoom (digital)
2/4
Pixel size
12
temperature resolution (mK)
< 25
Image cycle rate (Hz)
50
Maximum operating distance (m)
1300
Display resolution (Pixel)
800x600
Image display
Different versions (White Hot / Black Hot / Red Hot / Green Hot / Iron Red / Blue Hot / Sepia)
Diopter compensation
-5/+5
Battery durability (h)
5

Special features


Infrared illuminator
-
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
ancillary lenses available
no
WiFi
yes
attachment
no
Rangefinder
no

Field of view


True field of view (°)
11,0x8,2
Field of view at 100 m (m)
19

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
-

General


Colour
black
Length (mm)
155
Width (mm)
47
Height (mm)
47
Weight (g)
315
Series
TE

Miscellaneous


Battery type
Specific to manufacturer (incorporated)

Product safety

Manufacturer: Guide Sensmart, No. 29, Gaoxin 3rd Road, East Lake High-Tech Development Zone, 430205 Wuhan, CN, www.guideir.com/
Responsible person: JSA Night-Lux, Carl-Zeiss-Str. 31, 73230 Kirchheim/Teck, DE, [email protected]

Recommended accessories

Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

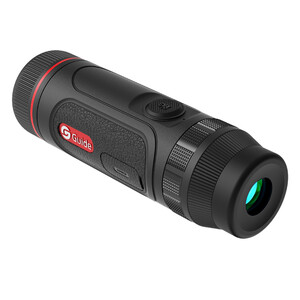

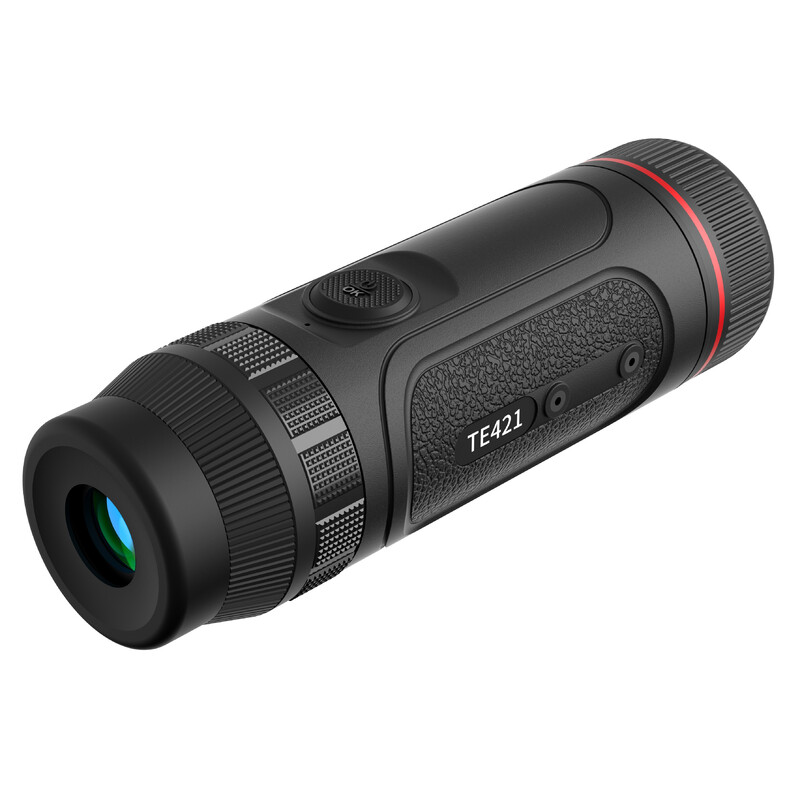

Guide Thermal imaging camera TE421

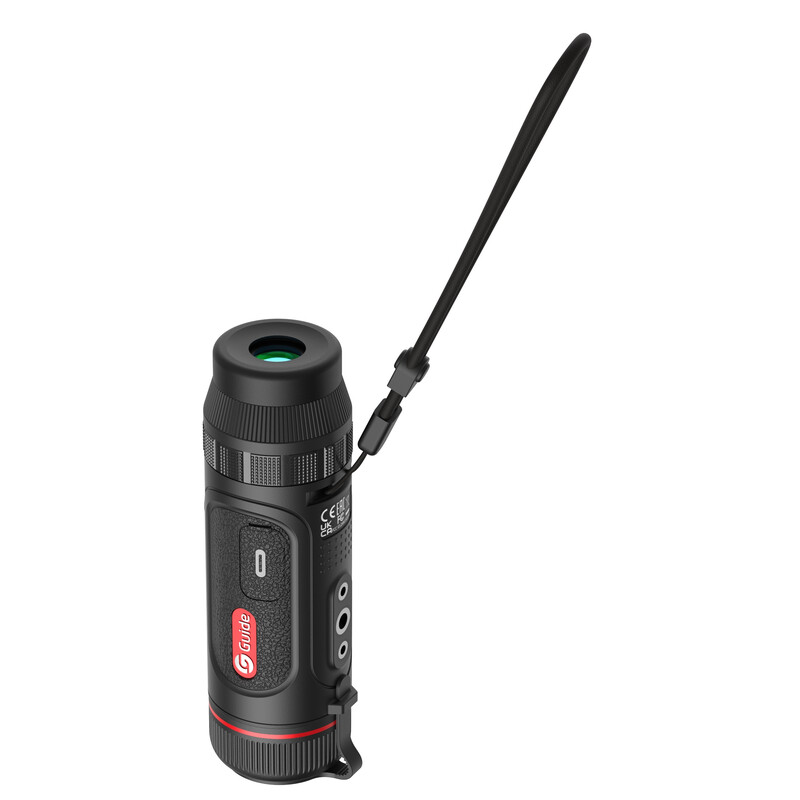

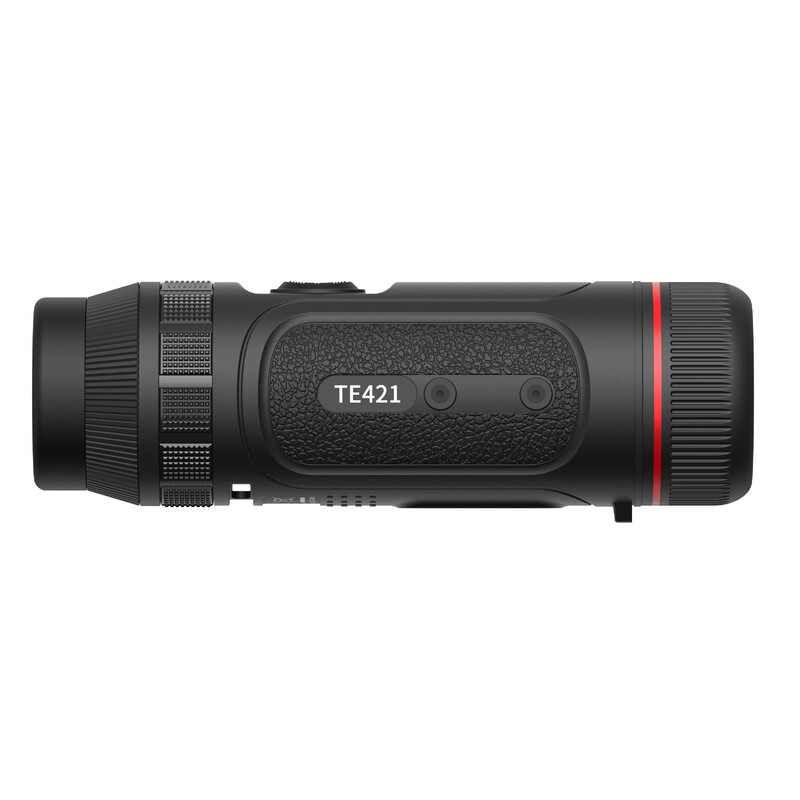

Guide Thermal imaging camera TE421

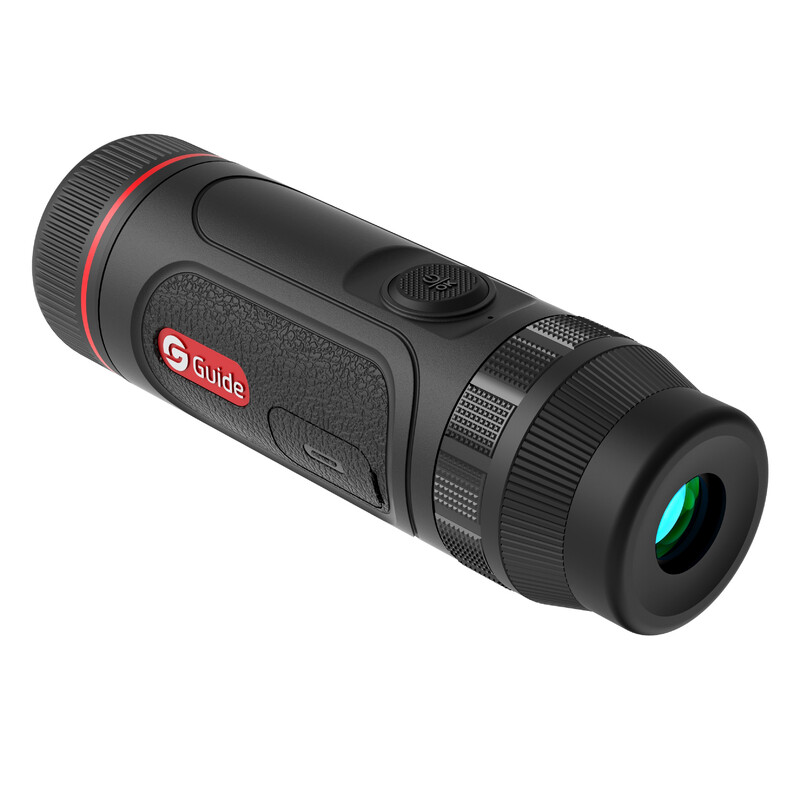

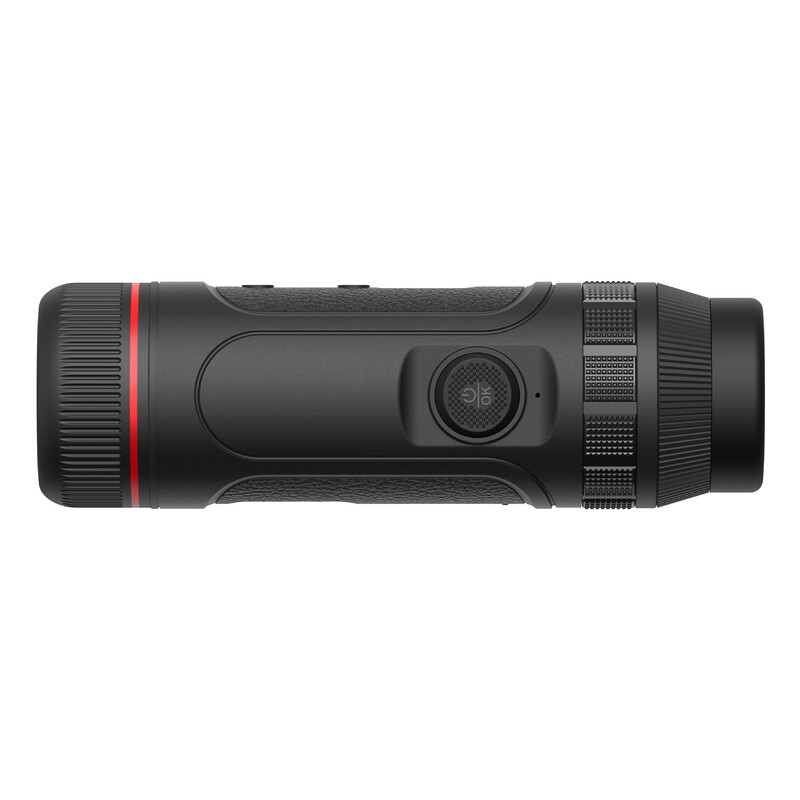

Guide Thermal imaging camera TE421

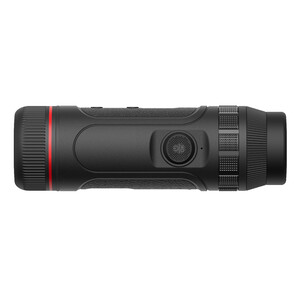

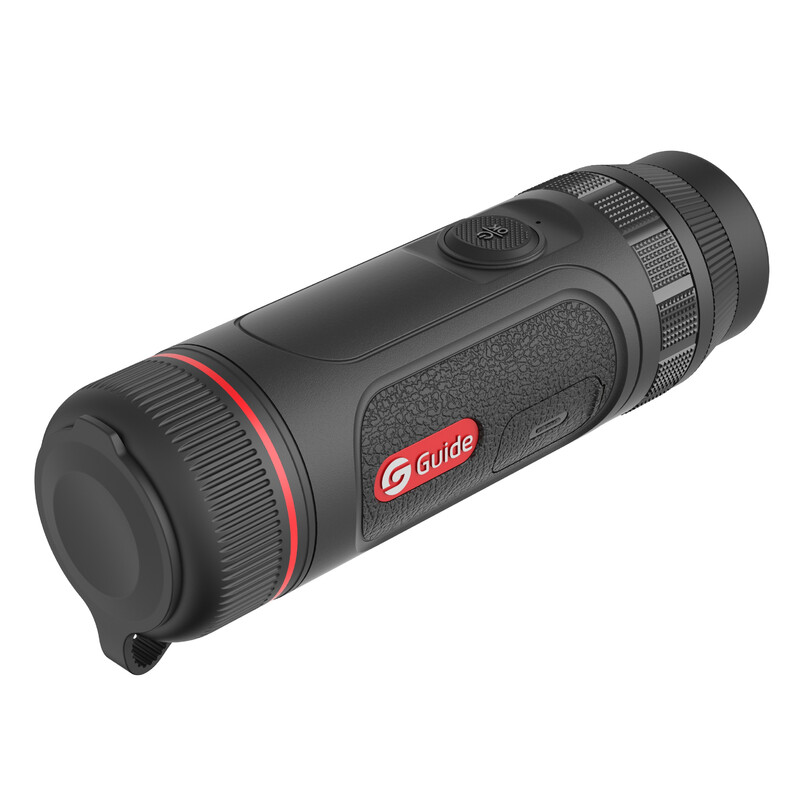

Guide Thermal imaging camera TE421

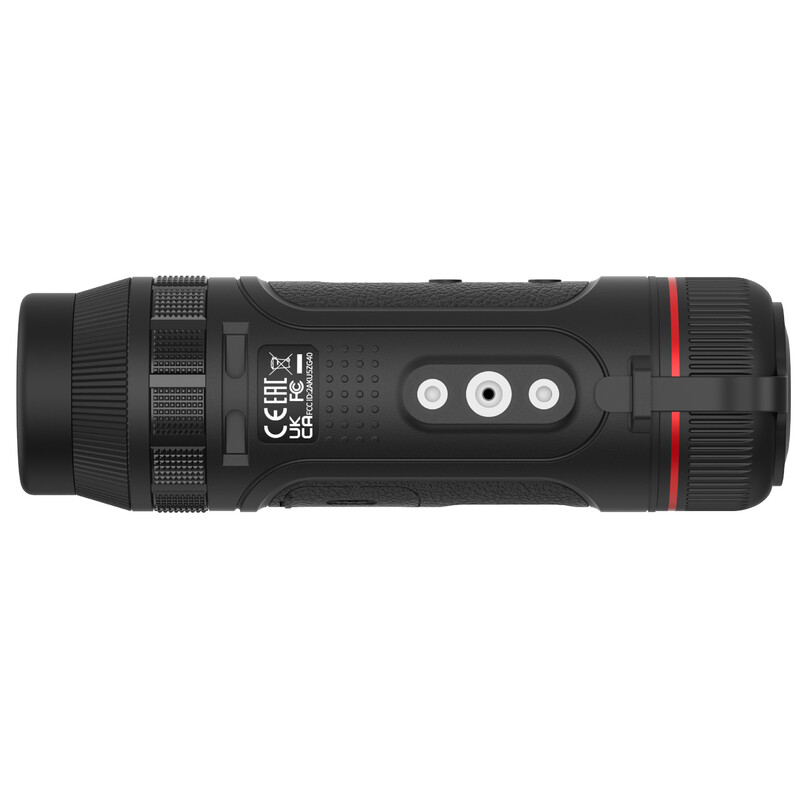

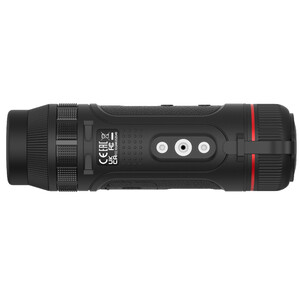

Guide Thermal imaging camera TE421

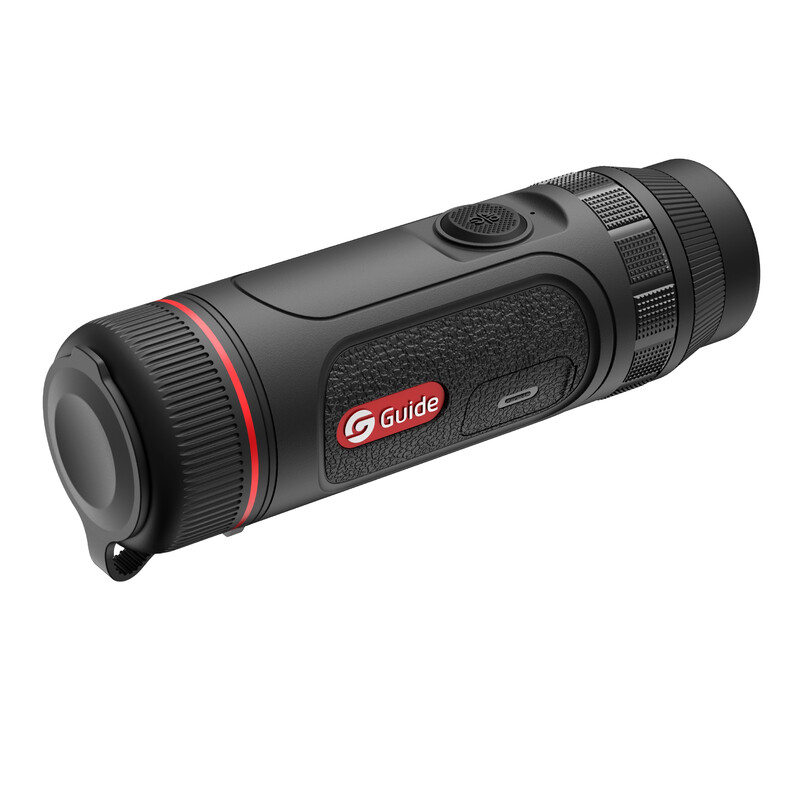

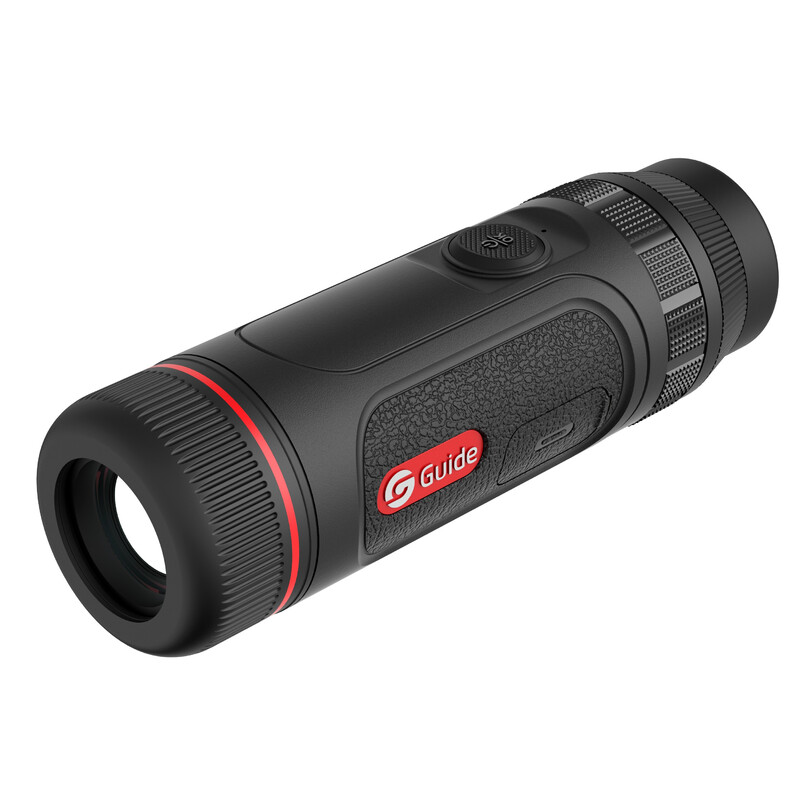

Guide Thermal imaging camera TE421

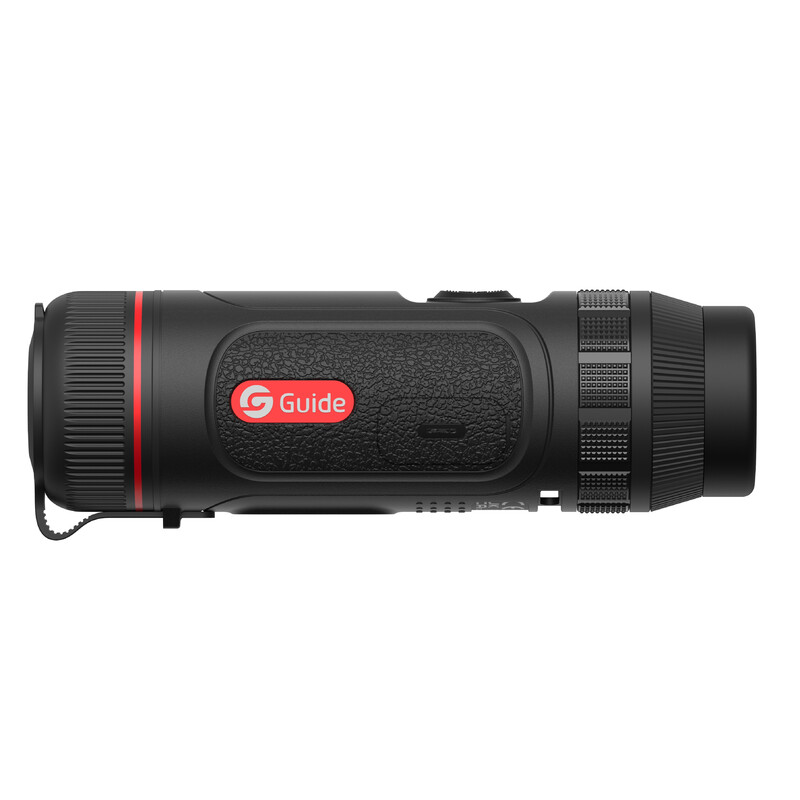

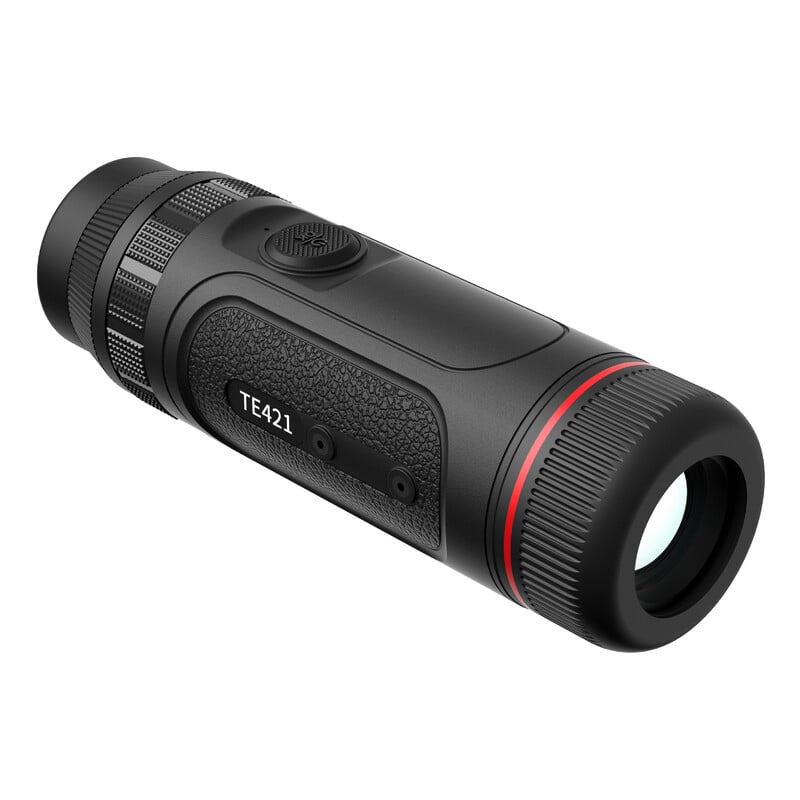

Guide Thermal imaging camera TE421

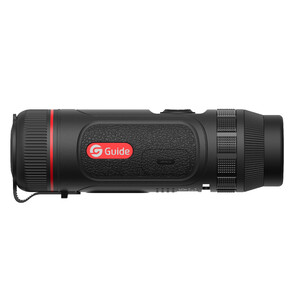

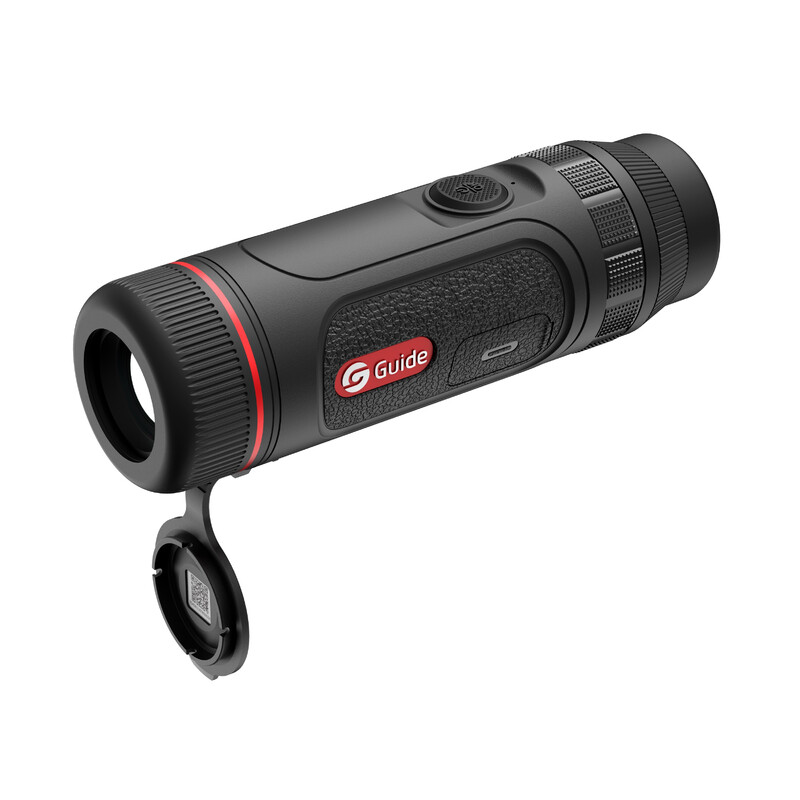

Guide Thermal imaging camera TE421
