Product description

GUIDE TJ LP Series Thermal Imaging Cameras with Integrated Laser Rangefinder
The TJ LRF Pro Series has completely upgraded its hardware configuration and software functions, setting new standards in image clarity, observation comfort and intelligent operation. It is equipped with a highly sensitive 12μm infrared detector that makes your targets clearly visible and lifelike in the dark.

The 0.5-inch ultra-large AMOLED display offers you a breathtaking visual effect like in a home cinema. Built-in 1500m laser rangefinders, triggered with a single button, make your adventure safer and smoother.

Guide TJ1250LP

  • Thermal imaging camera for observation
  • Sensor: 1280 x 1024
  • Pixel pitch: 12μm
  • Lens: 50 mm
  • Frame rate: 50 Hz
  • Spectral range: 8 μm to 14 μm
  • Sensitivity (NETD):<18 mK
  • Rangefinders up to 1500m range

Video example as proof of quality

Advanced 12μm IR detector, NETD up to 20mK
The improved TJ LRF Pro series uses an advanced 12μm infrared detector with a NETD value of up to 20mK, allowing even the smallest temperature differences to be detected in complete darkness.

0.5'' AMOLED display, first-class visual effect
The ultra-large 1600×1200 AMOLED display offers a breathtaking visual effect like a 90-inch home cinema from a distance of 2.5 metres, setting new standards in terms of image sharpness and viewing comfort.

Game-changing 1500m laser rangefinders
The TJ LRF Pro series laser rangefinder module has been upgraded to achieve a remarkable breakthrough and extend the maximum measurement distance to 1500 metres.

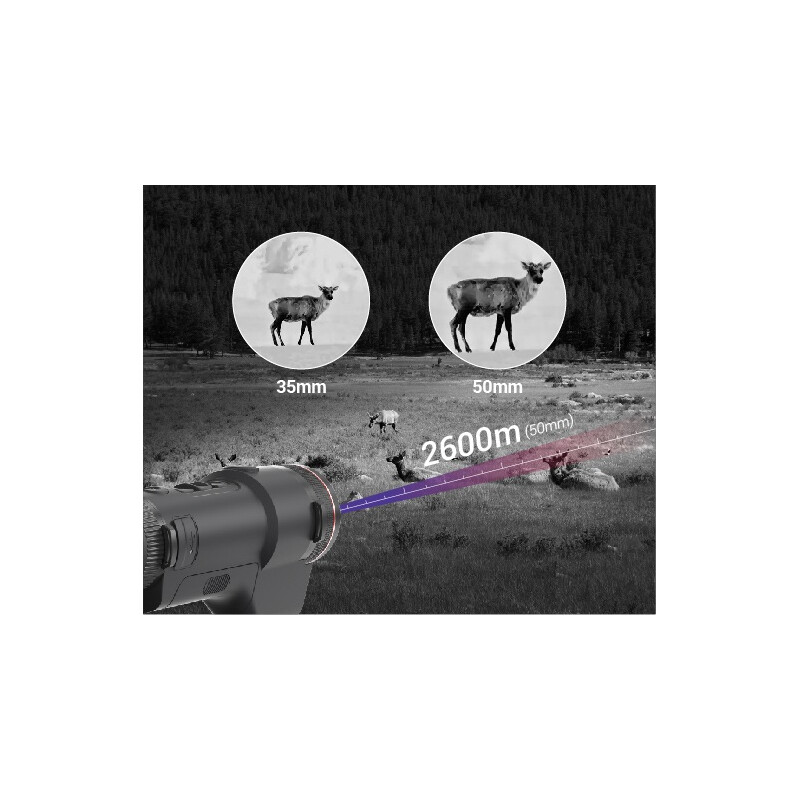

35 or 50mm F1.0 lens, max. 2600m detectionrange
Various models with different focal lengths make the TJ LRF Pro series very practical for long-range observation and hunting. The 50mm F1.0 lens can detect targets up to 2600m.

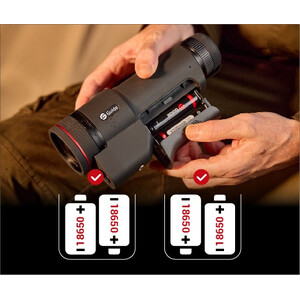

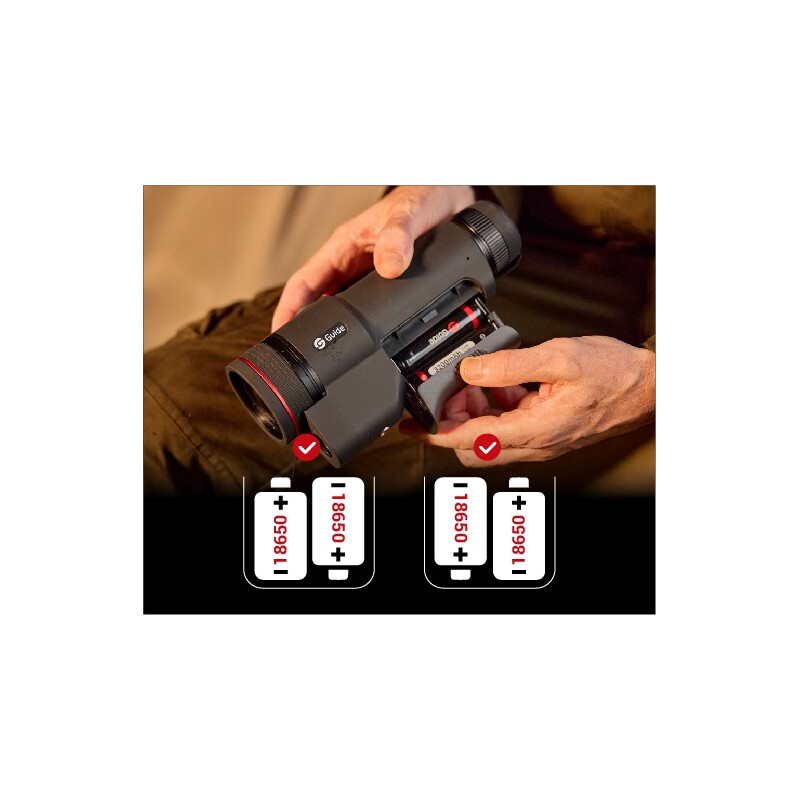

Blind-mountable universal battery
Uses standard 18650 batteries equipped with a safety circuit. When replacing the batteries, simply ensure that the positive and negative poles of the two cells are aligned opposite each other, which reduces the effort required for identification and storage.

Whether left- or right-handed: ambidextrous design
Both the left and right hands can operate the instrument with ease. Eye masks and hand straps can be changed in a single step.

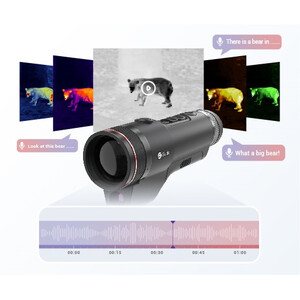

Video recordings with sound
The instrument supports both photo and video recordings and has an integrated microphone to ensure that your recordings are also recorded with sound.

Scope of delivery

  • Charger
  • USB-C cable
  • 2x batteries
  • Hand strap
  • Quick start guide
  • 5V2A adaptors

Specifications

Capacity


Type of build
Monocular
Technology
Thermal imaging camera
Zoom (digital)
2/4/8
Pixel size
12
temperature resolution (mK)
< 18
Image cycle rate (Hz)
50
Maximum operating distance (m)
2600
Display resolution (Pixel)
1600x1200
Image display
Different versions (White Hot / Black Hot / Red Hot / Green Hot / Iron Red / Blue Hot / Sepia)
Diopter compensation
-6/+6
Battery durability (h)
6

Special features


Infrared illuminator
-
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
ancillary lenses available
no
WiFi
yes
attachment
no
Rangefinder
1500m

Field of view


True field of view (°)
17,5x14,0
Field of view at 100 m (m)
31

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
-

General


Colour
black
Length (mm)
247
Width (mm)
101
Height (mm)
70
Weight (g)
689
Series
TJ LP

Product safety

Manufacturer: Guide Sensmart, No. 29, Gaoxin 3rd Road, East Lake High-Tech Development Zone, 430205 Wuhan, CN, www.guideir.com/
Responsible person: JSA Night-Lux, Carl-Zeiss-Str. 31, 73230 Kirchheim/Teck, DE, [email protected]

Recommended accessories

Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

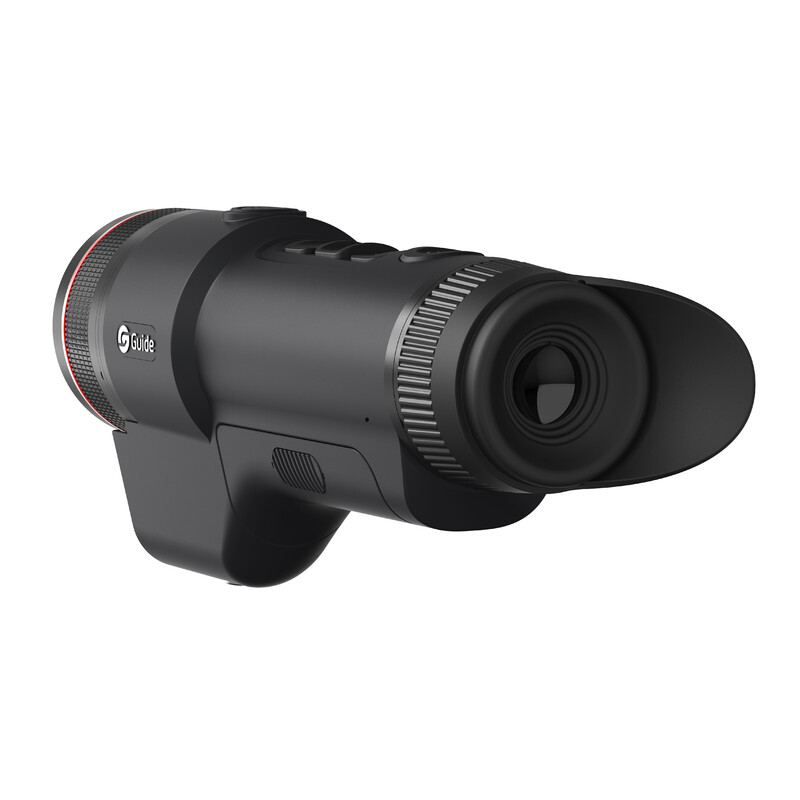

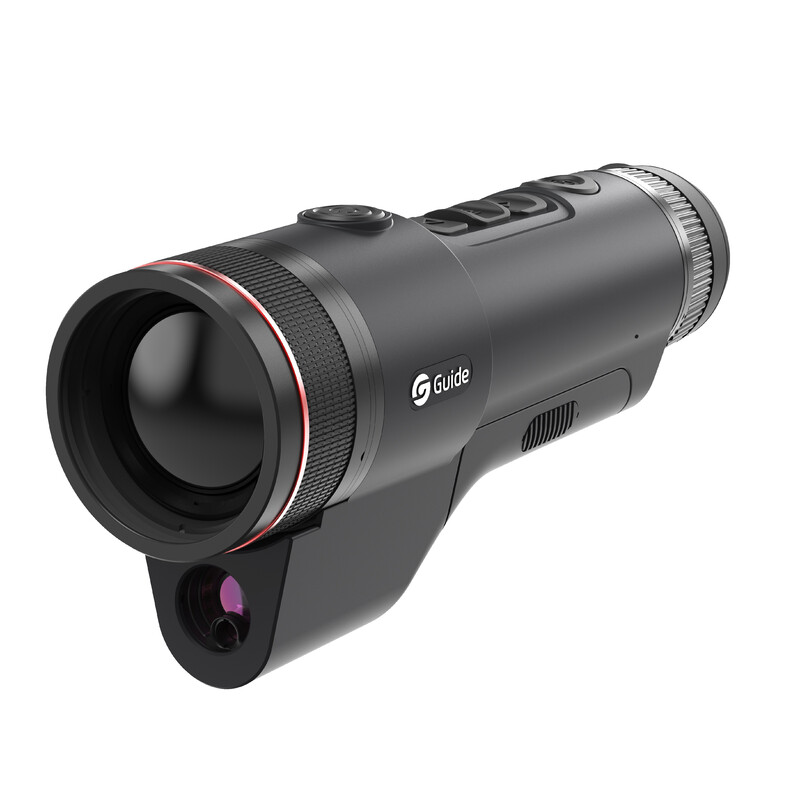

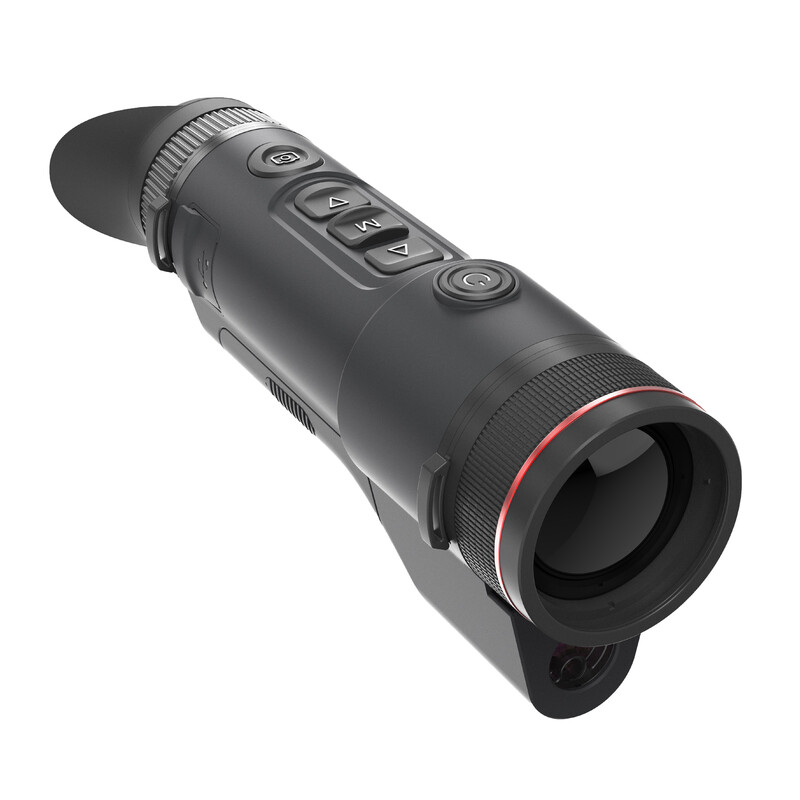

Guide Thermal imaging camera TJ1250LP

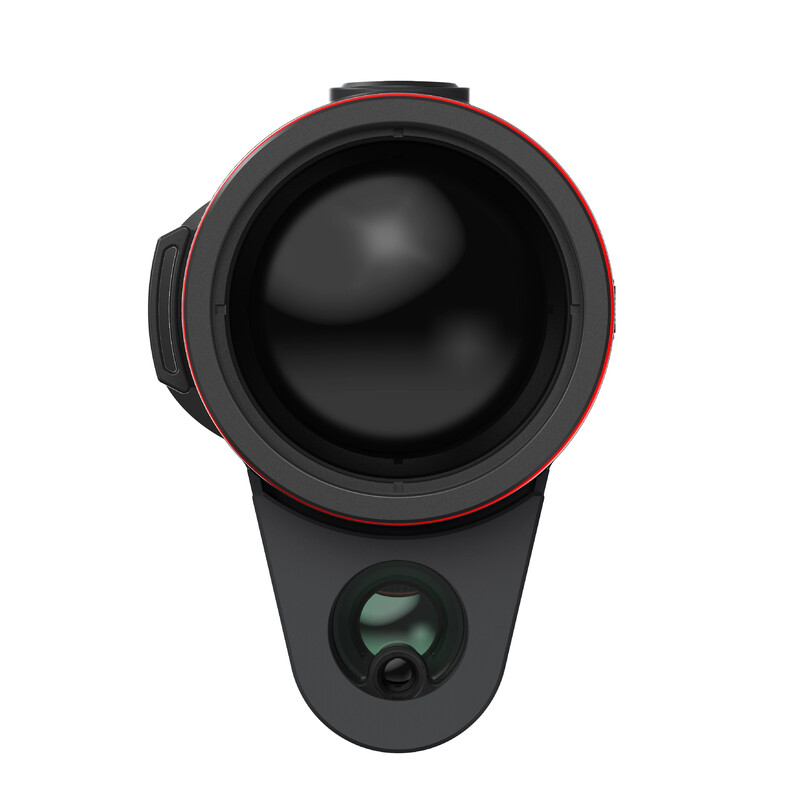

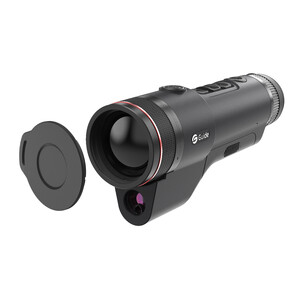

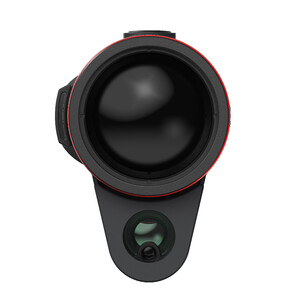

The laser rangefinder is located under the objective lens
Guide Thermal imaging camera TJ1250LP
Vers. Colour palettes adjustable
Guide Thermal imaging camera TJ1250LP

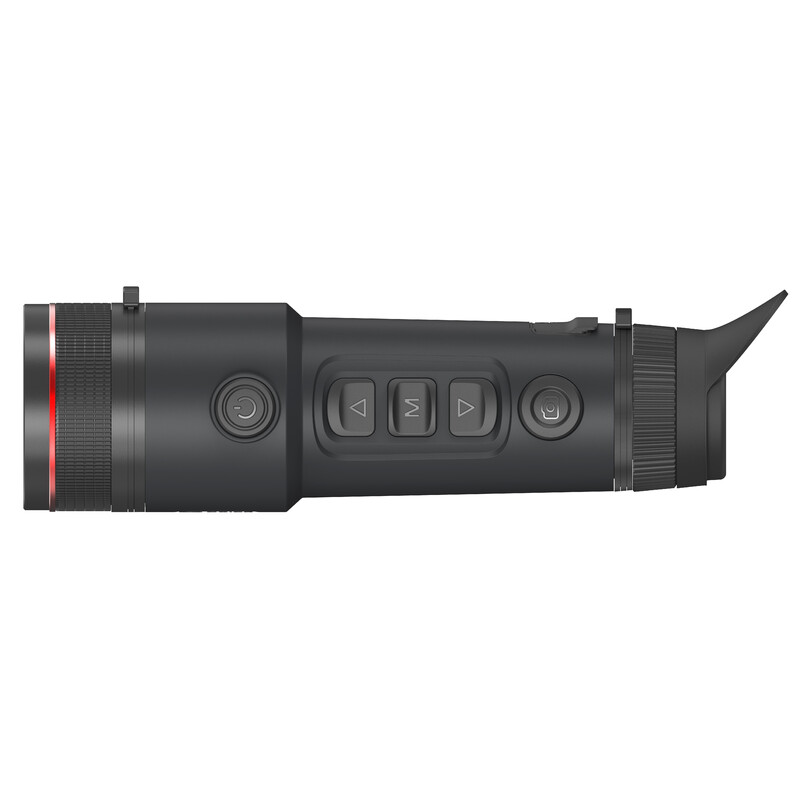

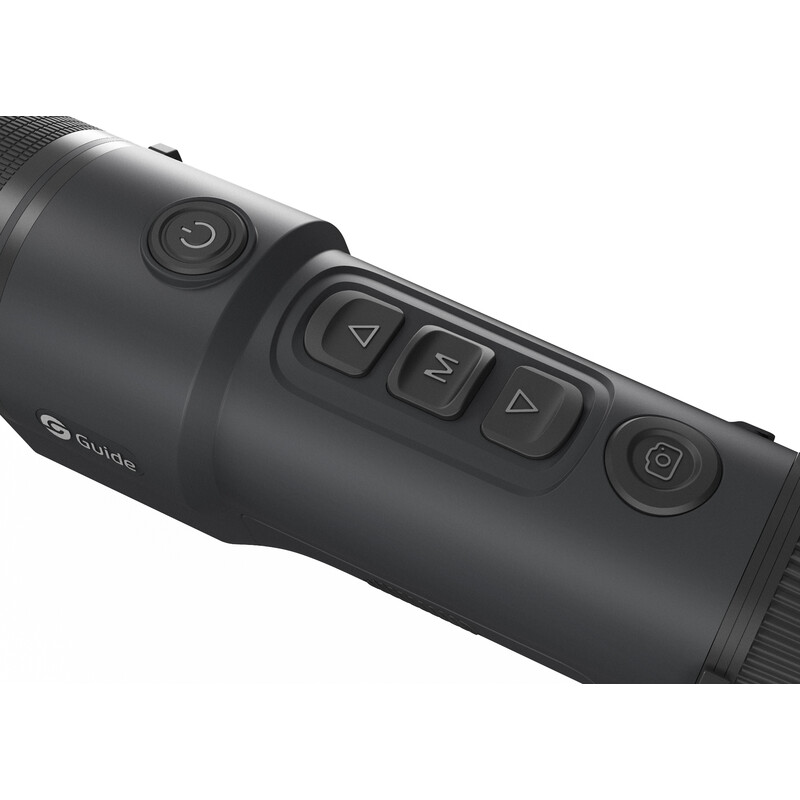

Easy-to-feel controls

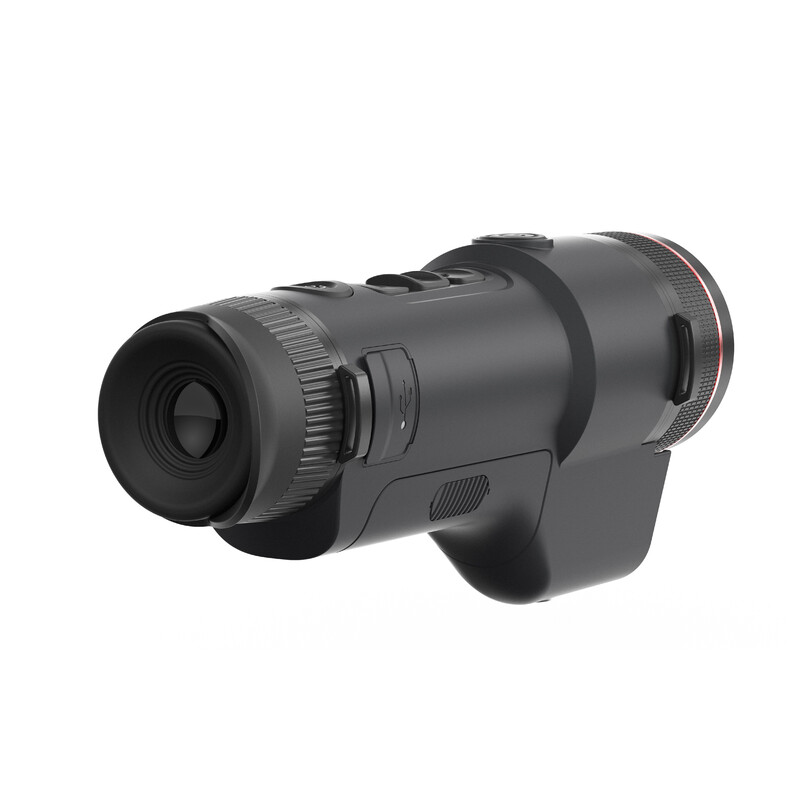

Guide Thermal imaging camera TJ1250LP

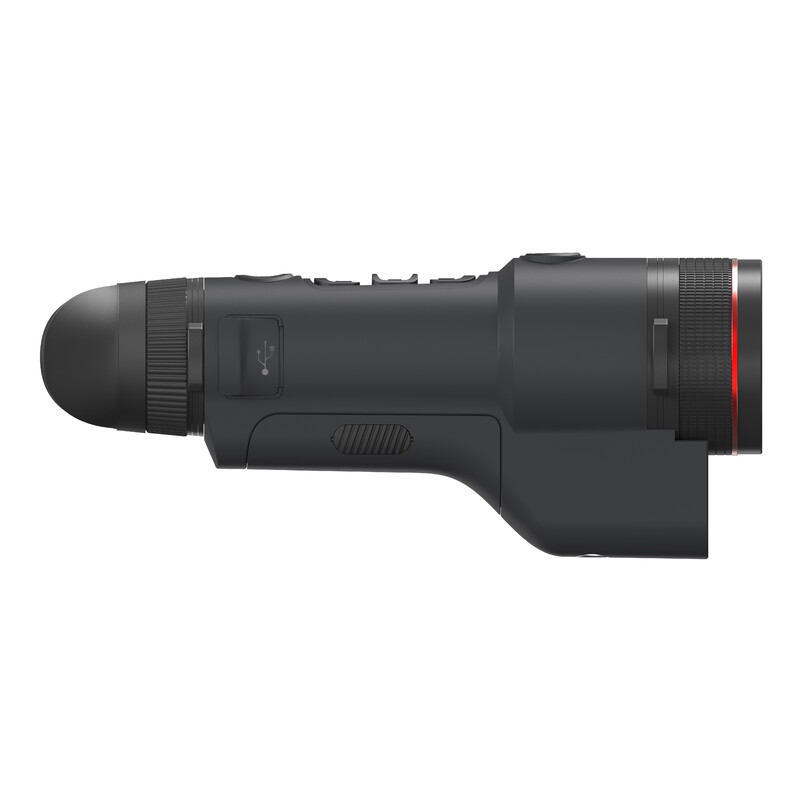

Replaceable battery for long operating time.
