Product description

GUIDE TJ Series Thermal Handheld Devices
Embark on night-time exploration with the TJ Series, the first choice for hunters. Equipped with exceptional thermal imaging technology, this device features a highly sensitive infrared detector that provides clear night vision.

The Full HD display enhances these advantages, while the two-handed operation, video recording and 12-hour battery life make it the perfect companion for night-time escapades.

Guide TJ430

  • Thermal imaging camera for observation
  • Sensor: 400 x 300
  • Pixel pitch: 12μm
  • Lens: 35 mm
  • Frame rate: 50 Hz
  • Spectral range: 8 μm to 14 μm
  • Sensitivity (NETD):<25 mK

Highly sensitive 12um infrared detector
The use of a highly sensitive IR detector with a NETD of up to 20mK allows even the smallest temperature differences to be detected, resulting in sharper and clearer images.

Up to 12 hours of operation
The TJ series offers a long battery life of 12 hours at -20°C to 50°C (-4°F to 122°F) to support continuous outdoor observation and hunting. The standard 18650 batteries can be replaced in the dark, ensuring a comfortable user experience without fear of power failure.

Lightweight
The entire instrument weighs approximately 500 g, reducing equipment load and making it easier to use outdoors. Its compact design and portable size bring convenience to your night-time explorations.

Full HD 1920x1080 AMOLED display
The eyepiece features a high-resolution 1920x1080 AMOLED screen that provides a visual experience with bright colours and excellent image quality. This greatly increases comfort during observation.

Waterproof to IP67
The IP67 waterproof rating ensures that the instrument can withstand even the most challenging weather conditions. With this robust protection, you can confidently take your thermal imaging monocular with you on any adventure.

Scope of delivery

  • Charger
  • USB-C cable
  • 2x batteries
  • Hand strap
  • Quick start guide
  • 5V2A adaptors

Specifications

Capacity


Type of build
Monocular
Technology
Thermal imaging camera
Zoom (digital)
2/4
Pixel size
12
temperature resolution (mK)
< 25
Image cycle rate (Hz)
50
Maximum operating distance (m)
1800
Display resolution (Pixel)
1920x1080
Image display
Different versions (White Hot / Black Hot / Red Hot / Green Hot / Iron Red / Blue Hot / Sepia)
Diopter compensation
-6/+6
Battery durability (h)
12

Special features


Infrared illuminator
-
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
ancillary lenses available
no
WiFi
yes
attachment
no
Rangefinder
no

Field of view


True field of view (°)
7,9x5,9
Field of view at 100 m (m)
14

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
-

General


Colour
black
Length (mm)
243
Width (mm)
66
Height (mm)
66
Weight (g)
504
Series
TJ

Product safety

Manufacturer: Guide Sensmart, No. 29, Gaoxin 3rd Road, East Lake High-Tech Development Zone, 430205 Wuhan, CN, www.guideir.com/
Responsible person: JSA Night-Lux, Carl-Zeiss-Str. 31, 73230 Kirchheim/Teck, DE, [email protected]

Recommended accessories

Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

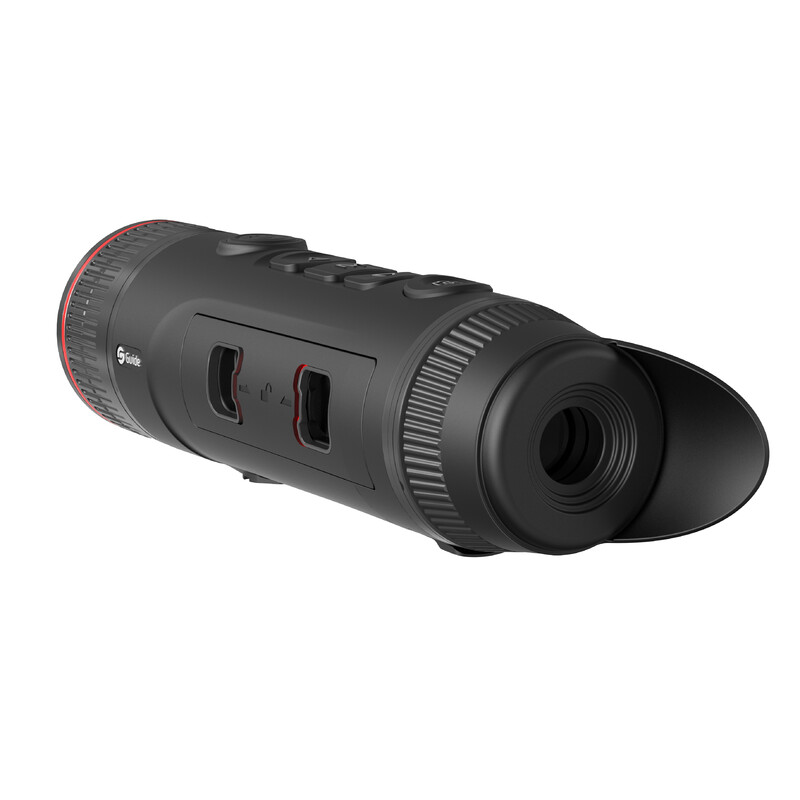

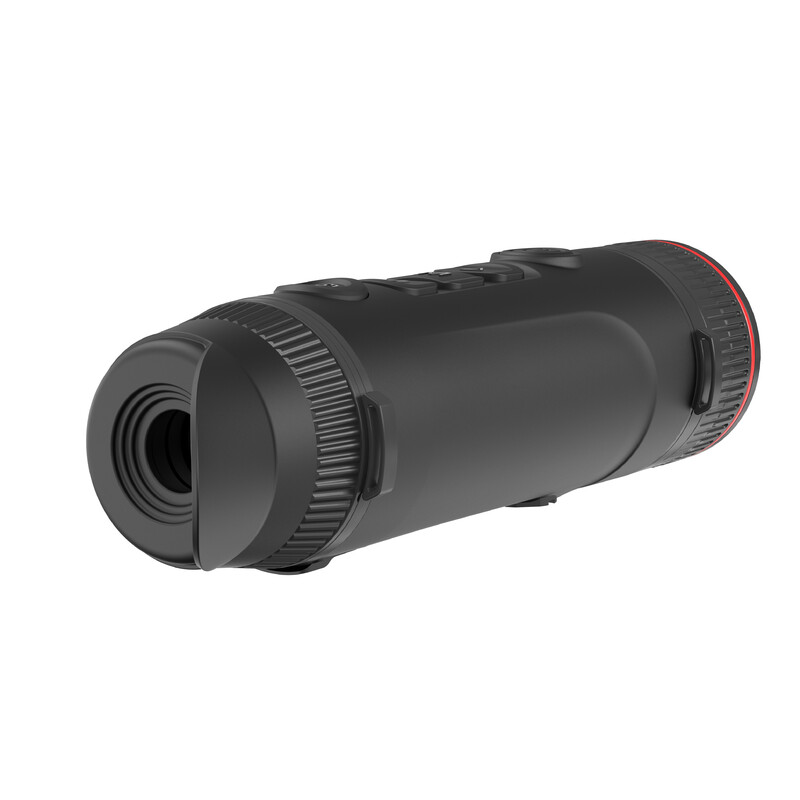

Guide Thermal imaging camera TJ430

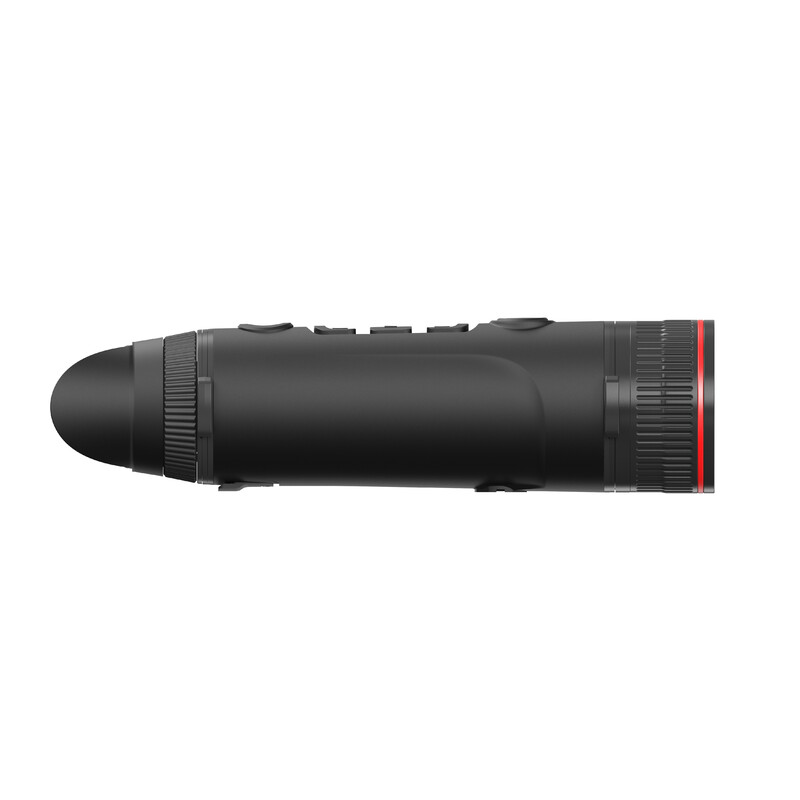

Replaceable battery for long operating time.

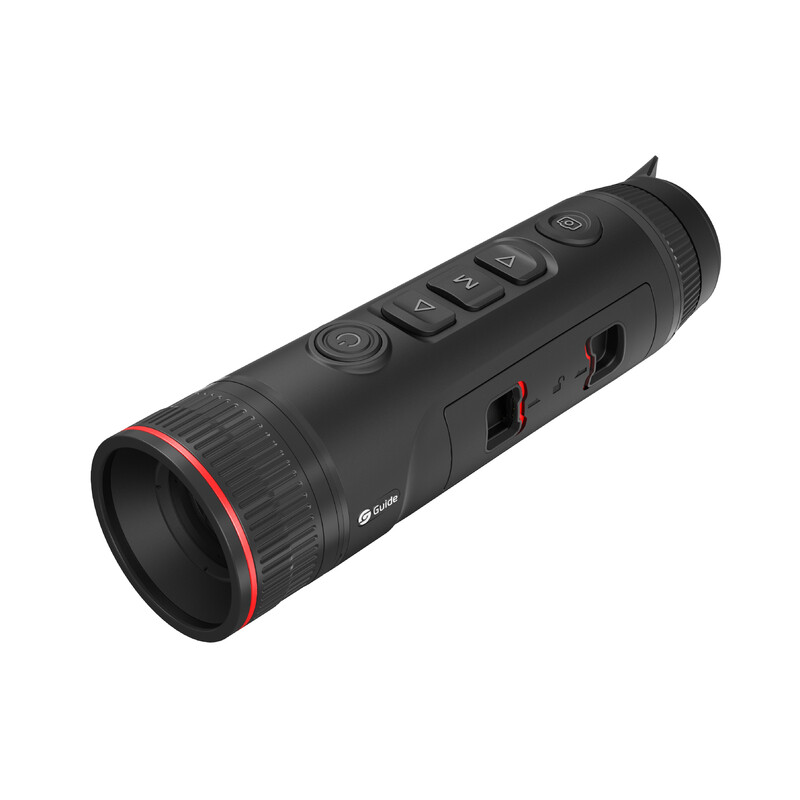

Guide Thermal imaging camera TJ430

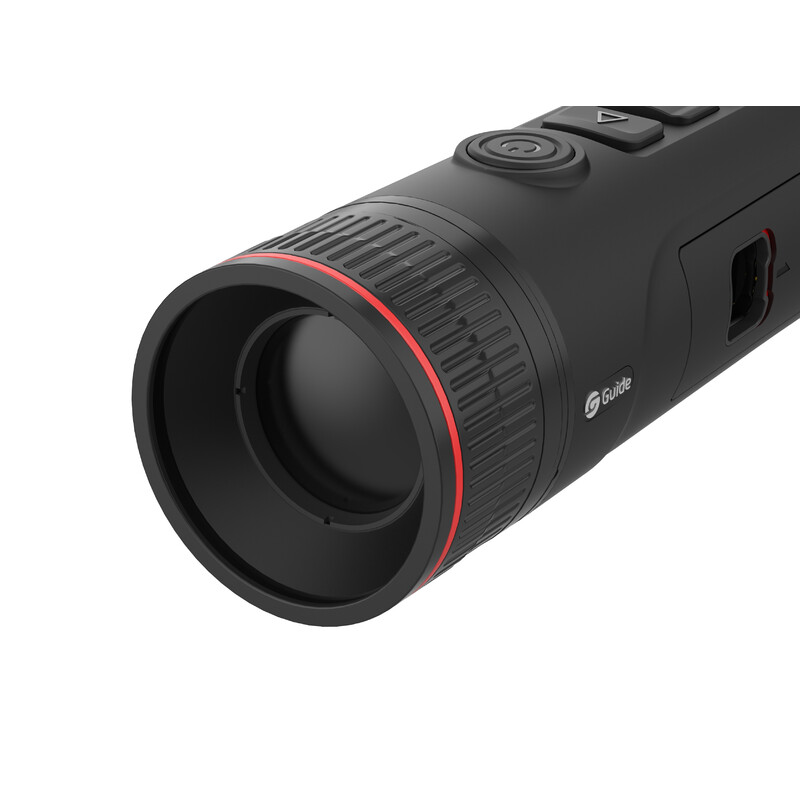

Objective 35mm f:1.0 equivalent to 4.25x magnification, field of view 14m/100m

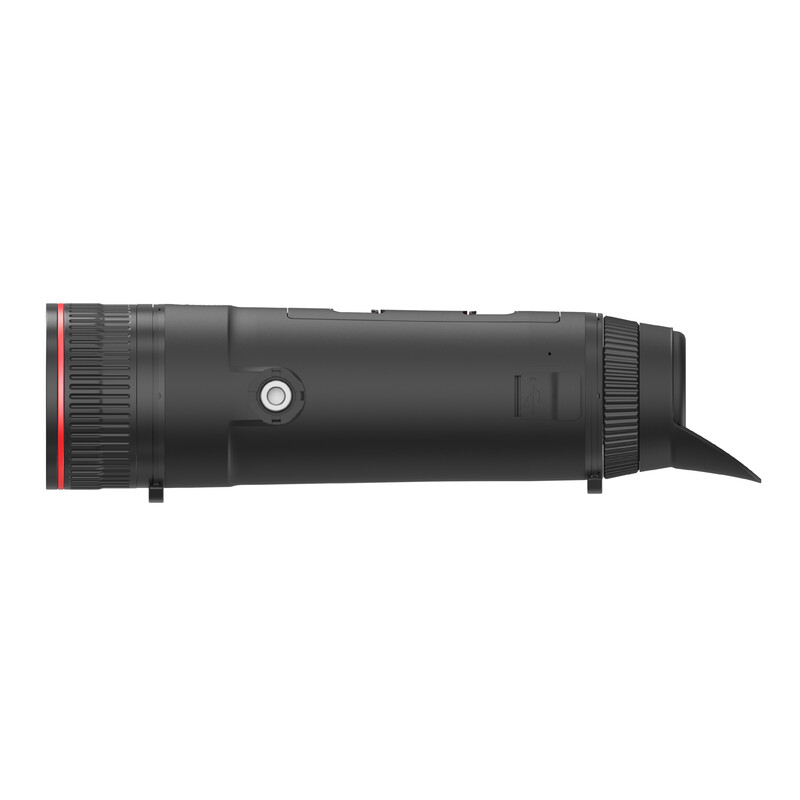

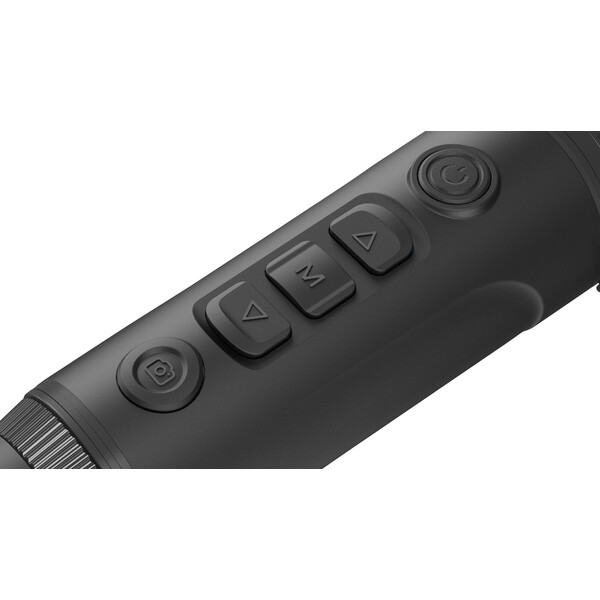

Guide Thermal imaging camera TJ430

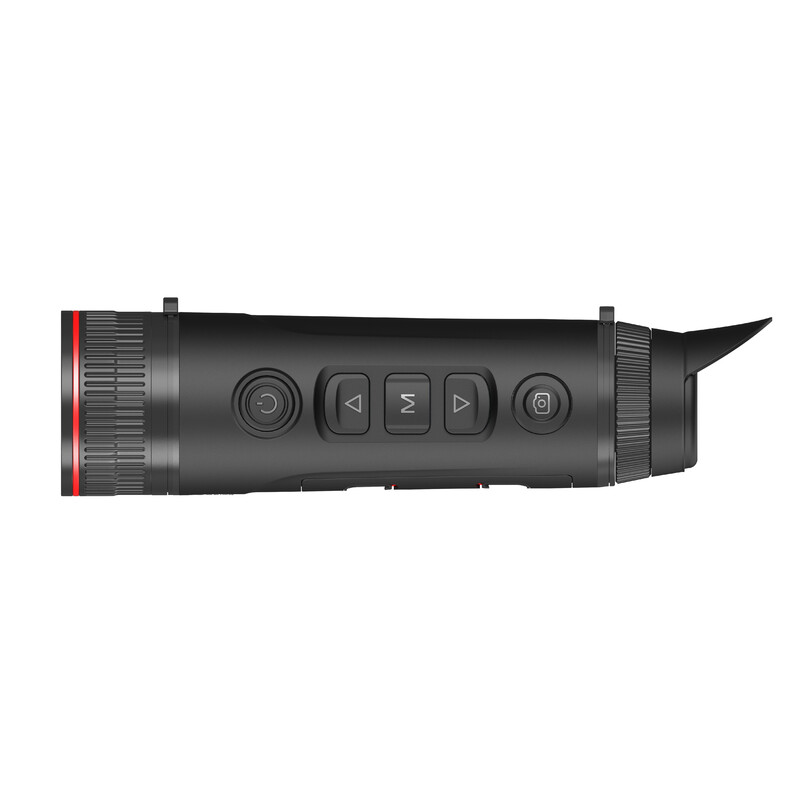

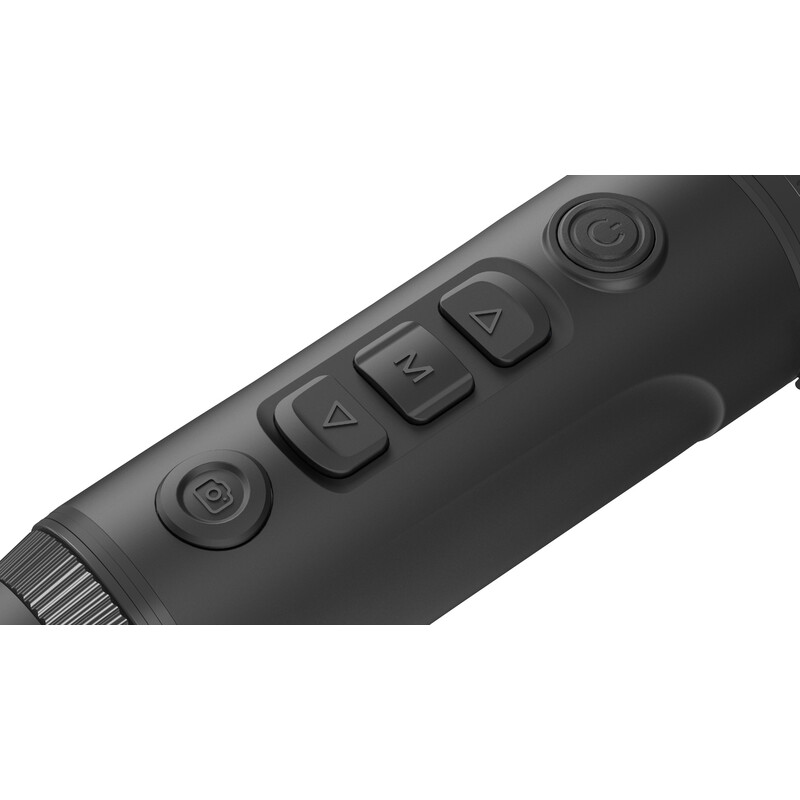

Easy-to-feel controls
