Product description

GUIDE TJ Series with rangefinders
With the TJ LRF series, the first choice for hunters, you can embark on night-time exploration tours. Equipped with exceptional thermal imaging technology, this instrument features a highly sensitive infrared detector that enables clear night vision.

The Full HD display enhances these advantages, while dual-handed operation, laser range measurement, video recording and 12-hour battery life make it the perfect companion for night-time escapades.

Guide TJ430L with rangefinders

  • Thermal imaging camera for observation
  • Sensor: 400 x 300
  • Pixel pitch: 12μm
  • Lens: 35 mm
  • Frame rate: 50 Hz
  • Spectral range: 8 μm to 14 μm
  • Sensitivity (NETD):<25 mK
  • Laser rangefinder with a range of up to 1000 m

Highly sensitive 12um infrared detector
The use of a highly sensitive IR detector with a NETD<25mK allows even the smallest temperature differences to be distinguished, resulting in sharper and clearer images.

1920 X 1080 AMOLED screen
The eyepiece features a high-resolution 1920x1080 AMOLED screen that provides a visual experience with bright colours and excellent image quality. This greatly increases comfort during observation.

25/35/50mm F1.0 focal length
Multiple focal lengths give the TJLRF series greater capabilities and more options in different environments. The maximum 50mm F1.0 lens can clearly display targets within 2000 m, which is convenient for observation and recording.

1000m laser rangefinders
The built-in laser rangefinder offers a long detection range of up to 1000 m and improves the ability to detect target distance and long-range perception.

Scope of delivery

  • Charger
  • USB-C cable
  • 2x 18650 batteries
  • Hand strap
  • Quick start guide
  • 5V2A adaptors

Specifications

Capacity


Type of build
Monocular
Technology
Thermal imaging camera
Zoom (digital)
2/4
Pixel size
12
temperature resolution (mK)
< 25
Image cycle rate (Hz)
50
Maximum operating distance (m)
1800
Display resolution (Pixel)
1920x1080
Image display
Different versions (White Hot / Black Hot / Red Hot / Green Hot / Iron Red / Blue Hot / Sepia)
Diopter compensation
-6/+6
Battery durability (h)
12

Special features


Infrared illuminator
-
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
ancillary lenses available
no
WiFi
yes
attachment
no
Rangefinder
1000m

Field of view


True field of view (°)
7,9x5,9
Field of view at 100 m (m)
14

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
-
Cave exploration & Camping
-

General


Colour
black
Length (mm)
243
Width (mm)
97
Height (mm)
66
Weight (g)
583
Series
TJ LRF

Product safety

Manufacturer: Guide Sensmart, No. 29, Gaoxin 3rd Road, East Lake High-Tech Development Zone, 430205 Wuhan, CN, www.guideir.com/
Responsible person: JSA Night-Lux, Carl-Zeiss-Str. 31, 73230 Kirchheim/Teck, DE, [email protected]

Recommended accessories

Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

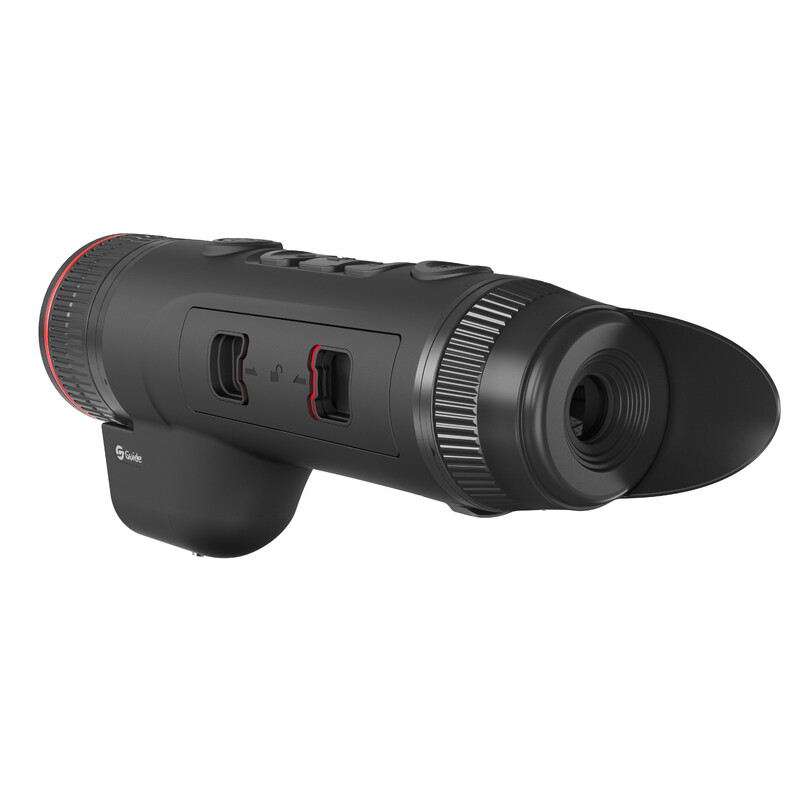

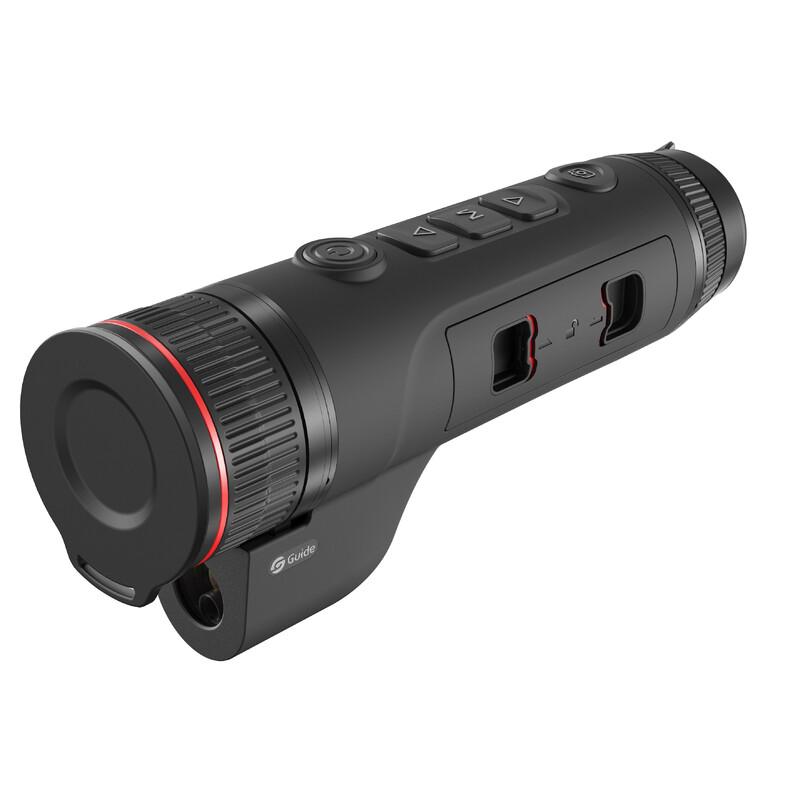

Guide Thermal imaging camera TJ430L

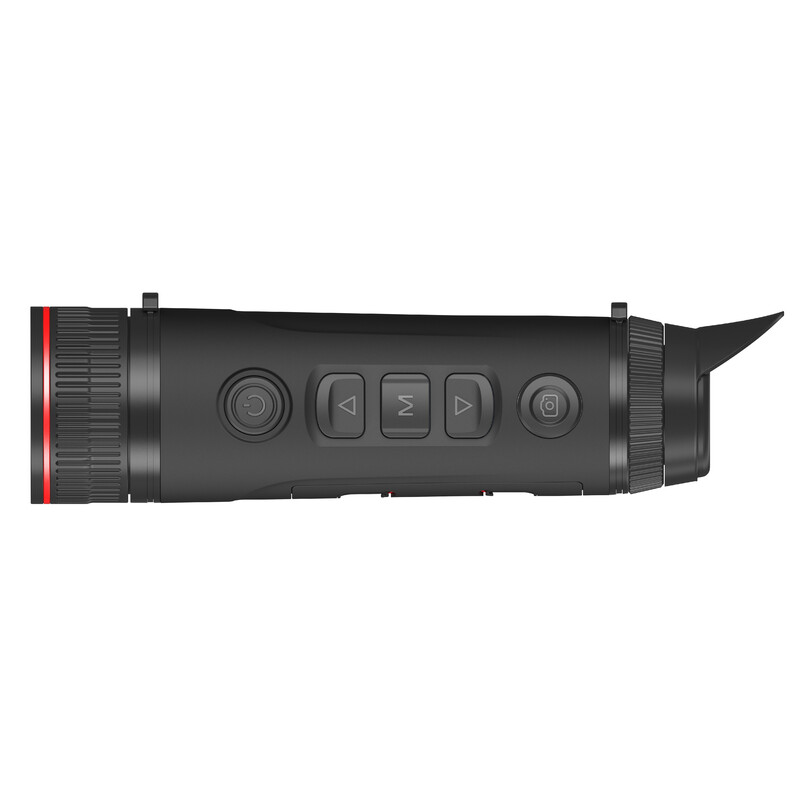

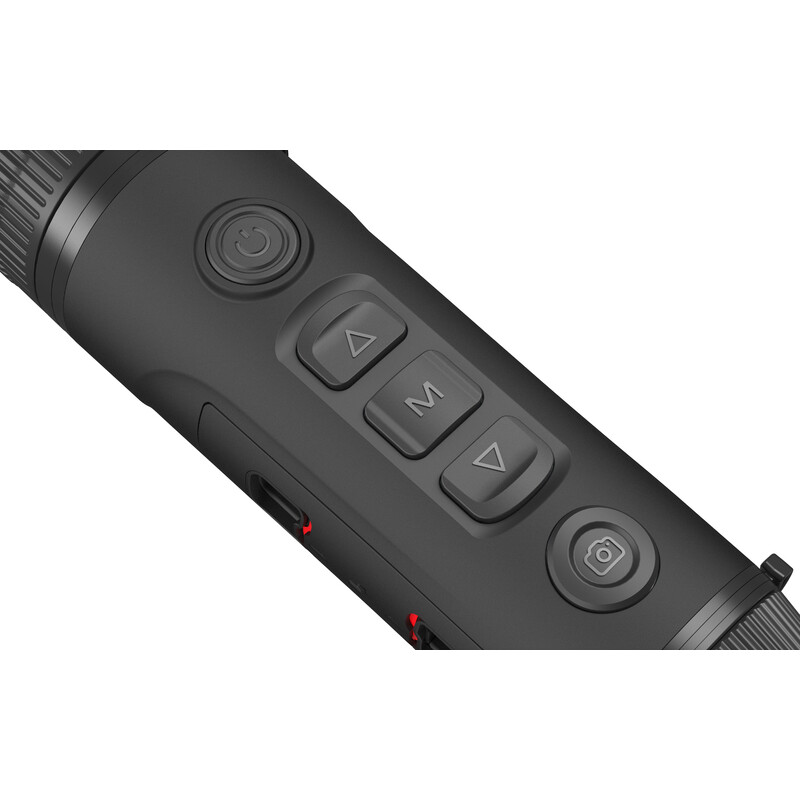

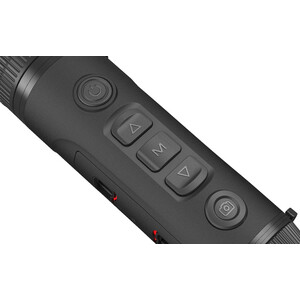

Easy-to-feel controls

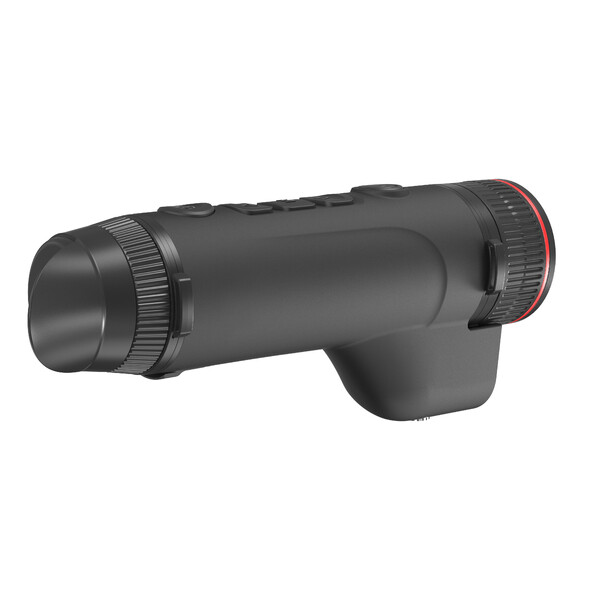

Guide Thermal imaging camera TJ430L

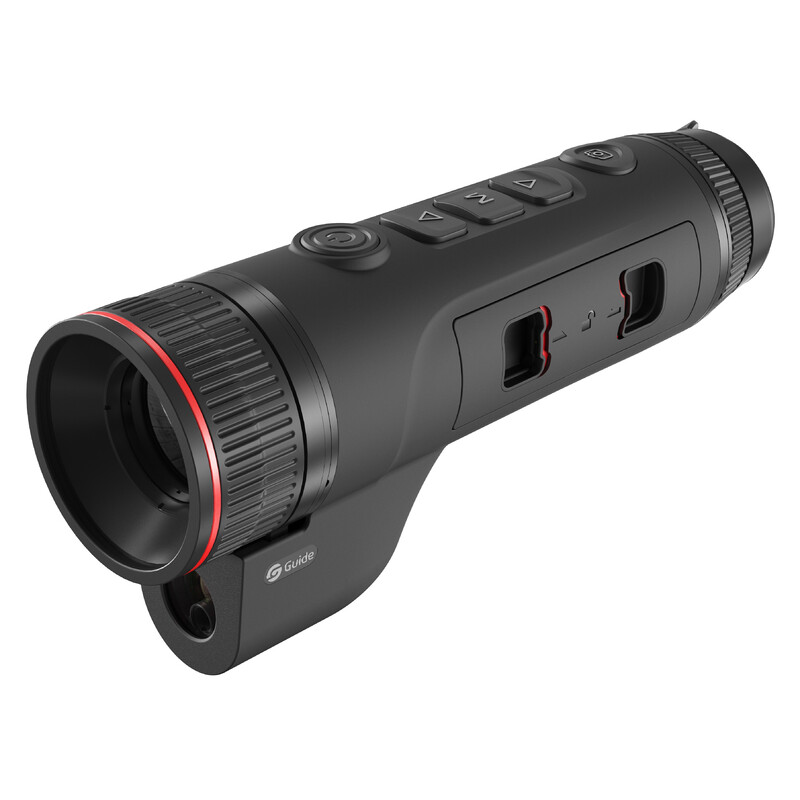

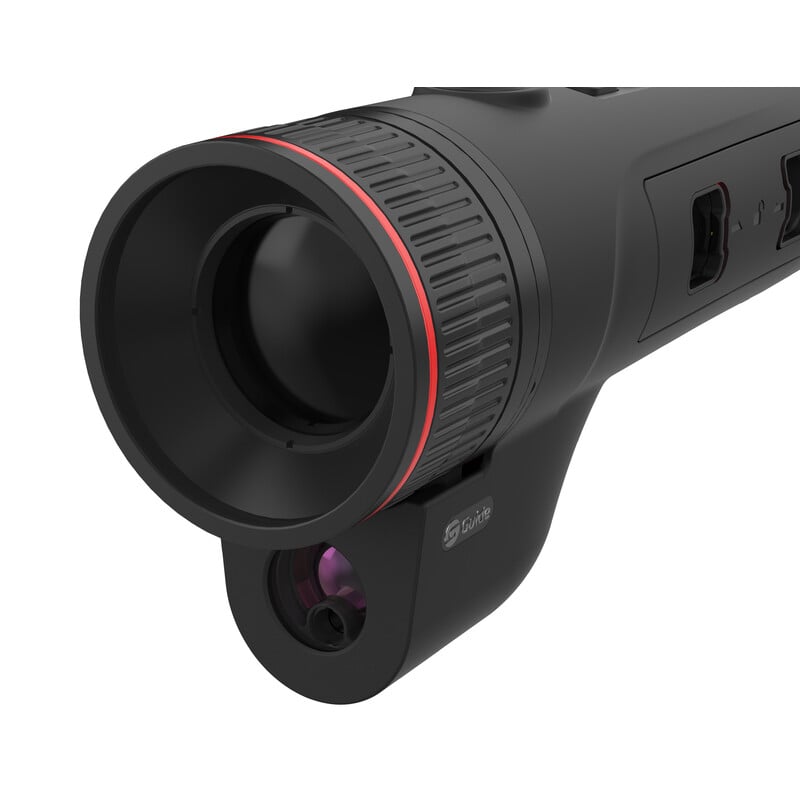

The laser rangefinder is located under the objective lens
