Product no.: 75109

Thermal imaging camera TN630

$ 3,170.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

The binoculars in the Guide TN series offer not only enormous added value for today's hunters in terms of imaging effect, observation comfort and a wide range of functions, but also excellent value for money. The binoculars are supported by a laser rangefinder that is designed for a range of up to 3000 metres and works with an accuracy of ±1 metre up to 600 metres, making it comparable to conventional laser rangefinders.

The binoculars feature an HD OLED colour display with an adjustable eye relief of 60-70 mm to make long-term observation of targets as comfortable as possible for the user and reduce eye fatigue.

All buttons on the instrument are ergonomically designed and easy to feel, ensuring intuitive operation in the dark.

The series supports WiFi connectivity for remote control and easy sharing of content such as photos and videos, as well as real-time transmission of the displayed image to a Smartphone. With various built-in sensors, including a GPS receiver, compass and gyroscope, the instrument offers a wide range of functions to support hunters.

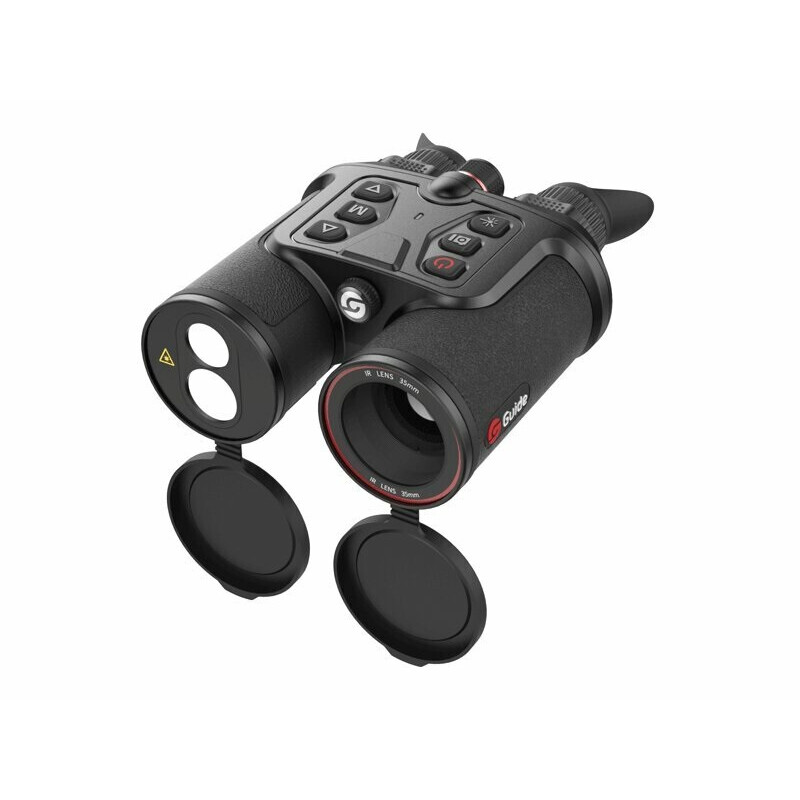

Guide TN630

  • Thermal imaging camera as binoculars
  • Sensor: 640 x 480
  • Pixel pitch: 12μm
  • Objective: 35 mm
  • Frame rate: 50 Hz
  • Spectral range: 8 μm to 14 μm
  • Sensitivity (NETD):<30 mK
  • Laser rangefinder up to 600 m

Ergonomic design Easy observation
Binocular design greatly reduces fatigue during prolonged observation; adjustable eye relief between 60 mm and 70 mm, catering for different groups of people; ergonomic design, raised buttons can be quickly identified by touch even in complete darkness.


, a whole new experience In the dark, laser detection ensures accurate location with distance information.

High image quality day and night
Up to 640 × 480 VOx uncooled IR resolution and 50Hz frame rate ensure smooth observation of moving targets

Multiple colour palettes to highlight the target
Six colour palettes: white hot, black hot, red hot, green hot, iron red, blue hot.

Photo and video recording
Supports photos and videos to capture wonderful moments at any time. Realise remote control, live image and video transmission via WIFI connection, can share to your social media via APP.

IP66, 1-metre drop test
With IP66 waterproof certification to protect against heavy rain, dust and shocks. The working temperature is -30°C~50°C, suitable for all types of harsh weather. It has also passed UN38.3 battery certification, RoHS, CE, FCC certification, etc. Guaranteed quality.

Multiple scene modes, clearly highlight the target
Enhance/Highlight/Natural" can be quickly switched with one button, and the image can be adaptively adjusted for different scenes. With "Enhance/Highlight", image noise can be effectively reduced and the target highlighted.

Full-colour OLED display
1024 x 768 full-colour AMOLED display, high contrast, improved image details, improved viewing comfort.

Well-designed PIP mode, target highlighting
PIP mode, identify the position of the target immediately with PIP mode, even outdoors.

Specifications

Capacity


Type of build
Binocular (one objective)
Technology
Thermal imaging camera
Magnification
1-8 (Zoom shot)
Front lens diameter (mm)
35
Maximum operating distance (m)
3000
Detection distance (m)
700
Battery durability (h)
6
infrared lighting wavelength (nm)
630
Image display
Different versions

Special features


Infrared illuminator
-
Digital imaging
yes
Day-night-system
yes
Overexposure protection
yes
Splash-proof
yes
attachment
yes

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes

General


Length (mm)
162
Width (mm)
146
Height (mm)
70
Weight (g)
860

Product safety

Manufacturer: Guide Sensmart, No. 29, Gaoxin 3rd Road, East Lake High-Tech Development Zone, 430205 Wuhan, CN, www.guideir.com/
Responsible person: JSA Night-Lux, Carl-Zeiss-Str. 31, 73230 Kirchheim/Teck, DE, [email protected]

Recommended accessories

Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

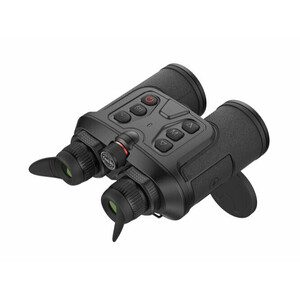

Guide Thermal imaging camera TN630

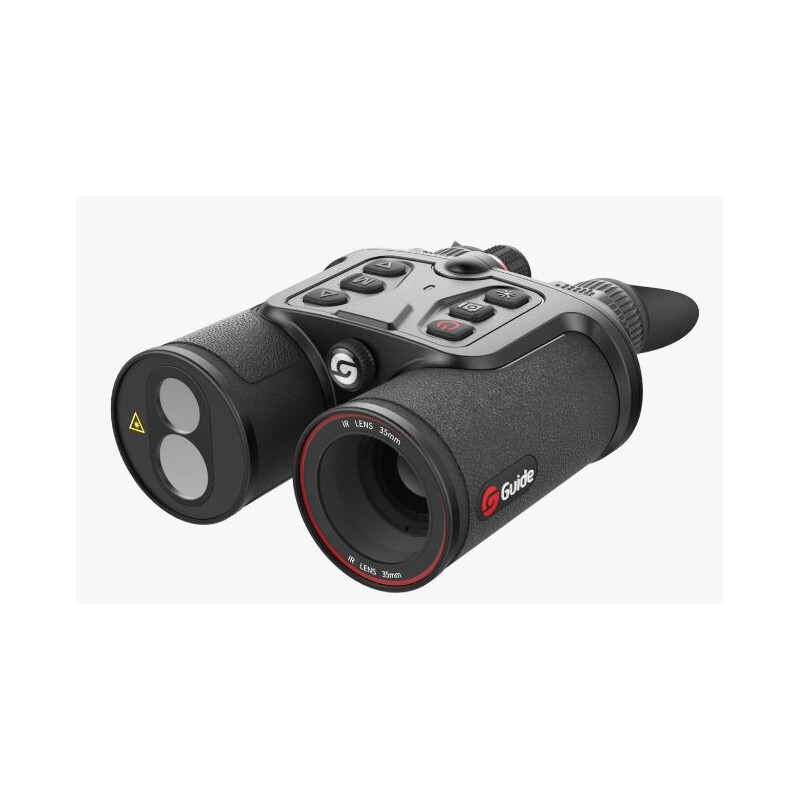

Guide Thermal imaging camera TN630

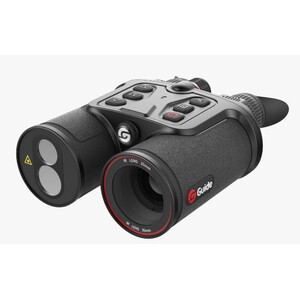

Guide Thermal imaging camera TN630

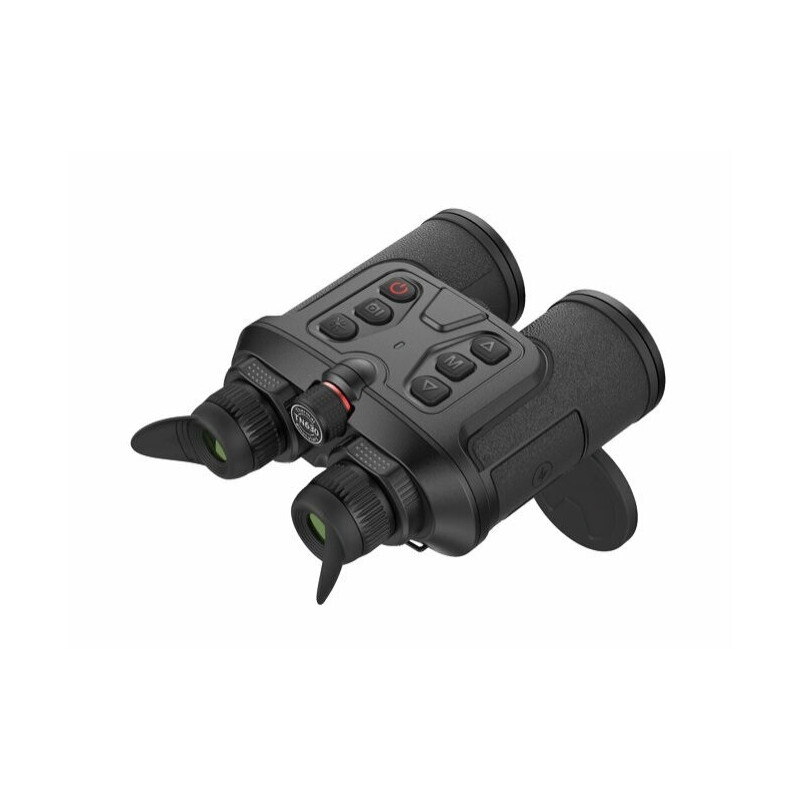

Guide Thermal imaging camera TN630

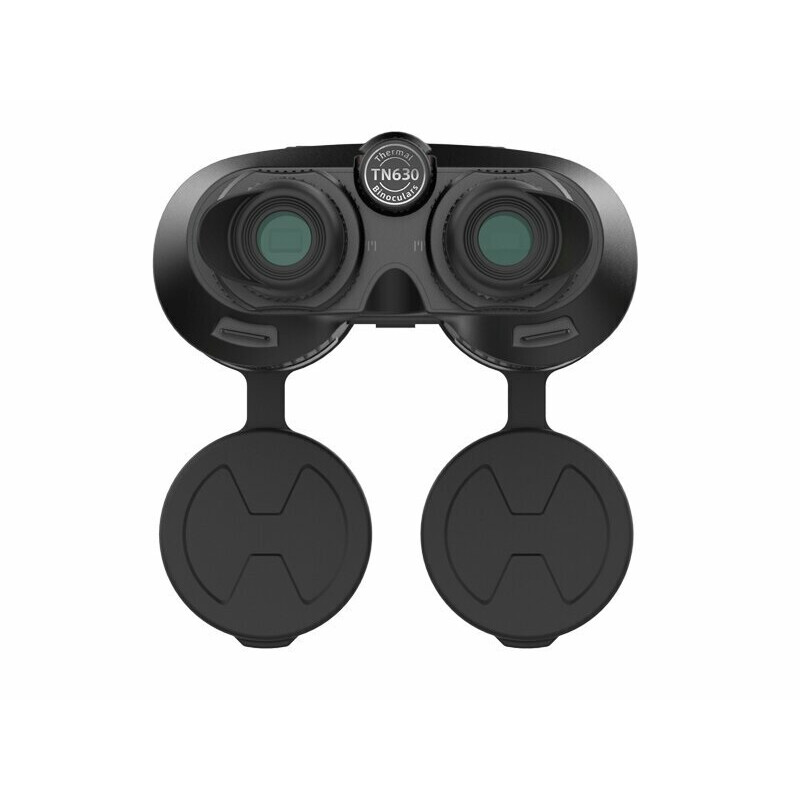

Guide Thermal imaging camera TN630
