Night vision devices & thermal cameras > Instruments > Thermal imaging cameras > Clip > InfiRay Thermal imaging camera Clip CTP13
Product no.: 80652

InfiRay Thermal imaging camera Clip CTP13

$ 1,730.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time

Product description

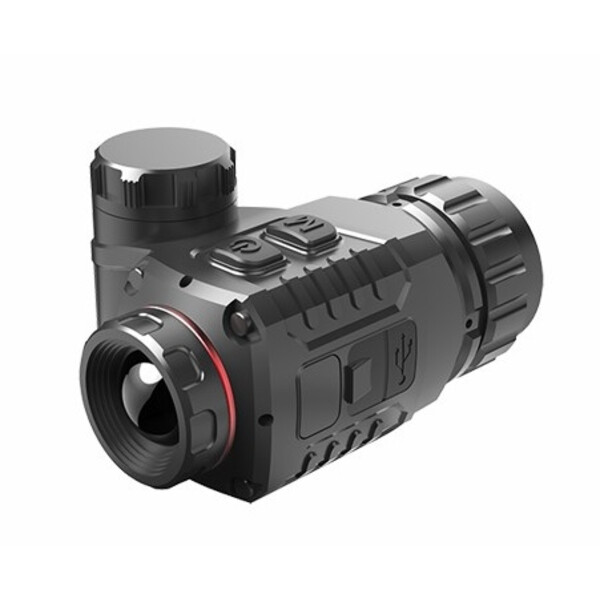

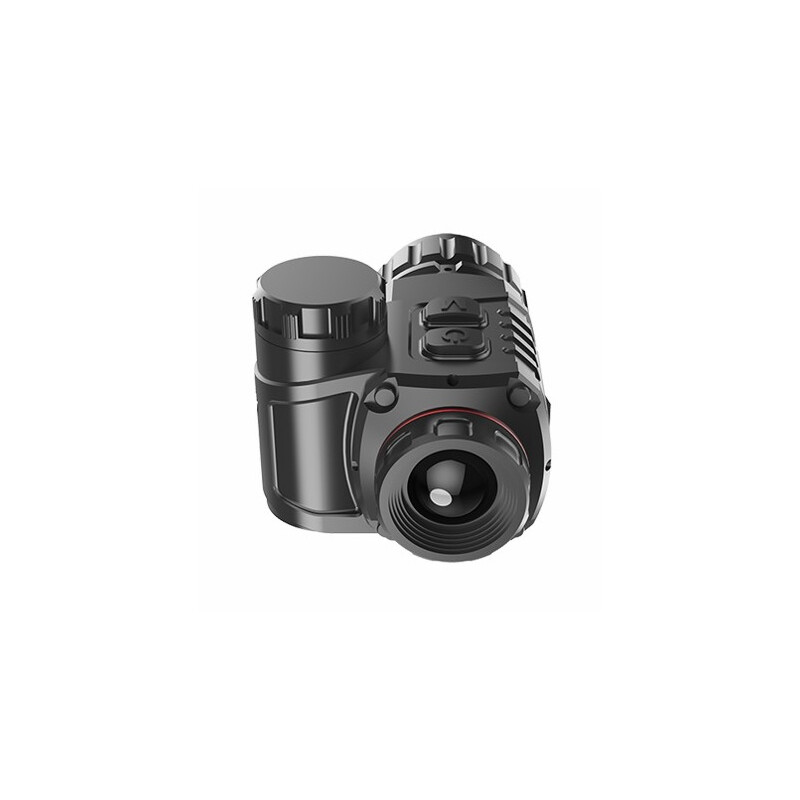

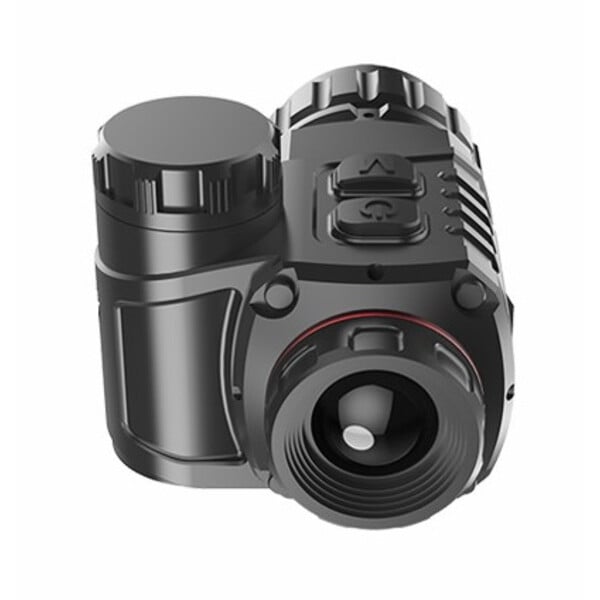

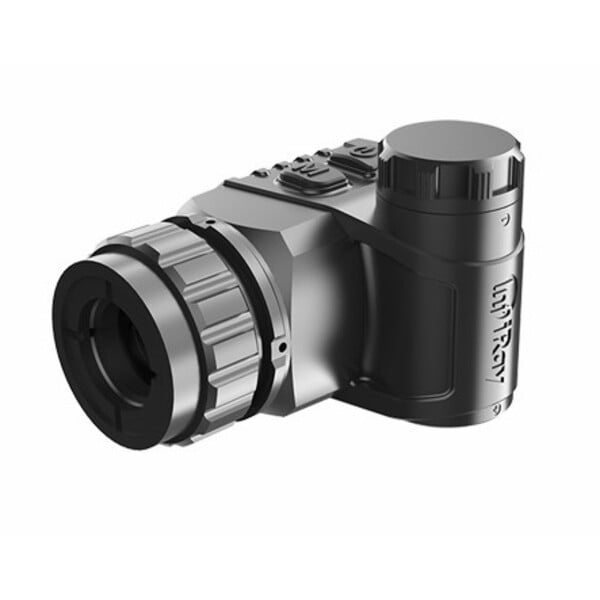

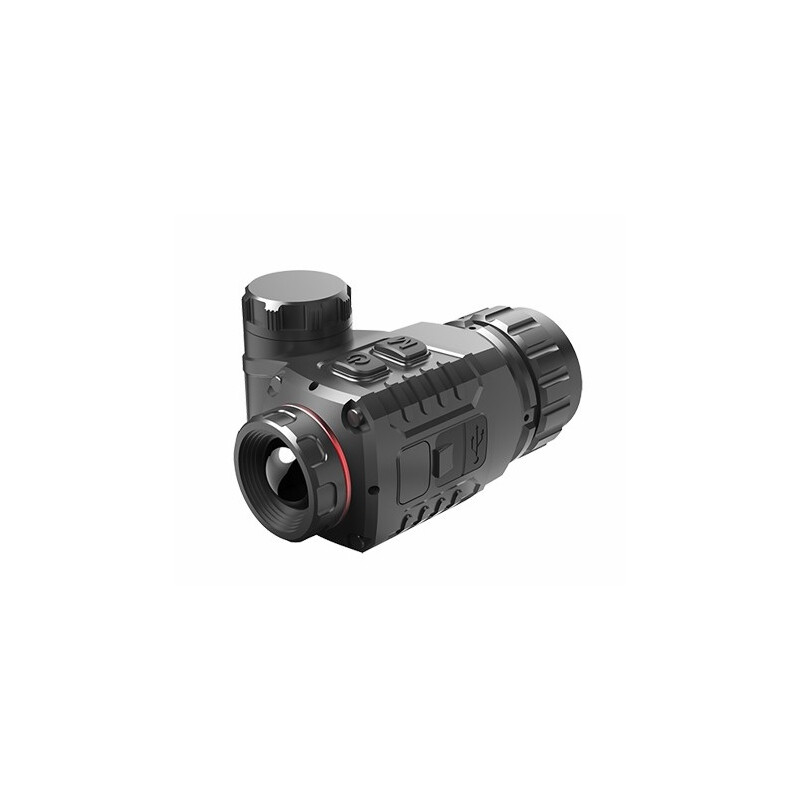

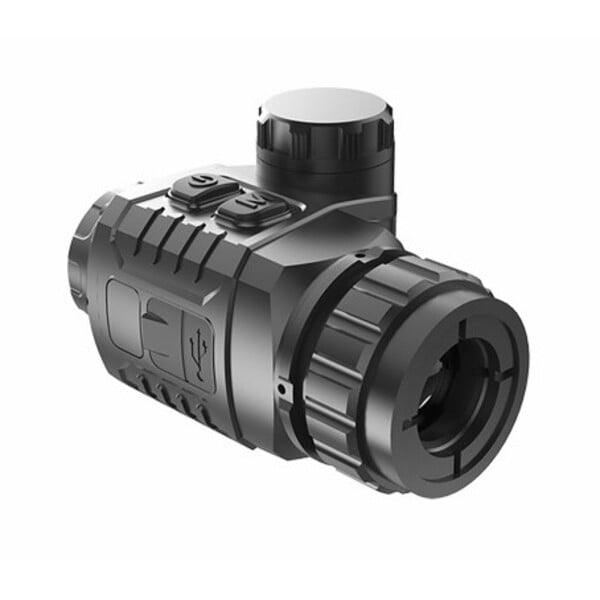

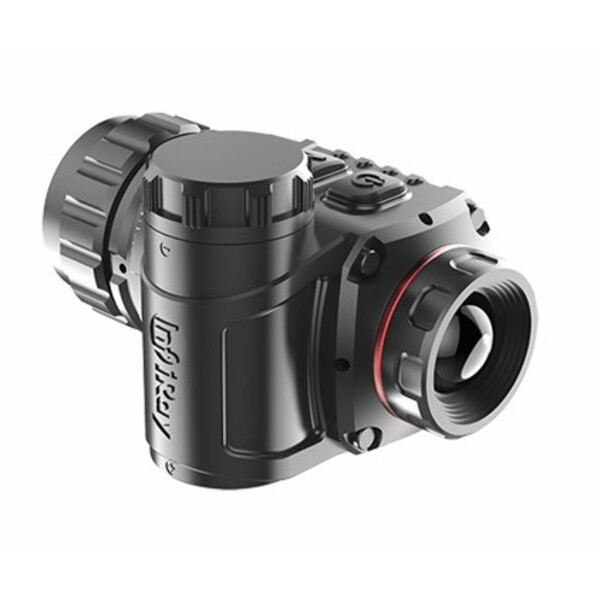

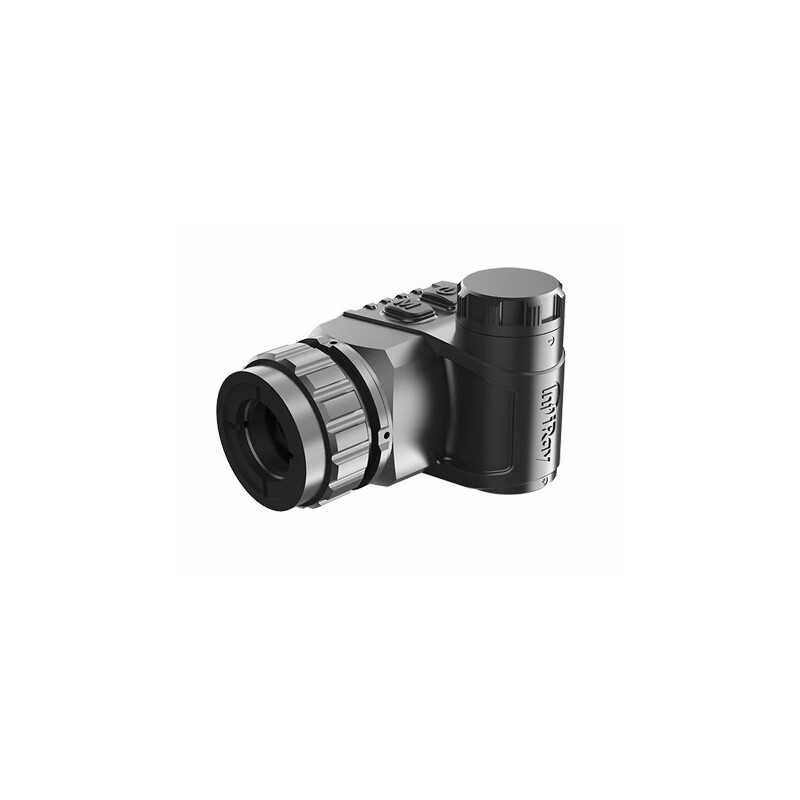

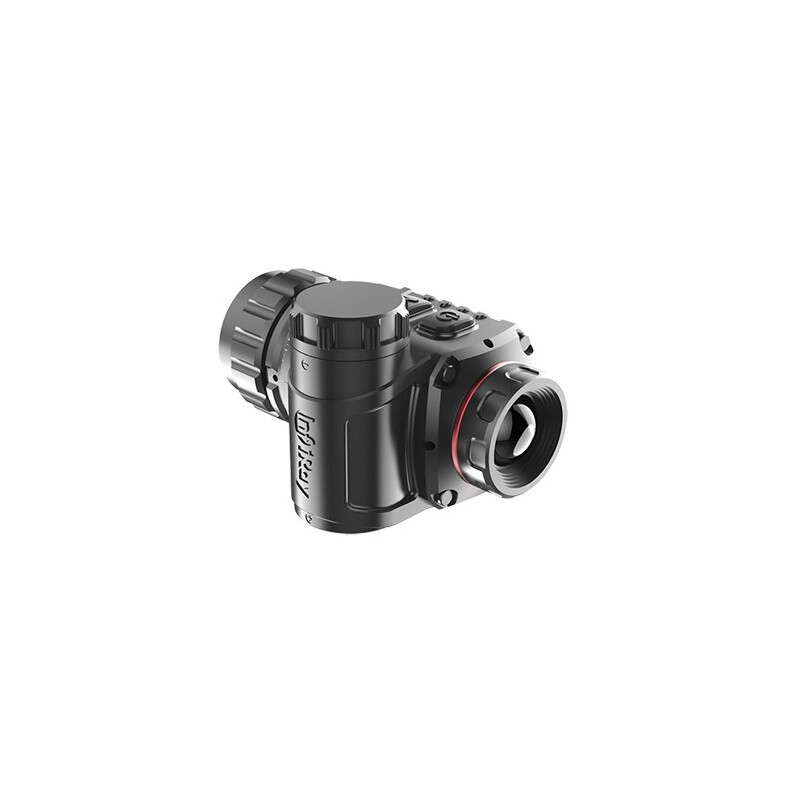

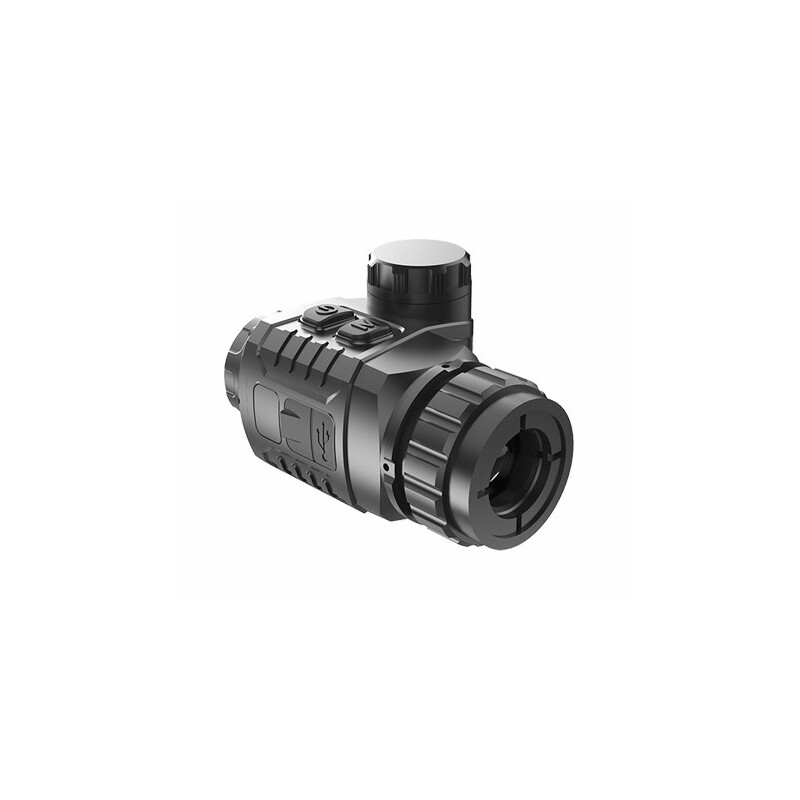

InfiRay Clip CTP13
The T-Series are the most compact and affordable thermal imaging attachments on the market, mainly used in conjunction with target optics. They feature low power consumption and miniaturisation.

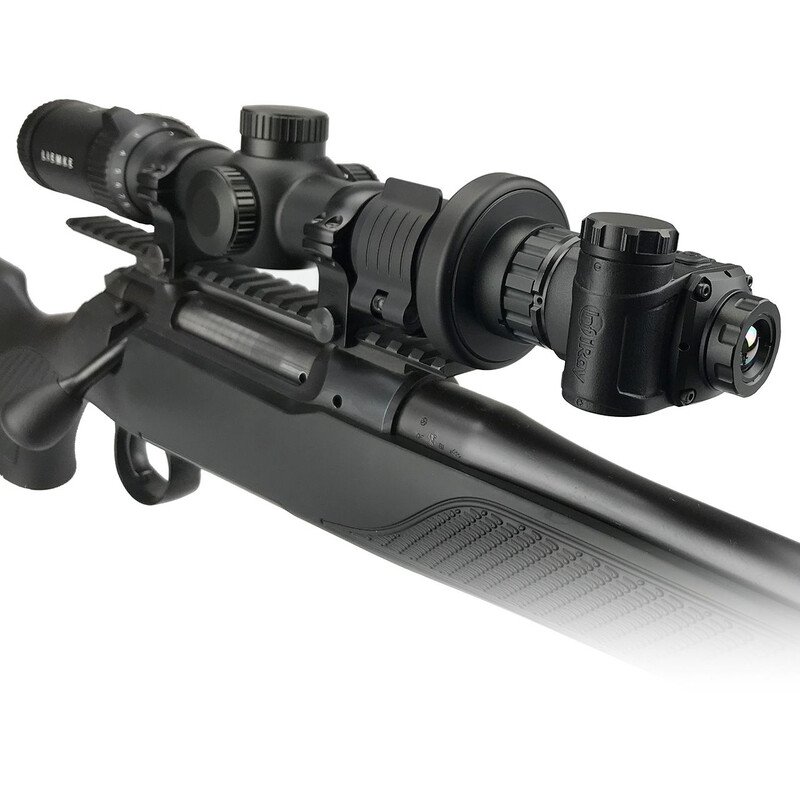

The T-Series are truly versatile and powerful thermal imaging attachments that offer you many useful features. They can meet your needs to add thermal imaging capabilities to your target optics after proper mounting. These attachments are easy to mount on the Picatinny rail and do not require re-zeroing, making them ideal for use on hunting trips. The T-Series does not require any light conditions to operate and is capable of transforming your target optics or riflescopes into thermal imaging night vision devices. You can use it to detect your targets anywhere, anytime.

Product features

  • Compact size and extremely lightweight
  • Low energy consumption
  • IP67 absolute protection rating
  • High-resolution OLED display
  • 12 μm thermal imaging sensor

Specifications

Capacity


Type of build
attachment
Technology
Thermal imaging camera
Magnification
1
objective
13mm
Maximum operating distance (m)
675
Sensor type Thermal
VOx
Resolution Sensor Thermal (Pixel)
256x192
Pixel size
12
temperature resolution (mK)
< 40
Image cycle rate (Hz)
25
Display type
OLED
Display resolution (Pixel)
1024x768
Image display
Different versions
Battery durability (h)
3,5
Connection
M30x1,0

Special features


Infrared illuminator
-
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
-
ancillary lenses available
no
WiFi
no
attachment
yes
Rangefinder
no

Field of view


True field of view (°)
13,5x10,1
Field of view at 100 m (m)
23,6

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General


Colour
black
Length (mm)
77
Width (mm)
52
Height (mm)
46
Weight (g)
140
Series
Clip

Miscellaneous


Battery type
CR123

Product safety

Manufacturer: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, www.nimax.de
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]
