Night vision devices & thermal cameras > Instruments > Thermal imaging cameras > Levenhuk > Fatum > Levenhuk Thermal imaging camera Fatum Z100
Product no.: 76594

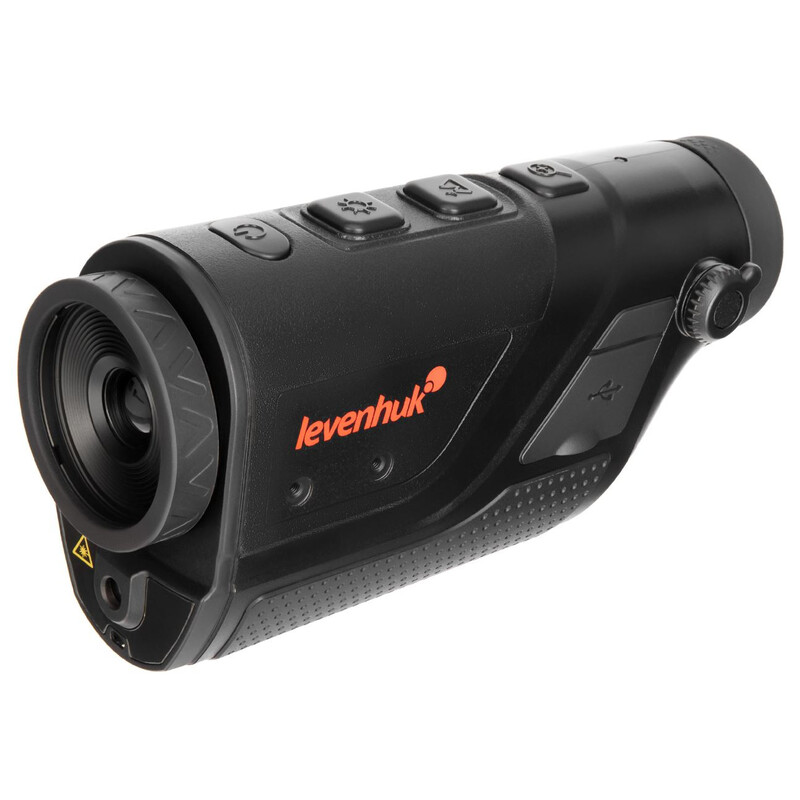

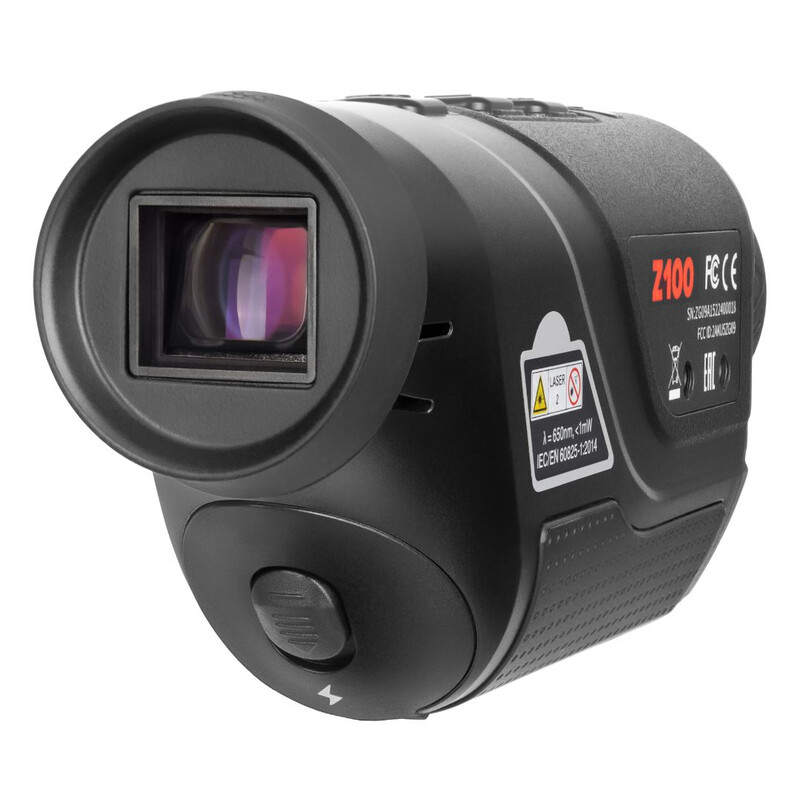

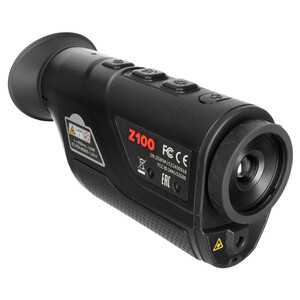

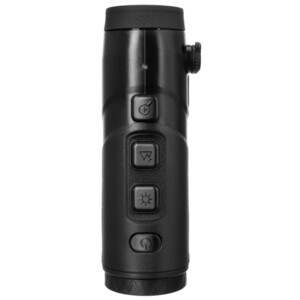

Thermal imaging camera Fatum Z100

$ 640.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time
  • Optical magnification: 1.5x
  • Maximum detection range: 1000 metres
  • Integrated WiFi and Bluetooth
  • FLCOS display
  • Removable battery

Product description

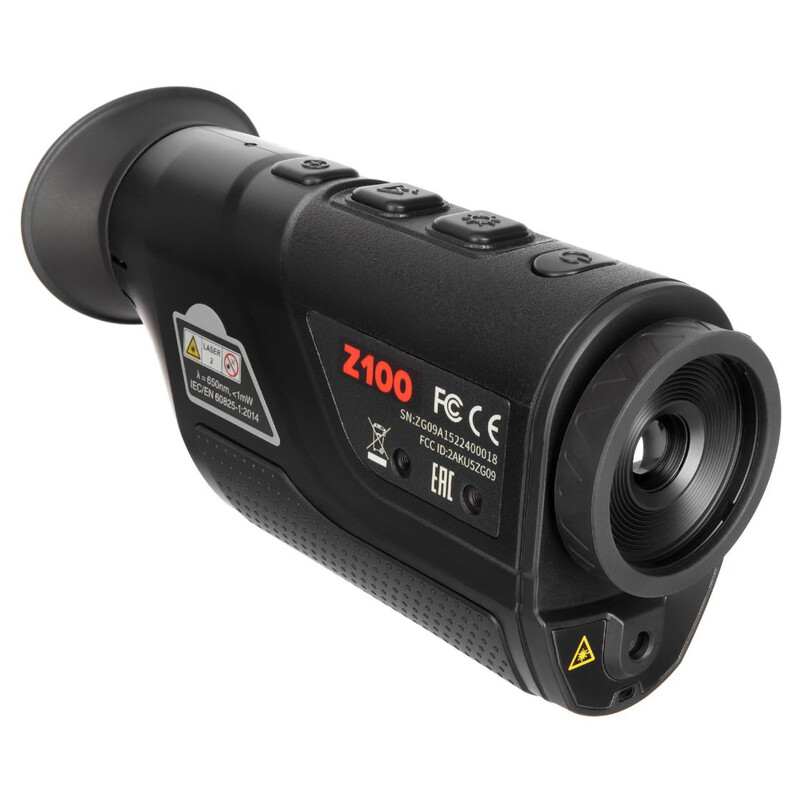

The Levenhuk Fatum Z100 thermal imaging telescope is designed for short- to medium-range observation. The instrument can detect an object the size of a car at a distance of up to 1000 m. The optimal shooting distance for hunters is about 250–330 m – at this distance, you can spot a deer or a wild boar.

The instrument is ideal for orienteering, hiking and search operations, and is a good choice for protecting hunting grounds and monitoring livestock.

The telescope offers optical and digital magnification from 1.5x to 3x.

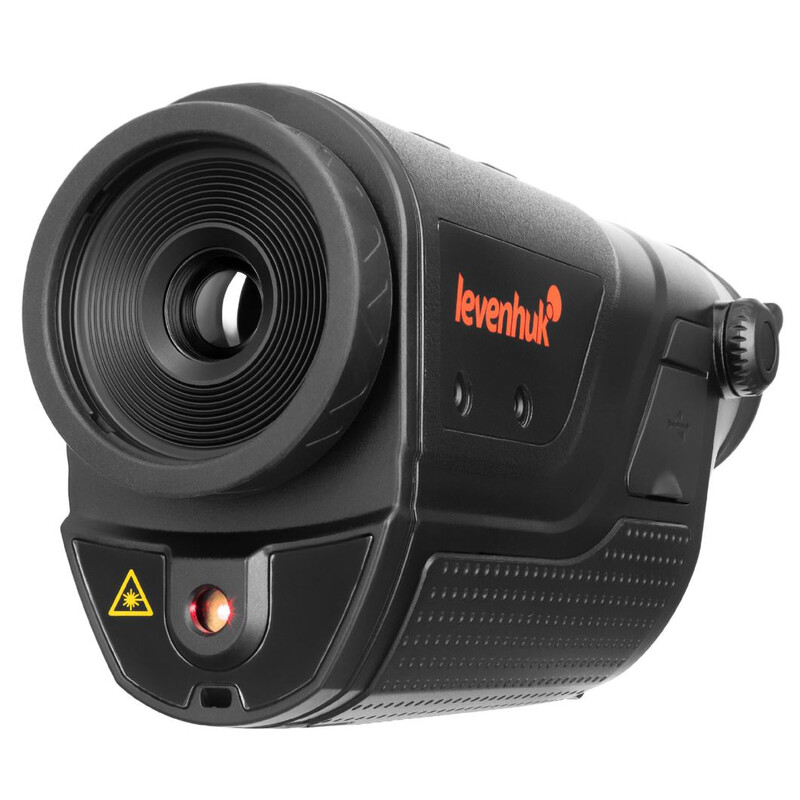

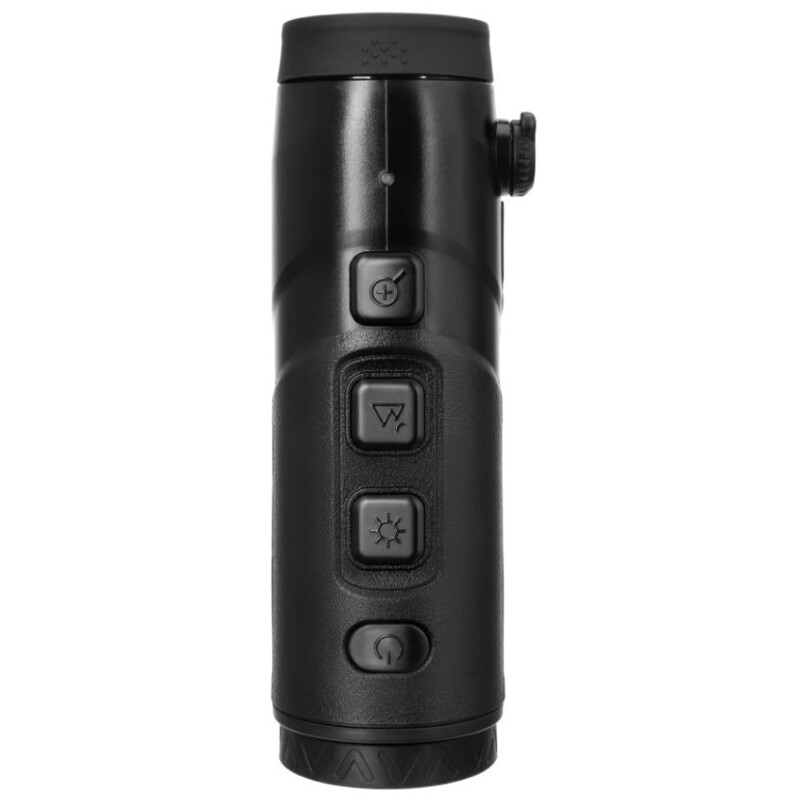

The five available colour palettes can be changed at the touch of a button during observation. There is a function for detecting hotspots. The instrument is also equipped with a laser target marker that allows you to illuminate the object at a distance of up to 200 m.

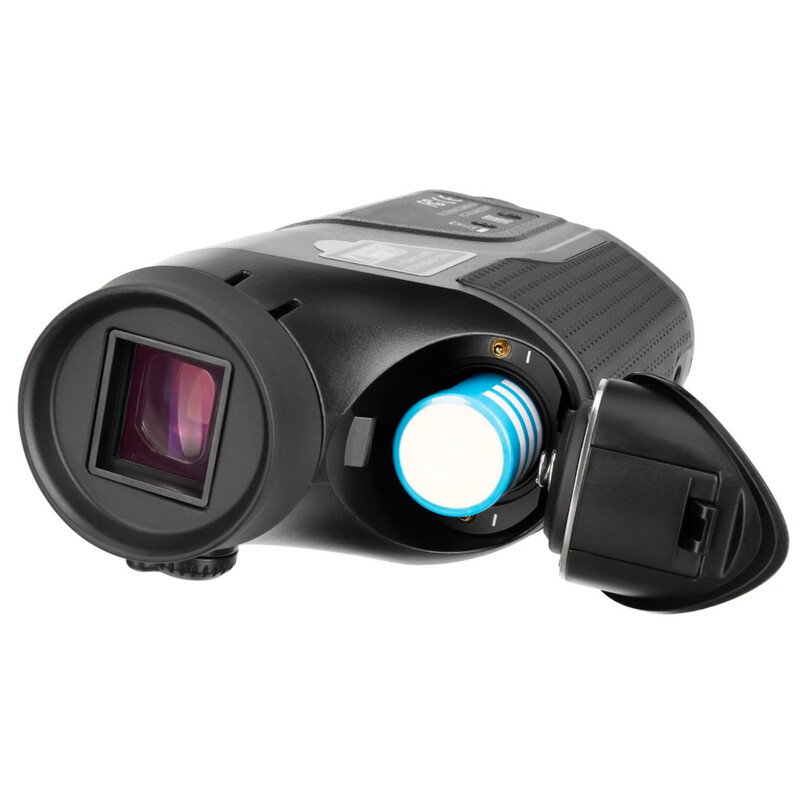

The thermal imaging telescope is powered by a removable, rechargeable battery that provides up to 8 hours of operation on a single charge.

The instrument is waterproof and, thanks to its IP66 rating, can be used in bad weather without compromising on performance. It can be mounted on a tripod (with a standard 1/4-inch thread).

WiFi module: You can also connect the thermal imaging camera to your Smartphone to control the instrument using the TrackIR app. The app allows you to capture real-time images, take photos and videos on your Smartphone (recorder function) and determine the distance to a targeted object (rangefinder function).

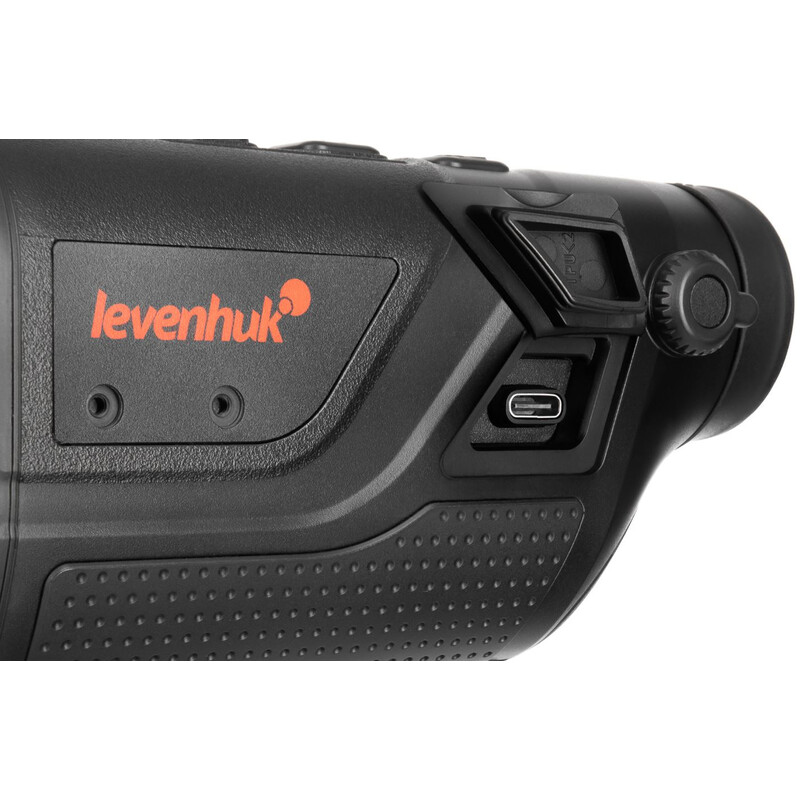

The thermal imaging camera can be paired with other instruments via Bluetooth or a cable using the Type-C connection.

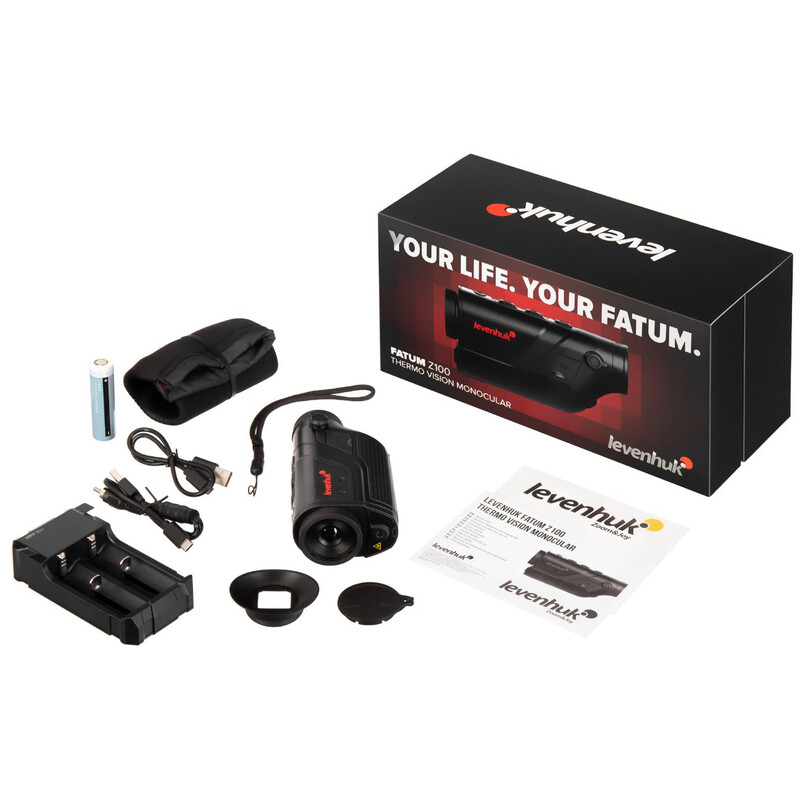

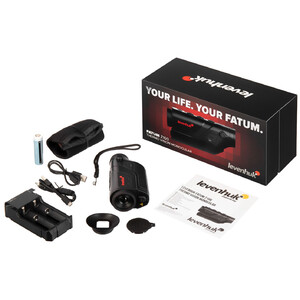

Scope of delivery:

  • thermal imaging camera
  • Micro USB cable
  • Video cable

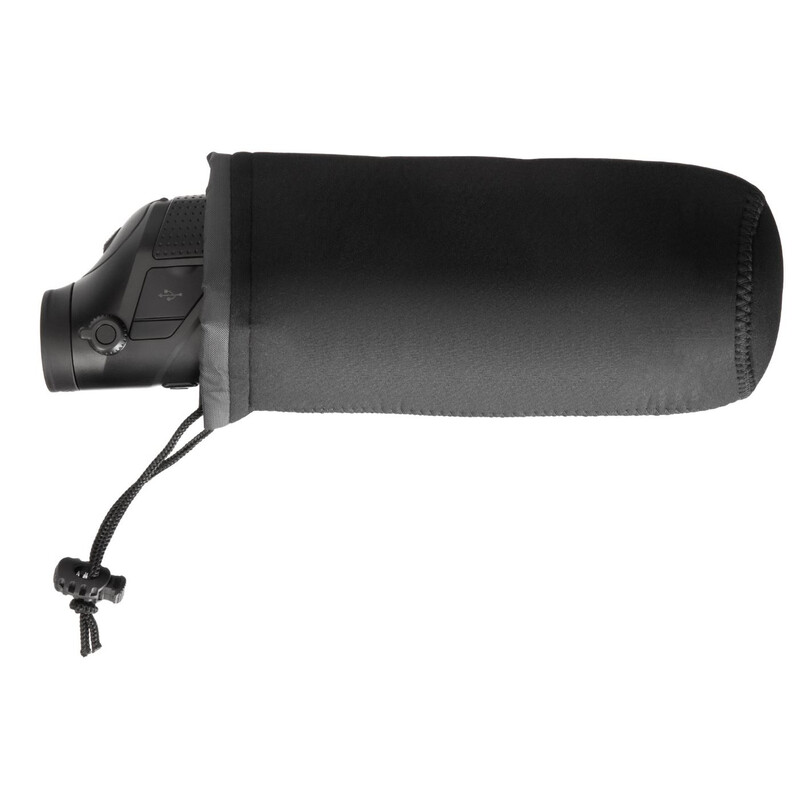

  • Case
  • Carrying strap
  • Battery
  • Battery charger
  • Eyepiece cap
  • Operating instructions

Specifications

Capacity


Type of build
Monocular
Technology
Thermal imaging camera
Front lens diameter (mm)
25
Pixel size
12
Image display
Different versions
Image cycle rate (Hz)
50
temperature resolution (mK)
<50
Battery type
2200 mAh (18650 battery)
Battery durability (h)
8
Display resolution (Pixel)
1280х960
Zoom (digital)
2
Screen size (″)
0,4
Detection distance (m)
1000
Diopter compensation
yes
Sensor type
VOx
Resolution Sensor Thermal (Pixel)
256x192
Lens (thermal)
10mm f:1.0
Enlargement (thermal)
1,5

Special features


Digital imaging
yes
Splash-proof
yes
WiFi
yes

Field of view


True field of view (°)
17,1x13
Close focus limit (m)
0,5

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
-
Cave exploration & Camping
-

General


Colour
black
Series
Fatum

Downloads

Product safety

Manufacturer: Levenhuk Optics s.r.o., V Chotejne 700/7, 102 00 Prag, CZ, www.levenhuk.com
