Product no.: 76596

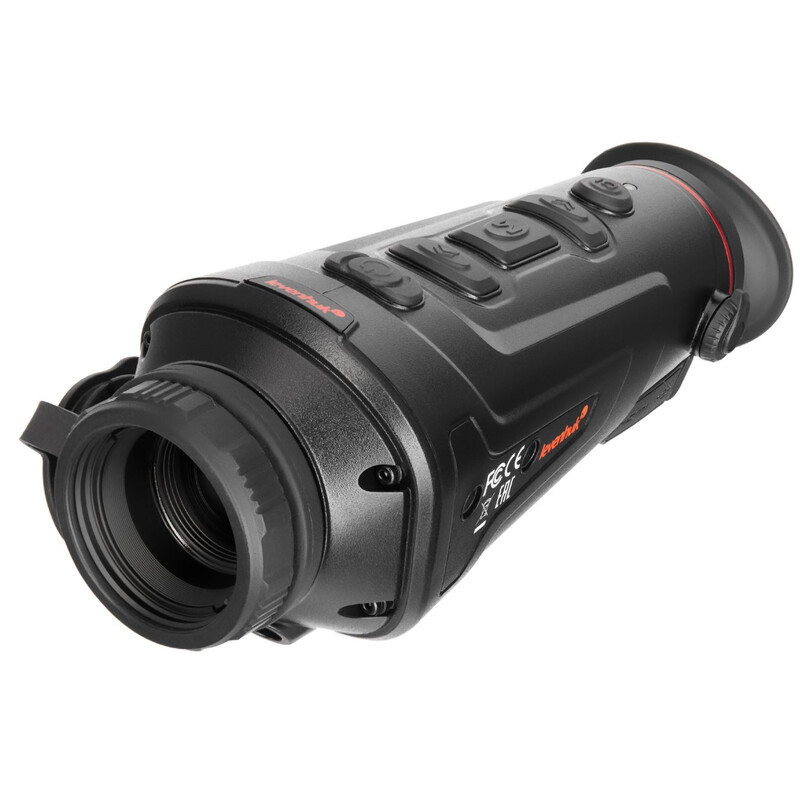

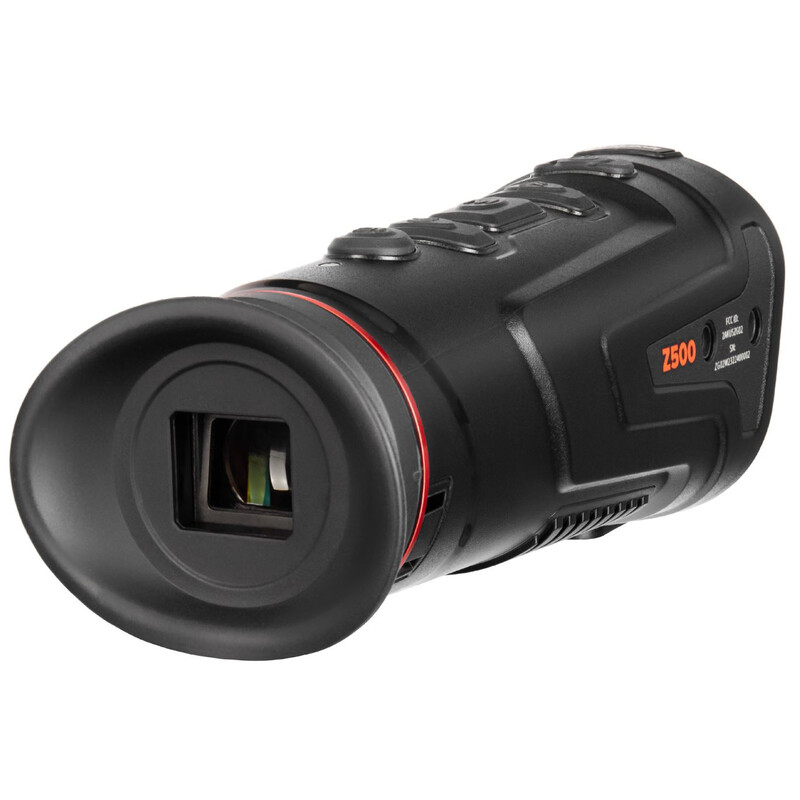

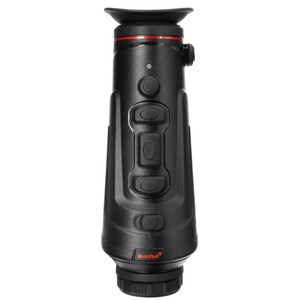

Thermal imaging camera Fatum Z500

$ 3,430.00 incl. VAT, plus shipping costs
too expensive?
on stock
ready for shipping in 24 h + lead time

Product description

Shortly:

  • Optical Magnification: 1.7X
  • Maximum detection range: 1700 m
  • Built-in Wi-Fi and Bluetooth
  • recorder and range finder
  • FLCOS display
  • Removable battery

Levenhuk Fatum Z500 thermal camera can be used for all nighttime activities : security and search operations, hunting, forestry, hiking and camping. It has a compact format, easy to carry, feels good in the hand and can be used even in bad weather.

The instrument has a magnification from 1.7x to 6.8x , and the digital magnification is stepless, offering more freedom in observation. The microbolometer matrix has a resolution of 400x300 pixels and offers a total of 6 basic color palettes. There is a hotspot detection feature.

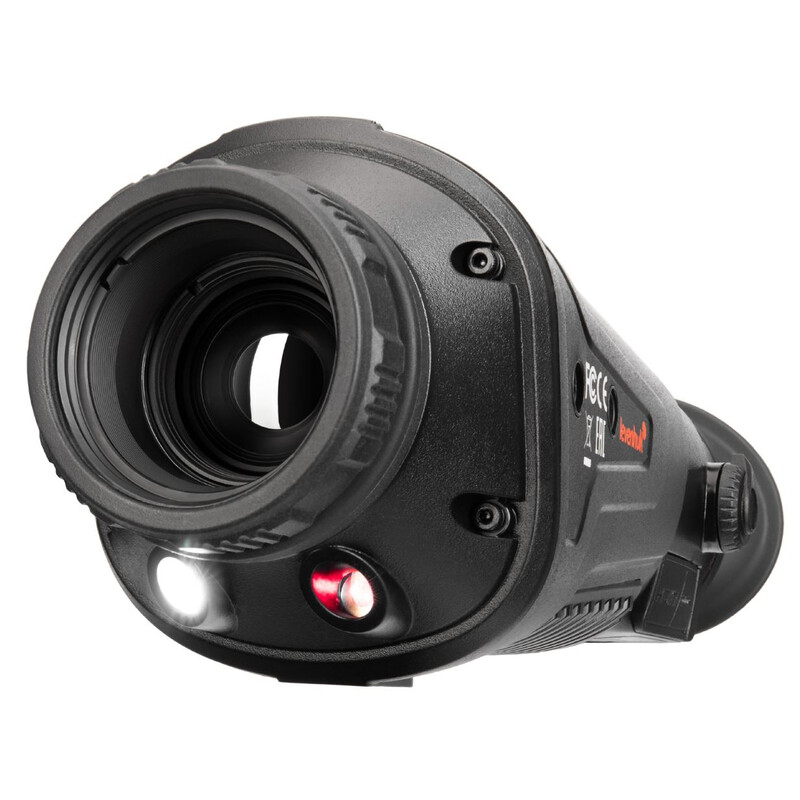

Large objects such as B. a car can be detected at a distance of up to 1700 m , and the classic hunting targets (wild boar, deer, etc.) at a distance of 450-590 m. A target can be illuminated with a laser target marker ; its range is limited to 200 m.

The energy source consists of two rechargeable batteries with a total capacity of 6000mAh. They allow the thermal imaging telescope to be used continuously for up to 5 hours .

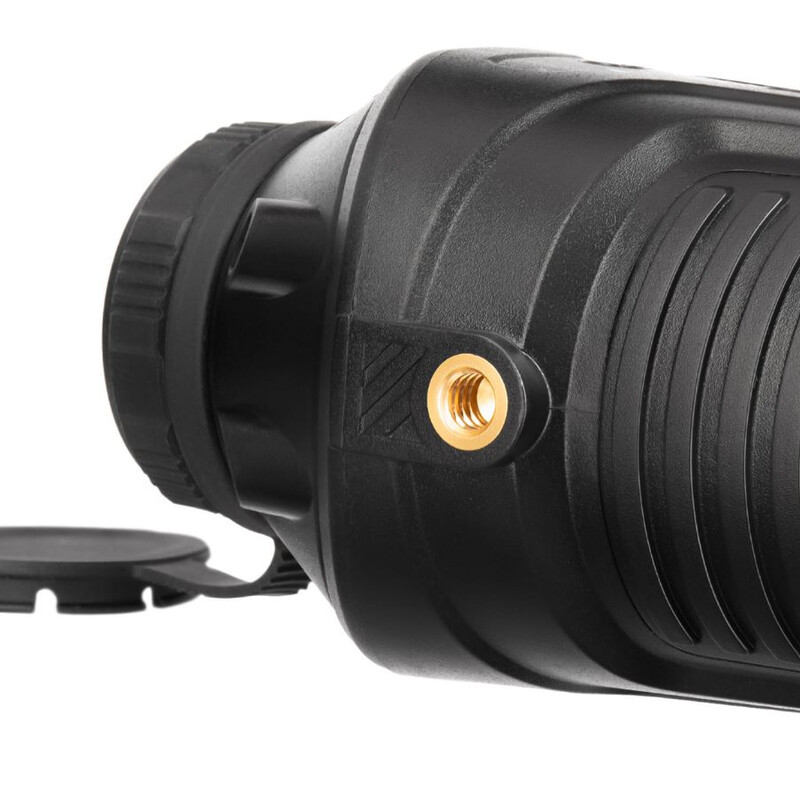

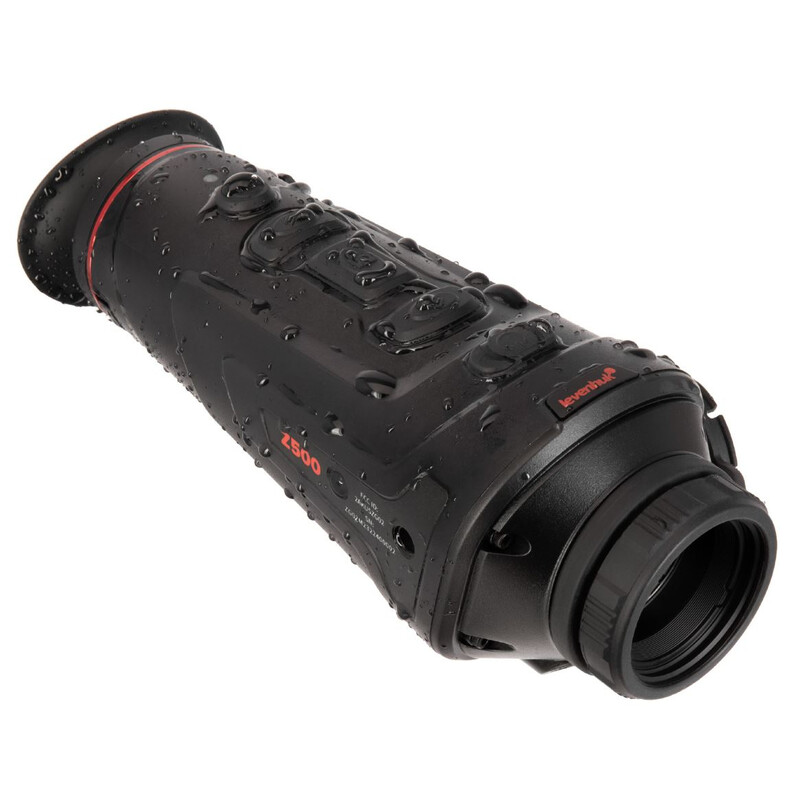

Other features include a tripod mount (1/4 inch thread) and a waterproof housing (protection class IP66).

The thermal camera is equipped with an integrated recorder ; memory for video recording and photos is 16 GB. In addition, a range finder is integrated, with which you can determine the distance to various objects. This feature is especially useful when camping and hunting.

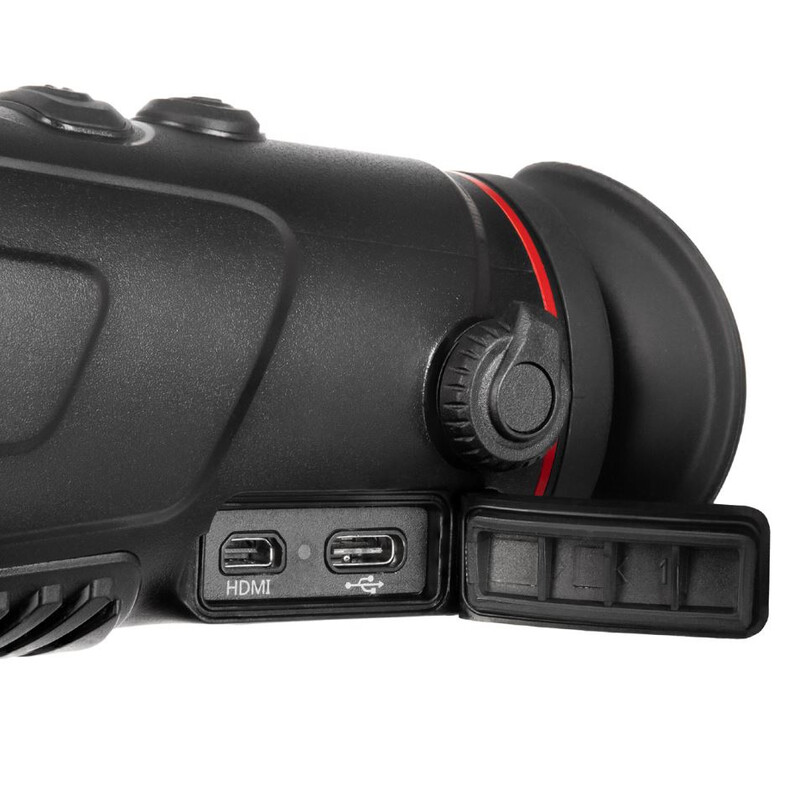

The instrument has an HDMI port , a Type-C port, as well as Wi-Fi and Bluetooth for connecting to external devices. The thermal scope supports the TrackIR smartphone app, which allows you to adjust settings, organize photo and video galleries, or view images on your smartphone screen. This means that several people can use the device at the same time.

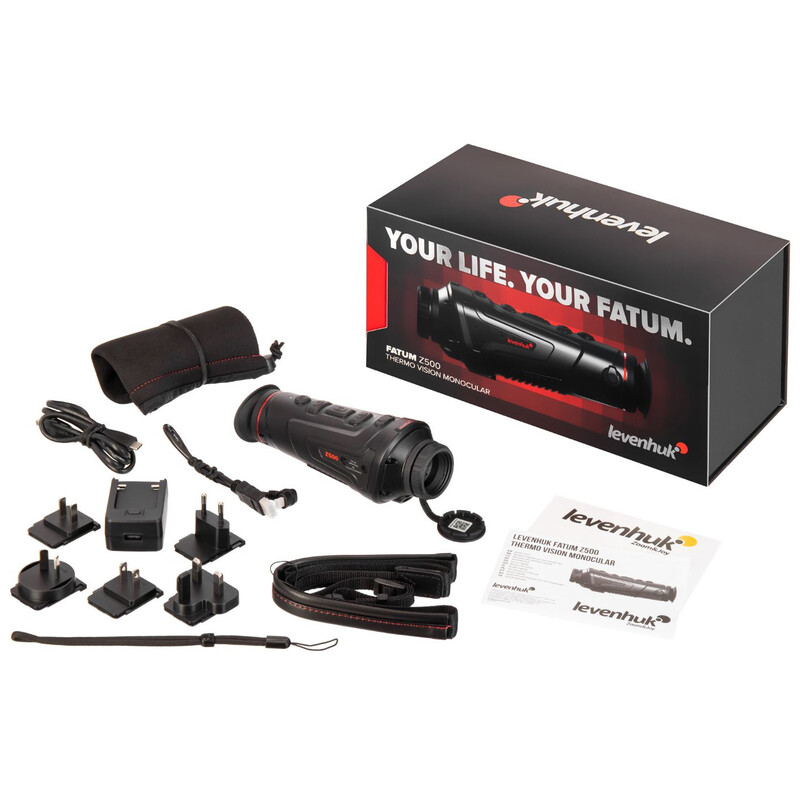

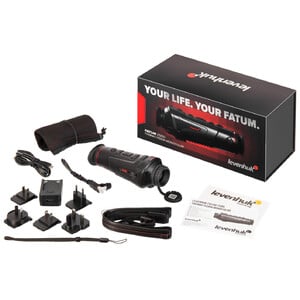

Scope of delivery:

  • thermal camera
  • Micro USB cable
  • video cable

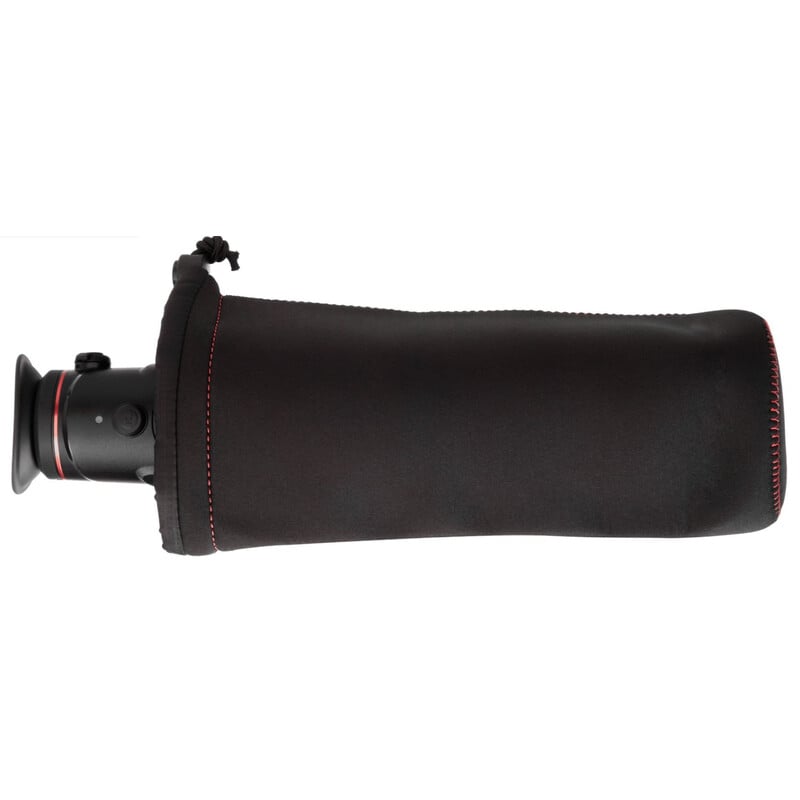

  • case
  • wrist strap
  • battery pack
  • Charger
  • eyepiece protection cap
  • operation manual

Specifications

Capacity


Type of build
Monocular
Generation
Thermal imaging camera
Front lens diameter (mm)
25
Magnification
2,4
Pixel size
17
Image display
Different versions
Image cycle rate (Hz)
50
temperature resolution (mK)
<50
Battery type
3000 mAh (18650 battery)
Battery durability (h)
5
Display resolution (Pixel)
1280х960
Zoom (digital)
2
Sensor resolution (Pixel)
400x300
Detection distance (m)
1700
Diopter compensation
yes
Sensor type
VOx

Special features


Digital imaging
yes
Splash-proof
yes
WiFi
yes

Field of view


True field of view (°)
15,4x11,6
Close focus limit (m)
0,5

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
-
Cave exploration & Camping
-

General


Colour
black
Series
Fatum
