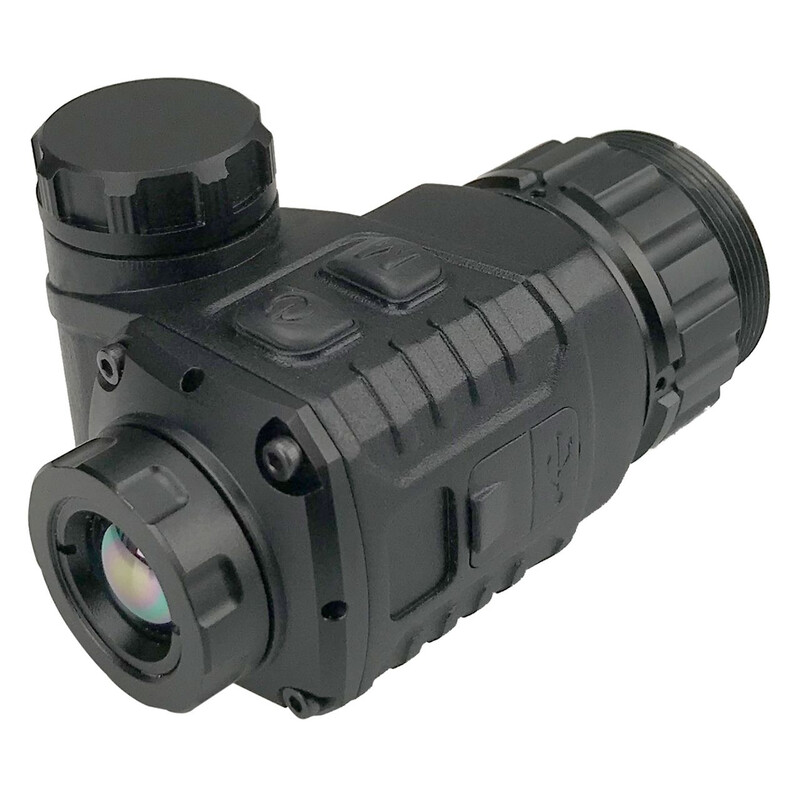

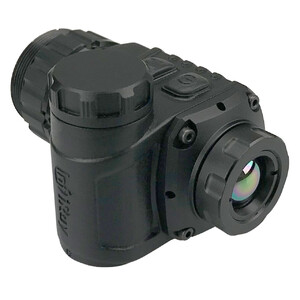

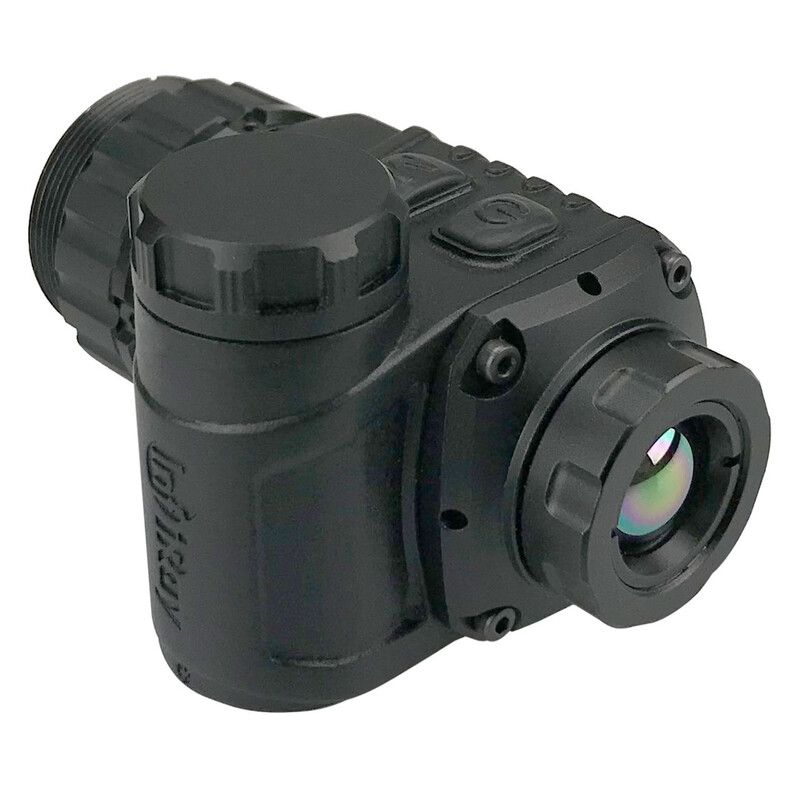

MERLIN-13
MERLIN-13 – one of the smallest and lightest multifunctional thermal imaging attachments currently available
The new MERLIN-13 optics impress with their new 12µm VOx ceramic detector and ultra-compact design. With a system weight of less than 150g and its simplicity, the MERLIN-13 optics set new standards.
The 13 mm front lens, combined with the 12 µm pixel pitch, offers a field of view of 24 m at 100 m and a detection range of 650 m.
The robust housing with IP67 protection class protects against heavy rain and offers simple, intuitive operation even when wearing gloves.
Technical highlights
- VOx ceramic detector with 12µm pitch and 256x192 pixel resolution
- High-resolution OLED display with 1,024x768 pixels
- Field of view: 13.5x10
- Field of view width at 100 m in m: 24
- System weight less than 150 g
- Protection class: IP67
