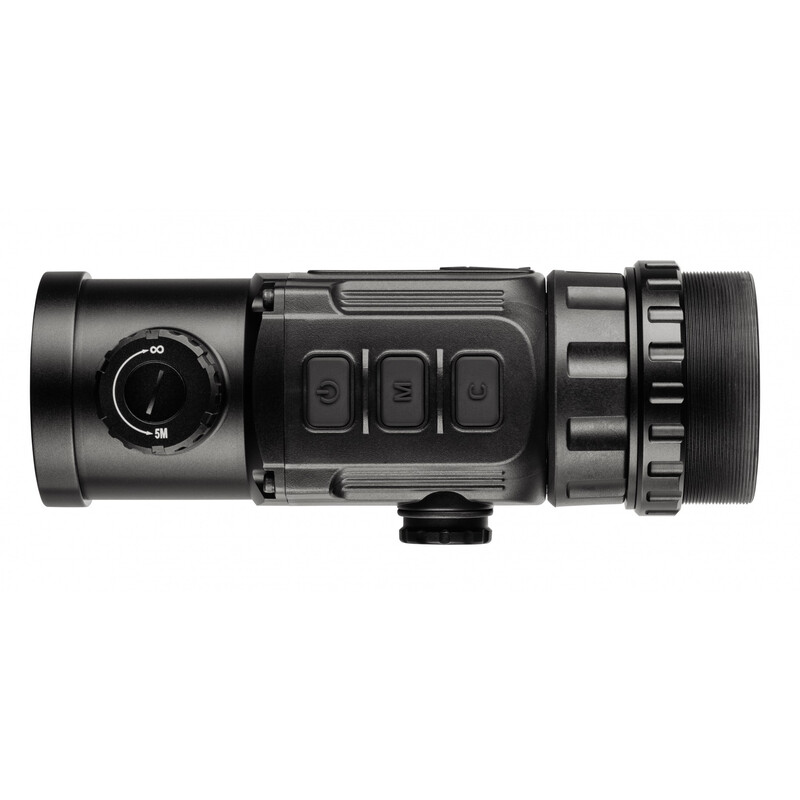

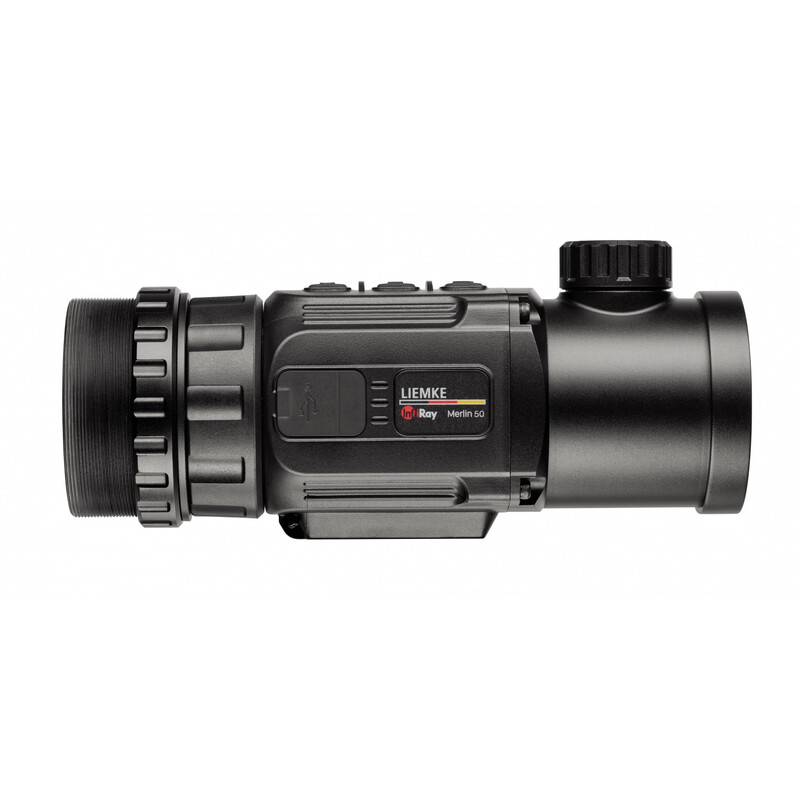

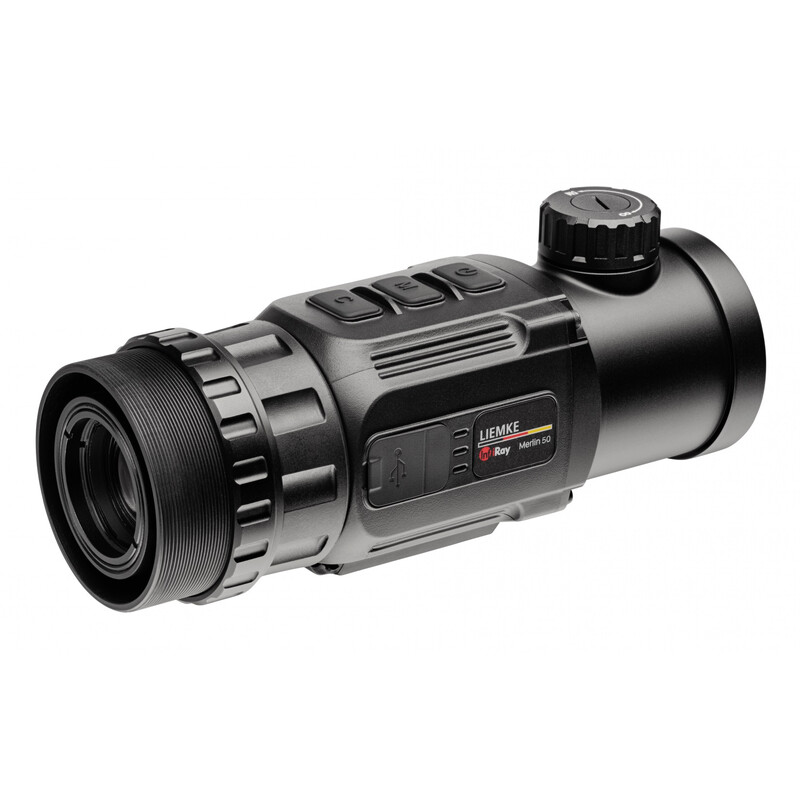

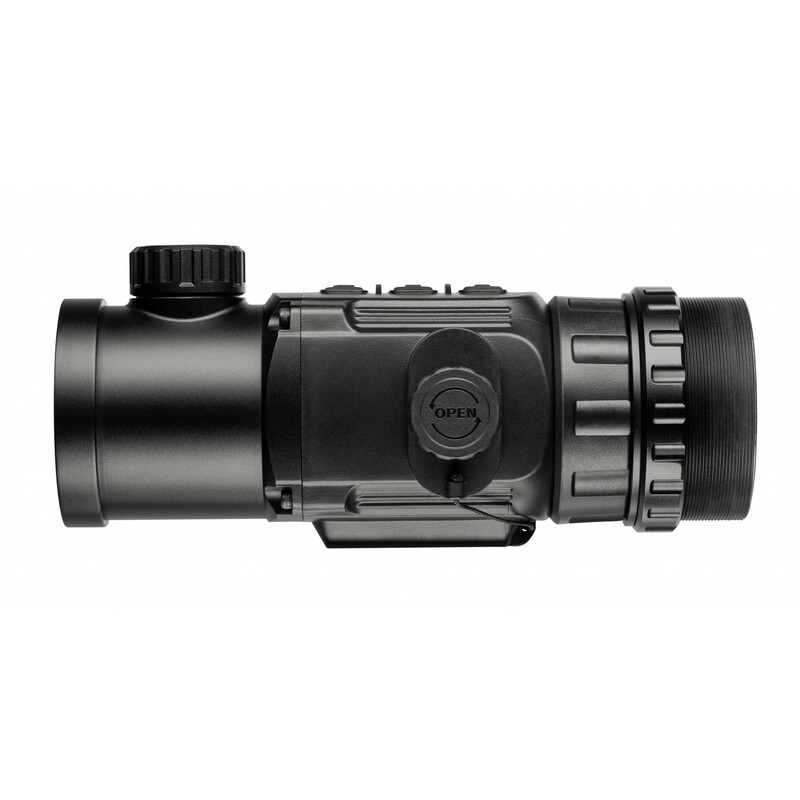

The LIEMKE MERLIN-50 is a high-end dual-use thermal imaging camera that can be quickly and silently mounted as an attachment device thanks to its compact design.
The thermal imaging attachment has a powerful 640x512 VOx detector with 12μm Pixel Pitch. This combination, together with the 50mm objective lens, results in a range of up to 2500 metres.
The MERLIN-50 offers an extremely large field of view of over 15 metres at 100 metres, allowing you to maintain an overview even on the darkest nights.
The instrument has a high image quality, which means that even at high magnification, the game can be seen clearly and sharply. It is ideal for both field hunting and hunting from a blind.
The MERLIN-50 is just as easy and intuitive to use as its smaller sibling, the MERLIN-42. Users can choose between four different colour modes. Just like its predecessors, the MERLIN-50 offers sophisticated focus adjustment and detailed, high-contrast images.
The MERLIN-50 is an absolutely reliable thermal imaging device with a very good price-performance ratio. A real must-have for any passionate field hunter who does not want to compromise on a detailed and high-contrast image, even at long distances.
Technical data:
- Main application: Field
- Objective lens (mm): 50
- Detector material: VOx
- Detector resolution (pixels): 640x512
- Shutter / calibration: auto/manual
- Display resolution (pixels): 1,024 x 768
- Optical magnification: 1x
- Focus: manual
- Digital zoom: 2 / 4x
- Field of view: 8.8x7°
- Field of view width at 100 m in m: 15.4
- Pixel FOV (mRad): 0.24
- Weight (g): 510
- Recording function: no
- WiFi live: no
- Detection (m): 2500
Scope of delivery:
- Merlin-50 thermal imaging camera
- USB/video output cable
- Carrying case with strap
- CR123 batteries (2 pieces)
- Lens protection cover
- Collimator cover
- Operating instructions
