Night vision devices & thermal cameras > Instruments > Thermal imaging cameras > TA32 > Pard Thermal imaging camera TA32 / 25mm LRF
Product no.: 83071

Pard Thermal imaging camera TA32 / 25mm LRF

$ 1,420.00 incl. VAT plus shipping costs
too expensive?
long-term
Product not available anymore + lead time
  • Thermal imaging camera with laser rangefinder
  • VOx sensor 384x288 pixels
  • 12µm sensor with < 35 mK NETD
  • Laser rangefinder up to 1000 m
  • Replaceable 18650 battery

Product description

PARD TA32-25-LRF
Thermal imaging device with laser rangefinders

  • Very lightweight and compact thermal imaging camera
  • With integrated laser rangefinder (range up to 1,000 m)
  • Objective lens with 25 mm diameter
  • Thermal imaging sensor resolution of 384 x 288 px, 12 µm pitch and NETD < 35 mK
  • Detection of heat sources from approx. 2,200 m
  • WLAN, image and video recording function (SD card max. 128 GB)
  • 7 colour palettes available

The lightweight and handy Pard TA32-25-LRF thermal imaging device is universally applicable for both detection and tracking. The thermal imaging camera is interesting for hunters who mainly want to observe small hunting grounds, mixed hunting grounds or at medium distances.

The TA32-25-LRF has a 25 mm objective lens and a VOx sensor with a resolution of 384 x 288 pixels, 12 µm pitch and a sensitivity of 35 mK. The thermal image is displayed on an AMOLED display with a resolution of 1024 x 768 pixels. The instrument has a refresh rate of 50 Hertz.

The TA series offers all the usual functions. For example, it has a WiFi hotspot function to transmit a live image to your mobile device. The TA32 also has a photo and video recording function. To save and retrieve images, you need an external SD card (max. 128 GB). The instrument also has an integrated laser rangefinder that allows you to accurately determine distances of up to 1,000 m.

The handheld device is powered by a standard, replaceable 18650 lithium-ion battery. This can be changed very quickly and quietly. With one battery, you can use the TA for up to 6 hours of continuous operation. Alternatively, the camera can be charged or operated using a standard power bank and a USB-C cable. This means you are well equipped for a long stakeout.

Included in delivery:

  • PARD TA32-25-LRF thermal imaging camera
  • 1x 18650 battery
  • Lens protection cover
  • bag
  • USB cable
  • User manual

Specifications

Capacity


Type of build
Monocular
Technology
Thermal imaging camera
Zoom (digital)
2/4/6/8
Maximum operating distance (m)
2200
Detection distance (m)
733
Pixel size
12
temperature resolution (mK)
< 35
Image cycle rate (Hz)
50
Display resolution (Pixel)
1024x768
Image display
Different versions (White Hot / Black Hot / Red Hot / Fusion 1 / Fusion 2 / Iron Red 1 / Iron Red 2)
Diopter compensation
+/- 5
Battery durability (h)
6

Special features


Infrared illuminator
-
Digital imaging
yes
Video connection
yes
Headmount
-
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
ancillary lenses available
no
WiFi
yes
attachment
no
Rangefinder
yes (Laserrangefinder 1000m)

Field of view


True field of view (°)
10,5x7,9
Close focus limit (m)
18,3

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General


Colour
black
Length (mm)
154
Width (mm)
68
Height (mm)
44
Weight (g)
330
Series
TA32

Product safety

Manufacturer: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, www.nimax.de
Responsible person: NIMAX GmbH, Otto-Lilienthal-Str. 9, 86899 Landsberg am Lech, DE, [email protected]

Recommended accessories

Night vision devices & thermal cameras (1)

Pard HM5 5" LCD

$ 339.00*
Maintenance & Cleaning > Lens cleaners (4)

Zoomion cleaning system

$ 4.90*
Maintenance & Cleaning > Other (2)

Omegon microfibre cleaning cloth 20cm x 20cm

$ 5.90*

*All prices include VAT plus shipping costs.

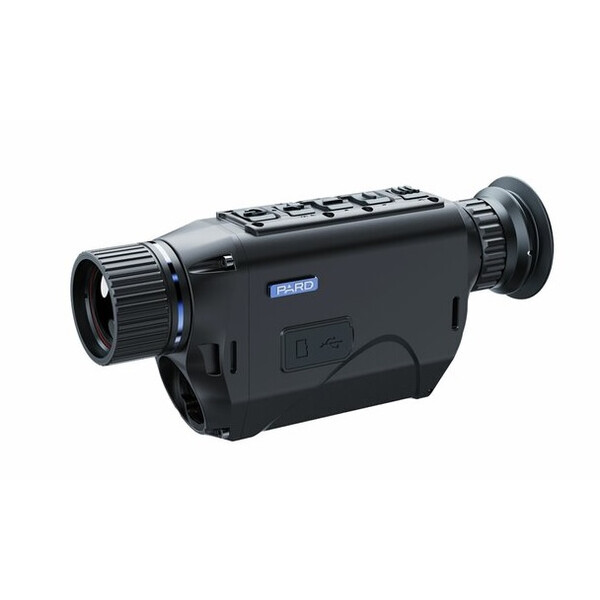

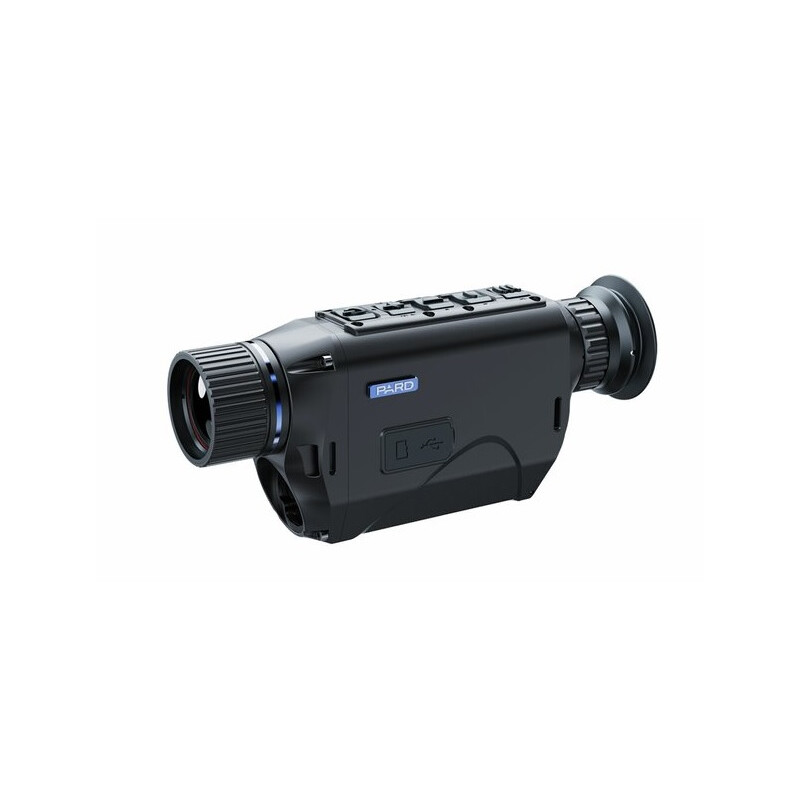

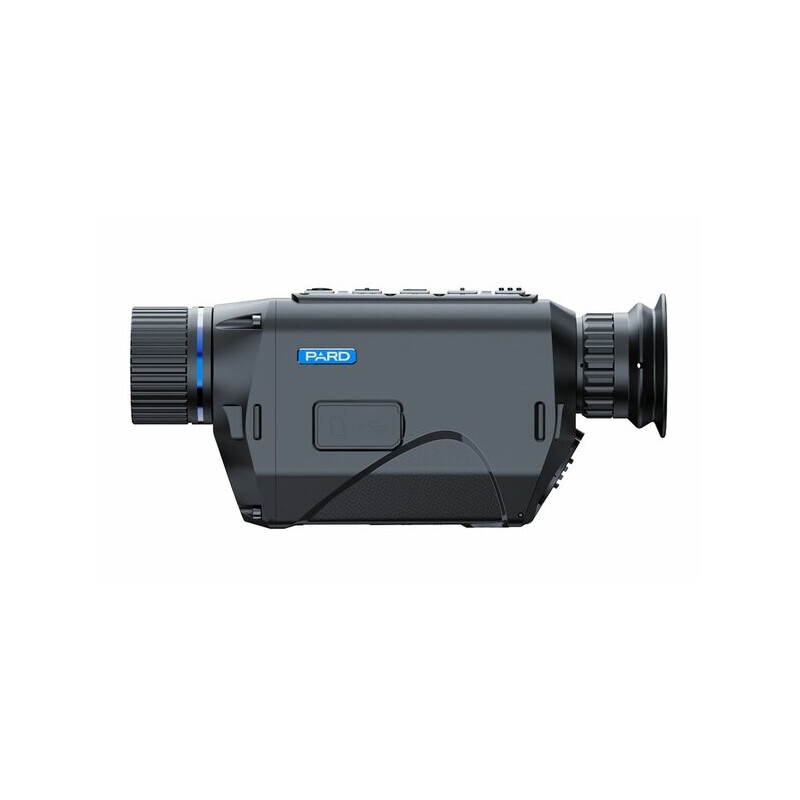

Pard Thermal imaging camera TA32 / 25mm LRF

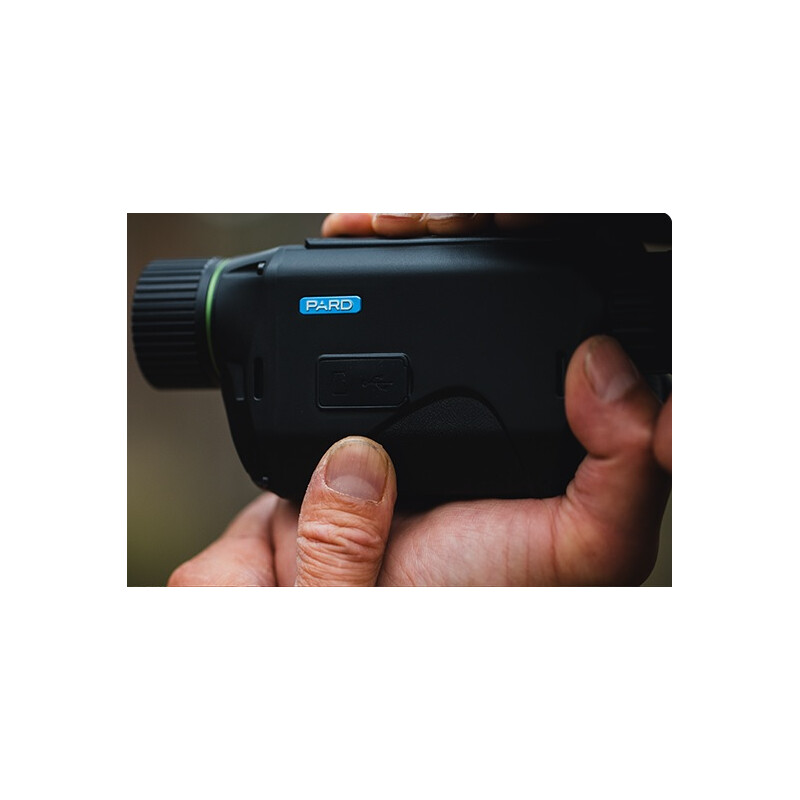

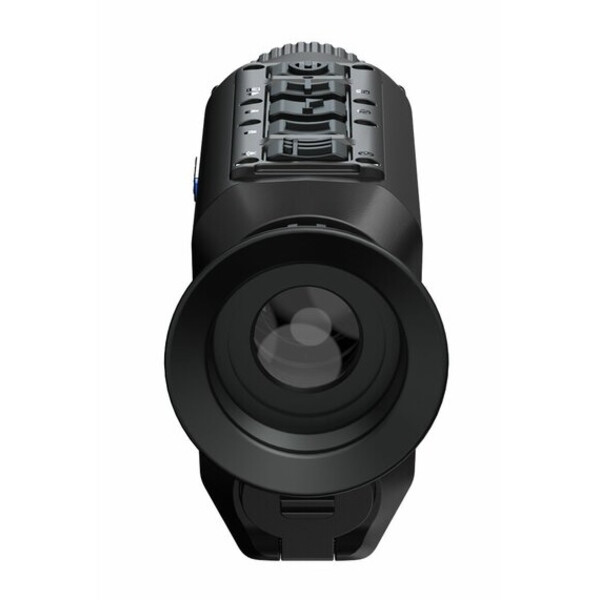

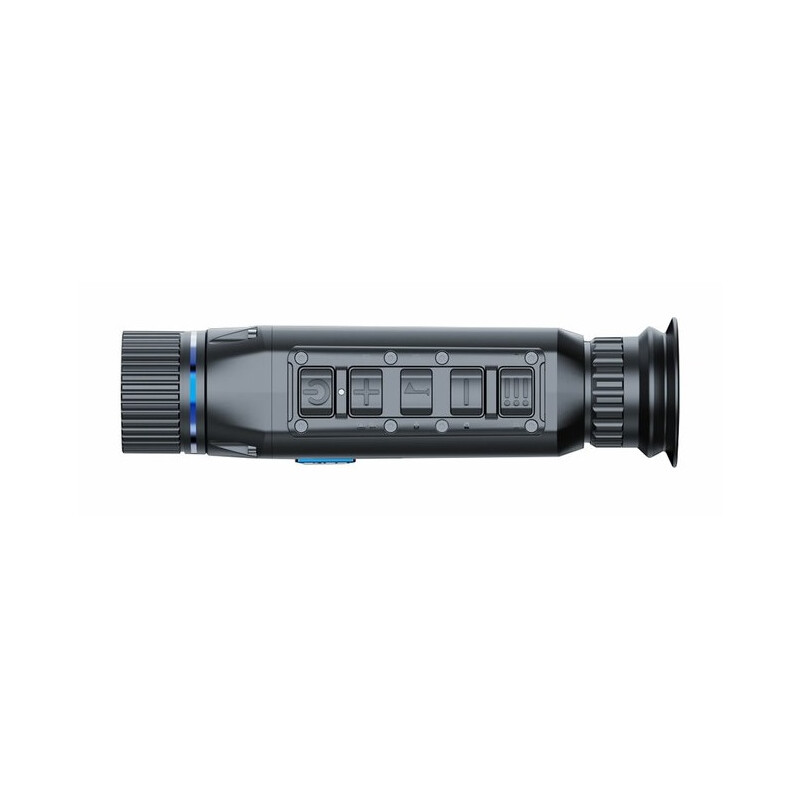

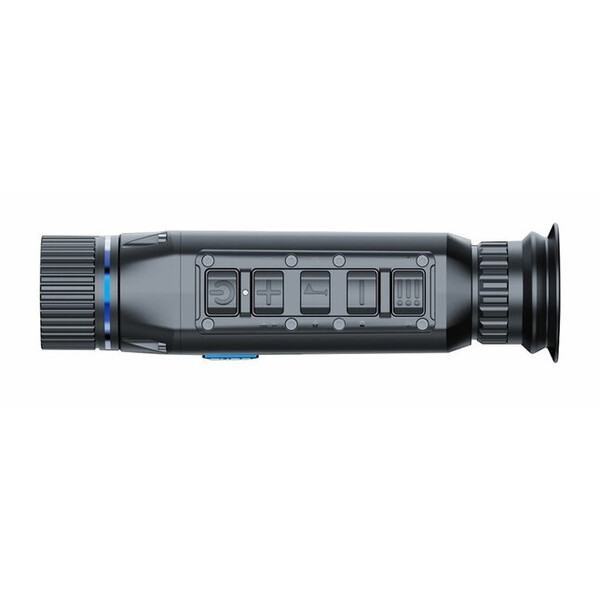

Ergonomically positioned control buttons

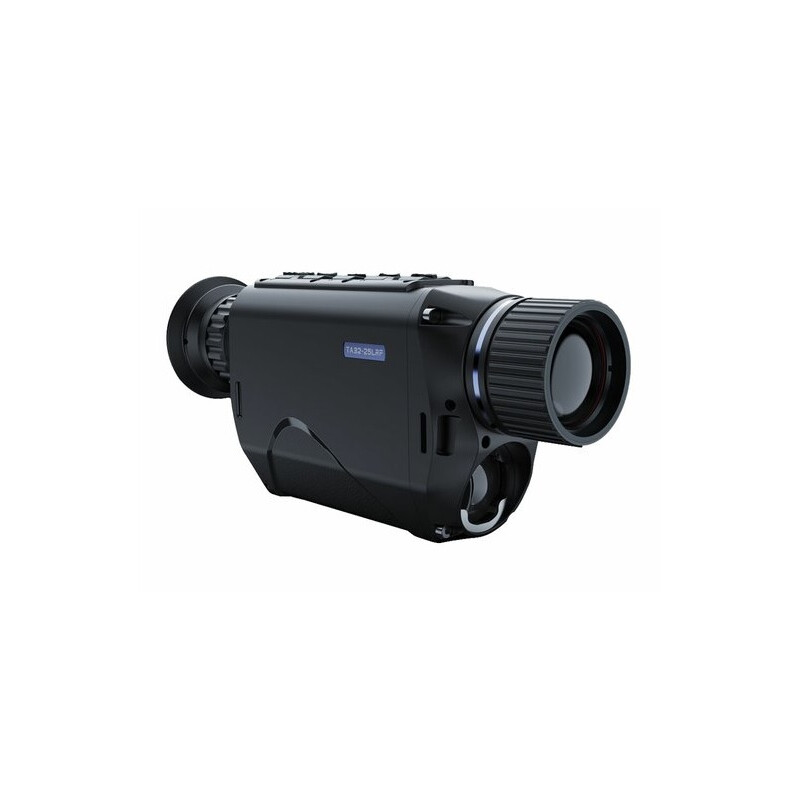

Pard Thermal imaging camera TA32 / 25mm LRF

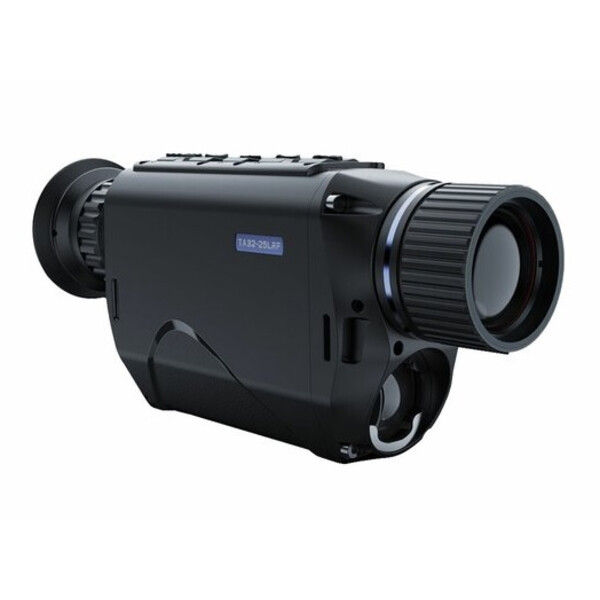

Thermal imaging camera with laser rangefinder up to 1000 metres
