Product no.: 71624

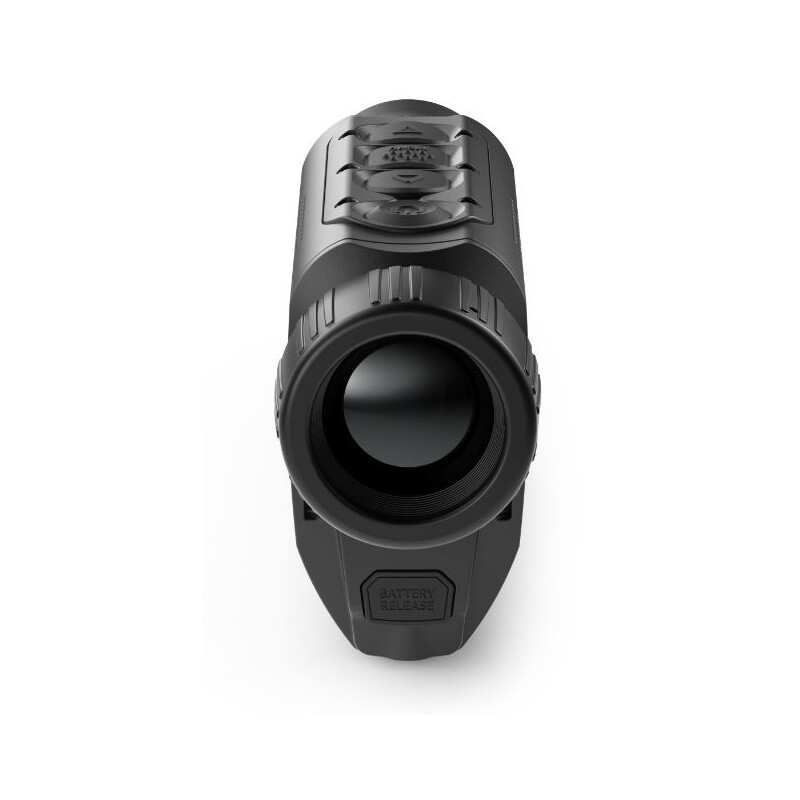

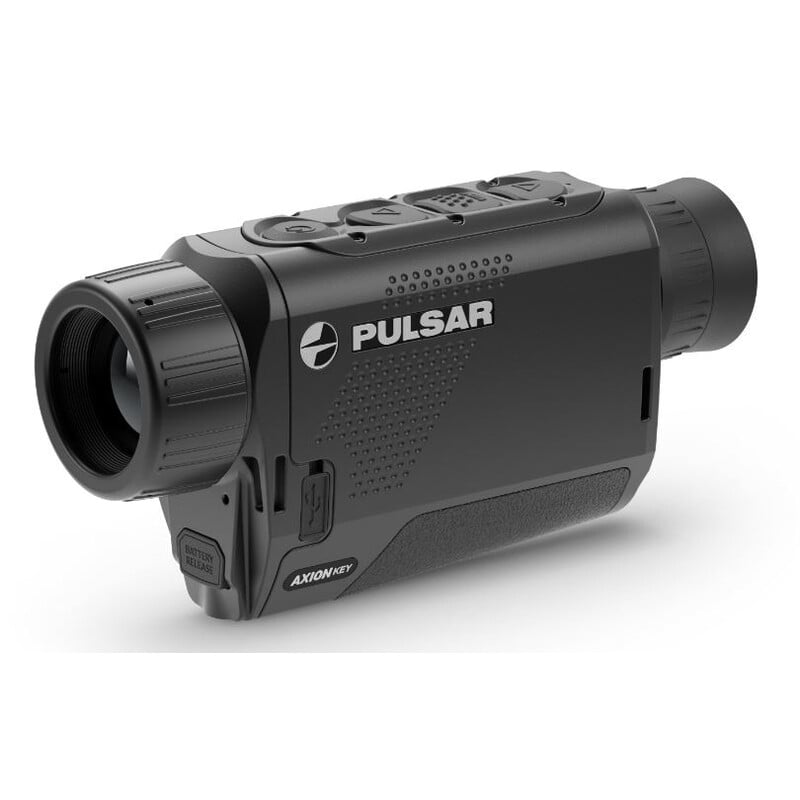

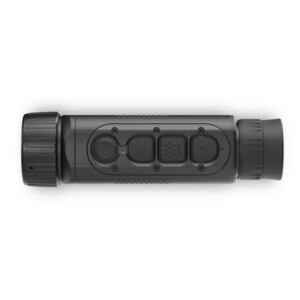

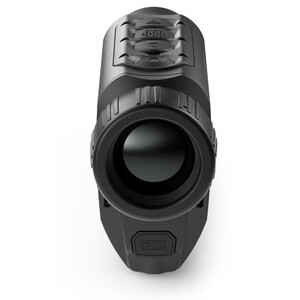

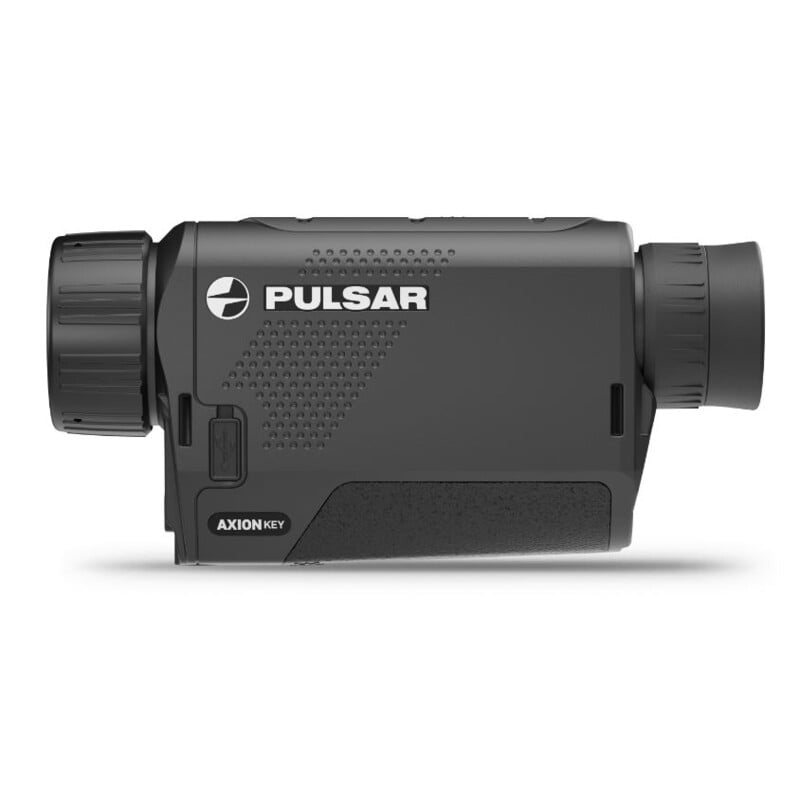

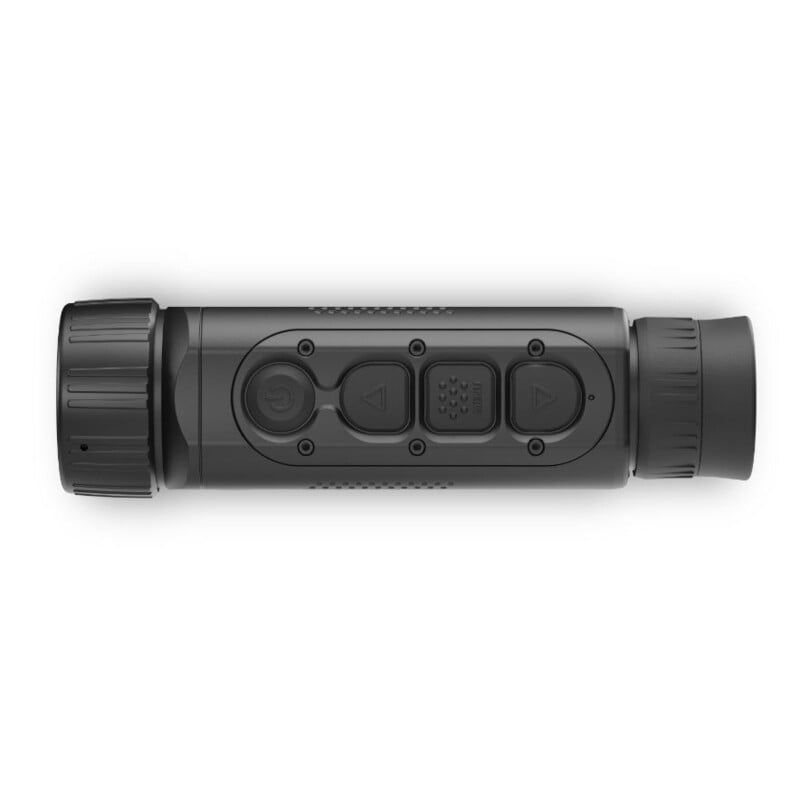

Axion Key XM30 thermal imaging camera

$ 1,360.00 incl. VAT
long-term
Product can be shipped as of 01.09.2022 + lead time

Product description

PULSAR Axion Key XM30 thermal Imaging camera

  • Long detection range of up to 1,300m
  • Robust all-metal housing
  • Picture-in-picture mode
  • LCOS micro display
  • Completely waterproof
  • Dimensions: 143 x 41 x 69 mm
  • Weight: 250g
  • Scope of supply: thermal imaging camera, APS3 battery, charger, USB cable, case, wrist strap, cleaning cloth

Adventure in the world of darkness

Thanks to its pocket size, the Axion fits perfectly in one hand, which means excellent handling and great usability. The compact design makes it the ideal thermal imaging monocular for tracking or for spontaneous observation.

Long detection range

A powerful objective lens combined with the 12µm professional thermal imaging sensor offers exclusive detection possibilities. A 1.8 metre tall object can be detected from a distance of 1,300 metres in absolute darkness.

12 µm thermal imaging sensor

The new 12µm thermal imaging sensor allows for higher magnification and a greater observation range. This also enabled the unit to be so compact in design.

Robust all-metal housing

The magnesium alloy metal construction ensures the device's rigidity and high dielectric strength together with a low weight and extremely good ergonomics.

High optical magnification

Axion offers the highest magnification in the compact thermal imaging camera class. The optical magnification can be increased with a digital zoom to effectively identify the objects being observed.

Instant power on

Thanks to innovative electronics, the device can be started almost immediately. The quick start helps to save energy and to prolong the operating time. The Axion can be reactivated very quickly when needed.

LCOS micro display

High-contrast LCOS micro display delivers good resolution and ensures a sharp and vividly coloured image.

Completely waterproof

IPX7 water protection protects the Axion from heavy rain, snow or other precipitation. The device can even survive a 30-minute immersion in water that is 1 metre deep.

Low weight

Low weight becomes a particularly important parameter when carrying equipment in a rucksack on long hikes, when every gram counts. The Axion weighs around 300 grams - no more than a normal range finder, but offers an exceptionally wide range of functions.

Picture-in-picture mode

When activated, the picture-in-picture function displays a small window with the zoomed part of the image at the top of the screen.

Specifications

Capacity

Type of build
Monocular
Generation
Thermal imaging camera
Magnification
2.5 - 10
Detection distance (m)
1300
Sensor resolution (Pixel)
320x240
Sensor type
LWIR
Pixel size
12
Image display
Different versions
Image cycle rate (Hz)
50
Diopter compensation
yes
Battery durability (h)
4

Special features

Digital imaging
yes
Video connection
yes
Overexposure protection
yes
Day-night-system
yes
Splash-proof
yes
Threaded tripod connector
yes

Field of view

True field of view (°)
7.3
Field of view at 100 m (m)
12.8
Close focus limit (m)
3

Area of application

Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General

Colour
black
Length (mm)
143
Width (mm)
41
Height (mm)
69
Weight (g)
250

Miscellaneous

Battery type
Specific to manufacturer
