PULSAR MERGER LRF - Thermal imaging binoculars
class thermal imaging performanceThe Merger LRF is our classic thermal imaging binoculars with integrated laser rangefinder. These binoculars are remarkably ergonomic and comfortable. They allow observation with both eyes and reduce eye fatigue. They are equipped with first-class components that stand for European quality.
The Merger LRF series offers a wide range of European-made sensors tailored to the different needs of users:
- The compact Merger LRF XQ35 is perfect for those who are constantly on the move.
- The highly sensitive Merger LRF XP50 impresses in all weather conditions.
- The smaller Merger LRF XP35 offers the widest field of view in its class at 17.8°.
- The Merger LRF XL50 offers HD thermal imaging resolution and delivers detailed images even at high zoom levels.
- The premium Merger LRF XT50 instrument offers exceptional performance. Large field of view of 17.5° and excellent image quality thanks to HD thermal sensor with 1280×1024/12µm.

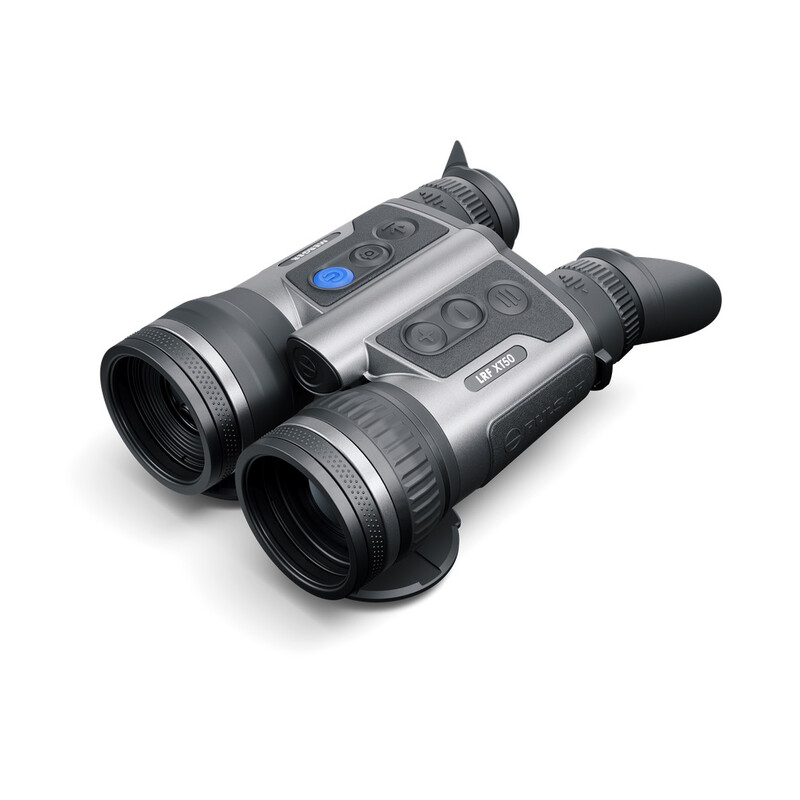

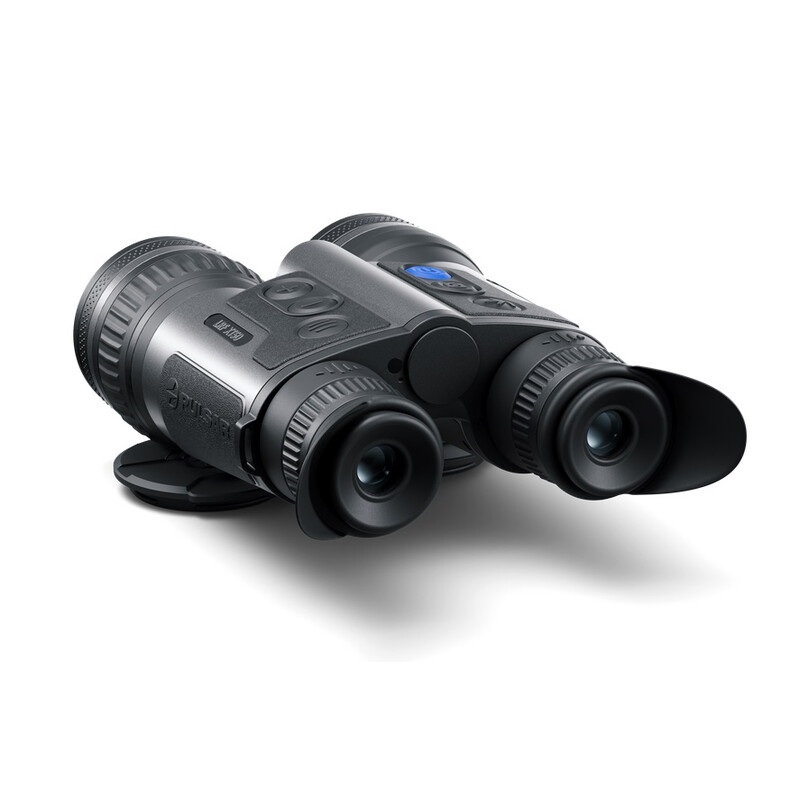

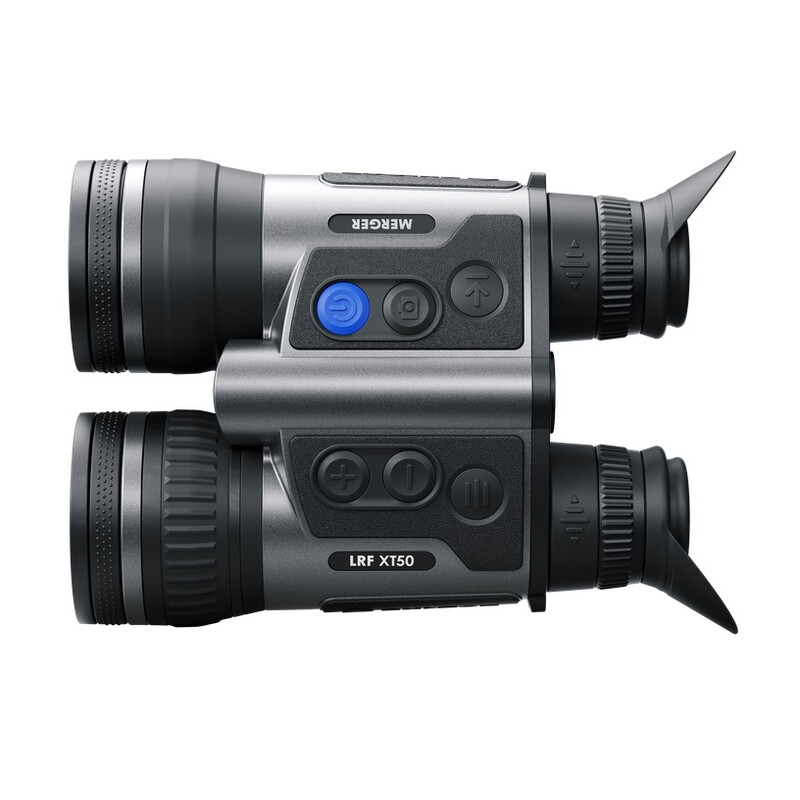

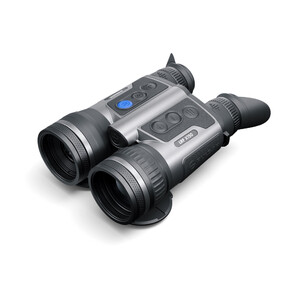

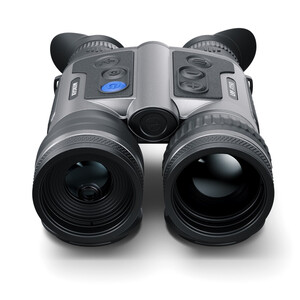

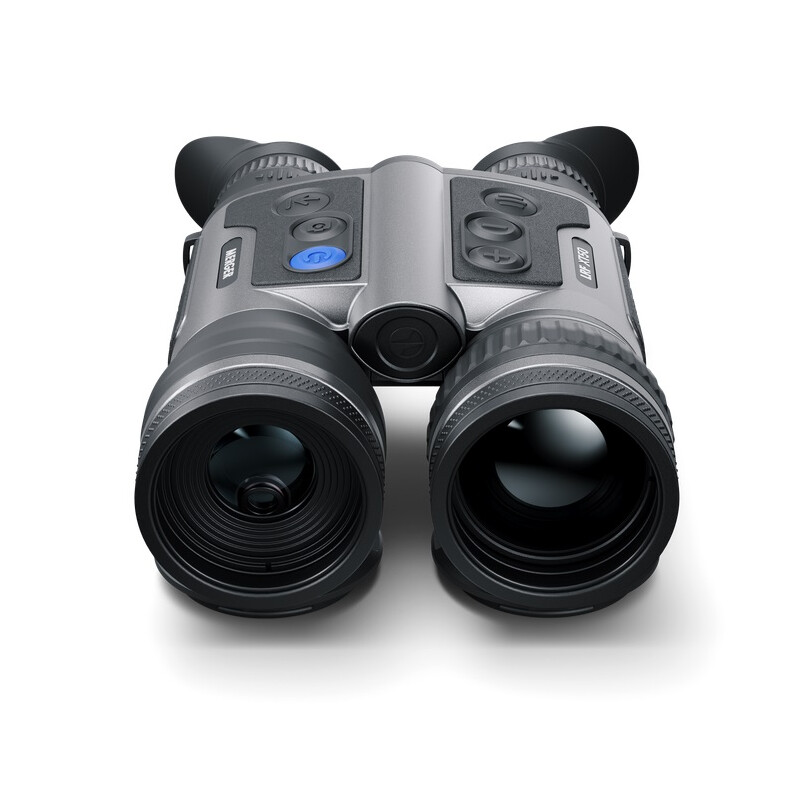

PULSAR MERGER LRF XT50
The premium model of Pulsar thermal imaging binoculars. The Merger LRF XT50 offers exceptional image detail thanks to its 1280x1024 pixel thermal imaging sensor and new AMOLED microdisplay with 1280x960 pixels. The Merger LRF XT50 offers a wide field of view of 17.5 degrees and 2x to 16x magnification.
Main specifications
- Sensor @ 12 µm 1280x1024
- Objective lens 50 mm f:1.0
- Magnification, 2 – 16x (8x digital zoom)
- Field of view (HxV), degrees 17.5 х 14
- Field of view (HxV), m@100m 30.7 х 24
- Diopter adjustment, D -5/+4
- Recognition range 2300m
Laser rangefinders
- Maximum measuring range, 1500m
- Measurement accuracy, ± 1m
Thermal imaging sensors manufactured in Europe
The Merger LRF series offers an unrivalled thermal imaging experience. Merger binoculars use professional thermal imaging sensors manufactured in Europe for image capture:
- 12-micron sensors 1280×1024 and 1024×768 offer high-resolution image quality.
- 17-micron sensors 640×480 and 384×288 offer extreme thermal sensitivity.
Detailed and sharp image even at high zoom
The optical magnification of the instrument can be increased using the digital zoom. Even at the highest zoom level, the image sharpness is sufficient to detect even the smallest object details. Advanced algorithms improve image quality and help to produce a sharp and detailed image.
Thewide field of viewsimplifies scanning and detection of warm objects, minimises the effects of image shake and increases situational awareness. Excellent image detail at base magnification combined with the wide field of view ensures more comfortable observation and better perception of the scene.
Extra-long detectionrange
Powerful germanium optics combined with professional thermal imaging sensors offer exceptional detection capabilities. Top Merger LRF instruments can detect warm objects at distances of over 2 km.
user modeUse the brightness and contrast settings to maximise the detail and clarity of the image under specific observation conditions. The "user mode" function saves the selected brightness and contrast settings in the instrument's memory, ensuring optimum image quality the next time you use the thermal imaging camera without the need for additional settings.
Classic binocularsdesign
Merger's LRF thermal imaging binoculars feature the classic design of daylight binoculars. With its small form factor, these thermal imaging binoculars fit comfortably in the hand, yet offer an attractive exterior and exemplary ergonomics. The six function buttons are located in the comfort zone and the most frequently used digital device functions are activated with a single touch.
Comfortable viewing experience with both eyes
The optical design of the Merger LRF binoculars takes into account the nature of human vision. It is natural for humans to receive visual information through two visual channels simultaneously. Seeing with two eyes is less tiring than seeing with one eye. This means better detection of small or faint objects and better performance in low-contrast scenarios than similar monocular thermal imaging devices with the same technical level. The eye relief of the Merger LRF binoculars is adjustable from 63 to 74 mm to suit the individual characteristics of each user.
precise laser rangefindersUnderstanding the distance to the target is an essential factor in making the right decisions. With the built-in laser rangefinder, you can measure distances in single measurement and continuous scanning modes with an accuracy of ± 1 m, allowing you to assess the situation quickly and without error.
combined dual battery systemThe Merger LRF series is powered by two rechargeable batteries: one built-in with a capacity of 4 Ah, the other replaceable with a capacity of 3.2 Ah.
Additional features:
- High-quality reinforced magnesium alloy housing
- Built-in photo and video recorder
- Stream Vision 2 Wi-Fi integration with iOS and Android instruments
- Improved Wi-Fi connectivity with support for the 2.4/5 GHz wave band
- High-contrast HD AMOLED screens
- Waterproof to IPX7
- Wide operating temperature range (-25 to +50 °C)
- A choice of 8 colour palettes
- Distance sensor
- Picture-in-picture
- 3 levels of sensitivity enhancement
- Optics with large f1.0 aperture
