Night vision devices & thermal cameras > Instruments > Thermal imaging cameras > Seek Thermal > CompactPRO > Seek Thermal Thermal imaging camera CompactPRO FASTFRAME IOS
Product no.: 53494

Thermal imaging camera CompactPRO FASTFRAME IOS

$ 640.00 incl. VAT, plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

No delivery possible before christmas
Check alternatives on stock or order a voucher!


Product description

Please keep in mind that this product is subject to export regulations!

For transfer out of the following countries you may need a license.
Germany, Austria, Belgium, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, Finland, France, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, United Kingdom

Please clarify this matter before starting for a hunting trip or buisness trip.

Seek Thermal CompactPRO
Affordable, High-Performance Thermal Imaging

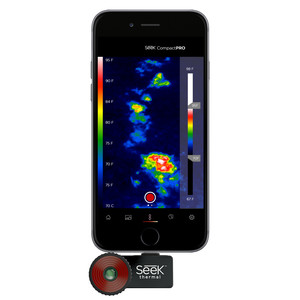

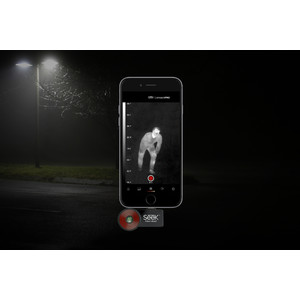

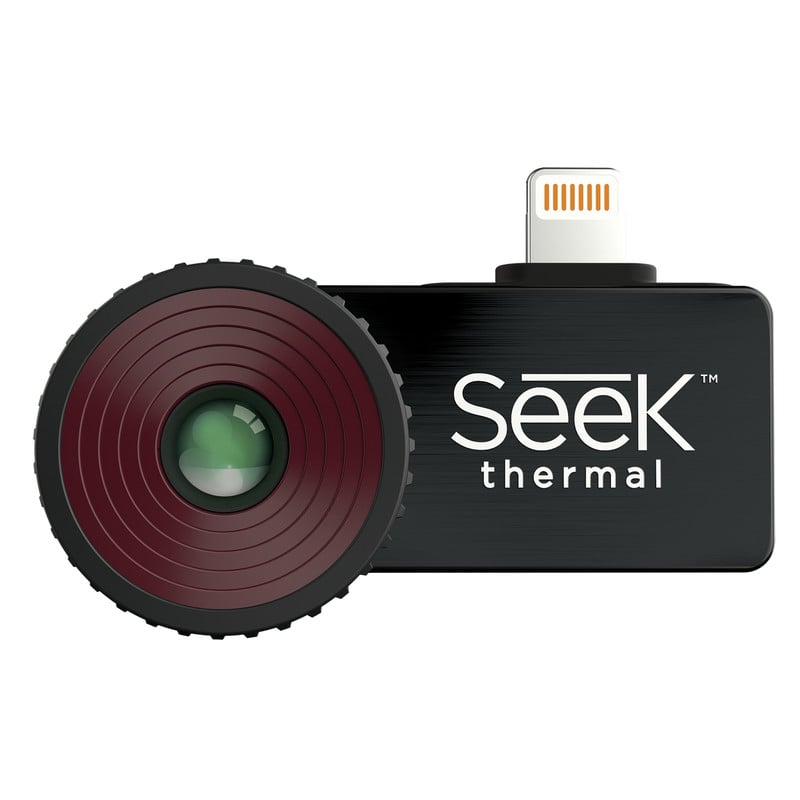

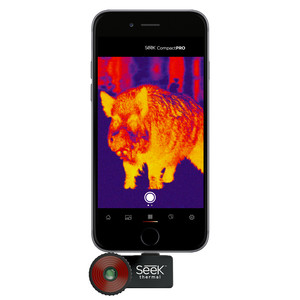

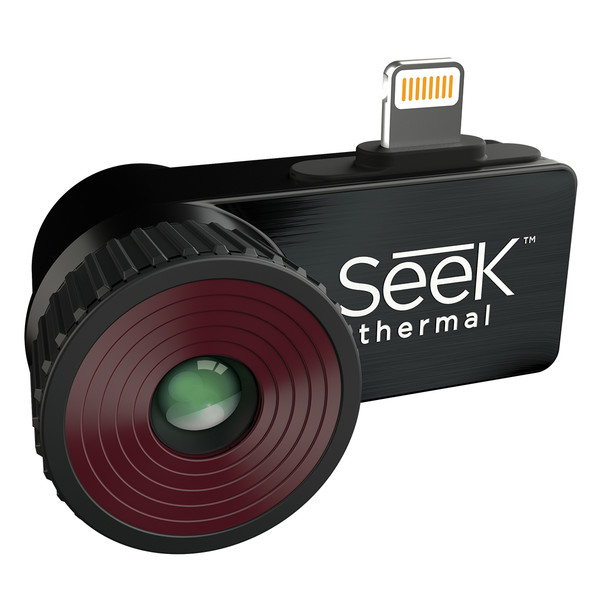

CompactPRO is our most advanced thermal imaging camera designed for your smartphone. Made for iPhone® and Android™ top models, this highly-portable thermal imaging camera features a large, 320x240 thermal sensor with high sensitivity and a wide, 32-degree field of view. Offering adjustable thermal span, level, and emissivity settings, the CompactPRO delivers unprecedented high-resolution thermal imaging and software capabilities available at this price.

Newly Enhanced Mobile App and Software Features
Seek’s newly enhanced free mobile App software, available for download in all iTunes and Google Play stores, now features an entirely new human-centered user design that maximizes the power of the smartphone processor and adds feature-sets engineered for the needs of the commercial and industrial end user. Select new key software features include:

  • Thermal Level and Span
    Easily set and lock a temperature range to display the maximum thermal information of any object or scene with a set point and range.
  • Emissivity Control
    Calibrate for emissivity through easy, pre-defined settings. Compensate for various surface materials, ensuring accurate readings and reporting.
  • New Image Color Palettes
    Enhanced palette options provide the visual capabilities necessary to help users easily examine and understand thermal imagery.
  • Full Frame Thermography
    Choose from 4:3 or 16:9 formats displaying all temperature data for the maximum clarity and options responsive to your device format and size.
  • Complete with 9 User Modes
    including Spot temperature, High / Low temperature, Level and Span, Above Threshold, Below Threshold, Equal Threshold, and Thermal+ Visible.


Utilize the Power and Display of Your Smartphone
Intuitive, free mobile app available on Google Play and iTunes App Store

See More Detail Where You Need it Most
Level and Span controls let you isolate and capture the details that matter

Accurately Inspect Mechanical and Electrical Equipment
Adjustable Emissivity lets you calibrate for reflective surfaces when accuracy is critical

Focusable Lens for Quick Identification
Aim and focus from 6 inches to 1,800 feet for the sharpest image

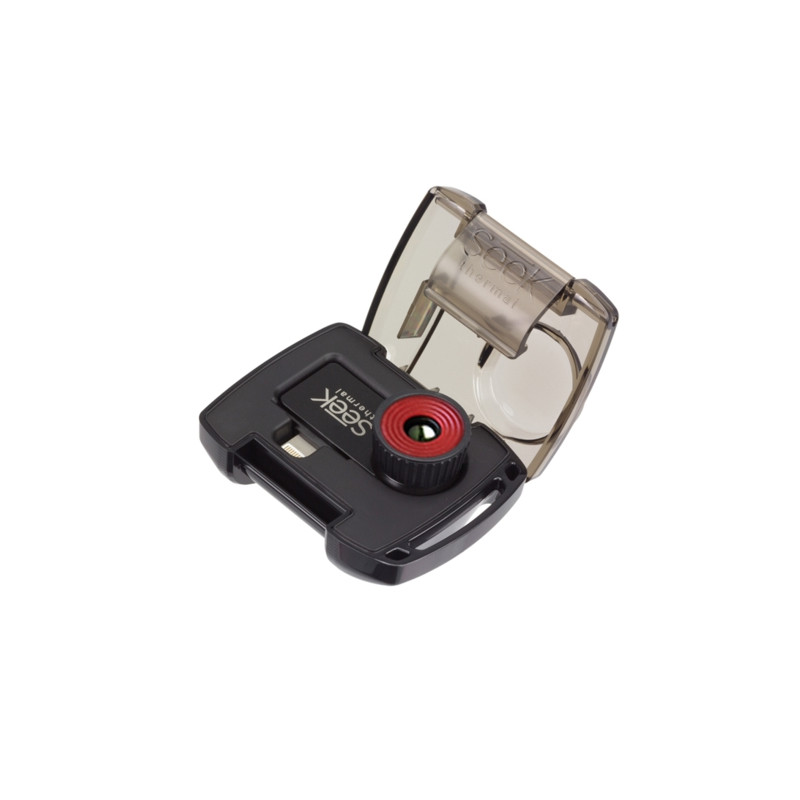

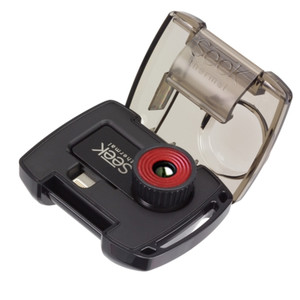

Waterproof Case that Protects
Comes with its own waterproof case to withstand the elements

Easily Document and Share
Record images and video of inspections for accurate documentation

Our expert comment:

This model is compatible to Apple devices iOS 8.0 and higher. Additional information can be found at the manufacters site here.
Stefan Rieger

Specifications

Capacity


Type of build
Smartphone adapter
Generation
Thermal imaging camera
Magnification
1
Detection distance (m)
550
Sensor resolution (Pixel)
320x240
Image display
Different versions
Image cycle rate (Hz)
> 15

Special features


Infrared illuminator
-
Digital imaging
yes
Video connection
-
Headmount
-
Day-night-system
yes
Splash-proof
-
Threaded tripod connector
-
ancillary lenses available
no

Field of view


True field of view (°)
32
Field of view at 100 m (m)
56
Close focus limit (m)
0,3

Area of application


Object protection & observation
yes
Hunting & and nature observation
yes
Navigation & Fishing
yes
Cave exploration & Camping
yes

General


Colour
black
Length (mm)
44
Width (mm)
25
Height (mm)
25
Weight (g)
14
Series
CompactPRO
