Microscopy > Microscopes > Digital microscopes > Upright microscopes > Euromex > EcoBlue > Euromex Microscope EcoBlue EC.1005, mono, digital, 5MP, achromatic, 40x, 100x, 400x, LED
Product no.: 75734

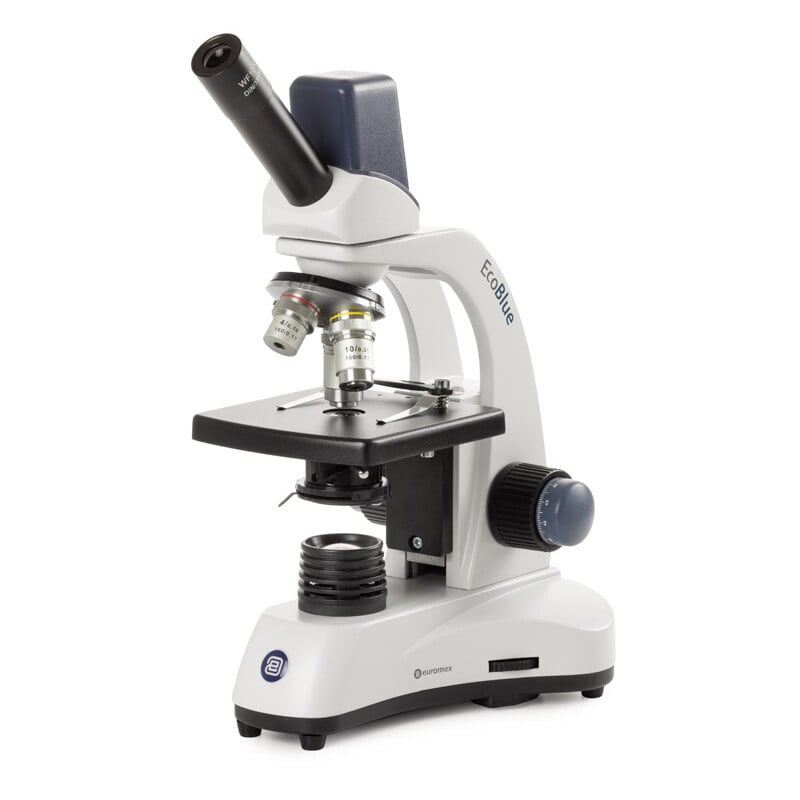

Microscope EcoBlue EC.1005, mono, digital, 5MP, achromatic, 40x, 100x, 400x, LED

$ 640.00 incl. VAT plus shipping costs
too expensive?
short-term
ready for shipping in 3-5 weeks + lead time

Product description

More about the series EcoBlue...

EcoBlue Digital

As these microscopes have an integrated camera, they offer a compact solution for displaying microscope images. The software supplied enables the user to display live images on a computer screen or projector and to perform various measurement functions.

  • Monocular models
  • 360° rotatable head
  • WF 10x/18 mm eyepiece with pointer
  • Quadruple lens turret
  • Achromatic DIN 4x 10x 20x S40x S60x and S100x oil lenses
  • Equipped with APL (anti-bacterial protection layer) and AR (anti-reflection layer)
  • 123 x 119 mm table with two object clamps
  • Optional 50 x 30 mm X/Y cross table
  • Height-adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
  • 1W LED lighting with integrated 100-240 V power pack
  • 5.0 MP CMOS USB-2 camera

CAMERA

• Maximum resolution 2560 x 1920, 24-bit colour depth, up to 30 frames per second

• Supplied with ImageFocus Plus software, USB-2 cable and micrometer 1 mm/100 slide

• The camera is guaranteed for 2 years

SOFTWARE

• With the ImageFocus Plus software for capturing and analysing images, images can be saved in JPG, TIF or BMP format and videos in AVI format

• Images can be annotated and measurements can be taken on live or recorded images

• Compatible with Windows 7, 8, 10 and 11, 32-bit and 64-bit configurations

• A Mac OS Light version is also available for capturing images

• Updates can be downloaded from the website www.euromex.com

Specification EC.1005

  • monocular
  • Objectives: 4x / 10x / S40x
  • LED

Specifications

Optics


Image scale
40-400
Condensor
NA 1.25 Abbe condenser with iris diaphragm and filter holder, height-adjustable
Lamp type
LED
Lens type
Achromatic
Eyepiece
10x/18 (Widefield)
Power supply
85-240V, built-in battery charger, detachable power cord
Magnification
40x, 100x, 400x
Objective 1
achrom., 4x/0.10
Objective 2
achrom. 10x/0.25
Objective 3
achrom. S40x/0.65

Capacity


Brightness control
yes

Mechanics


Viewing posture (°)
45° oblique viewing
Specimen stage
Cross table (123 x 119 mm)
Focusing
Coarse and fine movement (coaxial, with 0.002 mm division)
Type of build
Digital

Special features


Rechargeable battery operation
yes
Filter holder
yes
Dust cover bag
yes
Built-in digital camera
yes (3.2 MP USB-2)

General


Series
EcoBlue

Suitable for


Beginners
yes

Field of application


Hobby
yes
Education
yes

Miscellaneous


supplier product number
EC.1005

Product safety

Manufacturer: Euromex Microscopen bv, Papenkamp 20, 6836 BD Arnhem, NL, http://www.euromex.com (neu), http://www.euromex.nl/de
