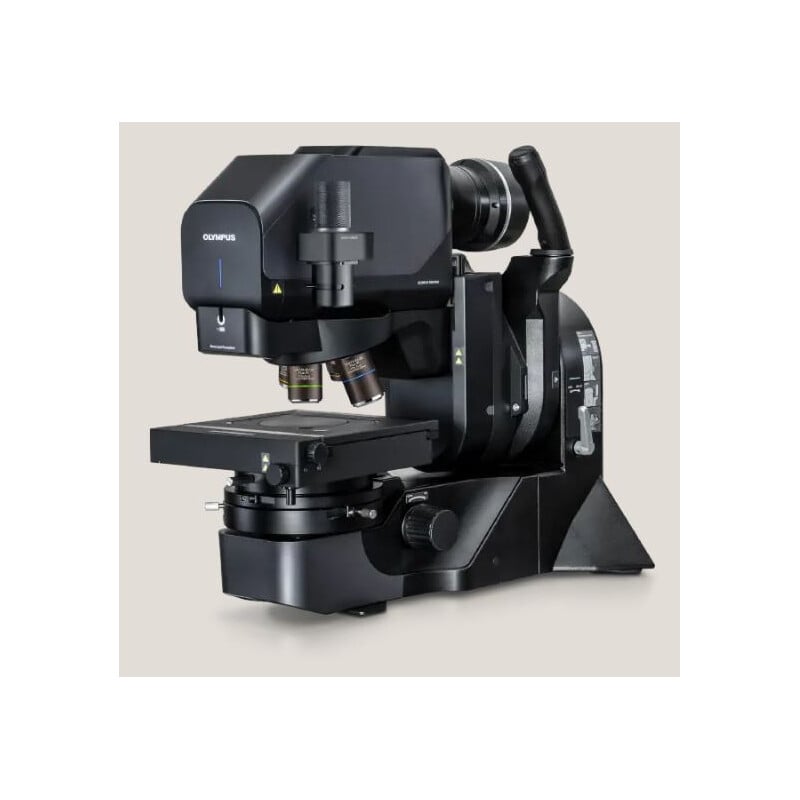

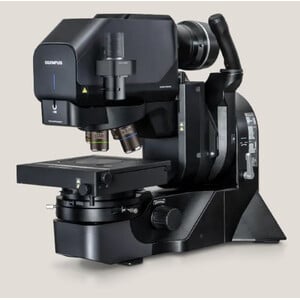

Olympus DSX2000 Digital Microscope with Standard Zoom Head – Flexible precision for demanding inspections
The Olympus DSX2000 with standard zoom head (DSX20-SZH) is a sophisticated digital microscope designed specifically for the demands of research, quality assurance and industrial analysis. The configuration offers a balanced combination of flexibility, intuitive operation and high-resolution imaging.
This system is based on a robust DSX20-UF upright frame and is equipped with a precise DSX20-SZH standard zoom head. The optical zoom is motorised with a range of 1x to 10x, enabling seamless transitions between overview and detail views. Two objectives – DSX10-XLOB3X, DSX10-XLOB10X and DSX10-XLOB20X – offer a finely tuned selection of magnifications for a wide variety of sample types. The DSX10-LAXL objective carrier ensures fast and secure objective changes.
The integrated motorised XY stage (DSX20-TMTS) with high positioning accuracy and 100 x 100 mm travel range enables precise movements even for complex inspection tasks. A dust cover protects the system when not in use.
Thanks to the combination of PRECiV™ software and features such as automatic calibration, live autofocus and various observation methods (including bright field, dark field, polarization, oblique light and shaded relief), every inspection becomes a precise and reproducible routine.
The software licence (PV-DSX-2.2-EL) included in the scope of delivery, as well as remote installation support (DSX20__-D0-CINS) and remote support (SER-IE-1-HOUR-REMOTE-D), ensure a quick start and maximum system availability.
Highlights of this configuration:
- High-resolution CMOS camera with up to 8192 × 6000 Pixels of resolution (4K/Ultra mode)
- Ergonomic design with simple user guidance
- Numerous observation methods for a wide variety of materials and surfaces
- Quick lens change via slide nosepiece with up to 2 objectives mounted simultaneously
- Long-life LED lighting (60,000 hours of service life)
- Flexibly expandable with numerous Olympus accessories
This configuration is particularly suitable for users who are looking for a powerful yet intuitive microscope system – from incoming goods inspection to materials science research.
For further configurations, please contact our service department.
