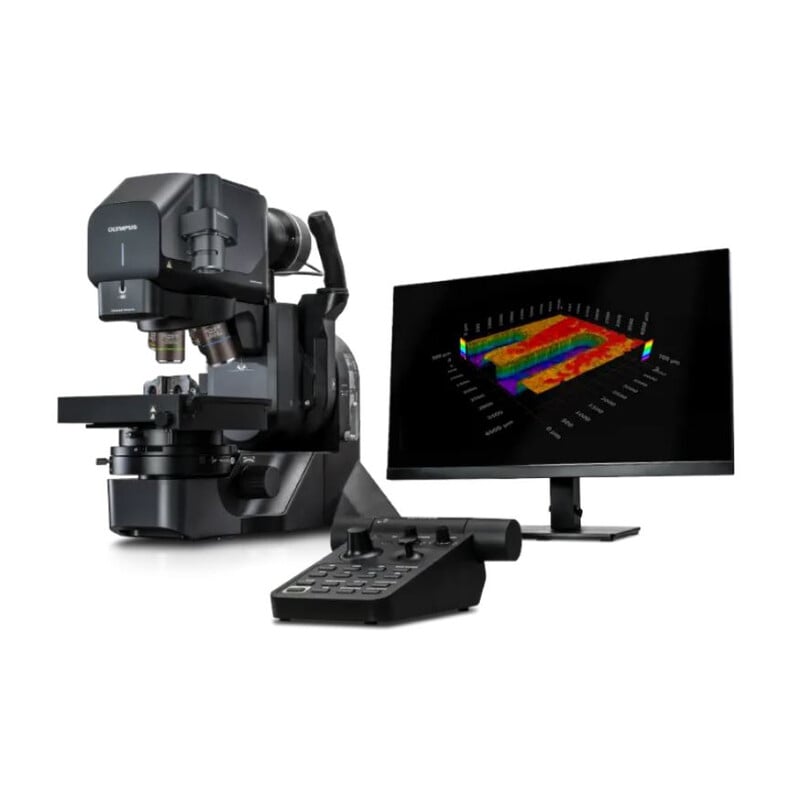

Olympus DSX2000 Digital Microscope with Standard Zoom Head – Flexible precision for demanding inspections
The Olympus DSX2000 with standard zoom head (DSX20-SZH) is a sophisticated digital microscope designed specifically for the demands of research, quality assurance and industrial analysis. The configuration offers a balanced combination of flexibility, intuitive operation and high-resolution imaging.
This system is based on a robust DSX20-UF upright frame and is equipped with a precise DSX20-SZH standard zoom head. The optical zoom is motorised with a range of 1x to 10x, enabling seamless transitions between overview and detail views. Two objectives – DSX10-XLOB3X, DSX10-XLOB10X and DSX10-XLOB20X – offer a finely tuned selection of magnifications for a wide variety of sample types. The DSX10-LAXL objective carrier ensures fast and secure objective changes.
The integrated motorised XY stage (DSX20-TMTS) with high positioning accuracy and 100 x 100 mm travel range enables precise movements even for complex inspection tasks. A dust cover protects the system when not in use.
Thanks to the combination of PRECiV™ software and features such as automatic calibration, live autofocus and various observation methods (including bright field, dark field, polarization, oblique light and shaded relief), every inspection becomes a precise and reproducible routine.
The software licence (PV-DSX-2.2-EL) included in the scope of delivery, as well as remote installation support (DSX20__-D0-CINS) and remote support (SER-IE-1-HOUR-REMOTE-D), ensure a quick start and maximum system availability.
Highlights of this configuration:
- High-resolution CMOS camera with up to 8192 × 6000 Pixels of resolution (4K/Ultra mode)
- Ergonomic design with simple user guidance
- Numerous observation methods for a wide variety of materials and surfaces
- Quick lens change via slide nosepiece with up to 2 objectives mounted simultaneously
- Long-life LED lighting (60,000 hours of service life)
- Flexibly expandable with numerous Olympus accessories
This configuration is particularly suitable for users who are looking for a powerful yet intuitive microscope system – from incoming goods inspection to materials science research.
For further configurations, please contact our service department.
Technical data – DSX2000 Entry (standard zoom head)
Microscope frame
- Model: DSX20-UF (upright frame)
- Z-travel (manual): 50 mm
- Tilt function: Not available on this model (configurable on request)
- Max. sample height: up to 115 mm with XLOB objectives
- Stage load capacity: 5 kg
Zoom head
- Model: DSX20-SZH (standard zoom head)
- Optical system: Telecentric
- Zoom range: 1x–10x (motorised)
- Lens changer: Manual slide system for 2 lenses
Supported observation methods:
- Brightfield (HF/BF)
- Dark field (DF) (available)
- Oblique (OBQ)
- MIX (BF+DF) (available)
- Polarization (PO)
- Shaded relief (SR)
- DIC not available with SZH model (available on request with other configurations)
lenses
DSX10-XLOB3X
- Magnification: approx. 43.8–438.4x
- Working distance: 30.0 mm
- NA: 0.09
- Field of view: 866 × 634 μm
DSX10-XLOB10X
- Magnification: approx. 146.1–1,461x
- Working distance: 30.0 mm
- NA: 0.30
- Field of view: 260 × 190 μm
DSX10-XLOB20X
- Magnification: approx. 292.3–2,923x
- Working distance: 20.0 mm
- NA: 0.40
- Field of view: 130 × 95 μm
Lens holder
Model: DSX10-LAXL – Lens adapters for XLOB objectives (pair)
lighting
Light source: High-power LED, white
Service life: 60,000 hours (design value)
Light control: Software-controlled
camera
Sensor: 1.1" CMOS, 12.37 MP, global shutter
Cooling: Peltier
Image modes:
Full HD: 1920 × 1080 (16:9)
4K: 3840 × 2160
Super High: up to 4096 × 3000
Ultra (pixel shift): up to 8192 × 6000 (not with SZH)
Motorised stage
Model: DSX20-TMTS
Type: Motorised XY stage with transmission unit
Travel range: 100 × 100 mm
Resolution: high precision for microscopic applications
With integrated transmitted light for PO, BF, OBQ, DF (optional)
Software & accessories
Software licence: PRECiV microscope control software specifically for the DSX1000 digital microscope
Connection cable: UYCP
Installation: DSX20__-D0-CINS (installation package)
Support: SER-IE-1-HOUR-REMOTE-D (remote support hour)
Dust covers: included in delivery
The combination of state-of-the-art optics, intuitive PRECiV™ software, a powerful workstation (HP Z2 G9) and a 27" Full HD monitor provides a comprehensive solution – from sample to report.
