OBE Series
The KERN OBE Allround transmitted light microscopes are a complete digital solution for schools, training and laboratories.
- The laboratory microscopes of the OBE series are also available as a complete digital solution with an adapted C-mount camera for your live examination.
- The appropriate C-mount adaptor is of course included in the delivery.
- The adapted C-mount camera is available in different versions and is universally applicable.
- A dust cover, eyepiece cups and multilingual operating instructions are included in the scope of delivery.

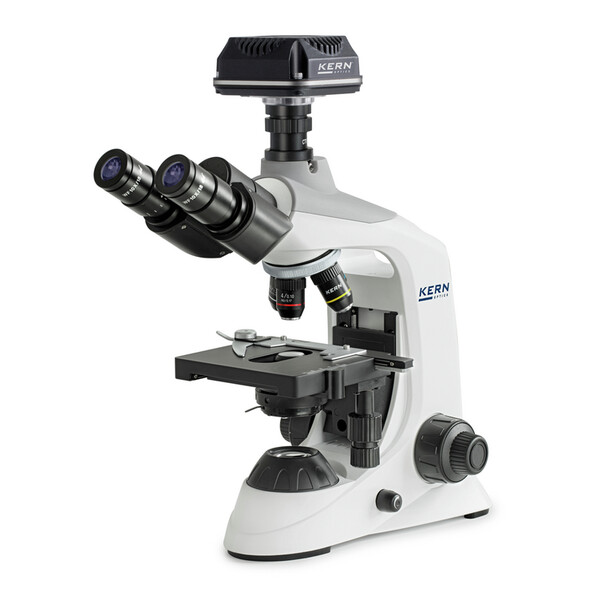

OBE 124
- The KERN OBE 124 stands out thanks to its exclusive and dynamic design, which is unbeatable in terms of robustness and ergonomics. The smart storage compartment on the back allows you to quickly and conveniently stow away your power cables. Power can also be supplied via an external power bank thanks to USB connection technology.
- The impressive and continuously dimmable 3W LED ensures brilliant illumination of your sample. Another highlight is the integrated butterfly tube, which is included as standard and gives you the ideal viewing angle. The height-adjustable and therefore focusable 1.25 Abbe condenser with aperture diaphragm is another quality feature of the OBE series and guarantees optimum light focusing. The height of the fully equipped cross table can be adjusted using a coarse and fine drive on both sides. The specimen can be moved and worked on quickly using the ergonomically designed coaxial drive.
ODC 823
- Thanks to proven CMOS technology combined with USB 2.0, images are displayed quickly and clearly.
- These cameras are also suitable for more demanding applications, such as dark field, phase contrast and fluorescence applications.
- Optimal synchronisation, a high frame rate and stable image performance in conjunction with our supplied Microscope VIS software will make your daily work much easier
- Power is supplied via the USB cable, so no additional power supply is required
